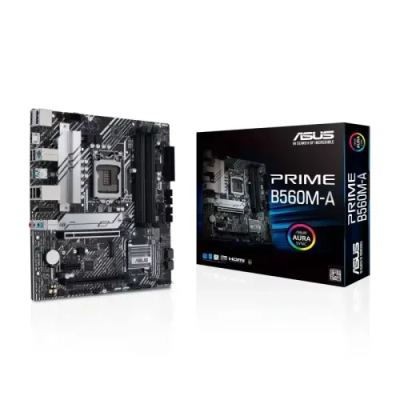

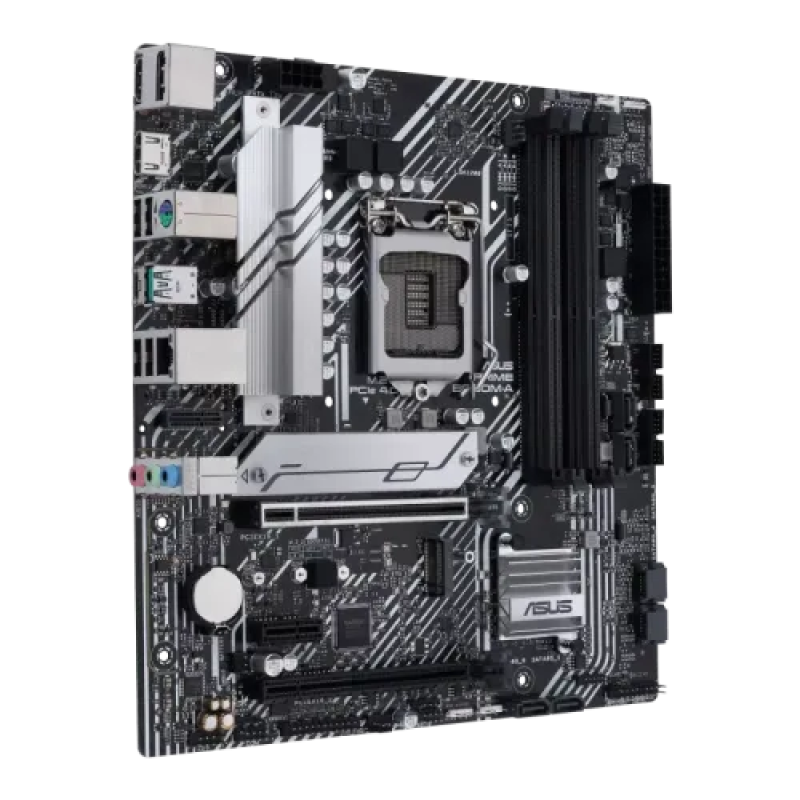

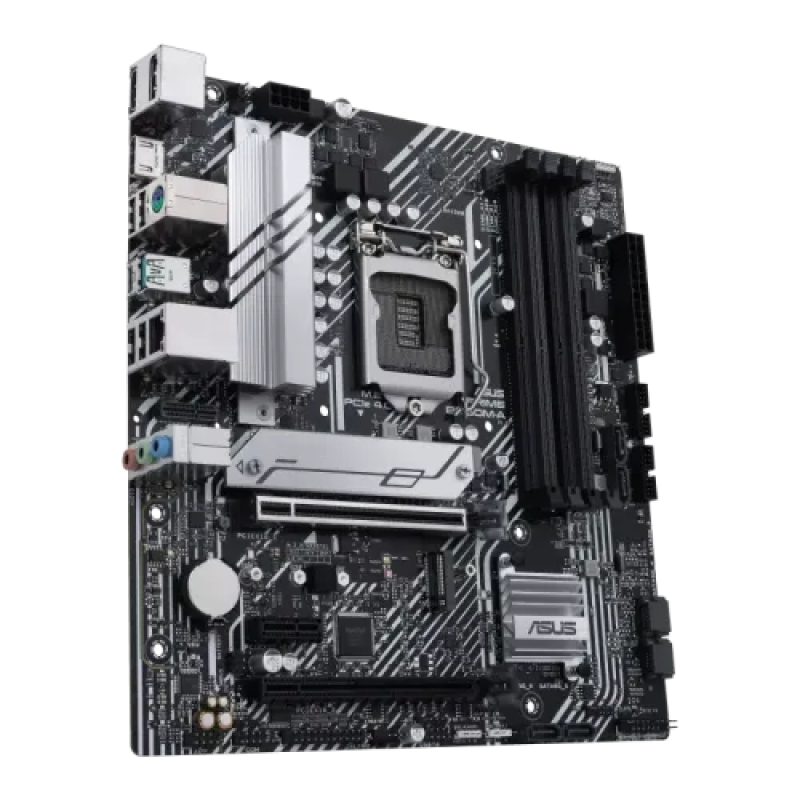

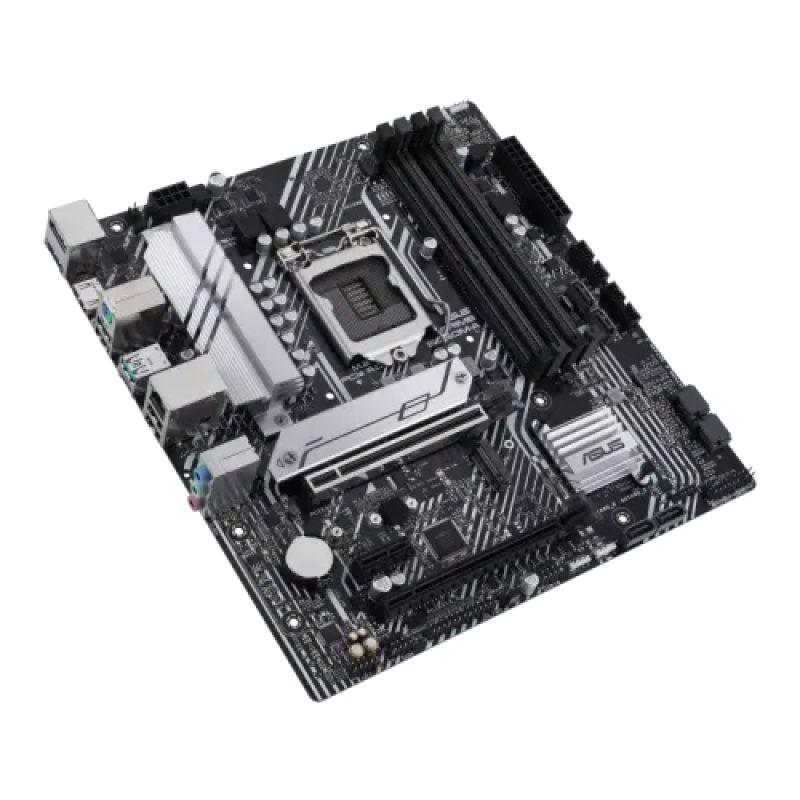

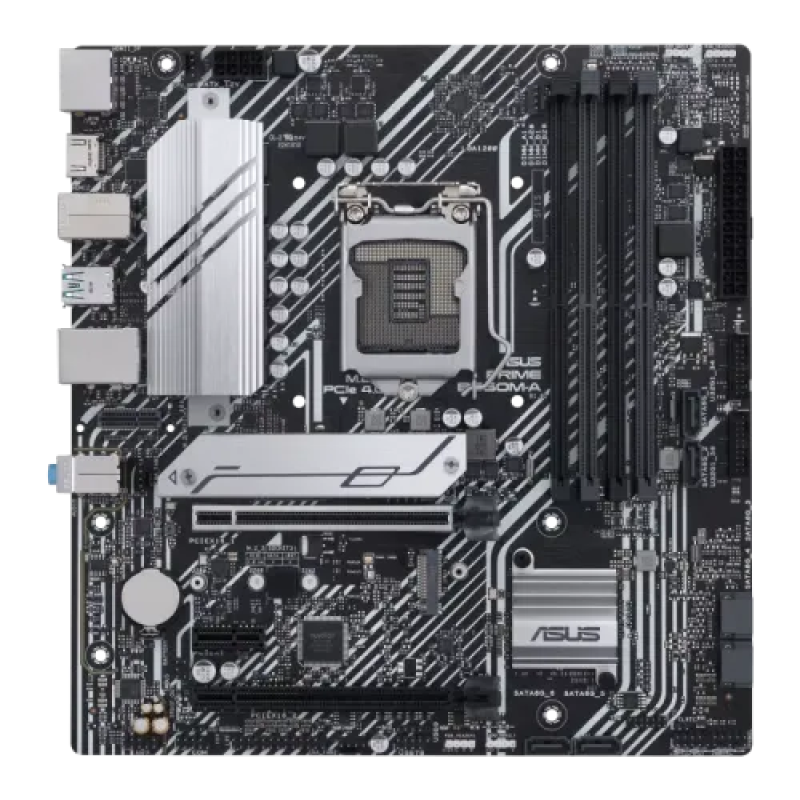

ASUS PRIME B560M-A 10th and 11th Gen Micro-ATX Motherboard

Regular Price 14,500৳
Product Code 157
Brand Asus
Short Details
  • Model: PRIME B560M-A
  • Supported CPU: LGA 1200 socket for 11th & 10th Gen Intel Core processors
  • Supported RAM: DDR4 up to 5000 MHz
  • Graphics Output: 1x DisplayPort, 1x HDMI
  • Features: Intel 1Gb Ethernet
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU Intel LGA 1200 socket: Ready for 11th Gen Intel Core processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset B560
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Form Factor microATX
24.4cm x 23.4cm
Audio - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"

Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
Expansion Slots
PCI Intel 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)
- Intel 11th Gen processors support PCIe 4.0 x16
- Intel10th Gen processors support PCIe 3.0 x16

Intel B560 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
Memory
Type DDR4
Supported Memory 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Graphics
Graphics 1 x DisplayPort
2 x HDMI port
* Graphics specifications may vary between CPU types.
** Intel 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.
*** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.
Connector & Ports
HDMI 2 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB:Total 6 ports
2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C)
4 x USB 2.0 port(s) (4 x Type-A)

Front USB:Total 7 ports
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports
LAN Port (s) 1 x Intel 1Gb Ethernet
ASUS LANGuard
Supported Storage Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel11th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel B560 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
6 x SATA 6Gb/s ports
Audio 3 x Audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
2 x 4-pin Chassis Fan header(s)

Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports

USB
2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports
1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports

Miscellaneous
2 x AURA Addressable Gen 2 header(s)
2 x AURA RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
Others
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- Flexible M.2 heatsink
- VRM heatsink design

AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
Bundled Software ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty 3 Years

Description

ASUS PRIME B560M-A 10th and 11th Gen Micro-ATX Motherboard

ASUS PRIME B560M-A Motherboard features Intel LGA 1200 socket for 11th Gen Intel Core processors. It comes with an enhanced power solution with 8 power stages, alloy chokes, and durable capacitors for stable power delivery. It features comprehensive cooling with a stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+. The ASUS PRIME B560M-A packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. This motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. In this motherboard, the VRM heatsink with an underneath thermal pad improves heat transfer from the MOSFETs for better cooling performance. Here, Stable power is essential to extract every last bit of performance out of 11th Generation Intel Core processors. ASUS PRIME B560M-A is geared to cater to the demands of these high-core count CPUs. A VRM with 6+1+1 Power Stages delivers the power and efficiency that the latest Intel processors demand. Prime B560M-A offers a total of two M.2 slots, with one slot supporting data-transfer speeds of up to 64 Gbps via PCI Express 4.0, enabling quicker boot-up and app load times with OS or application drives. ASUS B560 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options. The ASUS PRIME B560M-A 11th Gen Motherboard comes with 3 years warranty.

What is the price of ASUS PRIME B560M-A 11th Gen Motherboard in Bangladesh?

The latest price of ASUS PRIME B560M-A 11th Gen Motherboard in Bangladesh is 14,500৳. You can buy the ASUS PRIME B560M-A 11th Gen Motherboard at best price from our website or visit any of our showrooms.
