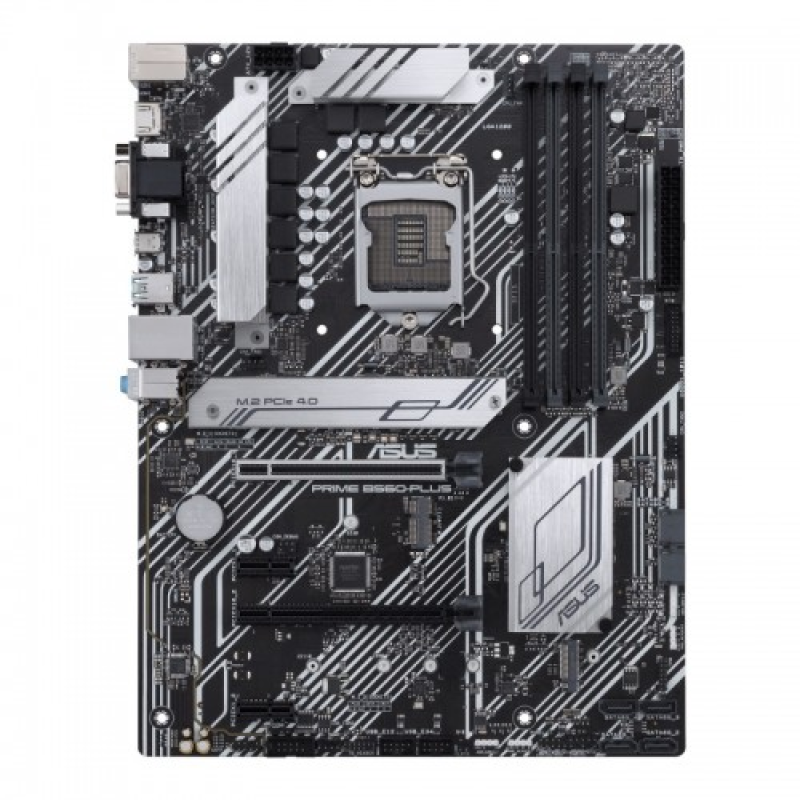

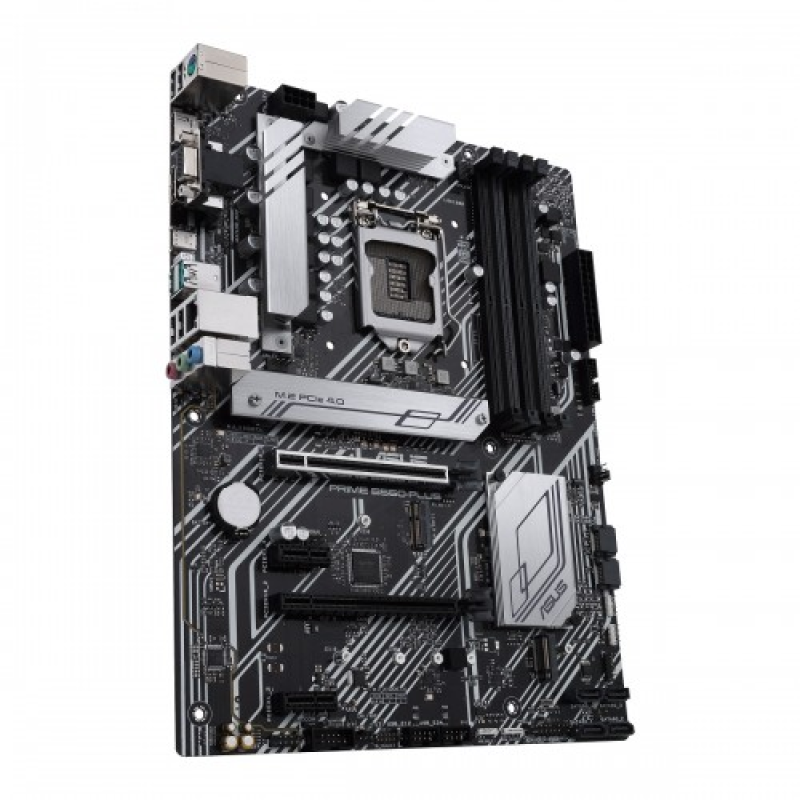

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard

Regular Price	14,500৳
Product Code	4899
Brand	Asus

Short Details

Model: Prime B560-PLUS
Supports 10th and 11th Gen Intel Core Processors
5X Protection III
Ultrafast connectivity
Comprehensive cooling

More Info

14500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B560 Express Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX: 30.5cm x 23.4cm
Expansion Slots
PCI	Intel 11th &10th Gen Processors 1 x PCIe 4.0/3.0 x16 slot - Intel 11th processors support PCIe 4.0 x16 - Intel10th processors support PCIe 3.0 x16 Intel B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots
M.2 Socket	Intel 11th Gen Processors - M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset - M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	11th Gen Intel processors support 2933/ 2800/ 2666/ 2400/ 2133 natively. 10th Gen Intel Core i7/ i9 processors support 2933/ 2800/ 2666/ 2400/ 2133 MHz natively, others will run at the maximum transfer rate of DDR4 2666MHz 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered memory Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) ASUS OptiMem
Maximum Memory	128 GB (32 GB single DIMM capacity)
Graphics
Graphics	1 x DisplayPort 1.4 1 x D-Sub 1 x HDMI 1.4/2.0
Connector & Ports
HDMI	1 x HDMI 1.4/ 2.0
Display Port (s)	1 x DisplayPort 1.4
D-Sub (s)	1 x D-Sub

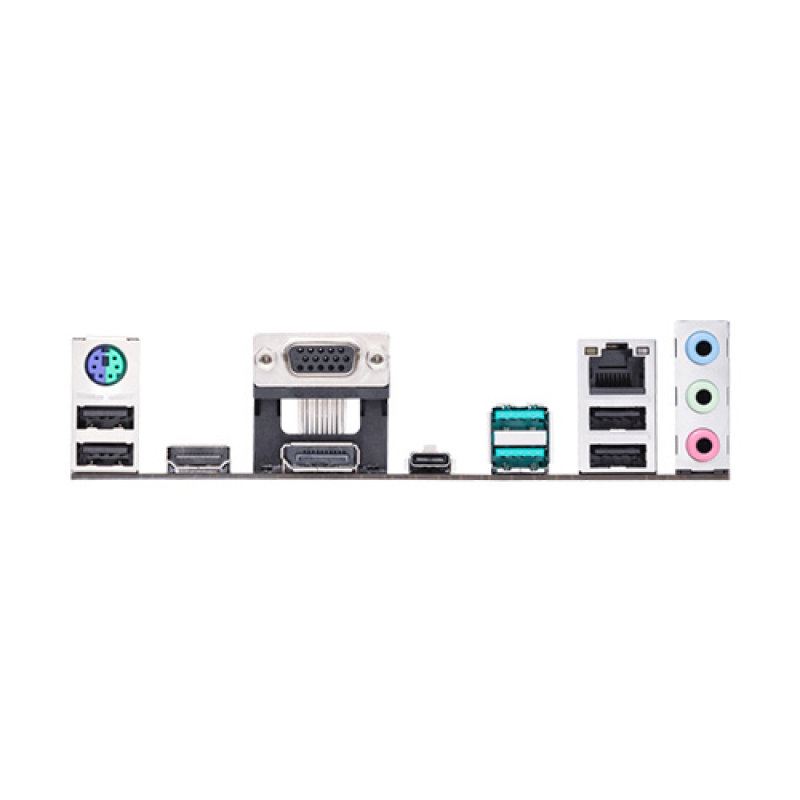

USB (s)	2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x USB Type-C) 4 x USB 2.0 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel I219-V 1Gb Ethernet ASUS LANGuard
Supported Storage	Intel 11th Gen Processors - M.2_1 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 4.0 x 4 ) - Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel B560 Chipset - M.2_2 slot (Key M) type 2242/ 2260/ 2280/ 22110 (supports PCIE 3.0 x 4 & SATA mode modes) - 6 x SATA 6Gb/s ports
Audio	Realtek ALC897 7.1-Channel High Definition Audio CODEC Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192kHz playback Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers
Internal I/O Ports	Fan and cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS jumper 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF out header 1 x 20-3pin System Panel header with Chassis intrude function 1 x M.2 slot (key E) 1 x Thunderbolt 4 header
TPM (Trusted Platform Module )	1 x SPI TPM header (14-1 pin)
Others
Special Features	Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe)
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboard

Asus Prime B560-PLUS Intel 10th and 11th Gen ATX Motherboards are expertly engineered to unleash the full potential of 10th and 11th Generation Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B560-PLUS provides daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. Comprehensive controls form the foundation of the ASUS Prime series. The Asus Prime B560-PLUS 11th Gen Motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work, to maximize productivity. The motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws and can be moved to other M.2 slot. The motherboard is built to handle the additional cores and increased bandwidth of 11th Generation Intel Core processors. ASUS Asus Prime B560-PLUS 11th Gen Motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips connected to the onboard RGB headers â€” and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

What is the price of Asus Prime B560-PLUS 11th Gen Motherboard in Bangladesh?

The latest price of Asus Prime B560-PLUS 11th Gen Motherboard in Bangladesh is 14,600৳. You can buy the Asus Prime B560-PLUS 11th Gen Motherboard at best price from our website or visit any of our showrooms.
