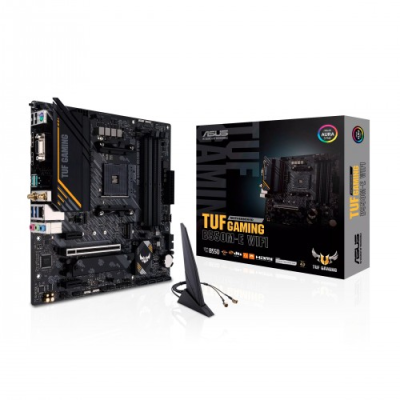

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard

Regular Price 18,400৳
Status In Stock
Product Code 249
Brand Asus
Short Details
null
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Specification

Basic Information
Supported CPUAMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
ChipsetAMD B550 Chipset
BIOS256 Mb Flash ROM, UEFI AMI BIOS
Form FactormicroATX
24.4cm x 24.4cm
Expansion Slots
PCIAMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen 5000 G-Series/ 4000 G-Series Desktop Processors:
1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset:
2 x PCIe 3.0 x1 slots
Memory
TypeDDR4
Slots4 x DIMM
Supported Memory4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory

Dual Channel Memory Architecture
Maximum Memory128GB
Graphics
Graphics1 x DisplayPort 1.2
1 x D-Sub
1 x HDMI 2.1 (4K@60Hz)
Connector & Ports
HDMI1 x HDMI 2.1(4K@60HZ)
Display Port (s)1 x DisplayPort 1.2
D-Sub (s)1 x D-Sub
USB (s)2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 connector (supports USB Type C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)1 x Realtek 1Gb Ethernet
TUF LANGuard
Wireless Communication module2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.1
* Bluetooth v5.1 function will be ready in Windows 10 build 19041 or later.
Supported StorageAMD Ryzen 5000 Series/ 3000 Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen 4000 G-Series Desktop Processors:
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports
Support RAID 0, 1, 10
Internal I/O PortsFan and Cooling related:
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers

Power related:
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector

Storage related:
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB:
1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous:
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
TPM (Trusted Platform Module )1 x SPI TPM header (14-1pin)
Others
Special FeaturesASUS TUF PROTECTION
- DIGI+ VRM
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O

ASUS Q-Design
- Q-DIMM
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED

AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Bundled SoftwareASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
AI Suite 3
- Performance and Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert 2+
- EZ update
TUF GAMING CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS Custom for GAMING Headsets
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty3 Years

Description

Asus TUF GAMING B550M-E WIFI AMD AM4 microATX Motherboard

The Asus TUF GAMING B550M-E WIFI Motherboard comes with AMD AM4 Socket ready for Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster memory and storage, TUF Gaming B550M-E is the perfect foundation for your next high-core-count battle rig. The onboard VRM of TUF Gaming B550M-E utilizes 8+2 DrMOS power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that 3rd Gen AMD Ryzen Processors demand. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B550M-E provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. 2.5G onboard Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage of this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos, and enjoy faster file transfers. Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, allows you to configure application priority via an intuitive interface and reduces network lag. The Asus TUF GAMING B550M-E WIFI comes with 3 years of warranty.
