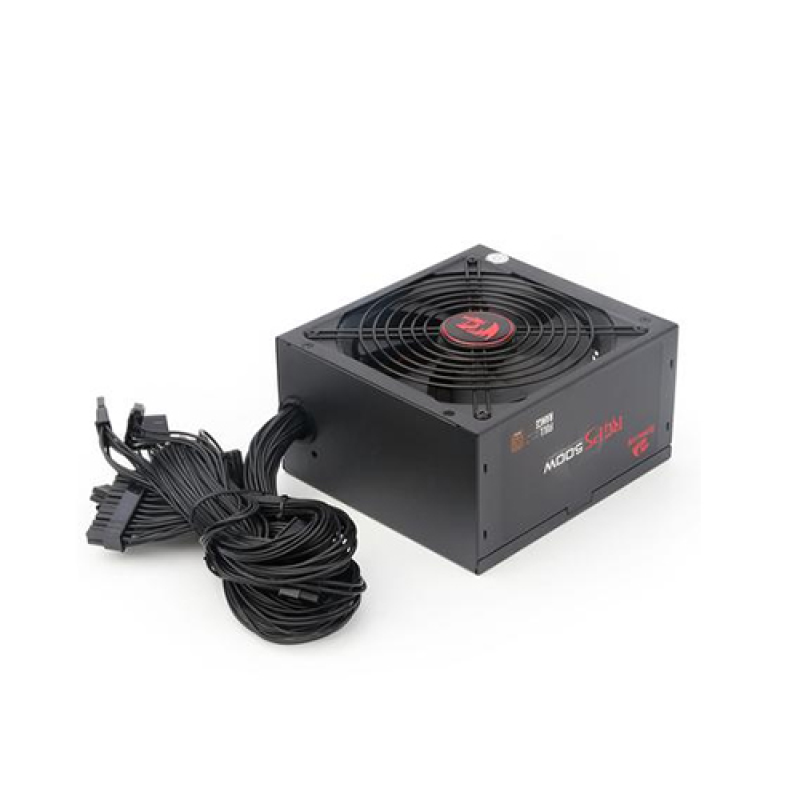

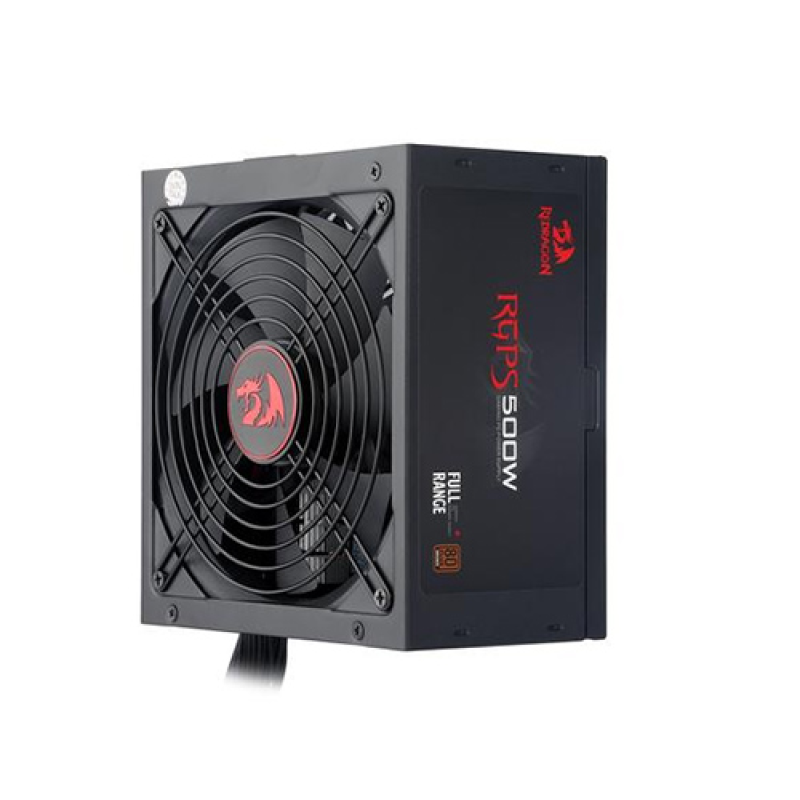

Redragon RGPS GC-PS001 500W 80 Plus Bronze Non-Modular Power Supply

Regular Price	3,600৳
Product Code	4901
Brand	Redragon

Short Details

Model: GC-PS001
Stable Power Supply
80Plus Bronze certification
140mm diameter fan
Over Voltage Protection

More Info

3600৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Features
Continuous Power	500W
Efficiency (Approx.)	80%
Certification	80 Plus Bronze
Fan Size	140mm on the top side
Others	Over Voltage Protection(OVP) Under Voltage Protection (UVP) Short Circuit Protection(SCP) Over Load Protection(OLP)
Input
Voltage	100V and 240V
Frequency Range	47Hz to 63Hz
Current	Input Current: 10A @ 100VAC / 10A @ 240VAC Load Range:+3.3V@15A; +5V@22A; +12V@50A; -12V@0.3A; +5VSB@2.5A +12V Rails: 1
Output
Modular Type	Non-modular
Total Power	500W
Peak Power	500W
AC Input	10A @ 100VAC / 10A @ 240VAC
Connector
Main Power	500W
PCI-E	PCI-Express Power Connectors, fully support SLI & CrossFire Systems
SATA	SATA Connector: 6
Molex	Molex Connector: 3
Warranty Information
Manufacturing Warranty	02 Years

Description

Redragon RGPS GC-PS001 500W 80 Plus Bronze non-modular power supply

Redragon power supplies provide the ideal balance of price and performance. Redragon GC-PS001 500W 80 Plus Bronze non-modular power supply is another fine example of this. This 500W 80 Plus Bronze non-modular power supply switching power supply with PCI-Express Power Connectors. It also supports SLI and Cross-fire Systems. It has a Single plus 12V output rail which offers a maximum compatibility for demand.

Certified non-modular Power supply

Redragon GC-PS001 500W Non-modular power supply has a 80 PLUS Bronze Certification. This ensures maximum energy efficiency and minimal heat production.The energy Efficiency is around 85% and the typical input voltage is 100V to 240V. The Frequency Range is 47Hz to 63Hz with 10A at 100VAC and 10A at 240VAC Input Current. The load Range supported is 3.3V at 15Amp, plus 5V at 22Amp. It also has an I/O switch.It can deliver a plus 12V at 50A; minus 12V at 0.3Amp and 5VSB at 2.5A with a plus 12V Rail. This power supply also comes with built in comprehensive protection functions like Over Voltage Protection(OVP), Under Voltage Protection (UVP), Short Circuit Protection(SCP) and Over Load Protection(OLP). With a 140mm ultra quite cooling fan; The fan ensures enhanced airflow. With premium curcuit and Japan-made main capacitors, It has a lasting durable build. This capacitors also has a longer lifespan than regular electrolytic capacitors. it is a non-modular PSU with an easy installation and cable management Option with reduce clutter. It also has a Low-profile nylon sleeve cables for professional cable management build.

Drive and Power Specifications

Redragon GC-PS001 power supply has an ATX Connector with 20 plus 4 pin. The ATX Connector has a 4 plus 4 pin with 12V voltage capacity. The PSU has 4 graphics Connector of 6 plus 2 pin. It also supports the older Molex Connector and has 3 of them. but apart from all that This PSU has 6 SATA Connector with active PFC.

Physical Specification

The dimension of this power supply is 160 x 150 x 86 mm. This Power Supply's weight is 2.20kg.
Redragon GC-PS001 power supply has a warranty of 2 Years
