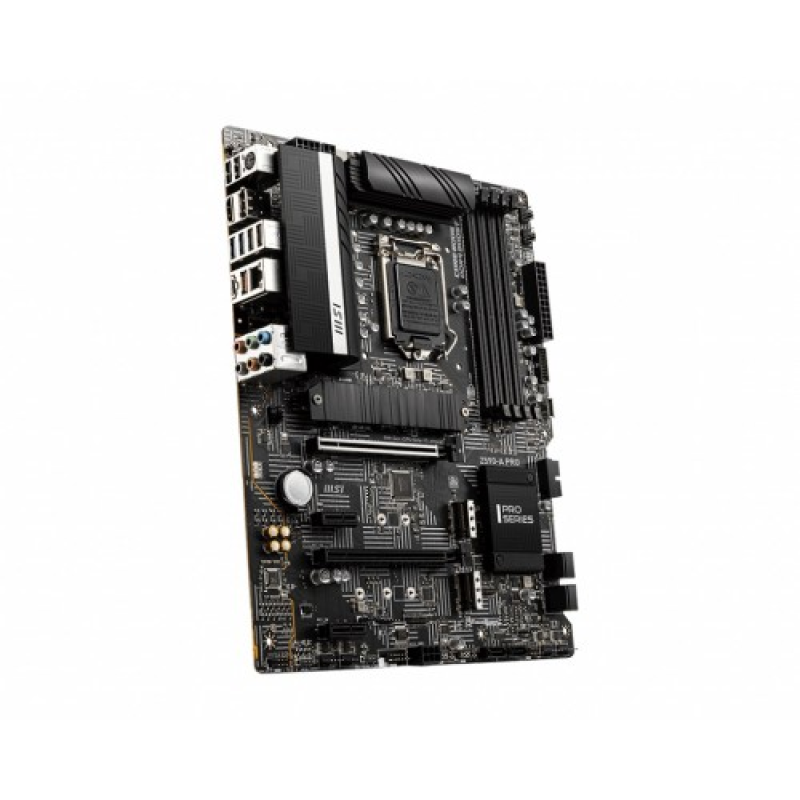

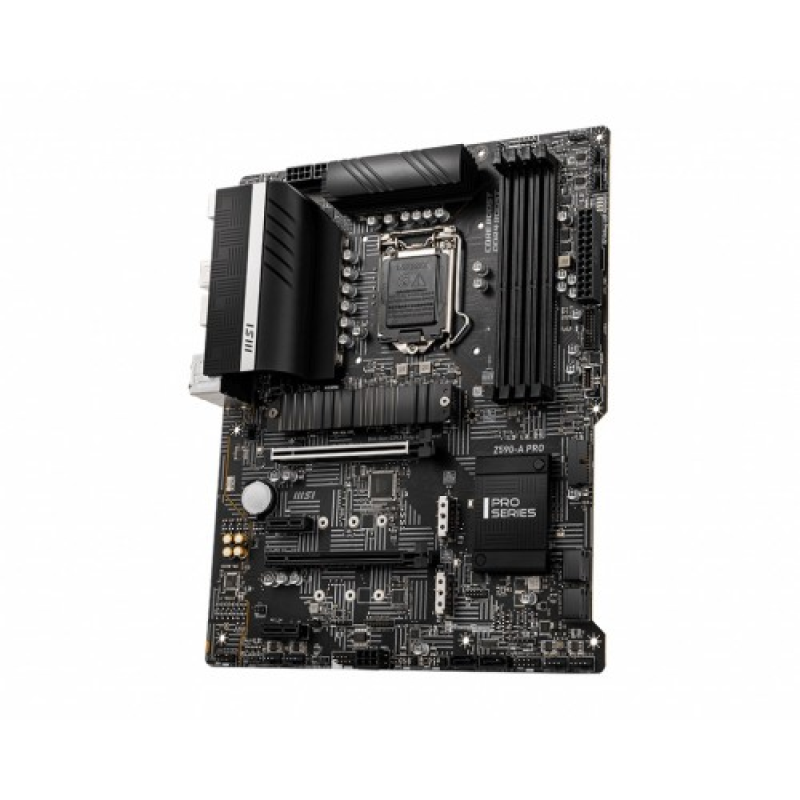

MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard

Regular Price	16,300৳
Product Code	118
Brand	MSI

Short Details

Model: Z590-A PRO
Supports 10th & 11th Gen Intel Core, Pentium Gold & Celeron processors
DDR4 Memory, up to 5333(OC) MHz
Premium Thermal Solution
LGA 1200 socket, 2.5G LAN

More Info

16300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium® Gold and Celeron Processors
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCIe x16 slots - Support x16/ x4 - PCI_E1 (from CPU) - Supports up to PCIe 4.0 for 11th Gen Intel® CPU - Supports up to PCIe 3.0 for 10th Gen Intel® CPU - PCI_E3 (from Z590 chipset) - Supports up to PCIe 3.0 - 2x PCIe 3.0 x1 slots (from Z590 chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	up to 128GB
Graphics
Graphics	x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports

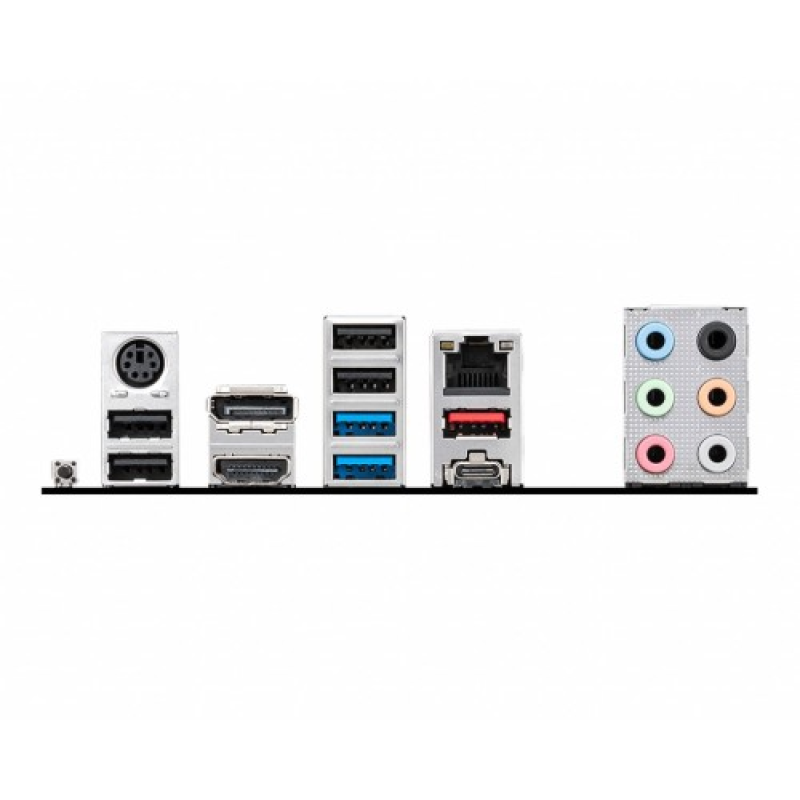

USB (s)	Intel Z590 Chipset - 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel - 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) - 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB 3.2 Gen 1 5Gbps connectors) USB 2.0 Hubs GL850G - 4x USB 2.0 Type-A ports on the back panel - 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)	1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 3x M.2 slots (Key M) - M2_1 slot (from CPU) - Available only on 11th Gen Intel CPU - Supports up to PCIe 4.0x4 - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_21, M2_32 slots (from Z590 chipset) - Support up to PCIe 3.0x4 - Support up to SATA 6Gb/s - Support 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready 3 Support Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 1x 6-pin ATX PCIe power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning controller connector 1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty

Description

MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard

The PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, it provides not only optimized professional workflows but also less troubleshooting and longevity. The MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) MHz, PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr, Intel Turbo USB 3.2 Gen 2. In this Motherboard Extended Heatsink Design and M.2 Shield Frozr are built for high-performance systems and non-stop works, Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It is powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and the fastest USB speeds, Reward your ears with studio-grade sound quality. It is designed with Steel armor PCI-E slots. Supports 2-Way AMD Crossfire. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards. This Motherboard2.5Gbps LAN provides incredible data transfer speed faster than the general Gigabit LAN. This is a premium solution for demanding users. Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, the PRO series motherboard is ready to sustain heavy daily work. The latest MSI Z590-A PRO Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI Z590-A PRO Intel 10th & 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI Z590-A PRO Intel 10th & 11th Gen ATX Motherboard in Bangladesh is 16,500৳. You can buy the MSI Z590-A PRO Intel 10th & 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
