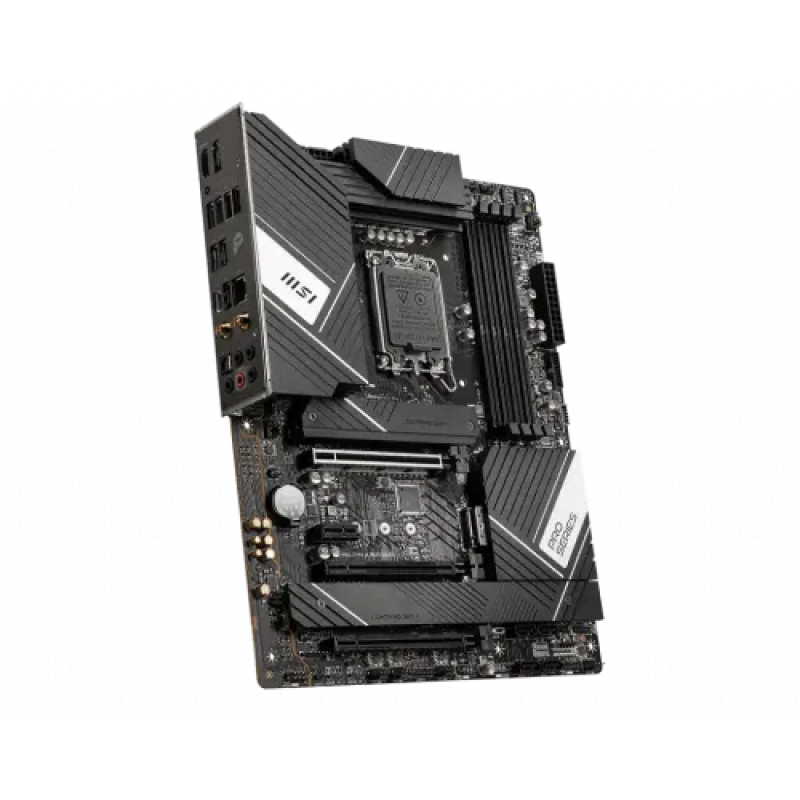

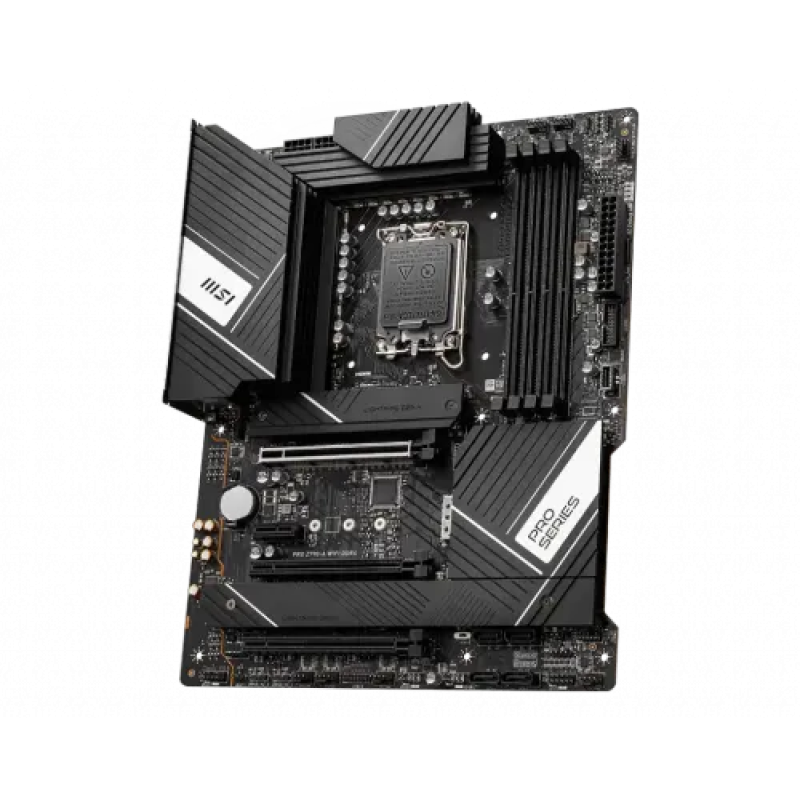

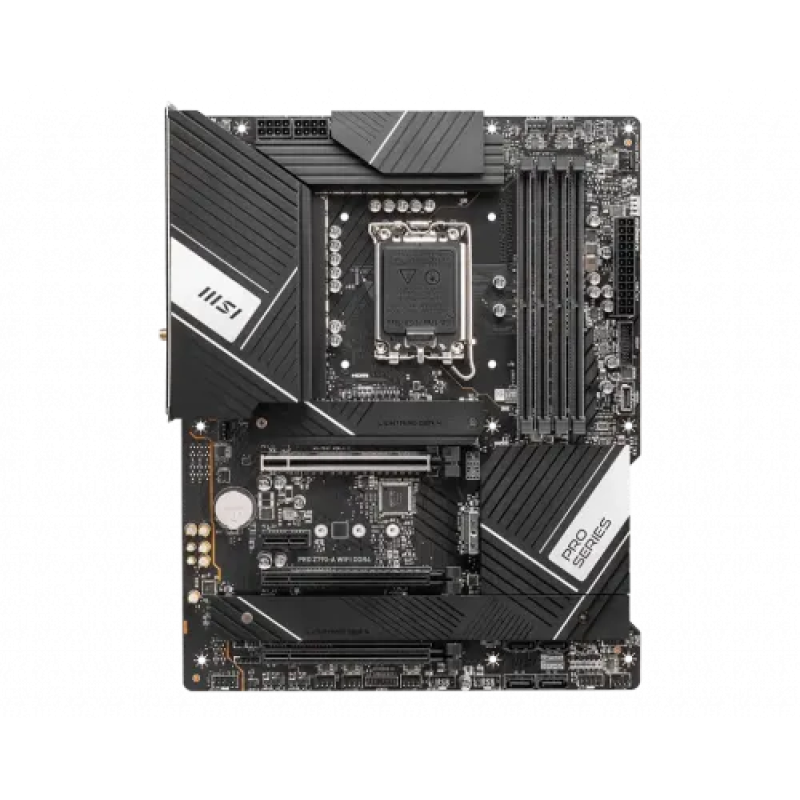

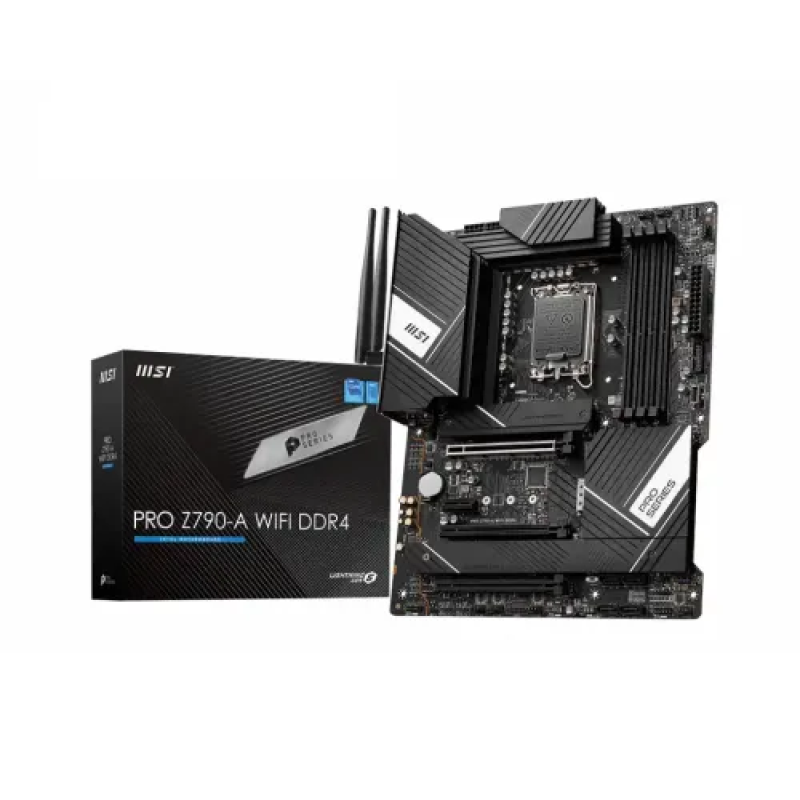

MSI PRO Z790-A WIFI DDR4 Intel 12th and 13th Gen ATX Motherboard

Regular Price	28,200৳
Status	In Stock
Product Code	142
Brand	MSI

Short Details

Model: PRO Z790-A WIFI DDR4
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR4, 5333+MHz (OC), Max 128GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5G LAN with Wi-Fi 6E Solution

More Info

28200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL Z790
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 PCIe 3.0 supports up to x1 (From Chipset)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 (By JEDCE & POR) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	4x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

MSI PRO Z790-A WIFI DDR4 ATX Motherboard

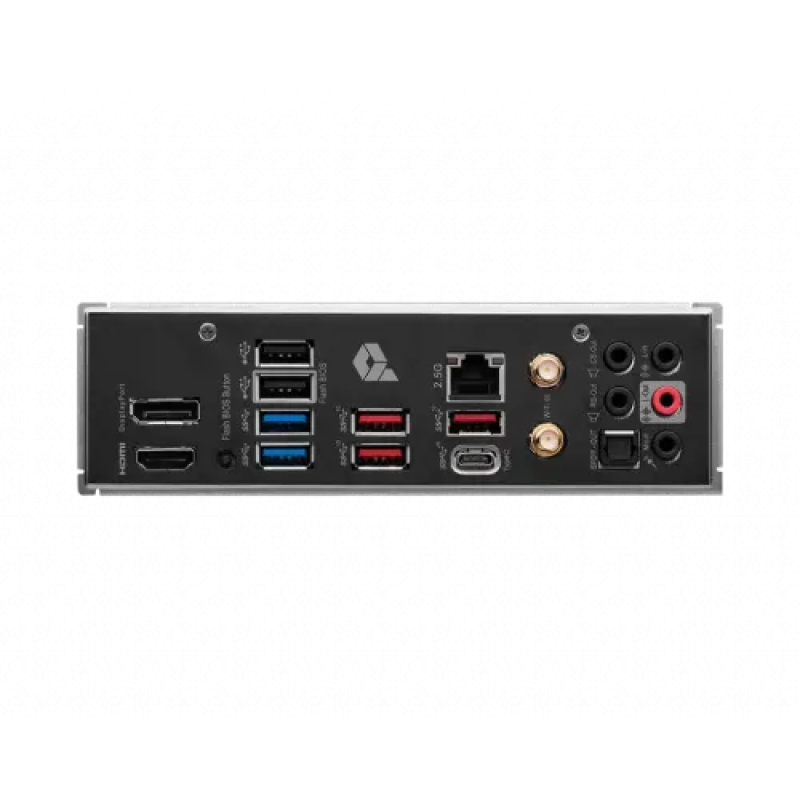

The MSI PRO Z790-A WIFI DDR4 ATX Motherboard supports LGA 1700 CPUs from the 12th/13th generation Intel Core, Pentium Gold, and Celeron families. This ATX motherboard, which uses the Intel Z790 chipset and the LGA 1700 socket, has four DDR4 RAM slots that allow twin-channel memory and speeds up to 5333 MHz when overclocked. Six SATA III connections and four M.2 interfaces give abundant storage space and enable RAID 0, 1, 5, and 10 through SATA or 0, 1, and 5 via M.2. GPUs and other adaptor cards may be installed through PCIe 5.0 x16, PCIe 4.0 x16, PCIe 3.0 x16, and PCIe 3.0 x1 slots. Benefit from speedy networking with a 2.5 GbE Intel LAN and Wi-Fi 6E; quickly connect to wireless peripherals with Bluetooth 5.2. The Realtek ALC4080 audio codec offers 7.1 channel surround sound, and the rear ports can be used for analog or digital output. Connect connected peripherals through two USB 2.0, two USB 3.2 Gen 1, and three USB 3.2 Gen 2x2 Type-A ports, or a USB 3.2 Gen 2x2 Type-C port. DisplayPort and HDMI are used to output video. A Flash BIOS button is also located on the rear I/O panel, and internal headers support front-panel USB 3.2 Gen 2 Type-C and USB 3.2 Gen 1 and 2.0 Type-A ports, RGB connections, chassis intrusion, a TPM module, and other features. The MSI PRO Z790-A WIFI DDR4 13th Gen ATX Motherboard comes with a 03-year warranty.

What is the price of MSI PRO Z790-A WIFI DDR4 ATX Motherboard in Bangladesh?

The latest price of MSI PRO Z790-A WIFI DDR4 ATX Motherboard in Bangladesh is 28,450৳. You can buy the MSI PRO Z790-A WIFI DDR4 ATX Motherboard at best price from our website or visit any of our showrooms.
