MSI PRO Z690-A WiFi DDR5 ATX Motherboard

Regular Price	30,800৳
Status	In Stock
Product Code	5712
Brand	MSI

Short Details

Model: PRO Z690-A WiFi DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supports Memory: DDR5, up to 6400+(OC) MHz
2.5G LAN with LAN Manager & Intel Wi-Fi 6E Solution
Intel Turbo USB 3.2 Gen 2, LGA 1700 socket

More Info

30800৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processor socket LGA1700
Chipset	Intel Z690 Chipset
BIOS	Flash BIOS Button
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset)
M.2 Socket	4 x M.2 slots (M-Key)
Memory
Type	DDR5
Slots	4 x DDR5 memory slots
Supported Memory	Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	up to 128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort

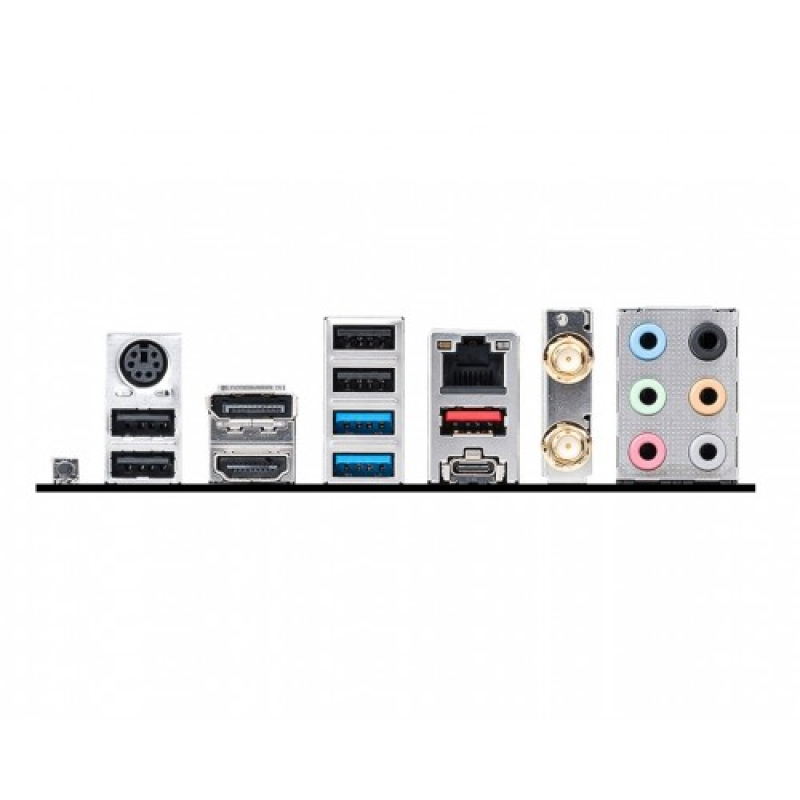

USB (s)	Intel Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors
LAN Port (s)	1x Intel I225-V 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.22, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots that are from Z690 Chipset Support Intel Smart Response Technology for Intel Core processors
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years warranty

Description

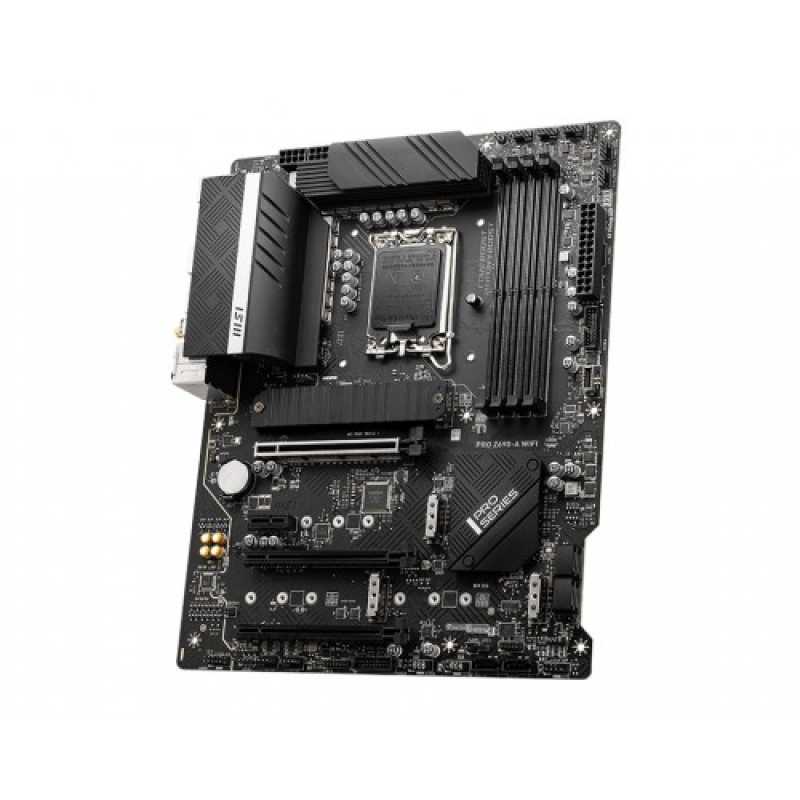

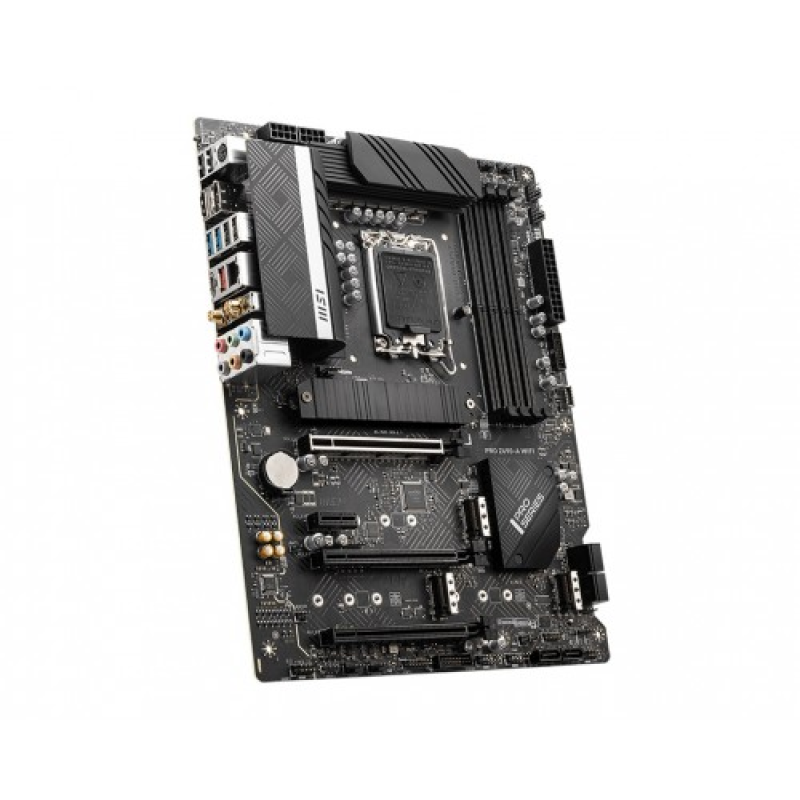

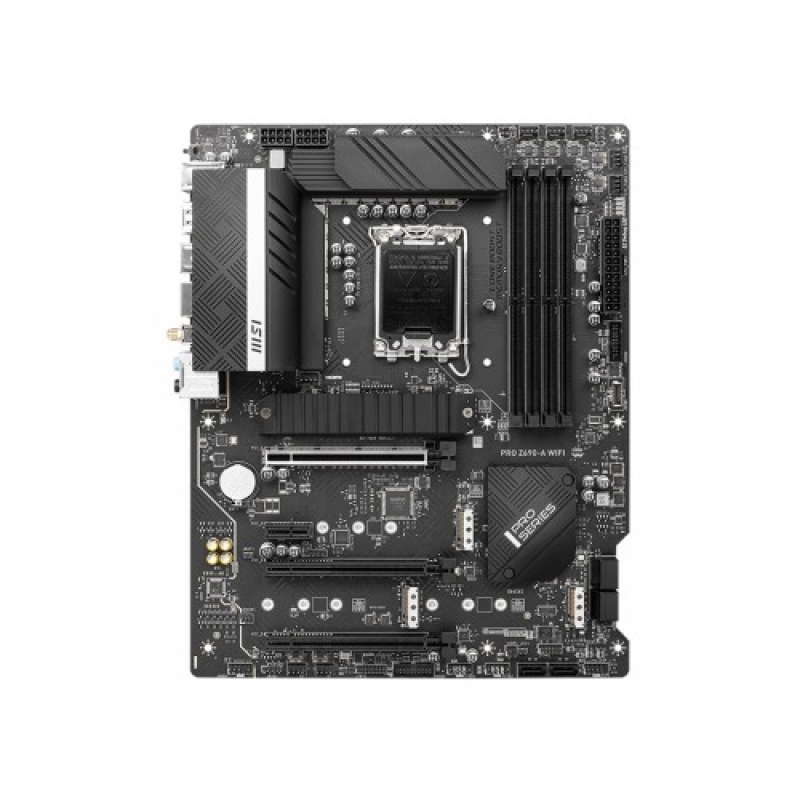

MSI PRO Z690-A WiFi DDR5 ATX Motherboard

The MSI PRO Z690-A WiFi DDR5 Motherboard supports 14th, 13th & 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6400+(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2. It features 2.5G LAN with LAN Manager and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. Thie motherboard provides Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, Asus PRO series motherboard is ready to sustain heavy daily work. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The MSI PRO Z690-A WiFi DDR5 comes upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 6-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO Z690-A WiFi DDR5 comes with 3 years of warranty.

What is the price of MSI PRO Z690-A WiFi DDR5 Motherboard in Bangladesh?

The latest price of MSI PRO Z690-A WiFi DDR5 Motherboard in Bangladesh is 29,700৳. You can buy the MSI PRO Z690-A WiFi DDR5 Motherboard at best price from our website or visit any of our showrooms.
