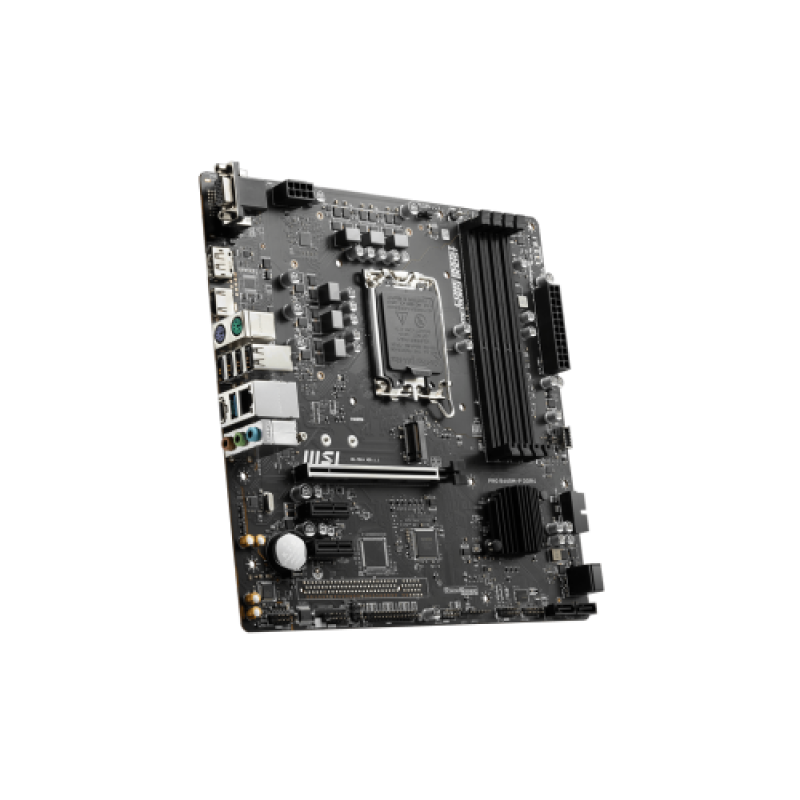

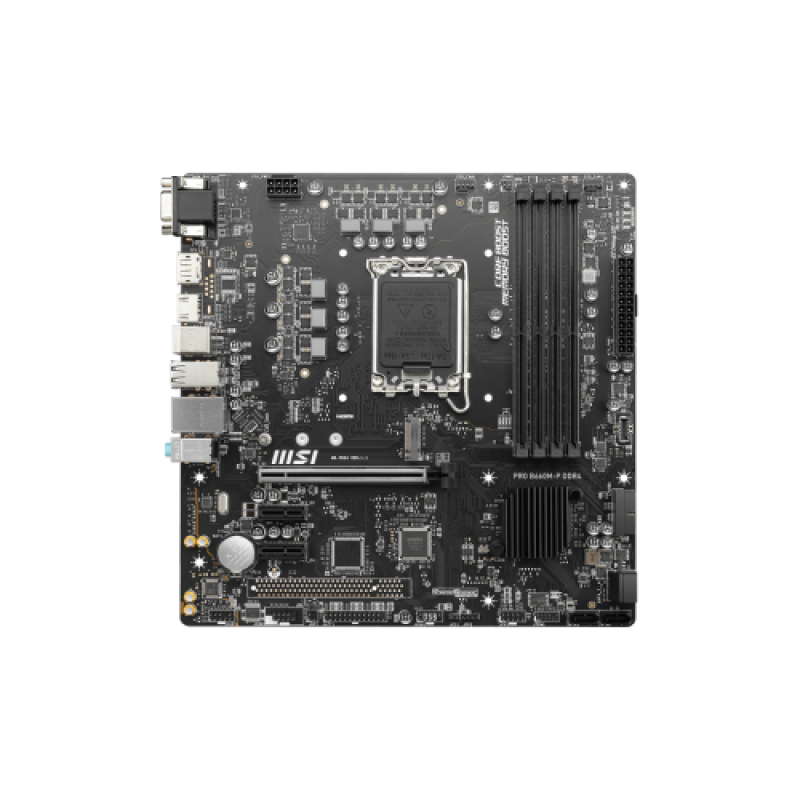

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

Regular Price	15,300৳
Product Code	116
Brand	MSI

Short Details

Model: PRO B660M-P
Supports: 12th Gen Intel Core, Pentium Gold, and Celeron processors
RAM Support: DDR4, up to 4600+(OC) MHz
Graphics Output: 1x HDMI port, 1x DisplayPort, 1x VGA
Features: PCIe 4.0, Lightning Gen4 x4 M.2

More Info

15300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold, and Celeron® Processors 1 Processor socket LGA1700
Chipset	Intel B660 Chipset
BIOS	BIOS FEATURES 1x 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.4 Multi-language
Form Factor	M-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot PCI_E1 (From CPU) Supports up to PCIe 4.0 x16 2x PCIe x1 slots PCI_E2 & PCI_E3 (Fom B660 chipset) Supports up to PCIe 3.0
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	4x DDR4 memory slots, supporting up to 128GB1 Supports 1R 2133/2666/3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	supporting up to 128GB
Graphics
Graphics	1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

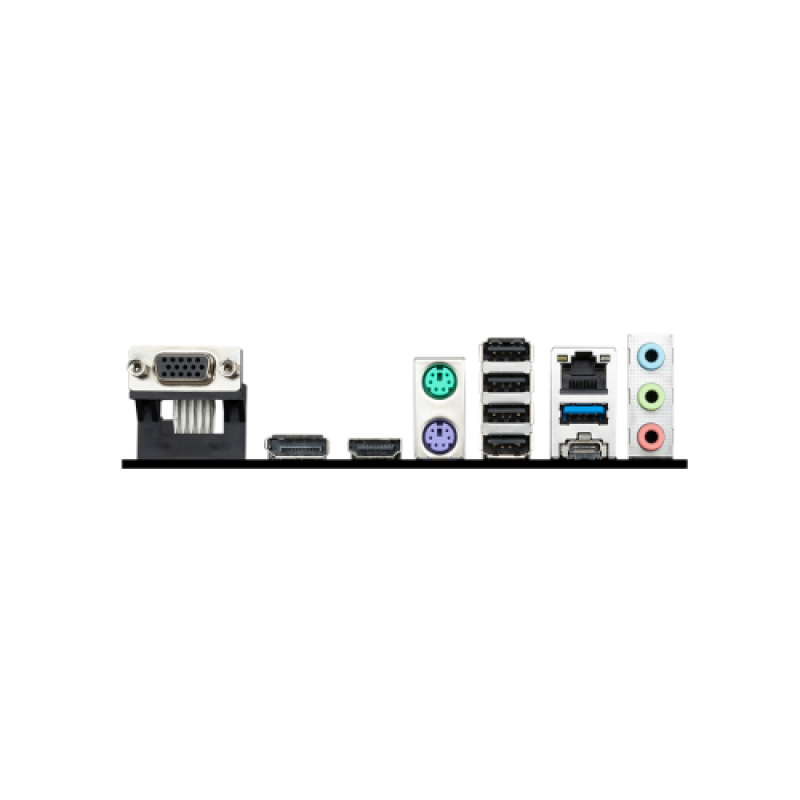

Connector & Ports
HDMI	1x HDMI 1.4 port, supporting a maximum resolution of 4K 30Hz
Display Port (s)	1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz
VGA (s)	1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
USB (s)	1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
LAN Port (s)	1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From B660 chipset) 1 1x M.2 slot (Key M) M2_1 slot (From B660 Chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Internal I/O Ports	INTERNAL USB CONNECTORS 1x USB 3.2 Gen 1 5Gbps Type-C connector (From B660 chipset) 1x USB 3.2 Gen 1 5Gbps Type-A connector (From B660 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 1x USB 2.0 Type-A connector (From B660 chipset) Supports additional 2 USB 2.0 ports
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years warranty

Description

MSI PRO B660M-P DDR4 12th Gen Micro-ATX Motherboard

MSI PRO B660M-P DDR4 Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. This motherboard Supports 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With the premium layout and digital power design to support more cores and provide better performance. This motherboard has Advanced technology, that helps to deliver pure data signals for the best performance, stability, and compatibility. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. The MSI PRO B660M-P DDR4 motherboard comes with Premium Thermal Solution, which featured with 7W/mK pad, an additional choke thermal pad, and M.2 Shield Frozr are built for high-performance system and non-stop works. You can Upgrade the network solution with a 2.5G LAN for professional and multimedia use. Delivers a secure, stable, and fast network connection. 1Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for professional gamers and demanding users. The Latest MSI PRO B660M-P DDR4 motherboard offers 03 years warranty.

What is the price of MSI PRO B660M-P DDR4 12th Gen Motherboard in Bangladesh?

The latest price of MSI PRO B660M-P DDR4 12th Gen Motherboard in Bangladesh is 15,800৳. You can buy the MSI PRO B660M-P DDR4 12th Gen Motherboard at best price from our website or visit any of our showrooms.
