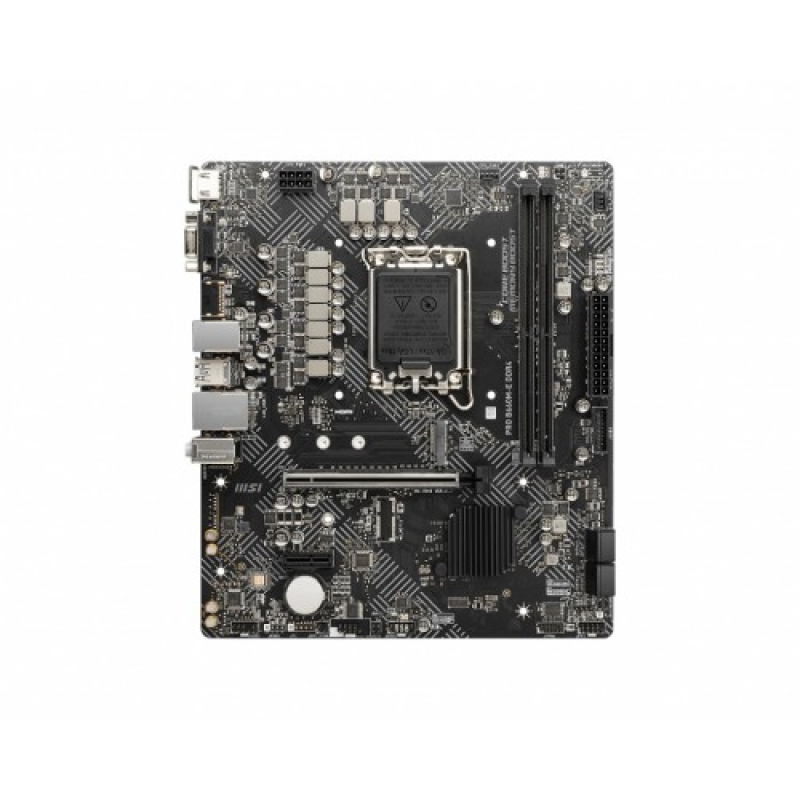

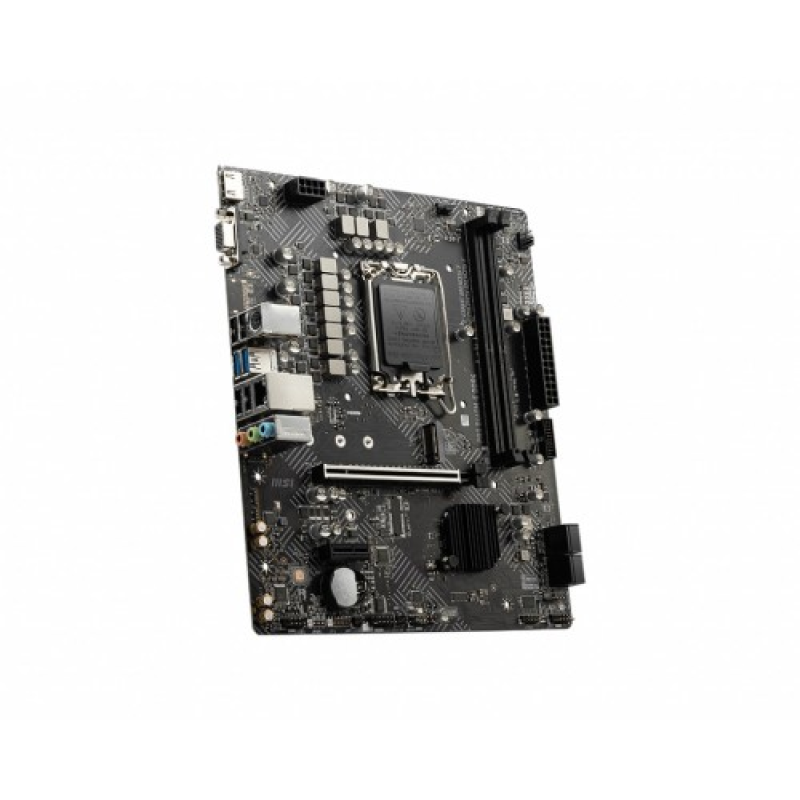

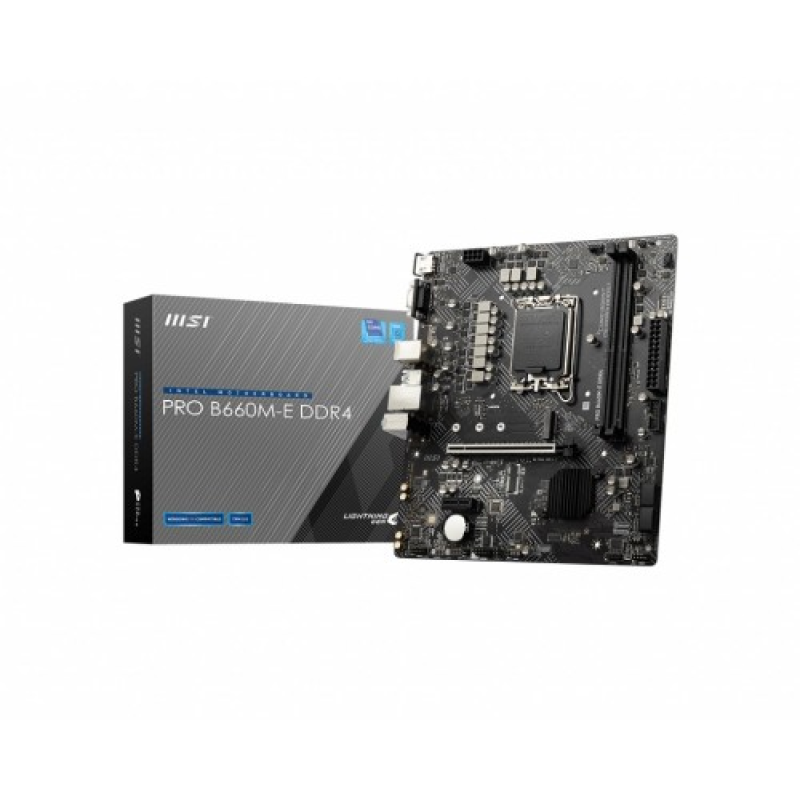

MSI PRO B660M-E DDR4 M-ATX Motherboard

Regular Price	0৳
Status	In Stock
Product Code	5289
Brand	MSI

Short Details

Model: PRO B660M-E DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported Memory: DDR4, up to 4600+(OC) MHz
PCIe 4.0, premium layout, digital power design
Supported socket: LGA 1700

More Info

0৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Chipset	Intel B660 Chipset
Form Factor	M-ATX Form Factor 9.3 in. x 8.0 in. (24.4 cm x 21.1 cm)
Audio	Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From B660 chipset) Supports PCIe 3.0 x1
M.2 Socket	1x M.2 slot (Key M, from B660 chipset) 1 Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core™ processors
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4600+ MHz 1DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	support up to 64GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Connector & Ports

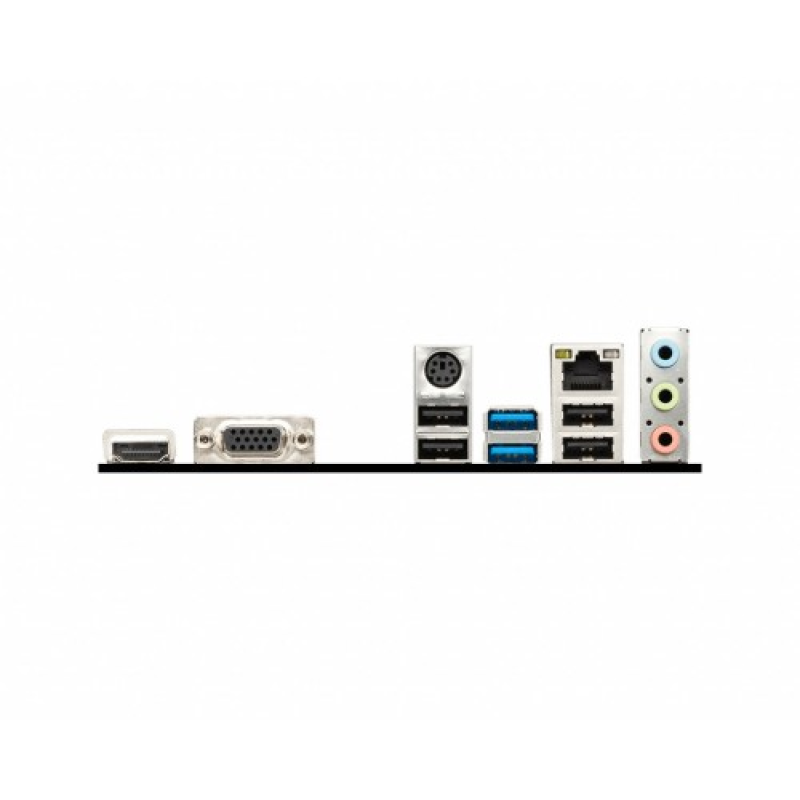

HDMI	HDMI (BACK PANEL PORTS)
Display Port (s)	DisplayPort (BACK PANEL PORTS)
VGA (s)	Yes (BACK PANEL PORTS)
USB (s)	Intel B660 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Intel I219V 1Gbps LAN controller
Internal I/O Ports	1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector Keyboard / Mouse USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years warranty

Description

MSI PRO B660M-E DDR4 M-ATX Motherboard

MSI PRO B660M-E DDR4 motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 sockets, DDR4 memory, and up to 4600+ (OC) MHz. MSI LAN Manager automatically classifies and prioritizes latency-sensitive applications. It will give you the best online experience with low latency. The premium layout and digital power design help to support more cores and provide better performance. On this motherboard, Memory Boost features advanced technology to deliver pure data signals for the best performance, stability, and compatibility. It also has Lightning Fast Experience: PCIe 4.0. The MSI Lightning Gen 4 PCI-E is the latest and fastest PCI-E data transfer solution, which comes with 64 GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by the steel armor design, it also helps the motherboards support the weight of heavy graphics cards. The motherboard has FROZR AI COOLING, which detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to a proper value by adopting MSI AI ENGINE. This latest MSI PRO B660M-E DDR4 motherboard comes with a 3-year warranty.
