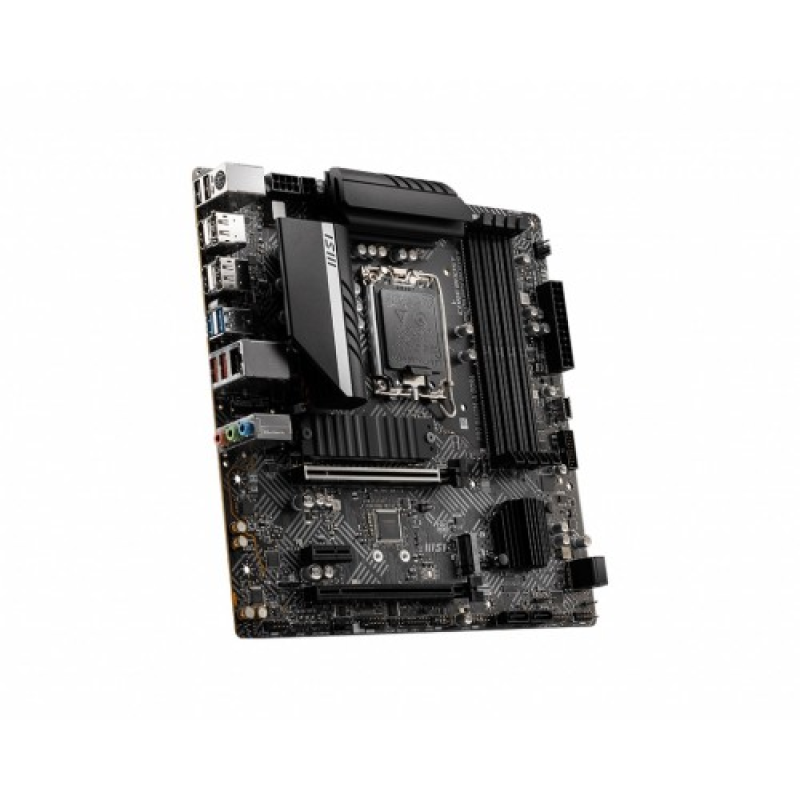

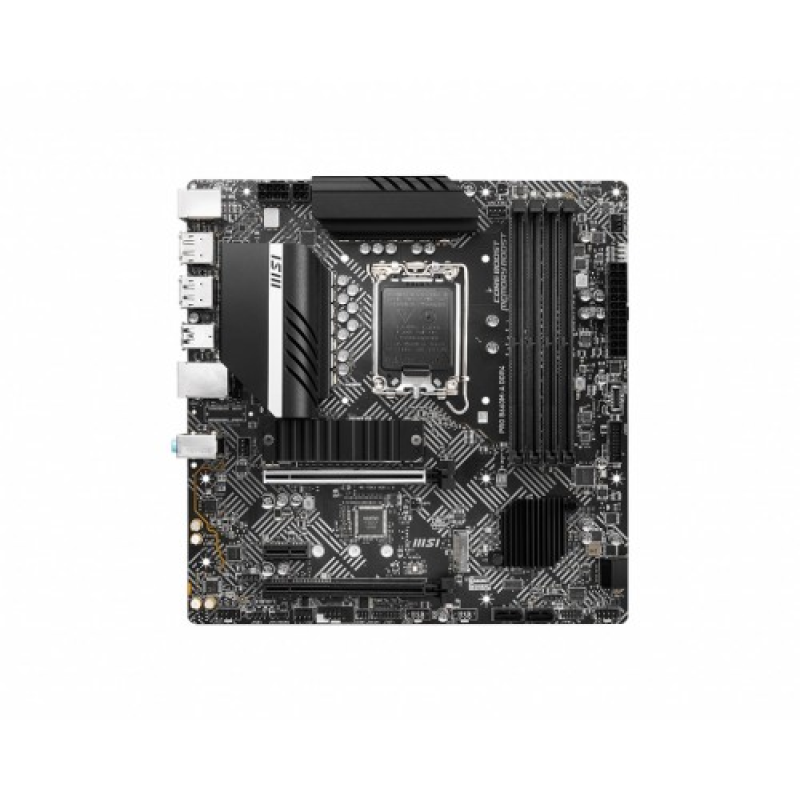

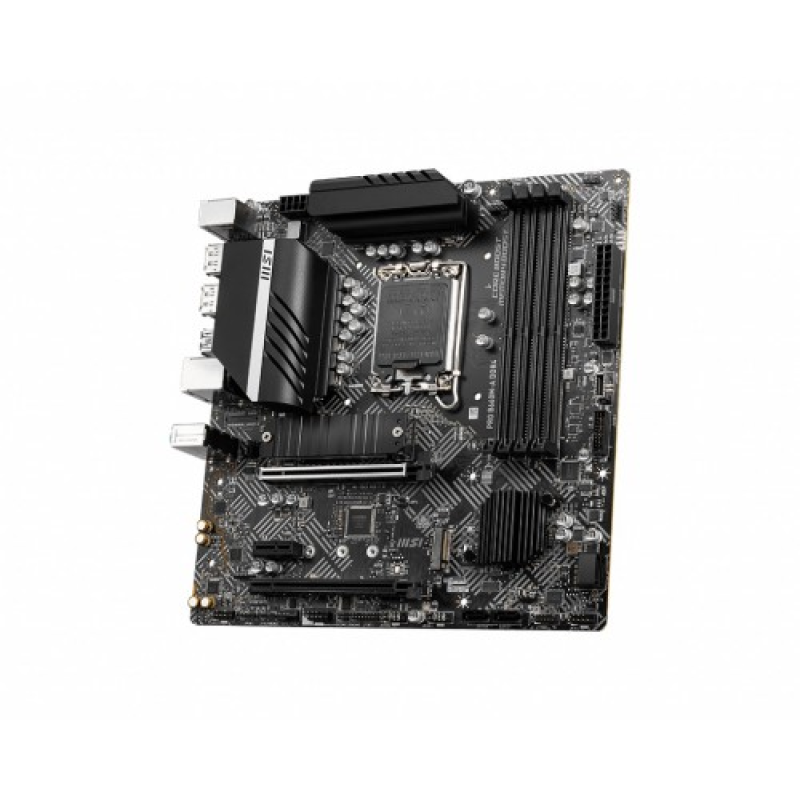

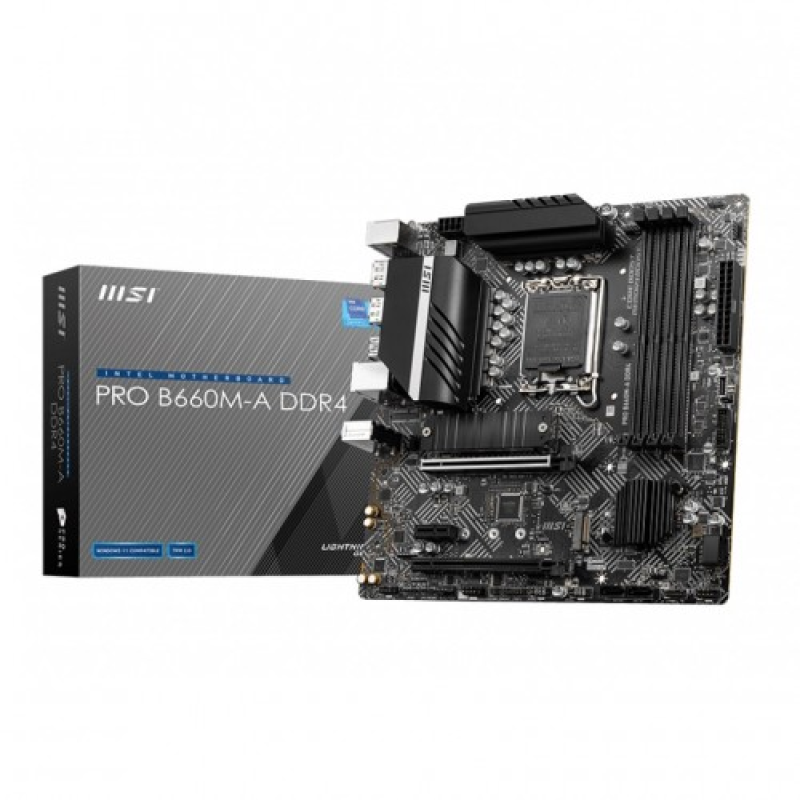

MSI PRO B660M-A DDR4 Micro-ATX Motherboard

Regular Price	15,200৳
Product Code	5294
Brand	MSI

Short Details

Model: PRO B660M-A DDR4
Supported Processors: 14th, 13th & 12th Gen Intel Core, Pentium Gold & Celeron
Supported socket: LGA 1700 socket
Supported Memory: DDR4, up to 4800+(OC) MHz
2.5G LAN, 7W/mK pad, M.2 Shield Frozr

More Info

15200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Supports 14th Gen, 13th & 12th Gen Intel Core Processors Processor socket LGA1700
Chipset	Intel B660 Chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 (From CPU) Support PCIe 4.0 x16 PCI_E3 (From B660 chipset) Support PCIe 3.0 x4 1x PCIe 3.0 x1 slot (Fom B660 chipset)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memoryy Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	support up to 128GB
Graphics
Graphics	2x HDMI 2.1 with HDR ports, supporting a maximum resolution of 4K 60Hz 2x DisplayPort 1.4 ports with HBR3, supporting a maximum resolution of 4K 60
Connector & Ports
HDMI	HDMI (BACK PANEL PORTS)
Display Port (s)	DisplayPort (BACK PANEL PORTS)
USB (s)	Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2X USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
LAN Port (s)	1x Realtek RTL8125BG 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (From B660 chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Support Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio

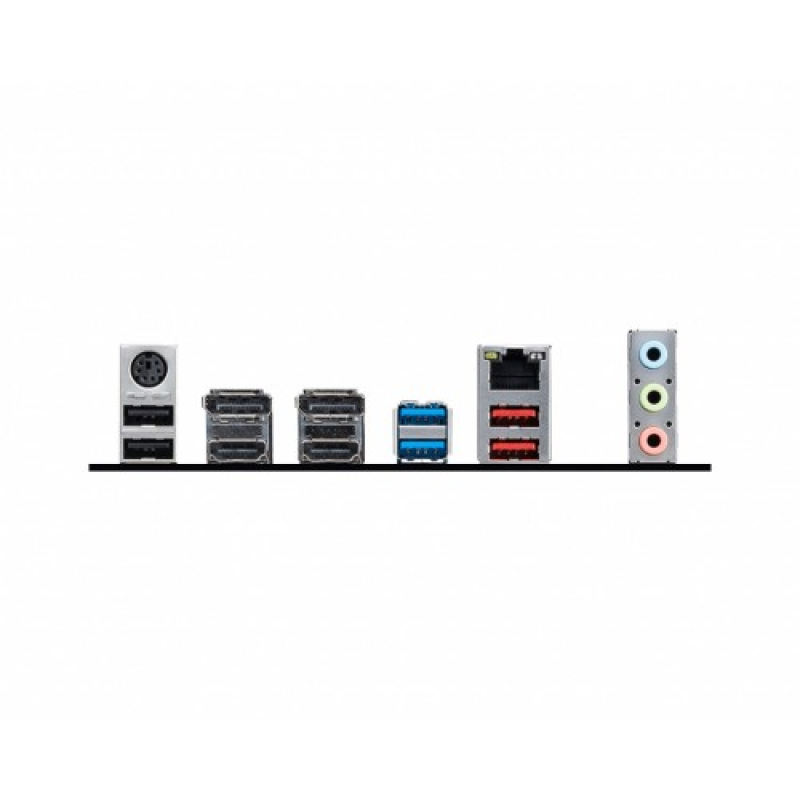

Internal I/O Ports	INTERNAL CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector BACK PANEL PORTS: Keyboard / Mouse DisplayPort USB 3.2 Gen 1 5Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 2 10Gbps Type-A
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years warranty

Description

MSI PRO B660M-A DDR4 Micro-ATX Motherboard

MSI PRO B660M-A DDR4 Featuring with stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. This motherboard Supports with 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket, DDR4 Memory, up to 4800+(OC) MHz. With the premium layout and digital power design to support more cores and provide better performance. This motherboard has Advanced technology, that helps to deliver pure data signals for the best performance, stability and compatibility. This motherboard has PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr. The MSI PRO B660M-A DDR4 motherboard comes with Premium Thermal Solution, which featured with 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works. You can Upgraded network solution with 2.5G LAN for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for professional gamers and demanding users. The Latest MSI PRO B660M-A DDR4 motherboard offeres 03 years warranty.

What is the price of MSI PRO B660M-A DDR4 Motherboard in Bangladesh?

The latest price of MSI PRO B660M-A DDR4 Motherboard in Bangladesh is 15,400৳. You can buy the MSI PRO B660M-A DDR4 Motherboard at best price from our website or visit any of our showrooms.
