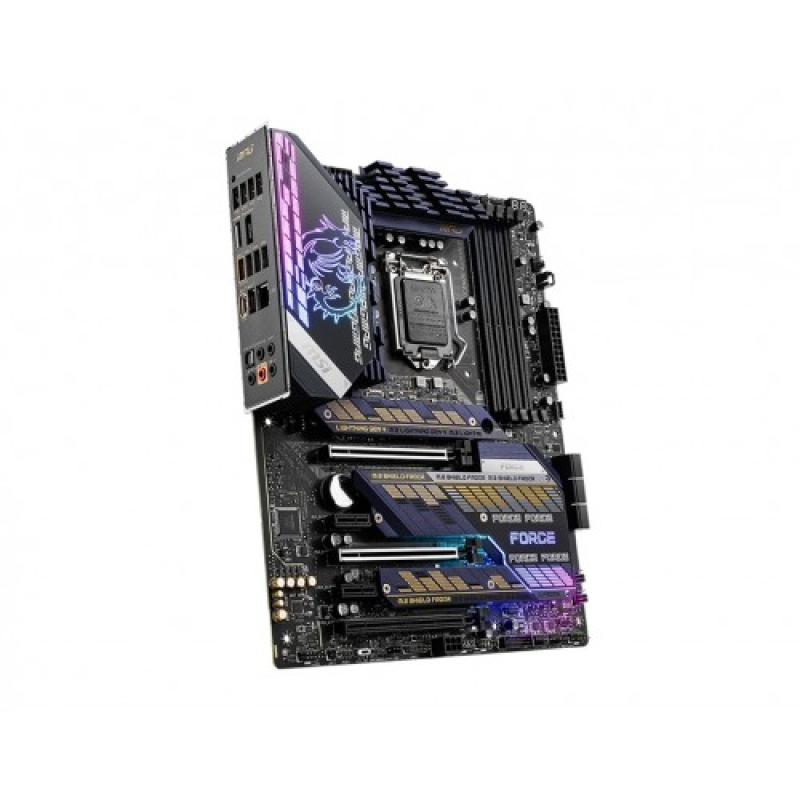

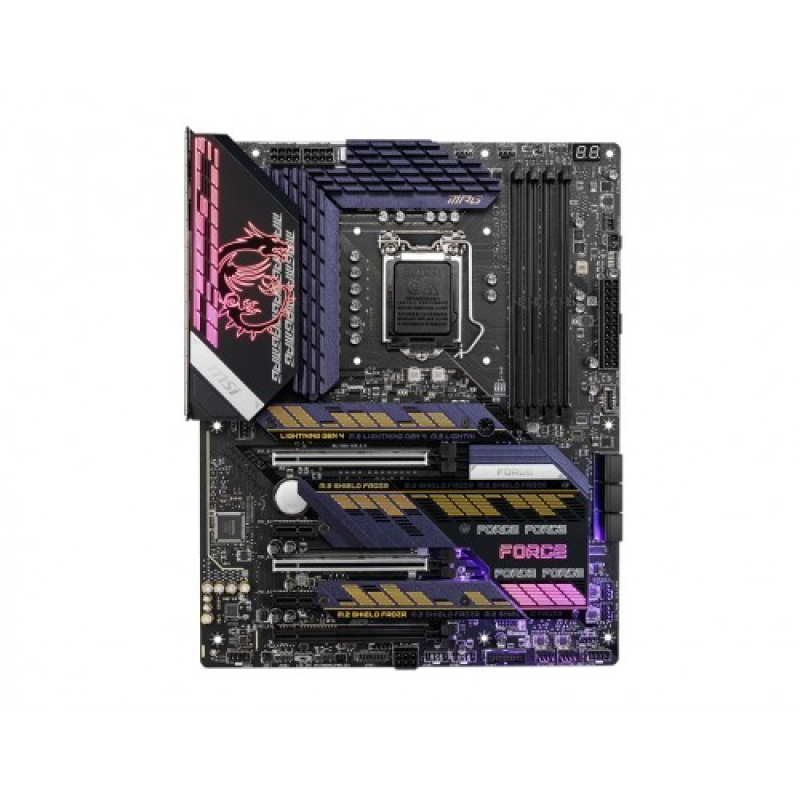

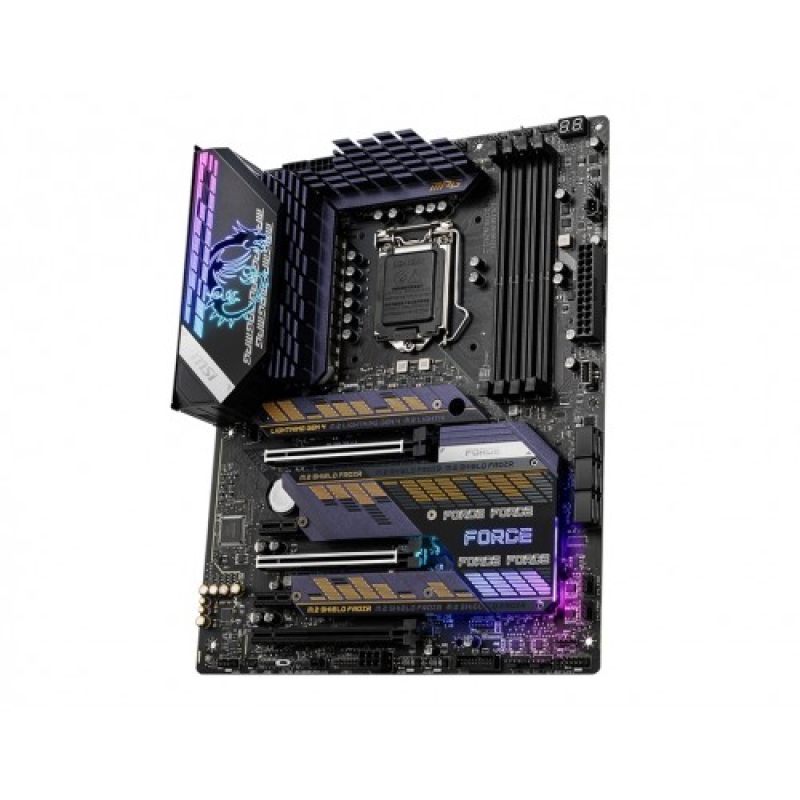

MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard

Regular Price	33,300৳
Product Code	139
Brand	MSI

Short Details

Model: MPG Z590 Gaming Force
Supports 11th and 10th Gen Intel Core Pentium Celeron processors
LGA 1200 socket, MYSTIC LIGHT
DDR4 Memory, up to 5333(OC) MHz
2.5G LAN with LAN Manager

More Info

33300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	ATX Form Factor
Audio	7.1-Channel High Definition Audio
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4 PCI_E1 & PCI_E3 slots (From CPU) Support PCIe 4.0 for 11th Gen Intel CPU Support PCIe 3.0 for 10th Gen Intel CPU PCI_E5 slot (From Z590 Chipset) Supports PCIe 3.0 2x PCIe 3.0 x1 slots (From Z590 Chipset)
M.2 Socket	3x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5333 MHz 1DPC 2R Max speed up to 4700+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports

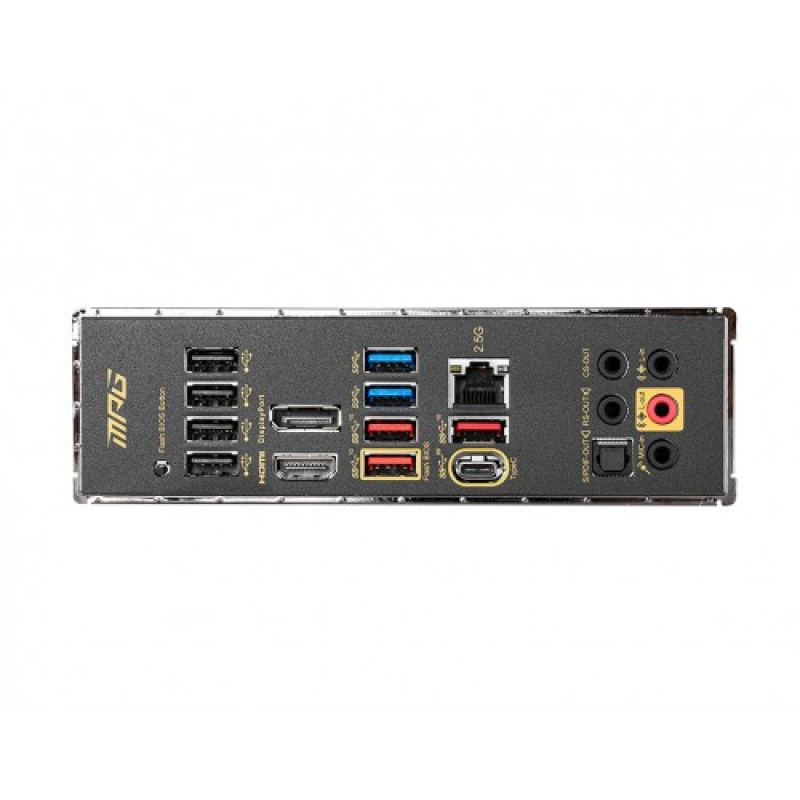

USB (s)	1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel) 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector) Hub-GL850G 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (From Z590 Chipset) 3x M.2 slots (Key M) M2_1 slot (From CPU) Available only on 11th Gen Intel CPU Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21 & M2_32 slot (From Z590 Chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty

Description

MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard

MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Here, 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.MSI MPG Z590 Gaming Force Motherboard Supports 11th and 10th Gen Intel Core Pentium Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5333(OC) MHz, PCIe 4.0, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2. This Motherboard featured with Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, DDR4 Boost, Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and 3x M.2 Shield Frozr are built for high performance system and non-stop gaming experience, MYSTIC LIGHT: 16.8 million colors / 29 effects controlled in one click. MYSTIC LIGHT EXTENSION supports both RGB and RAINBOW LED strip. The MSI Motherboard has 2.5G LAN with LAN Manager: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It's AUDIO BOOST 5 Reward your ears with studio grade sound quality for the most immersive gaming experience, 6-layer PCB made by 2oz thickened copper and server grade level material. This latest MSI MPG Z590 Gaming Force Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MPG Z590 Gaming Force Motherboard in Bangladesh?

The latest price of MSI MPG Z590 Gaming Force Motherboard in Bangladesh is 33,500৳. You can buy the MSI MPG Z590 Gaming Force Motherboard at best price from our website or visit any of our showrooms.
