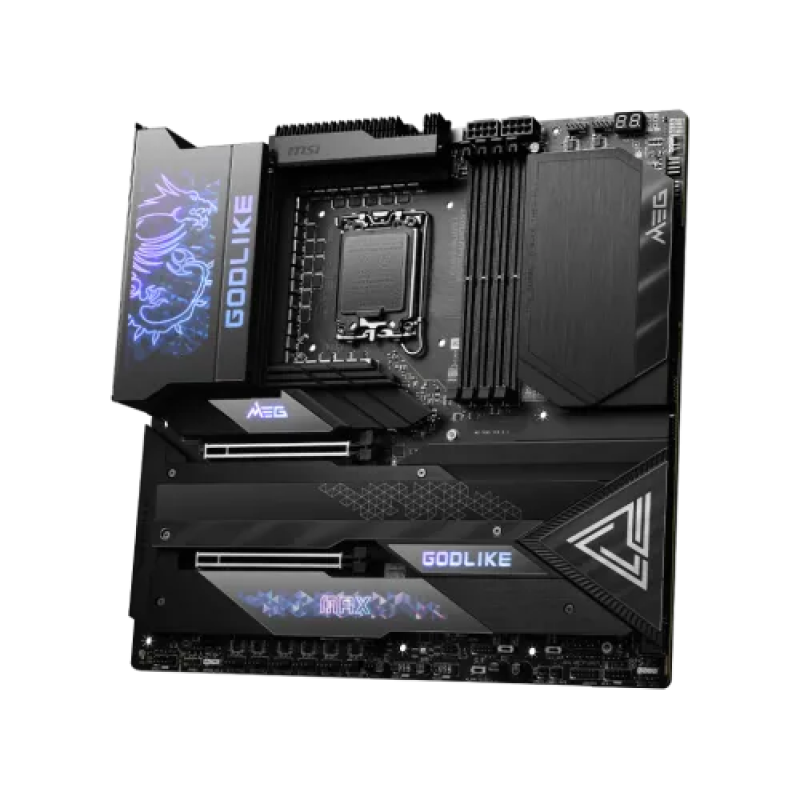

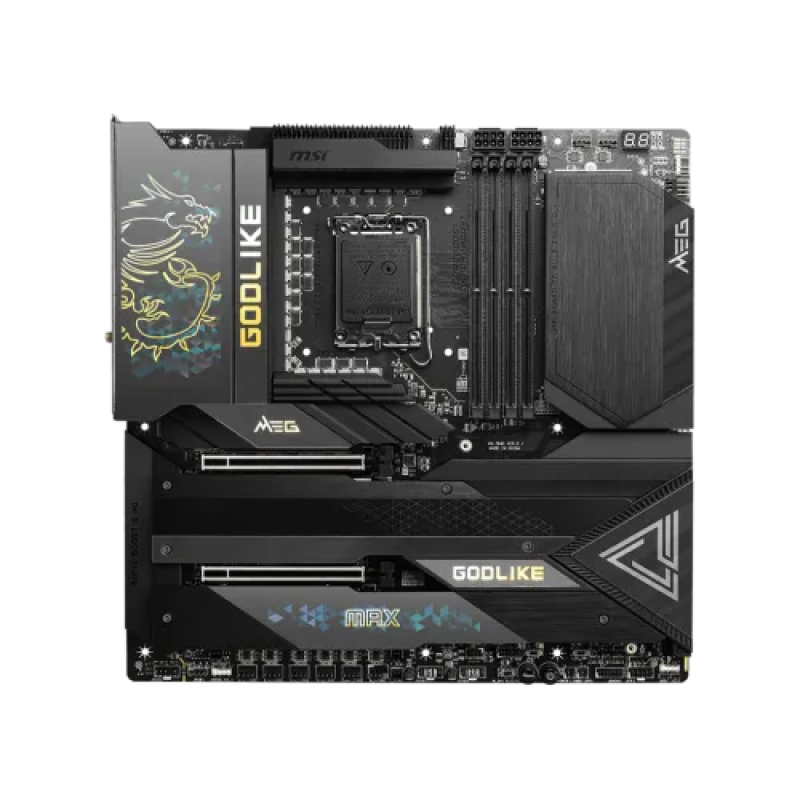

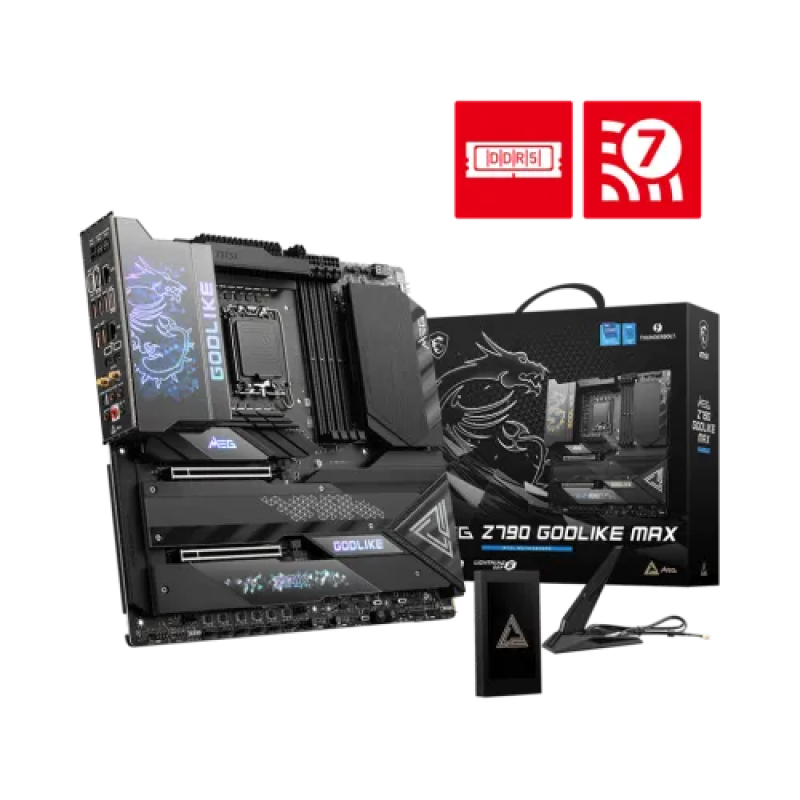

MSI MEG Z790 GODLIKE MAX E-ATX Motherboard

Regular Price	158,000৳
Status	In Stock
Product Code	5231
Brand	MSI

Short Details

Model: MEG Z790 GODLIKE MAX
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 256GB
Graphics Output: 2x Thunderbolt4 (USB-C)
Features: Realtek 2.5Gbps LAN, Intel Wi-Fi 7

More Info

158000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	INTEL B760
Form Factor	E-ATX 310mmx304.8mm
Audio	Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
M.2 Socket	7x M.2
Memory
Type	DDR5
Slots	4x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	256GB
Graphics
Graphics	Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
Connector & Ports
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit. *JUSB6 doesn’t support USB 2.0 and older USB devices.
LAN Port (s)	Marvell AQC113CS-B1-C 10Gbps LAN Intel 2.5Gbps LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	7x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot. SATA3~4 will be unavailable when installing M.2 PCIe/ SATA SSD in the M2_3 slot. SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot. **SATA7~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

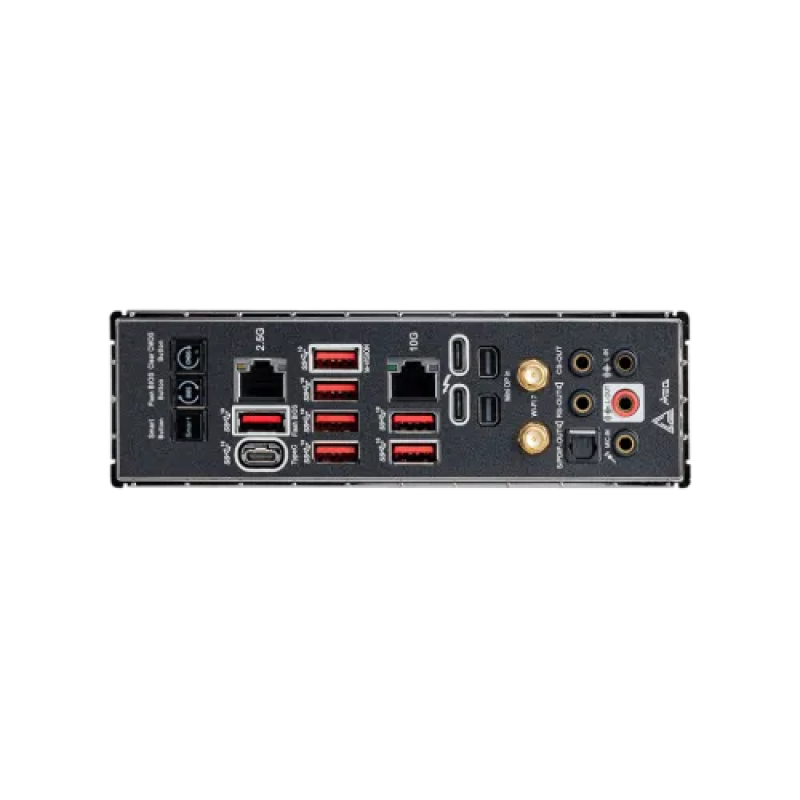

Internal I/O Ports	INTERNAL IO: 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2x2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) BACK PANEL PORTS: Clear CMOS Button Flash BIOS Button 2.5G LAN 10G Super LAN Thunderbolt 4 40Gbps (Type-C) Wi-Fi / Bluetooth Audio Connectors Smart Button USB 3.2 Gen 2 10Gbps (Type-C) USB 3.2 Gen 2 10Gbps (Type-A) Mini DisplayPort Input (for Thunderbolt passthrough) Optical S/PDIF-Out
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MEG Z790 GODLIKE MAX E-ATX Motherboard

The MSI MEG Z790 GODLIKE MAX E-ATX motherboard will enhance your gaming experience since it is made to work with Intel's state-of-the-art 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors for the LGA 1700 socket. With its DDR5 Memory compatibility, this beast can run Dual Channel DDR5 at astounding rates of 7800+MHz (OC) for fluid multitasking and snappy gaming. In addition to showing the status of your gaming setup, the M-Vision Dashboard's 4.5-inch full-color IPS touch panel allows you to customize and operate the system using touch control. With support for 8K displays and advanced connectivity options, dual Thunderbolt 4 ports provide blazing-fast data transmission at 40 Gb/s. With the dual CPU power connections, 105A Smart Power Stage, and 26+2 phases power architecture, you can unleash incredible performance. For best results, the premium thermal module maintains low temperatures with its wavy fin design, Direct Touch Cross Heat-pipe, and Frozr AI software. Adopt the newest wireless technology with the Wi-Fi 7 solution, which is 2.4 times faster than Wi-Fi 6/6E and offers a 320MHz channel for a maximum transmission speed of 5.8Gbps. The motherboard has 10G Super LAN and Intel 2.5G LAN for lightning-fast data transfer speeds for unmatched online gaming. Invest in seven M.2 ports for future-proof storage, including one PCIe 5.0 option. Pre-installed I/O shield, EZ M.2 Clips, EZ Antenna, Smart Button, innovative Magnetic & Screwless M.2 Shield Frozr, Steel Armor, and Metal Backplate are just a few of the features that make this DIY-friendly design easy to customize. With PCIe 5.0 slots, Lightning Gen 5 x4 M.2, and Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery, you can enjoy gaming at a speed that seems unreal. With the most recent high-end ALC4082 audio processor, which combines an amplifier and ESS audio DAC to produce an amazing audio experience, you can fully immerse yourself in the highest possible level of audio quality with Audio Boost 5 HD. With the MSI MEG Z790 GODLIKE MAX, you can experience the next generation of gaming technology at your fingertips. It is a genuine gaming powerhouse.

What is the price of MSI MEG Z790 GODLIKE MAX Motherboard in Bangladesh?

The latest price of MSI MEG Z790 GODLIKE MAX Motherboard in Bangladesh is 158000৳. You can buy the MSI MEG Z790 GODLIKE MAX Motherboard at best price from our website or visit any of our showrooms.
