MSI MEG Z690 GODLIKE E-ATX Motherboard

Regular Price 0৳
Status In Stock
Product Code 5240
Brand MSI
Short Details
  • Model: MEG Z690 GODLIKE
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supports Dual Channel DDR5-6666+MHz(OC)
  • Onboard 10G Super LAN, Intel 2.5G LAN and latest Wi-Fi 6E
  • ARGB lighting with touch control LCD dashboard
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package
Chipset Intel Z690 Chipset
Form Factor 12 in. x 12 in. (30.5 cm x 31.0 cm)
E-ATX Form Factor
Audio Realtek ALC4082 Codec + ES9218PQ Combo DAC/HPA
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI 3x PCIe x16 slots
Supports x16/x0/x4, x8/x8/x4
PCI_E1 & PCI_E2 slots (From CPU)
PCI_E1 supports up to PCIe 5.0 x16
PCI_E2 supports up to PCIe 5.0 x8
PCI_E3 (From Z690 chipset)
▫Supports up to PCIe 4.0 x4
Memory
Type DDR5
Slots 4x DDR5 memory slots
Supported Memory Supports 1R 4800 MHz (by JEDEC & POR)
Max. overclocking frequency:
1DPC 1R Max speed up to 6666+ MHz
1DPC 2R Max speed up to 5600+ MHz
2DPC 1R Max speed up to 4000+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Intel XMP 3.0 OC
Supports Dual Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Maximum Memory supporting up to 128GB
Graphics
Graphics Supports AMD CrossFire Technology
Supports NVIDIA SLI Technology
Connector & Ports
USB (s) Intel Z690 Chipset
2x USB 3.2 Gen 2x2 20Gbps Type-C internal connectors

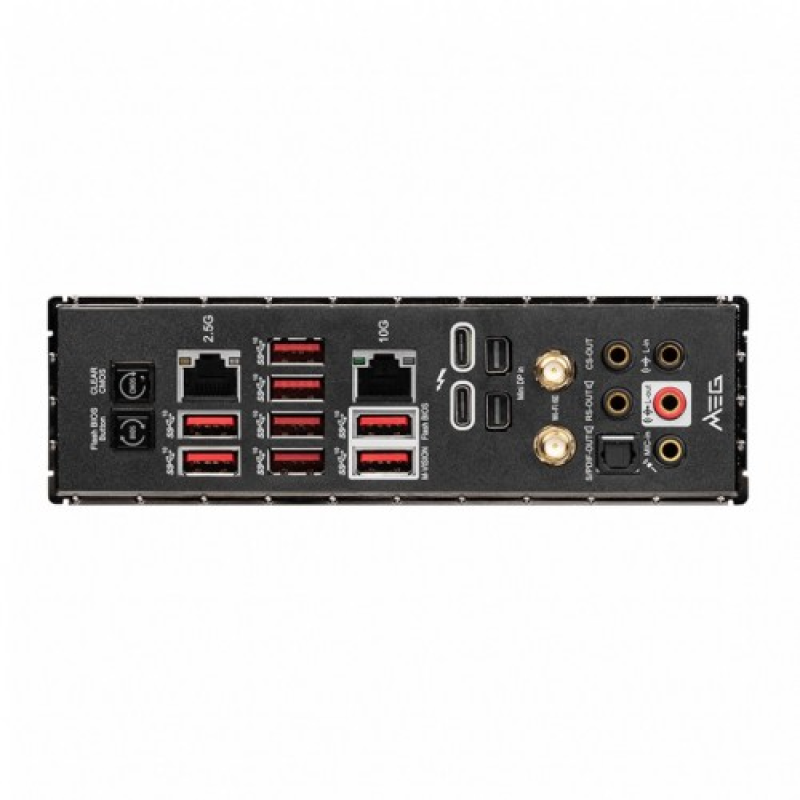

4x USB 3.2 Gen 2 10Gbps ports on the back panel
Hub-GL3590
4x USB 3.2 Gen 2 10Gbps ports on the back panel
ASM1074
4x USB 3.2 Gen 1 5Gbps ports through internal USB connectors
Hub-GL850G
4x USB 2.0 ports through internal USB connectors

Intel JHL8540 Thunderbolt 4 Controller
2x Thunderbolt™ 4 (USB-C) ports on the back panel
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
LAN Port (s) 1x Aquantia AQC113CS 10Gbps LAN controller
1x Intel I225-V 2.5Gbps LAN controller
Wireless Communication module Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage 6x SATA 6Gb/s ports (From Z690 chipset)
SATA5~8 (From Z690 chipset)
SATAA~B (From ASM1061)
6x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports 2260/ 2280 storage devices
M2_3 slot (From CPU)
Supports up to PCIe 5.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_4 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_5 slot (From Z690 chipset)
Supports up to PCIe 4.0 x4
Supports SATA 6Gb/s
Supports 2260/ 2280 storage devices
M2_6 slot (From Z690 chipset)
Supports up to PCIe 3.0 x4
Supports 2260/ 2280/ 22110 storage devices
M2_2, M2_4, M2_5, and M2_6 slots support Intel Optane Memory
Supports Intel Smart Response Technology for Intel Core processors

Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for M.2 NVMe storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
6x M.2 slots (M-Key)
2x USB 3.2 Gen 2x2 20Gbps Type-C ports
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
8x 4-pin system fan connectors
1x Water Flow meter connector
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
2x 2-pin Thermal Sensors connectors
1x Tuning Controller connector
TPM (Trusted Platform Module ) 1x TPM module connector
Warranty Information
Manufacturing Warranty 3 years

Description

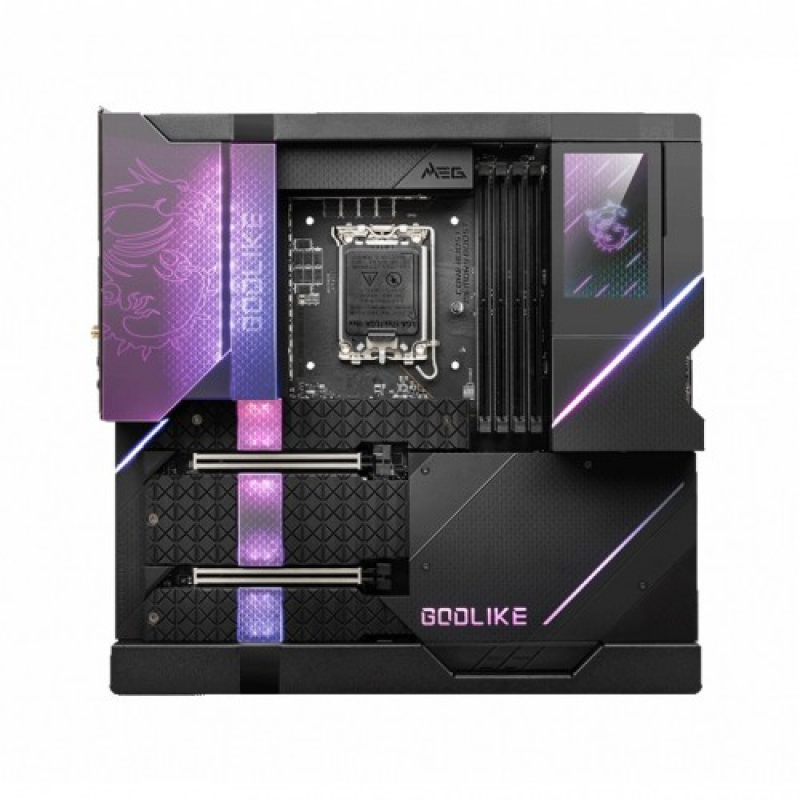

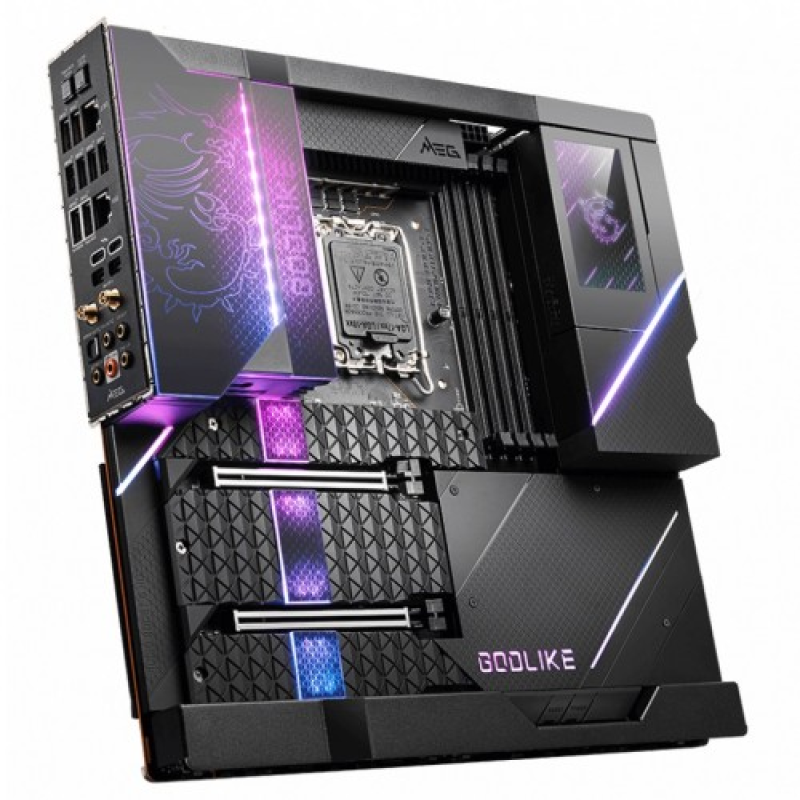

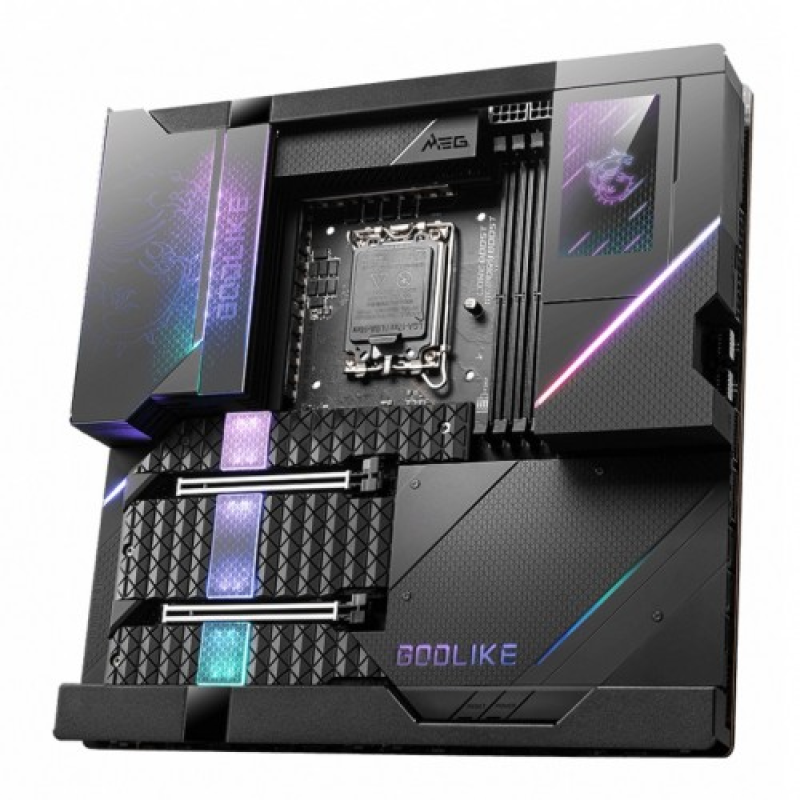

MSI MEG Z690 GODLIKE E-ATX Motherboard

The MSI MEG Z690 GODLIKE Motherboard comes with LGA 1700 socket and is supported with 14th, 13th, 12th Gen Intel Core/ Pentium Celeron processors. It supports DDR5 Memory, Dual Channel DDR5-6666+MHz (OC). The motherboard comes with direct 20+2 phases with 105A Smart Power Stage, Titanium Choke III, and dual CPU power connectors to unleash the maximum performance. It features an extreme power design and premium thermal module. It is equipped with a wavy fin design, Cross Heat-pipe, 7W/mK thermal pads, and Double-Sided M.2 Shield Frozr to ensure extreme performance with low temperature. This motherboard features the ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier delivering a breathtaking experience. The revolutionary magnetic cover and Chest Plate allow you showing off your PC building without messy cable when installing great amount of devices.

Industry's first built-in Touch Panel LCD display on motherboard

The MSI MEG Z690 GODLIKE Motherboard comes with an M-Vision Dashboard. It features the industry's first built-in touchable LCD on the motherboard, which not only indicates the status of your gaming rig but also allows system tuning with touch control. It has a 3.5-inch IPS full-color display with full touch control. It has a speaker function and it offers a magnetic connection. It is also customizable with software. The touch panel allows you to control multi-application with one finger. The panel offers a detachable mode that brings a new way of operation. It comes with PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G. The 8 Layer PCB with 2oz Thickened Copper provides higher performance and long-lasting system stability without any compromise.

Onboard 10G Super LAN and 2.5G LAN

The MSI MEG Z690 GODLIKE motherboard features onboard 10G Super LAN, Intel 2.5G LAN, and the latest Wi-Fi 6E solution to deliver the best online experience without lag. The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO, and BSS color technology, delivering speeds up to 2400Mbps.

Dual Thunderbolt 4 ports

The MSI MEG Z690 GODLIKE is equipped with Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, and Multi-Port Accessory Architecture to provide reliable connectivity and a better user experience.

Onboard 6x M.2 connectors

The MSI MEG Z690 GODLIKE 12th Gen Motherboard comes with Sextuple M.2 Connectors. It offers onboard 6x M.2 connectors for maximum storage performance with one Lightning Gen 5 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.

The Latest MSI MEG Z690 GODLIKE has 03 years warranty.

What is the price of MSI MEG Z690 GODLIKE Motherboard in Bangladesh?

The latest price of MSI MEG Z690 GODLIKE Motherboard in Bangladesh is 0৳. You can buy the MSI MEG Z690 GODLIKE Motherboard at best price from our website or visit any of our showrooms.
