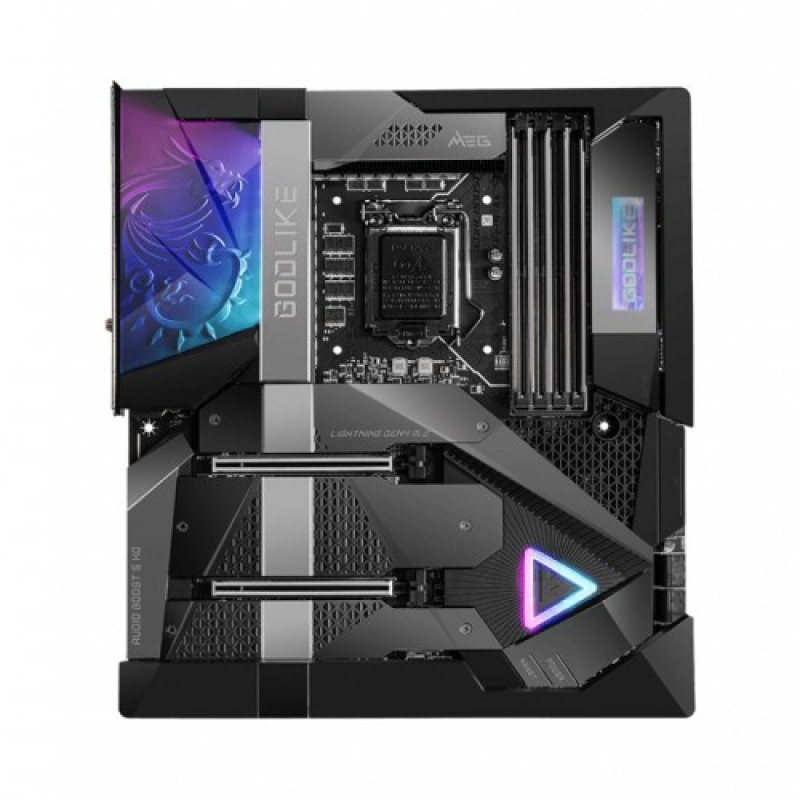

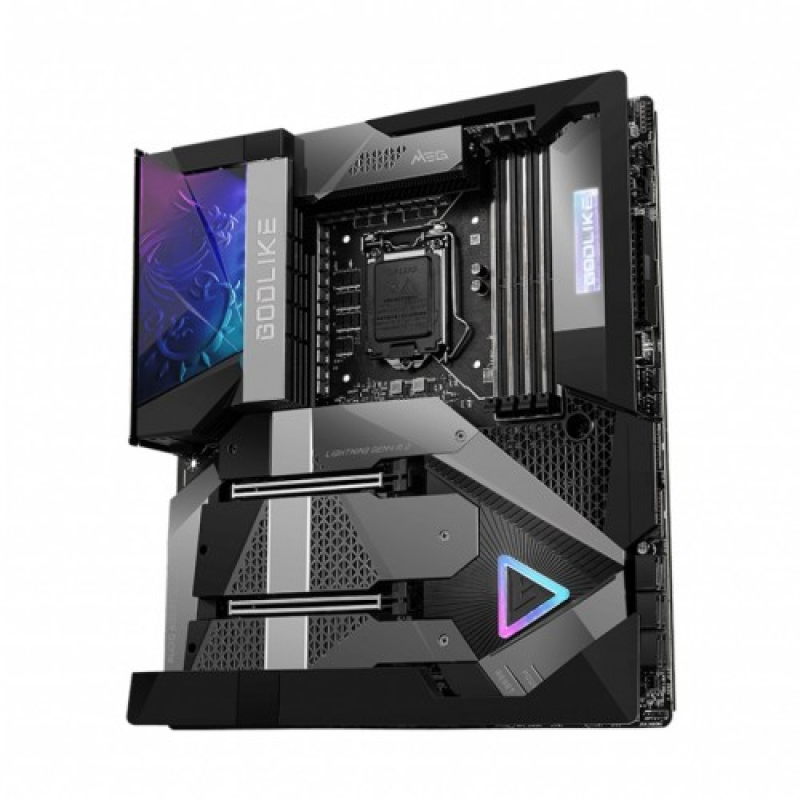

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Regular Price	32,000৳
Product Code	149
Brand	MSI

Short Details

Model: MEG Z590 GODLIKE
Supports 10th and 11th Gen Intel Processors
Quadruple M.2 Connectors
Premium Thermal Module
Dynamic Dashboard II

More Info

32000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron processors Processor socket LGA1200
Chipset	Intel Z590 Chipset
Form Factor	12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor
Expansion Slots
PCI	3x PCIe x16 slots Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4, x8+x8/x0/x4, x8+(x4+x4)/x0/x4 PCI_E1 & PCI_E2 slots (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU PCI_E3 slot (From Z590 chipset) Supports up to PCIe 3.0
M.2 Socket	4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
Memory
Type	DDR4
Slots	4x memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max. overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC mode, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	128GB
Graphics
Graphics	Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Connector & Ports

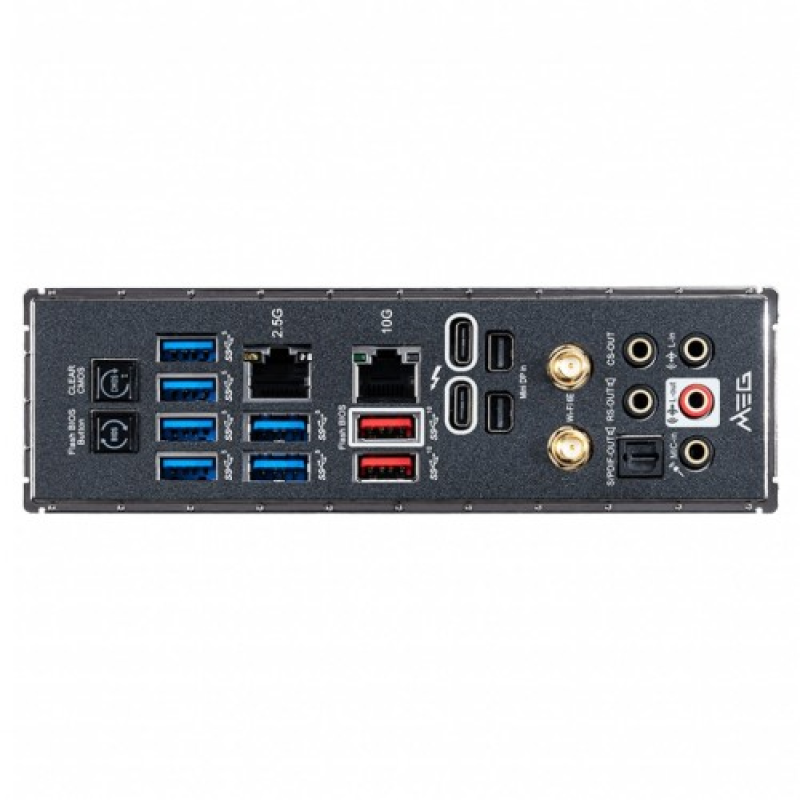

USB (s)	Intel® JHL8540 Thunderbolt™ 4 Controller 2x Thunderbolt™ 4 (Type-C) ports on the back panel Support up to 40 Gbps transfer rate with Thunderbolt devices Support up to 20 Gbps transfer rate with USB4 devices Support up to 10Gbps transfer rate with USB 3.2 devices Support up to 5V/3A , 15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display Intel Z590 Chipset: 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel and 1 Type-C internal connector) 2x USB 2.0 ports are available through the internal USB 2.0 connector Hub GL850G: 2x USB 2.0 ports are available through the internal USB 2.0 connector Asmedia 1074 Chipset: 10x USB 3.2 Gen 1 5Gbps ports (6 Type-A ports on the back panel, 4 ports are available through the internal USB 3.2 Gen 1 connectors)
LAN Port (s)	1x Aquantia AQC107 10Gbps LAN controller 1x Intel I225-V 2.5Gbps LAN controller
Supported Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2, M2_3 & M2_4 slots (from Z590 chipset) M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_4 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC4082 Codec + ESS ES9218PQ Combo DAC/HPA 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis intrusion connector 2x 2-pin Thermal sensors connectors 1x Tuning controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	Intel WiFi-6E AX210: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 , FIPS, FISMA
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI MEG Z590 GODLIKE Intel 11th Gen E-ATX Gaming Motherboard

Compare with traditional fin-array, the exclusive wavy fin design enlarges up to 50% heat dissipation, also enhances the airflow efficiency, increases the thermal performance significantly. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header. Utilizing 11th Gen Intel processors, MSI Z590 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. This PCI-Express card offers two extra M.2 slots with smart fan cooling solution to increase your storage capacity at maximum speed, features auto detect function for the M.2 access and the M.2 temperature for easy checking. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane Memory device. Intel Optane technology provides an unparalleled combination of high throughput, low latency, high quality of service, and high endurance. Looking to go all out in terms of raw data speed and put multiple SSDs in RAID 0? Setting this up can prove to be quite the challenge. Thatâ€™s why we created M.2 Genie, a brilliant feature to make setting up RAID 0 for M.2 and U.2 much easier and less time consuming. MEG Z590 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus Intel 2.5G LAN for power users, provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

What is the price of MSI MEG Z590 GODLIKE Motherboard in Bangladesh?

The latest price of MSI MEG Z590 GODLIKE Motherboard in Bangladesh is 32,000৳. You can buy the MSI MEG Z590 GODLIKE Motherboard at best price from our website or visit any of our showrooms.
