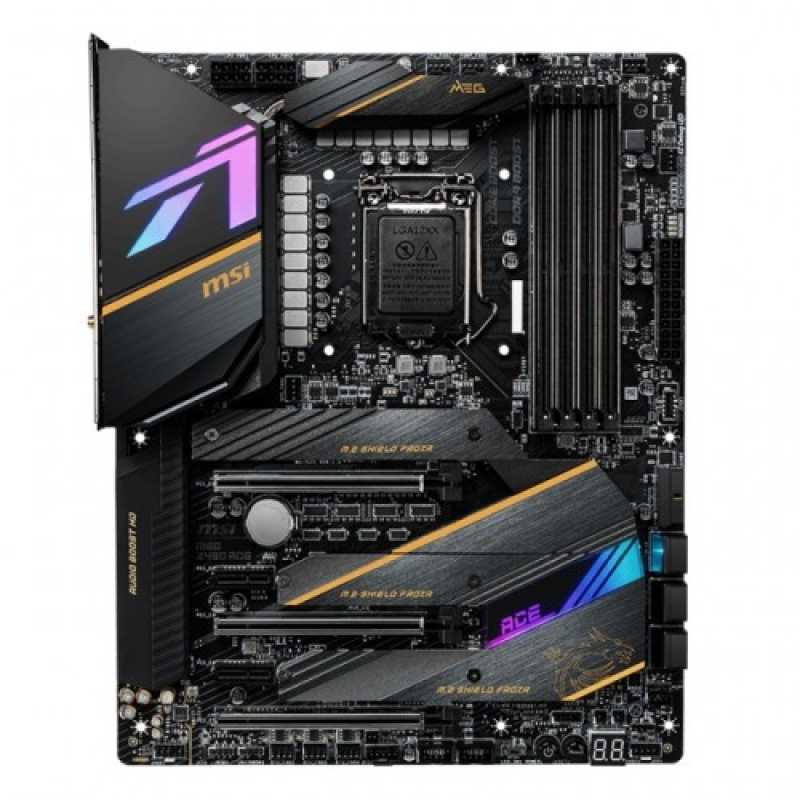

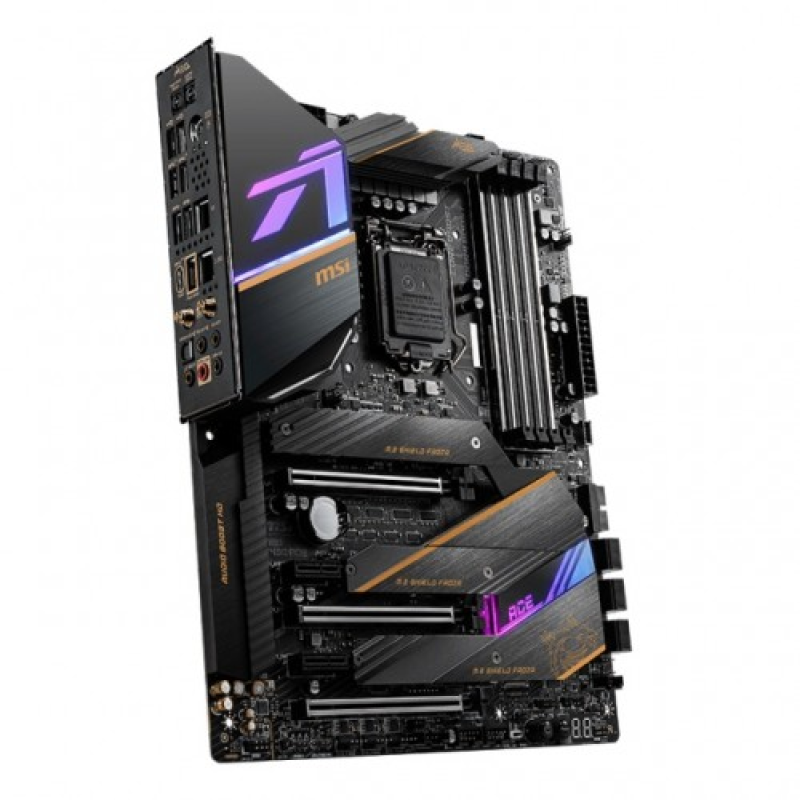

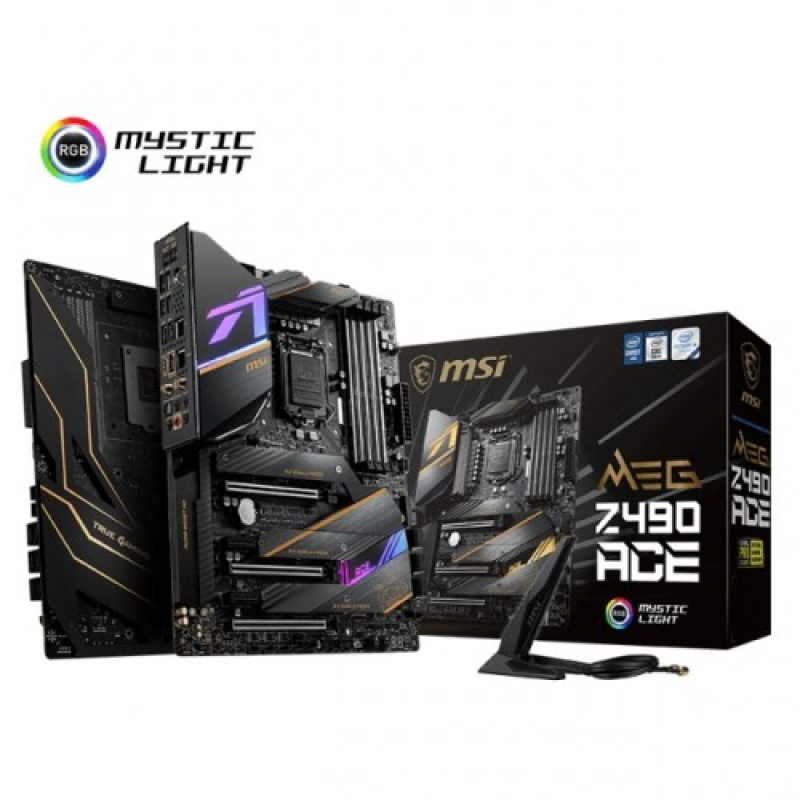

MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard

Regular Price	18,000৳
Product Code	5296
Brand	MSI

Short Details

Model: MSI MEG Z490 ACE
Supports 10th Gen Intel Processors for LGA 1200 socket
Extreme Power Design
Outstanding Cooling Solution
Baseplate and M.2 Shield Frozr

More Info

18000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket
Chipset	Intel Z490 Chipset
Form Factor	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
Expansion Slots
PCI	3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4) 2x PCIe x1 slots (from PCH)
M.2 Socket	M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Memory
Type	Dual channel memory architecture
Slots	4 x DDR4 memory slots
Supported Memory	Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4266+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz
Maximum Memory	128GB
Graphics
Graphics	Supports 2-Way NVIDIA SLI Technology Supports 3-Way AMD CrossFire Technology
Connector & Ports

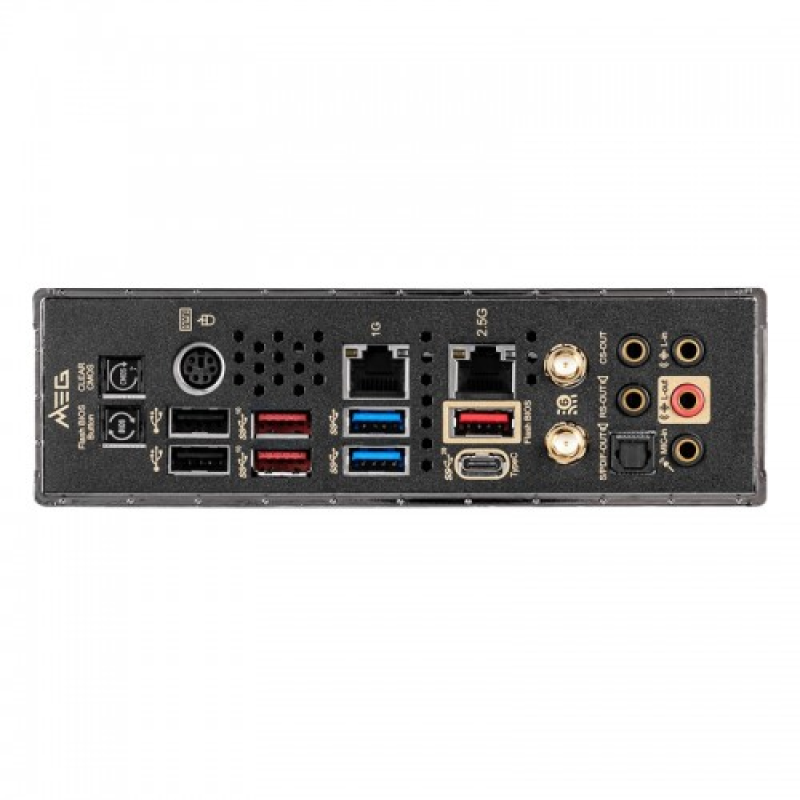

USB (s)	Intel Z490 Chipset 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A ports on the back panel, 1 Type-C internal connector) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal USB connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia 3241 chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
LAN Port (s)	1x Realtek 8125B 2.5G LAN controller 1x Intel I219V 1G LAN controller WIFI & BLUETOOTH Intel AX201 Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps WiFi 6 Pre-Certified Supports Bluetooth 5.1 , FIPS, FISMA The Wireless module is pre-install in the M2 (Key-E) slot
Supported Storage	Intel Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
Audio	Realtek ALC1220 Codec + ESS SABRE9018Q2C combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump connector 6x 4-pin system fan connectors 1x front panel audio connector 2x system panel connectors 1x Chassis Intrusion connector 1x slow mode jumper 1x power button 1x reset button 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector 1x RTD3 connector 1x TBT connector
TPM (Trusted Platform Module )	N/A
Warranty Information
Manufacturing Warranty	03 years

Description

MSI MEG Z490 ACE 10th Gen ATX Gaming Motherboard

The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules, configurations, and even improve overclocking. MEG Z490 ACE features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.

What is the price of MSI MEG Z490 ACE Motherboard in Bangladesh?

The latest price of MSI MEG Z490 ACE Motherboard in Bangladesh is 18,000৳. You can buy the MSI MEG Z490 ACE Motherboard at best price from our website or visit any of our showrooms.
