MSI MAG Z790 TOMAHAWK MAX WIFI ATX Motherboard

Regular Price	41,300৳
Status	In Stock
Product Code	5236
Brand	MSI

Short Details

Model: MAG Z790 TOMAHAWK MAX WIFI
Supported CPU: 14th/13th/12th Gen Core, Pentium Gold & Celeron Processor (LGA 1700)
Supported RAM: 4x DDR5, 7800+(OC), Max 192GB
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5Gbps LAN with Wi-Fi 7 Solution

More Info

41300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors LGA 1700
Chipset	Intel Z790 Chipset
Form Factor	ATX 243.84mmx304.8mm
Audio	Realtek ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on the front panel
Expansion Slots
PCI	2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
M.2 Socket	4x M.2 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	192GB
Graphics
Graphics	1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x DisplayPort Support DP 1.4, maximum resolution of 8K 60Hz*
Connector & Ports
HDMI	1x HDMI 2.1
Display Port (s)	1x DisplayPort 1.4

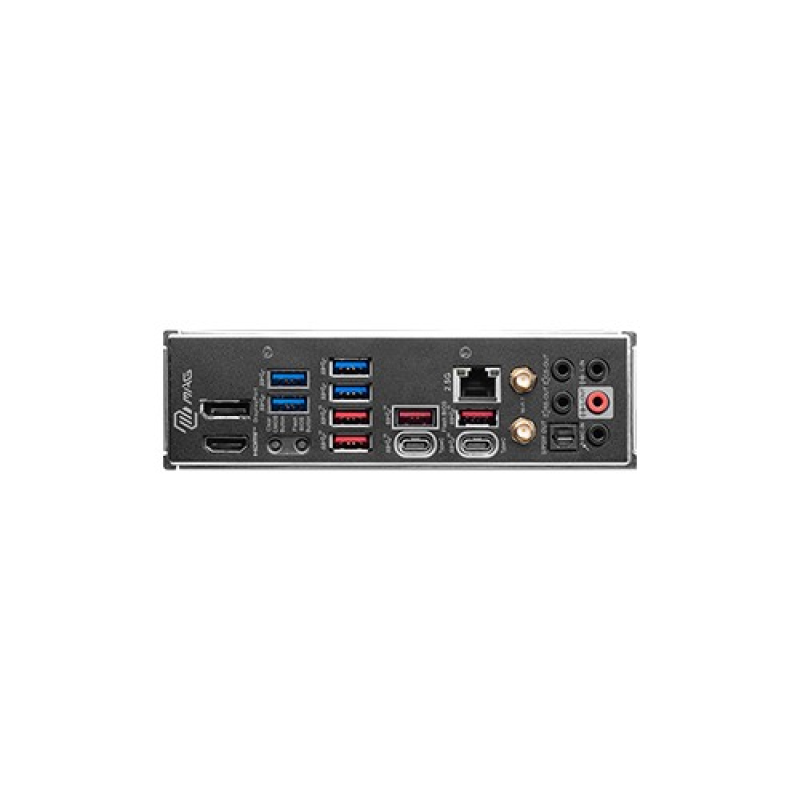

USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Intel 2.5Gbps LAN
Wireless Communication module	Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4**, MLO, 4KQAM
Supported Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices 8x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports 1x USB4 card connector (JTBT_U4_1, supports RTD3)
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Others
Special Features	LED FEATURE: 4x EZ Debug LED
Warranty Information
Manufacturing Warranty	3 years

Description

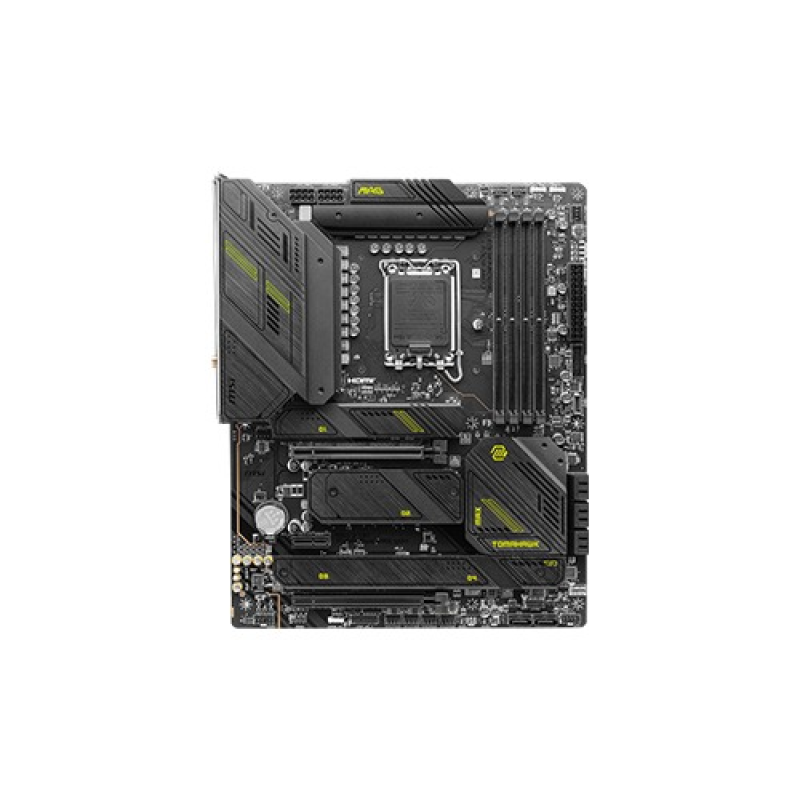

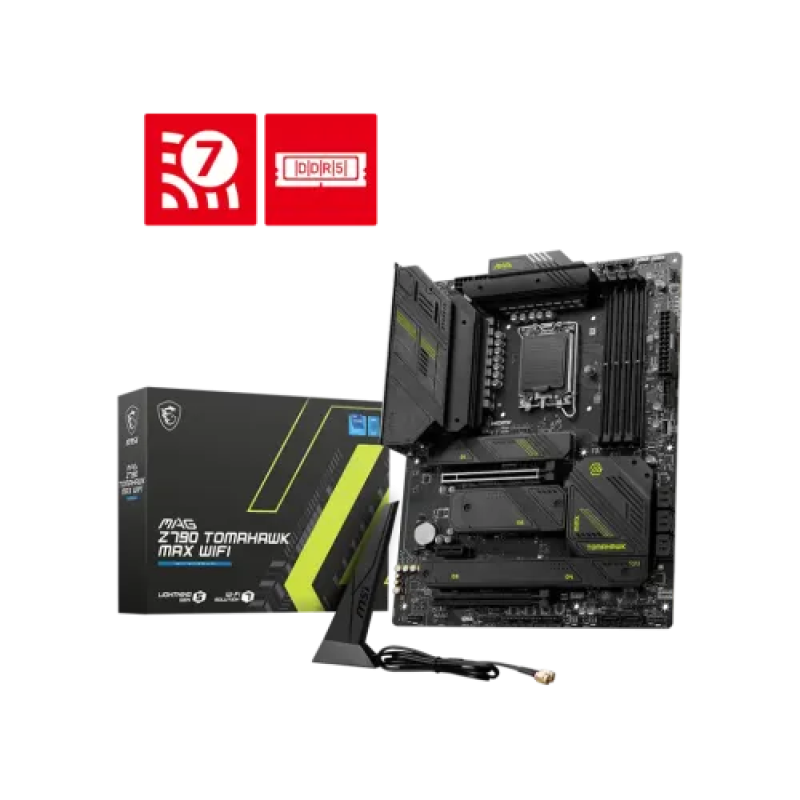

MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard

The MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard is a high-performance motherboard intended to suit current gaming and computer demands. It is compatible with a broad range of Intel CPUs, including the 14th, 13th, and 12th Generation Intel Core processors, as well as the LGA 1700 socket's Intel Pentium Gold and Celeron processors. The support for DDR5 memory on this motherboard can be overclocked to rates of up to 7800+ MHz for lightning-fast data access and system performance. The motherboard's upgraded power architecture incorporates a 16+1+1 mirrored power arrangement, two 8-pin CPU power connections, Core Boost, and Memory Boost, all of which provide reliable and efficient power supply to your components. The MSI MAG Z790 TOMAHAWK MAX WIFI delivers a lightning-fast gaming experience for gamers and enthusiasts, with features like a PCIe 5.0 slot and Lightning Gen 5 M.2 for speedy data transfer, as well as USB 3.2 Gen 2x2 for high-speed networking. The motherboard has a premium thermal solution with an expanded heatsink design and M.2 Shield Frozr, which effectively disperse heat and avoid thermal throttling during severe workloads. The AUDIO BOOST 5 function on the motherboard also emphasizes audio quality, giving studio-grade sound quality for a more immersive gaming experience. This guarantees that you can hear every detail and have a more immersive audio experience whether gaming or viewing multimedia material. The MSI MAG Z790 TOMAHAWK MAX WIFI has a high-quality 6-layer PCB manufactured from 2oz thicker copper and server-grade components, assuring endurance and dependability.

What is the price of MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard in Bangladesh?

The latest price of MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard in Bangladesh is 41,500৳. You can buy the MSI MAG Z790 TOMAHAWK MAX WIFI Motherboard at best price from our website or visit any of our showrooms.
