MSI MAG Z690 TOMAHAWK WIFI ATX Motherboard

Regular Price	36,000৳
Status	In Stock
Product Code	5714
Brand	MSI

Short Details

Model: MAG Z690 TOMAHAWK WIFI
Supports 14th/13th/12th Gen Intel Core, Pentium Gold & Celeron (LGA1700)
Supports DDR5 Memory, up to 6400(OC) MHz
Extended Heatsink Design and M.2 Shield Frozr
2.5G LAN and Intel Wi-Fi Solution

More Info

36000৳

Product Price

Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 14th/13th/12th Gen Intel Core, Pentium Gold and Celeron Processors Processor socket LGA1700
Chipset	Intel Z690 Chipset
Form Factor	ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Audio	Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	3x PCIe x16 slots PCI_E1 (From CPU) Support up to PCIe 5.0 x16 PCI_E3 (From Z690 chipset) Support up to PCIe 3.0 x4 PCI_E4 (From Z690 chipset) Support up to PCIe 3.0 x1 1x PCIe 3.0 x1 slot (From Z690 chipset)
M.2 Socket	4x M.2 slots (Key M)
Memory
Type	DDR5
Slots	4x DDR5 memory slots
Supported Memory	Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports AMD CrossFire Technology

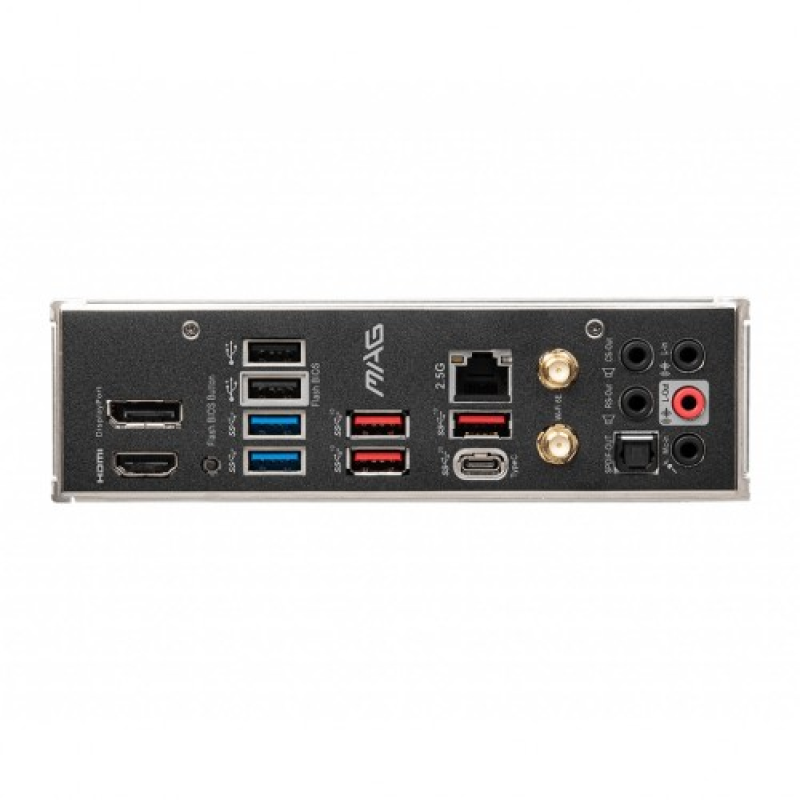

Connector & Ports
HDMI	1x HDMI 2.1 with HDR port
Display Port (s)	1x DisplayPort 1.4 port with HBR3
USB (s)	Intel Z690 Chipset: 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel) 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector) 1x USB 2.0 Type-A port on the back panel Hub-GL850G: 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
LAN Port (s)	1x Intel I225V 2.5Gbps LAN controller
Wireless Communication module	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	6x SATA 6Gb/s ports (From Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready for M.2 slots from Z690 Chipset Supports Intel Smart Response Technology for Intel Core processors RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG Z690 TOMAHAWK WIFI ATX Motherboard

The MSI PRO Z690-A WiFi Motherboard supports 14th, 13th & 12th Gen Intel Core/ Pentium Celeron processors for LGA 1700 socket. It supports DDR5 Memory, up to 6400(OC) MHz. It delivers a Lightning Fast Game experience with PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2x2. It features 2.5G LAN with LAN Manager and Intel Wi-Fi 6 Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. It comes with an Enhanced Power Design. It is equipped with an enlarged heatsink with heat pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads, and M.2 Shield Frozr are built for a high-performance system and non-stop gaming experience. The MSI PRO Z690-A WiFi comes upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has an 8-layer PCB made of 2oz thickened copper and server-grade level material. The MSI PRO Z690-A WiFi comes with 3 years of warranty.

What is the price of MSI MAG Z690 TOMAHAWK WIFI Motherboard in Bangladesh?

The latest price of MSI MAG Z690 TOMAHAWK WIFI Motherboard in Bangladesh is 31,500৳. You can buy the MSI MAG Z690 TOMAHAWK WIFI Motherboard at best price from our website or visit any of our showrooms.
