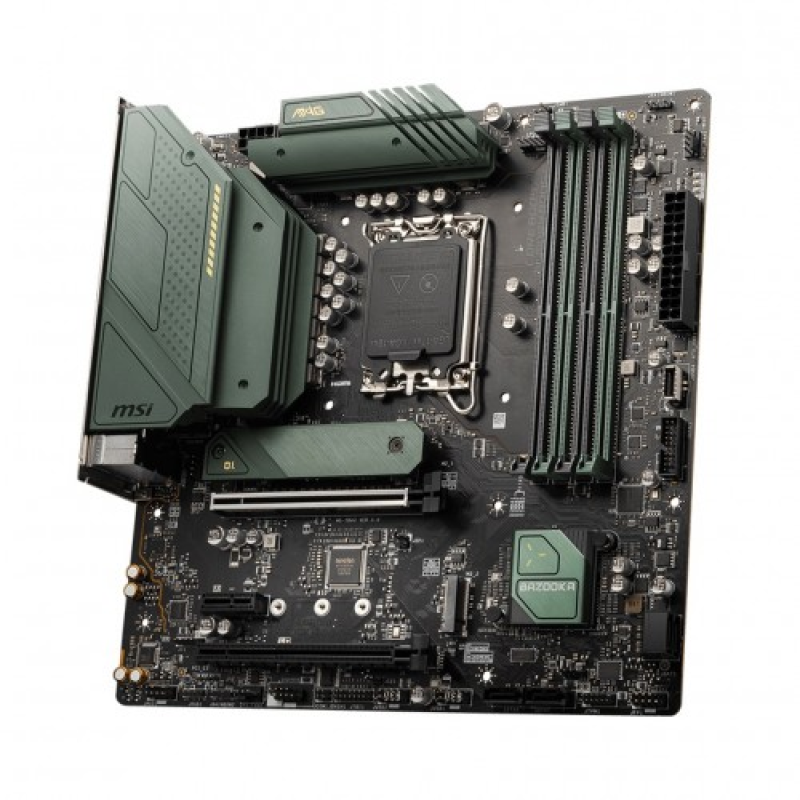

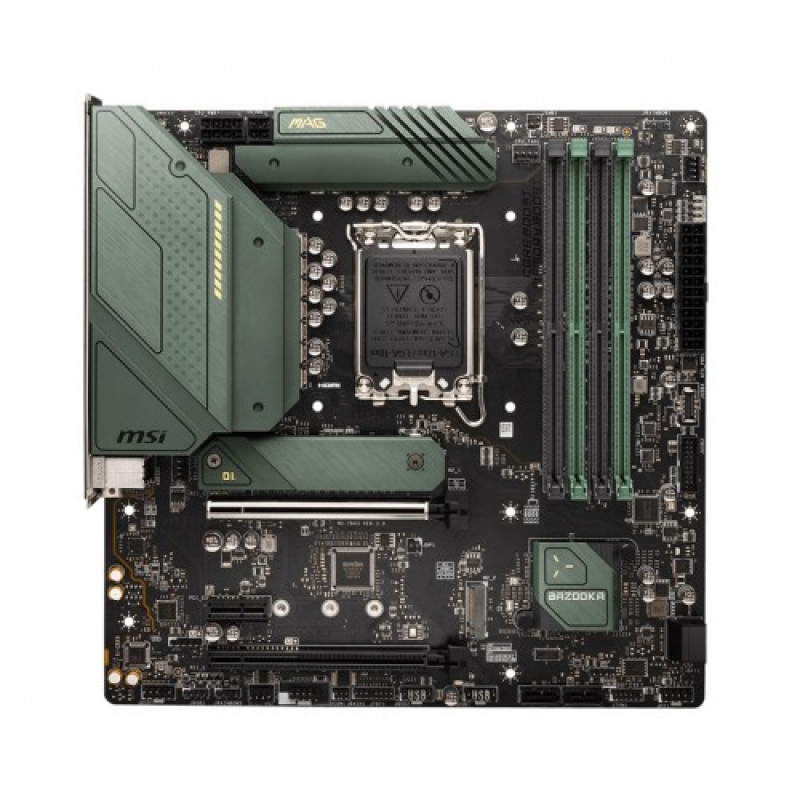

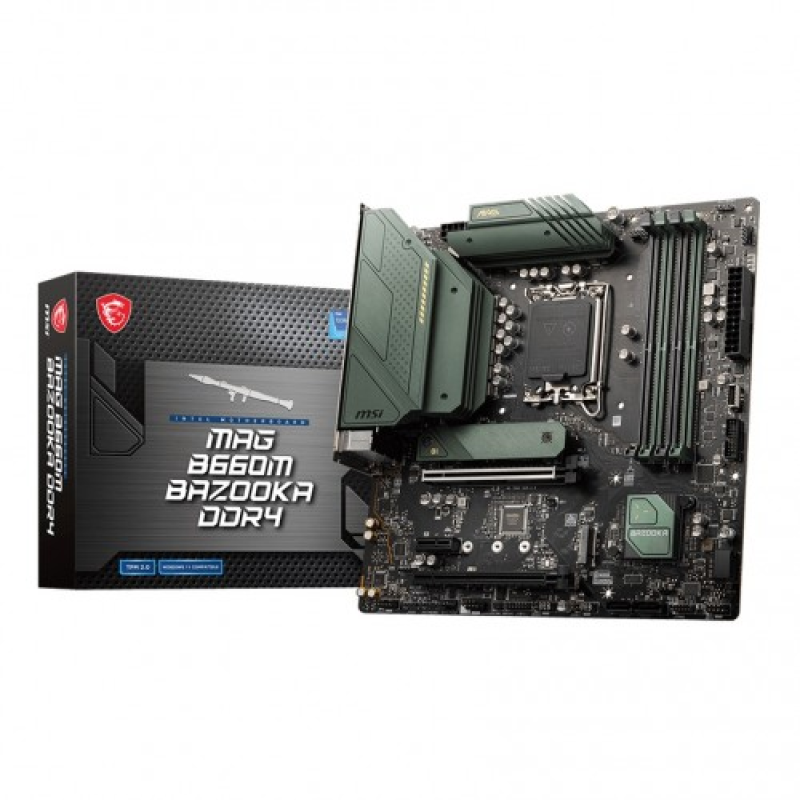

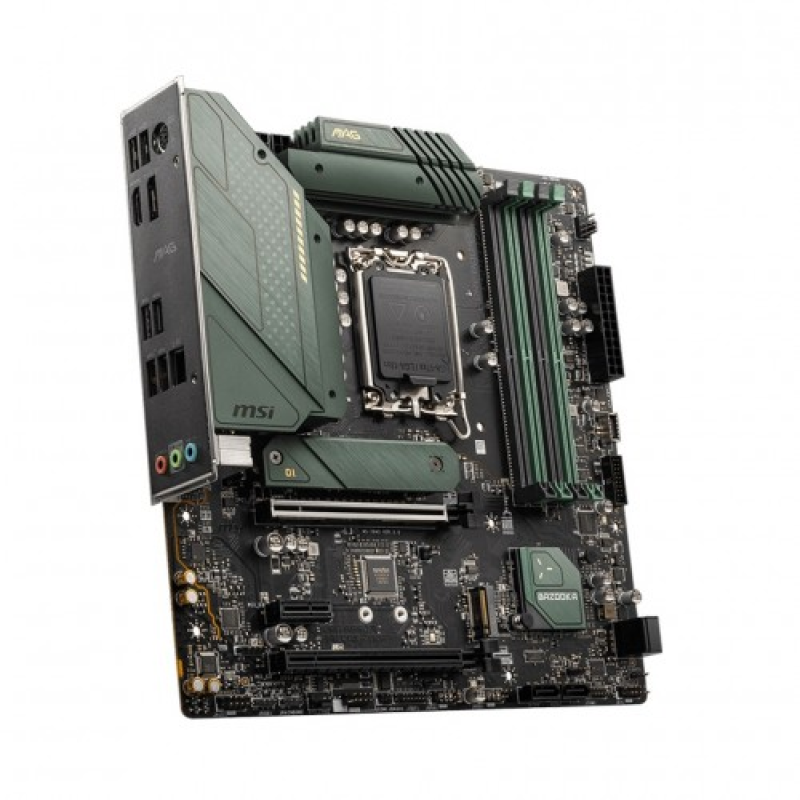

MSI MAG B660M BAZOOKA DDR4 Micro-ATX Motherboard

Regular Price	18,000৳
Product Code	5297
Brand	MSI

Short Details

Model: MAG B660M BAZOOKA DDR4
Supports 14th, 13th & 12th Gen Intel processors for LGA 1700 socket
Supports DDR4 Memory, up to 4800+(OC) MHz
4x SATA 6Gb/s ports, 2x M.2 slots
Onboard 2.5G LAN plus Gigabit LAN

More Info

18000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Supports 14th, 13th & 12th Gen Intel Core Processors Processor socket LGA1700
Chipset	Intel B660 Chipset
Form Factor	Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From B660 chipset)
Memory
Type	DDR4
Slots	4x DDR4 memory slots
Supported Memory	4x DDR4 memory slots, support up to 128GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Support up to 128GB
Graphics
Graphics	1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz

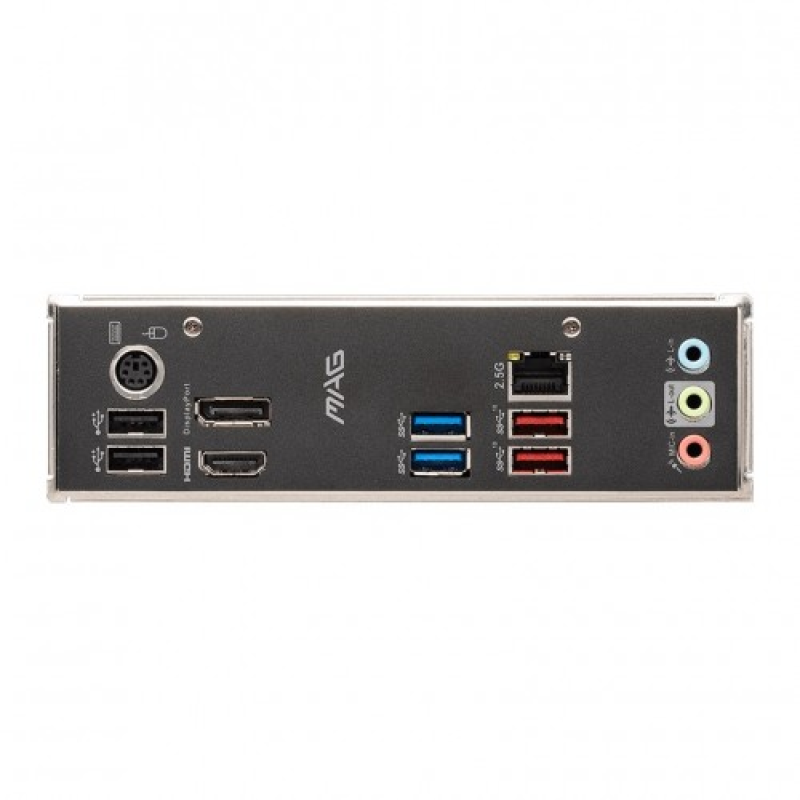

Connector & Ports
HDMI	1x HDMI 2.1 with HDR port
Display Port (s)	1x DisplayPort 1.4 port with HBR3
USB (s)	Intel B660 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 3x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 1 Type-C available through the internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 Type-A ports available through the internal connectors) Asmedia ASM1074 2x USB 3.2 Gen 1 5Gbps Type-A ports through the internal connector
LAN Port (s)	1x Realtek 8125BG 2.5Gbps LAN controller
Supported Storage	4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps Type-A connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TBT connector (supports RTD3) 1x Serial port 1x Tuning Controller connector
TPM (Trusted Platform Module )	1x TPM module connector
Others
Special Features	Supports 2-Way AMD® CrossFire Technology
Warranty Information
Manufacturing Warranty	3 years

Description

MSI MAG B660M BAZOOKA DDR4 Micro-ATX Motherboard

The MSI MAG B660M BAZOOKA DDR4 Motherboard supports 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It supports DDR4 Memory, up to 4800+(OC) MHz. This motherboard comes with Premium Thermal Solution. It is equipped with an extended heatsink design and M.2 Shield Frozr for high-performance system and non-stop works and also this motherboard has 2.5G LAN so that it helps to Upgraded network solutions for professional and multimedia use. Delivers a secure, stable, and fast network connection. By Utilizing 12th Gen Intel processors, the MSI MAG B660M BAZOOKA DDR4 motherboard features the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. This motherboard is designed with Lightning M.2, which helps to run at PCIe Gen 4 and maximizes performance for NVMe-based SSDs. It also has Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1, and also With Steel armor PCIe slots. Supports AMD Crossfire. Here, the 2.5Gbps LAN provides incredible data transfer speed faster than a general Gigabit LAN. This is a premium solution for Gamers. The latest MSI MAG B660M BAZOOKA DDR4 motherboard comes with 03 years of warranty.

What is the price of MSI MAG B660M BAZOOKA DDR4 Motherboard in Bangladesh?

The latest price of MSI MAG B660M BAZOOKA DDR4 Motherboard in Bangladesh is 18,000৳. You can buy the MSI MAG B660M BAZOOKA DDR4 Motherboard at best price from our website or visit any of our showrooms.
