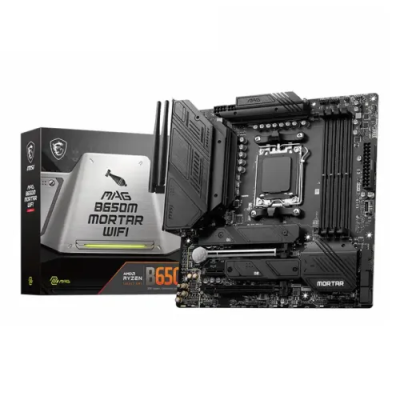

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

Regular Price	28,500৳
Status	In Stock
Product Code	265
Brand	MSI

Short Details

Model: MAG B650M MORTAR WIFI
Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 4x DDR5, up to 6400+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN and Intel Wi-Fi 6E Solution

More Info

28500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Chipset	AMD B650
Form Factor	mATX 243.84mmx243.84mm
Audio	Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI	2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
Memory
Type	DDR5
Slots	4 DIMMs
Supported Memory	Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory	128GB
Graphics
Graphics	1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x Display Port
USB (s)	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN Port (s)	Realtek RTL8125B 2.5Gbps LAN
Wireless Communication module	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2
Supported Storage	2x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio	HD Audio Connectors
Internal I/O Ports	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
Warranty Information
Manufacturing Warranty	3 Years

Description

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

The MSI MAG B650M MORTAR WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The motherboard is made of an 8-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 5 x4 M.2, and USB 3.2 Gen 2x2. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650M MORTAR WIFI offers Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MAG B650M MORTAR WIFI Motherboard comes with 3 years of warranty.
