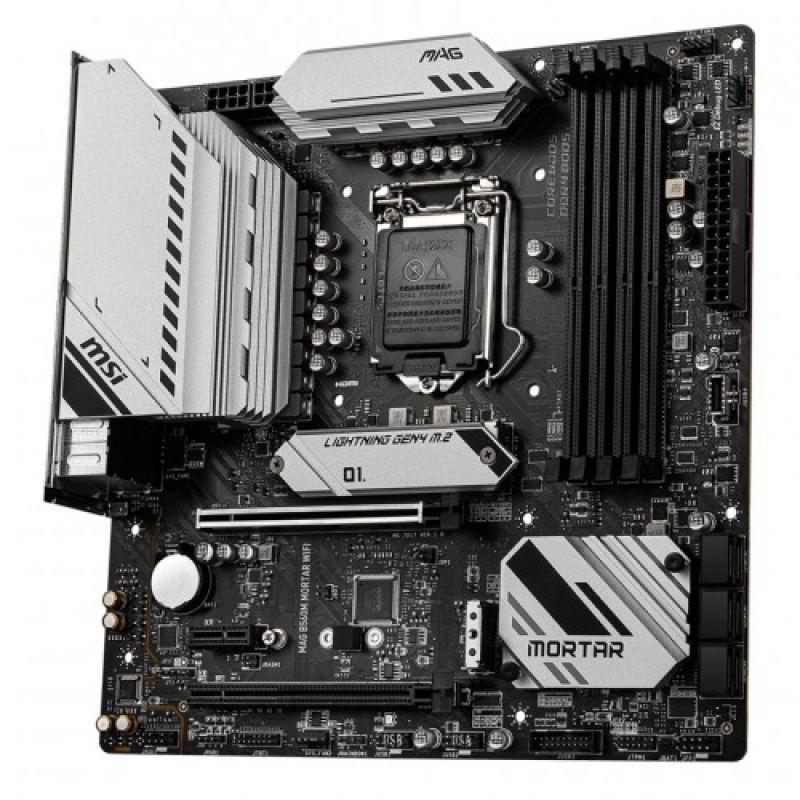

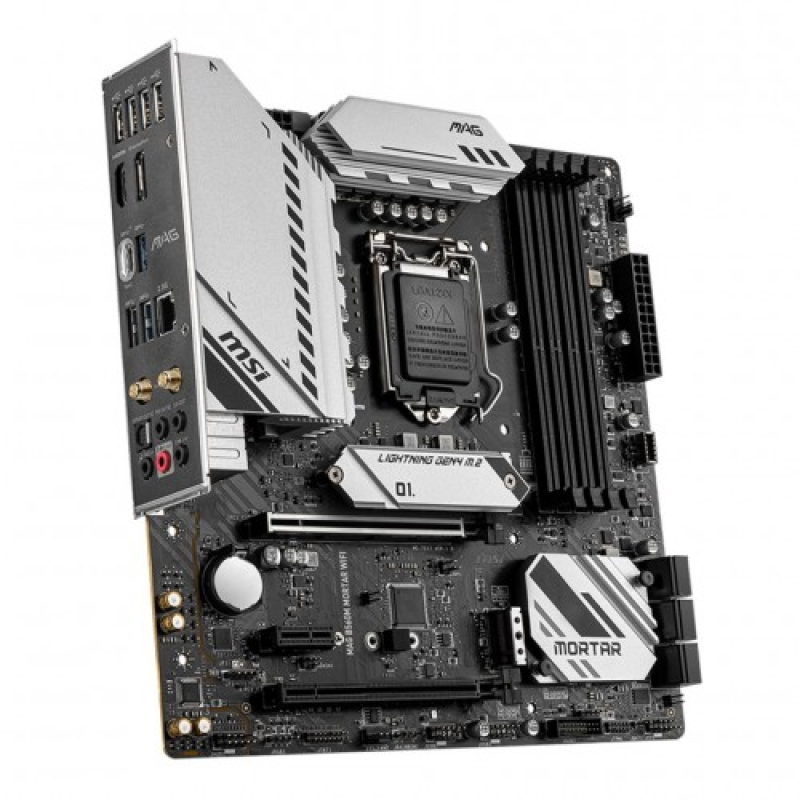

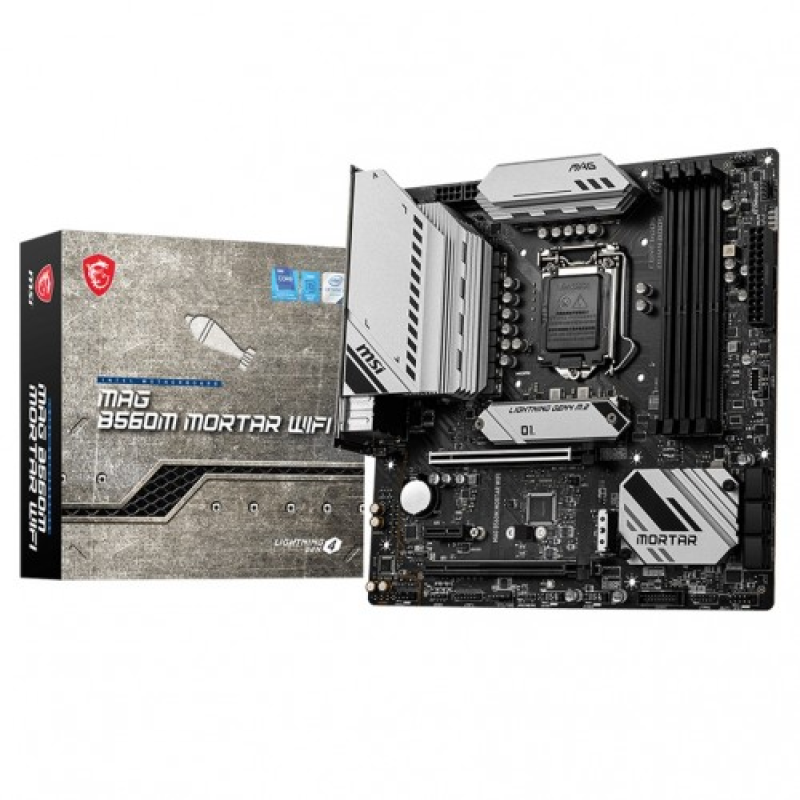

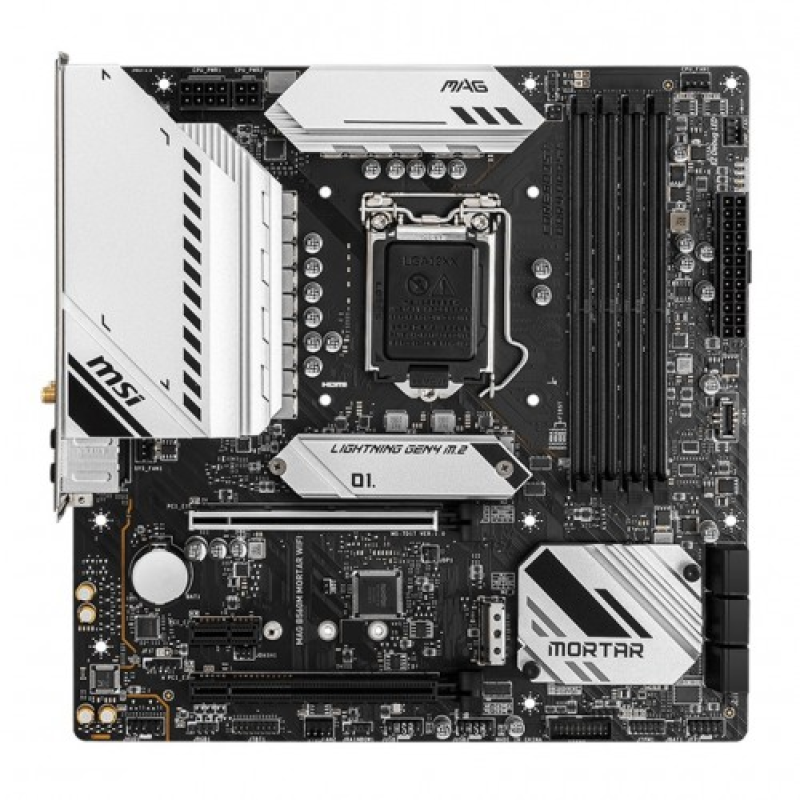

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard

Regular Price	15,600৳
Product Code	117
Brand	MSI

Short Details

Model: MAG B560M MORTAR WIFI
Supports 10th & 11th Gen Processors, LGA1200
Supports DDR4 RAM up to 5066(OC) MHz
Supports 2-Way AMD CrossFire Technology
2.5G LAN and Intel Wi-Fi 6E Solution

More Info

15600৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	Supports 10th, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors for LGA1200 socket
Chipset	Intel B560 Chipset
Form Factor	Micro ATX Form Factor
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Expansion Slots
PCI	2x PCIe x16 slots Support x16/ x4 -PCI E1 (from CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU -PCI E3 (From B560 chipset) Support up to PCIe 3.0 1x PCIe 3.0 x1 slot PCI E2 (From B560 chipset) PCI E3 will be unavailable when installing M.2 SSD in M2 2 slot. However, if you want to use both of them simultaneously, you can set x1 for PCI E3 and set x2 for M2 2 in BIOS.
M.2 Socket	2x M.2 slots (Key M)
Memory
Type	DDR4
Slots	4 x DIMM slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066+ MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	Up to 128GB
Graphics
Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Supports 2-Way AMD CrossFire Technology

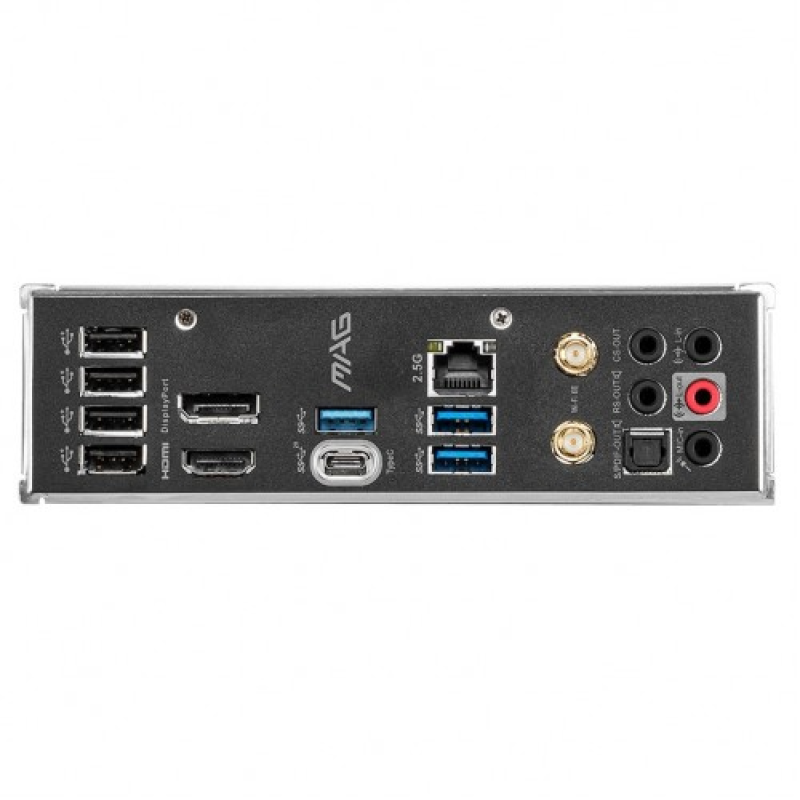

Connector & Ports
HDMI	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Display Port (s)	1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
USB (s)	Intel B560 Chipset: 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 connector 4x USB 2.0 ports on the back panel USB Hubs ASM1074: 3x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel Hub-GL850G: 4x USB 2.0 ports are available through the internal USB 2.0 connectors
LAN Port (s)	1x Realtek RTL8125B 2.5Gbps LAN controller
Wireless Communication module	Intel WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (from B560 chipset) 2x M.2 slots (Key M) -M2 slot 1: Supports up to PCIe 4.0 x4 for 11th Gen Intel CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices -M2 slot 2 (From B560 chipset): Supports up to PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Tuning Controller Connector 1x TBT connector (Supports RTD3)
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years Warranty

Description

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard

MSI MAG B560M MORTAR WIFI 10th and 11th Gen Micro ATX Motherboard comes with MSI lightning Gen 4 PCI-E which is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors (socket LGA1200). With more coresâ€™ processors, thermal and power design is more important to make sure the temperature keeps lower. An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking. It has 4 x DDR4 memory slots and it supports up to 128GB. It also supports dual-mode. It features a 2.5G LAN and Intel Wi-Fi 6E Solution. Upgraded network solution for professional and multimedia use. Delivers a secure, stable, and fast network connection. The latest Wi-Fi 6E solution supports 6GHz spectrum, Bluetooth 5.2, two-way MU-MIMO, and BSS color technology, provide up to 4X network capacity and efficiency in the high signal density environment, delivering speeds up to 2400Mbps. This motherboard supports 2x PCIe x16 slots and supports up to PCIe 3.0. It has 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz, and 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz. It also supports 2-Way AMD CrossFire Technology. it features 6x SATA 6Gb/s ports (from B560 chipset) and 2x M.2 slots (Key M) for storage. it comes with Intel Smart Response Technology for Intel Core processors. It has a 7.1-Channel High Definition Audio and also supports S/PDIF output. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting an MSI AI ENGINE. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. It has a 3 years warranty.

What is the price of MSI MAG B560M MORTAR WIFI Motherboard in Bangladesh?

The latest price of MSI MAG B560M MORTAR WIFI Motherboard in Bangladesh is 15,700৳. You can buy the MSI MAG B560M MORTAR WIFI Motherboard at best price from our website or visit any of our showrooms.
