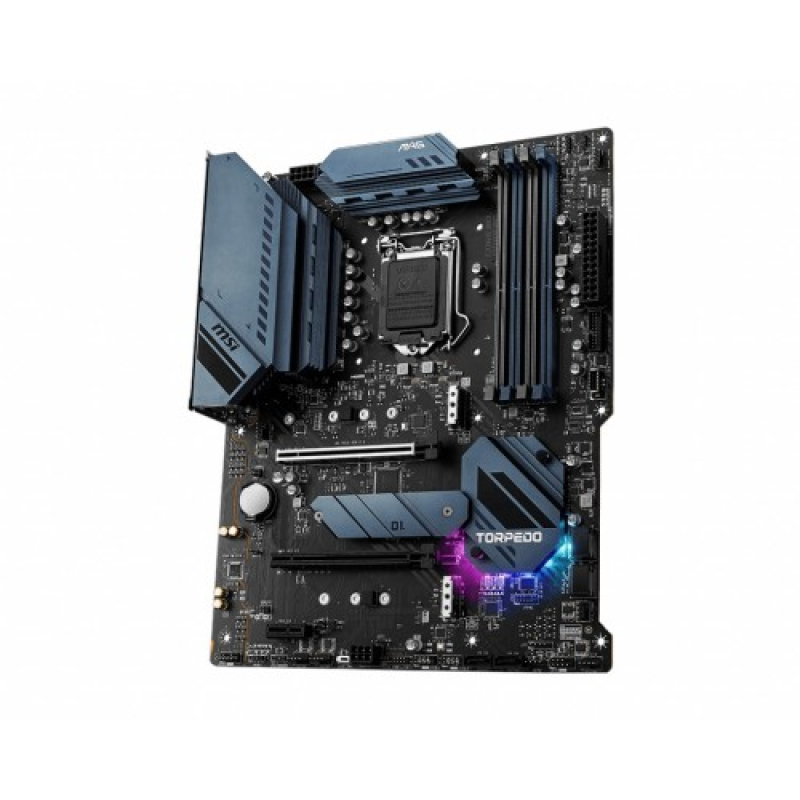

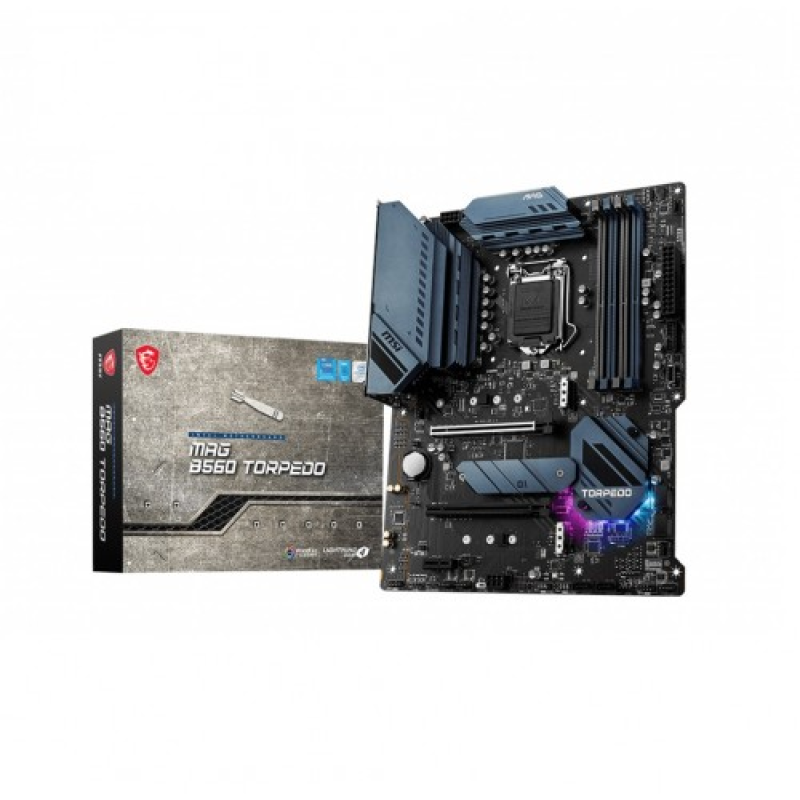

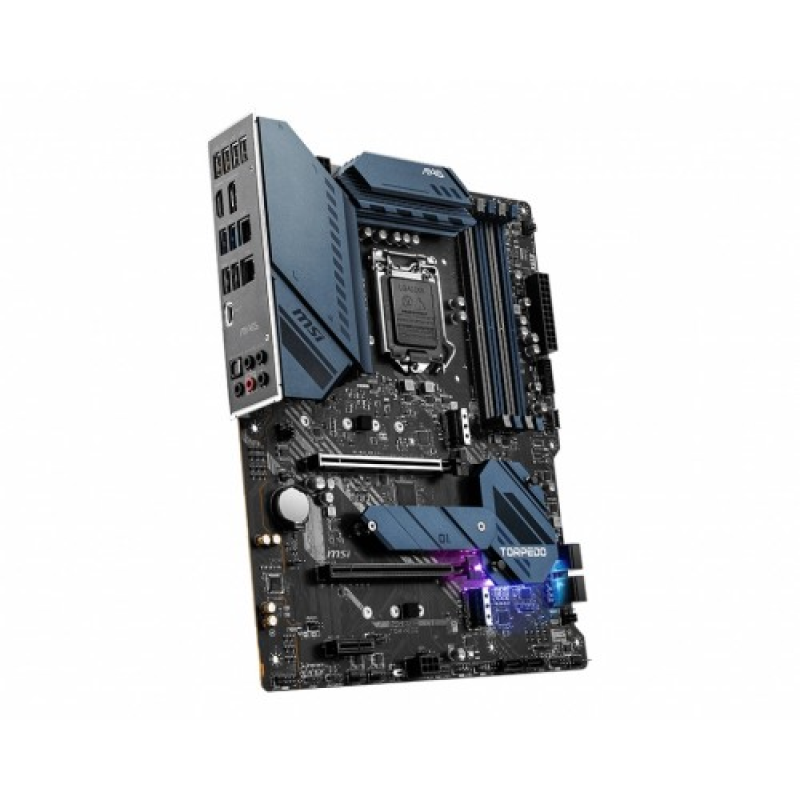

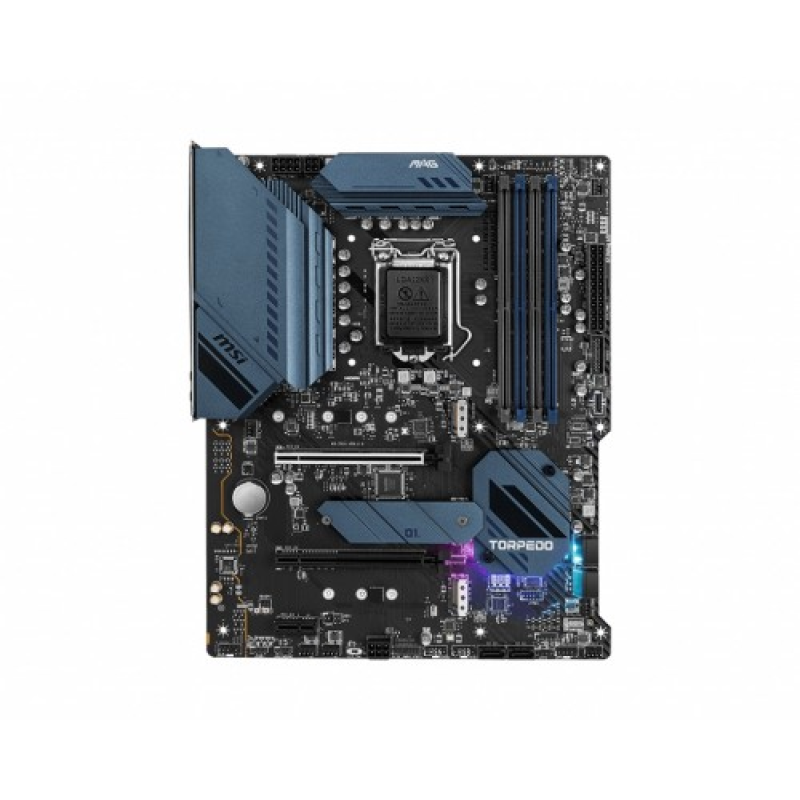

MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

Regular Price 15,200৳
Product Code 5293
Brand MSI
Short Details
  • Model: MAG B560 TORPEDO
  • Supports 10th Gen & 11th Gen Intel Core, Pentium Gold and Celeron processors
  • DDR4 Memory, up to 5066(OC) MHz
  • Lightning USB 20G
  • LGA 1200 socket
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1

Processor socket LGA1200
Chipset Intel B560 Chipset
Form Factor ATX Form Factor
Audio 7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI 2x PCIe x16 slots
1x PCIe 3.0 x1 slot (from B560 chipset)
M.2 Socket 3x M.2 slots (Key M)
Memory
Type DDR4
Slots 4x DDR4 memory slots
Supported Memory Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP)
Maximum Memory support up to 128GB
Graphics
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz

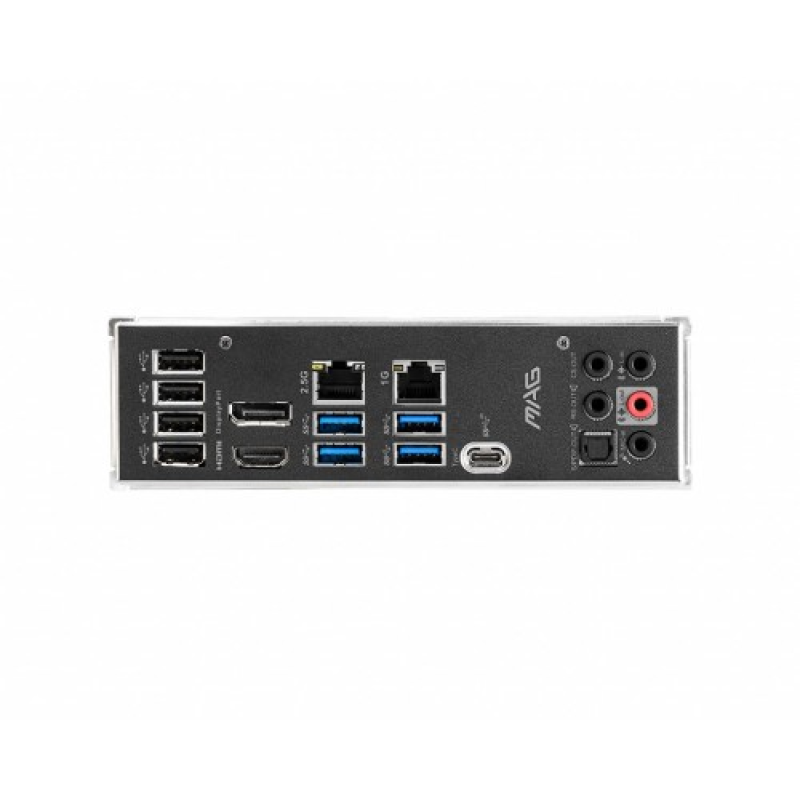

Connector & Ports
USB (s) 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel)
1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector)
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
4x USB 2.0 ports on the back panelG
Hub-GL850G
4x USB 2.0 ports available through the internal connectors
LAN Port (s) 1x Realtek RTL8125B 2.5Gbps LAN controller
1x Intel I219V 1Gbps LAN controller
Supported Storage 6x SATA 6Gb/s ports (from B560 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready
Supports Intel Smart Response Technology for Intel Core processors
Audio 1x Front panel audio connector
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector
TPM (Trusted Platform Module ) 1x TPM module connector
Warranty Information
Manufacturing Warranty 03 years warranty

Description

MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard

MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard features high-bandwidth and low-latency 2.5G plus Gigabit LAN for power users. This Motherboard has Onboard 2.5Gbps connectivity provides incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency. It is Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard Supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz. This Motherboard has Premium Thermal Solution, that Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works and also it's Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs. This Motherboard has Latest Network Solution: Onboard 2.5G LAN plus Gigabit LAN with LAN Manager deliver the best online experience without lag and also Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C. It's Audio Boost, Reward your ears with studio grade sound quality with Multi-GPU With Steel armor PCIe slots. Supports 2-Way AMD Crossfire. The latest MSI MAG B560 TORPEDO Intel 10th Gen and 11th Gen ATX Motherboard has 03 years warranty.

What is the price of MSI MAG B560 TORPEDO 10th Gen and 11th Gen ATX Motherboard in Bangladesh?

The latest price of MSI MAG B560 TORPEDO 10th Gen and 11th Gen ATX Motherboard in Bangladesh is 15,300৳. You can buy the MSI MAG B560 TORPEDO 10th Gen and 11th Gen ATX Motherboard at best price from our website or visit any of our showrooms.
