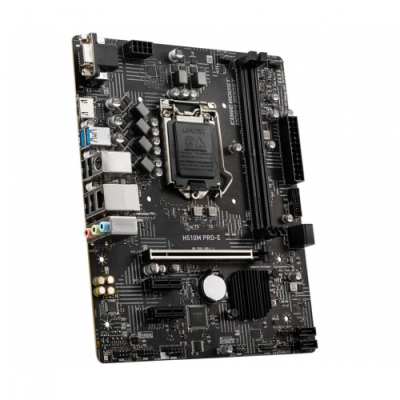

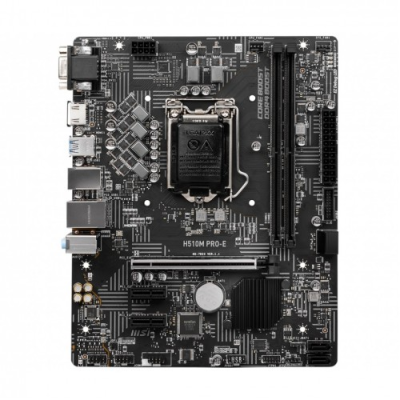

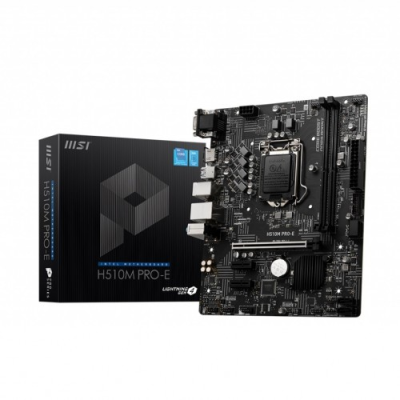

MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard

Regular Price	9,100৳
Product Code	3450
Brand	MSI

Short Details

Model: H510M PRO-E
Supports 10th Gen Core, 11th Gen Core, Pentium Gold & Celeron for LGA 1200 socket
Supports DDR4 Memory, up to 3200(Max) MHz
With premium layout and digital power design
Lightning Fast Experience: PCIe 4.0

More Info

9100৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Basic Information
Supported CPU	Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron Processors1
Chipset	Intel H510 Chipset
Form Factor	mATX Form Factor 9.3 x 7.5 in. (23.6 cm x 19.0 cm)
Audio	Realtek ALC897 Codec 7.1-Channel High Definition Audio
Expansion Slots
PCI	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From PCH)
Memory
Type	DDR4
Slots	2x DDR4 memory slots
Supported Memory	Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP)
Maximum Memory	up to 64GB
Graphics
Graphics	1x VGA port, supports a maximum resolution of 2048x1536 60Hz, 1920x1200 60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4K 30Hz

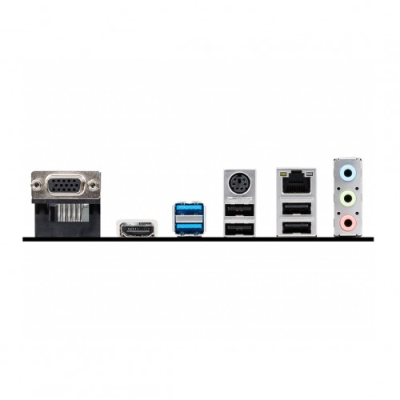

Connector & Ports
HDMI	1x HDMI 1.4 port
VGA (s)	1x VGA port
USB (s)	Intel H510 Chipset 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
LAN Port (s)	1x Realtek RTL8111 Gigabit LAN controller
Supported Storage	4x SATA 6Gb/s ports (From H510 Chipset)
Audio	1x Front panel audio connector
Internal I/O Ports	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB ports) 1x USB 2.0 connector (support additional 2 USB ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector
TPM (Trusted Platform Module )	1x TPM module connector
Warranty Information
Manufacturing Warranty	03 years warranty

Description

MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard

The MSI PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. MSI H510M PRO Intel 10th Gen and 11th Gen Micro-ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 3200(Max) MHz. The Motherboard featured with premium layout and digital power design to support more cores and provide better performance, DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability, Lightning Fast Experience: PCIe 4.0. It is Protecting VGA cards against bending and EMI for better performance, stability and strength. Here, MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. It is Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards. The Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. The latest MSI H510M PRO-E Intel 10th Gen and 11th Gen Micro-ATX Motherboard has 03 years warranty.

What is the price of MSI H510M PRO-E Intel 10th Gen & 11th Gen Motherboard in Bangladesh?

The latest price of MSI H510M PRO-E Intel 10th Gen & 11th Gen Motherboard in Bangladesh is 9,100৳. You can buy the MSI H510M PRO-E Intel 10th Gen & 11th Gen Motherboard at best price from our website or visit any of our showrooms.
