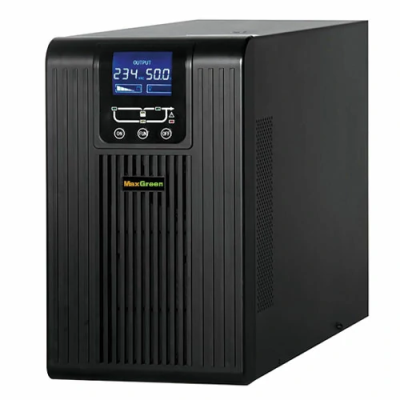

MaxGreen MGO-W10KS 10 KVA Standard Backup High-Frequency Online UPS

Regular Price	90,000৳
Status	In Stock
Product Code	2771
Brand	All Brand

90000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Key Features

Model: MGO-W6KS
220VAC single-phase three-wire
Input frequency range: 45Hz-65Hz
Battery Capacity: 12v 7Ah
Rated Power: 6KVA/5.4KW

Specification

Main Feature
Input Voltage	Single-phase 120Vac-288Vac
Output Voltage	Single-phase 220Vac
Frequency (Battery Mode)	Frequency precision 0.25%
Noise Level	<55dB
Battery	Battery brand: Always/Star/Equivalent Battery Capacity: 12v 7Ah Battery Qty: 16 units Battery Cabinet: Internal Battery Charging capability: >6h for 90% re-charging of standard model
Rectifier Type	IGBT rectifier
Input Features
Frequency	45Hz-65Hz
Power Factor	>=0.99 for single phase/>0.95 for three-phase
Voltage Range	Single-phase 120Vac-288Vac
Output Features
Backup Time	Standard back up (15-30)min
Type of Wave	Sinewave
Transfer Time	00
Rated power	6KVA/5.4KW

Description

MaxGreen MGO-W6KS 6 KVA Standard Backup Online UPS

The MaxGreen series UPS guarantee total protection for powers ranging from 5kVA to 20kVA against any anomaly in the mains electricity network during their operation. With On-Line Double Conversion technology, the supply voltage to loads is provided in each case via the inverter stage with galvanic isolation. Advanced PWM Technology allows a voltage and current adjusted signal to be available at each moment in time, free of harmonics, noises, and interferences. Information on the status of the system is presented locally by means of LED signaling and an LCD screen with different menus. Information on the unit can also be managed remotely through its powerful software.

This best-in-class security and manageability in a space-saving design come with 1 year of warranty.
