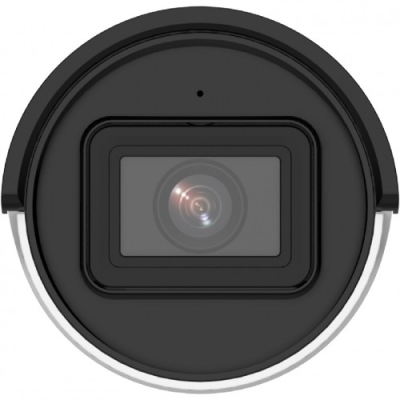

Hikvision DS-2CD2043G2-IU 4MP IP Bullet Camera

Regular Price 8,700৳
Status In Stock
Product Code 2666
Brand Hikvision
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Key Features

  • Model: DS-2CD2043G2-IU
  • Water and dust resistant: IP67
  • 4 MegaPixel, 2688 × 1520p Resolution
  • 4 mm Fixed Camera Lens
  • EXIR 2.0 Smart IR, up to 25 M

Specification

Camera Feature
Image Sensor1/3" Progressive Scan CMOS
IR DistanceUp to 25 m IR range
Lens
Focal Length2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
OthersMax. Image Resolution:
2688 × 1520
Frame Rate:
50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream:
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:
50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:
BLC/3D DNR/ROI/HLC
Image Settings:
Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Target Cropping:
No
ROI:
1 fixed region for main stream and sub-stream
Day/Night Switch:
Day/Night/Auto/Schedule
Video Compression:
H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:
256Kbps~16Mbps
Triple Streams:
Yes
Weather Proof:
IP67
Physical Specification
DimensionCamera: Φ 70 × 155.03 mm (Φ 2.8" × 6.1")
Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7")
WeightCamera: Approx. 420 g (0.9 lb.)
With Package: Approx. 700 g (1.5 lb.)
PowerPower Supply: 12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption: 12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
InterfaceCommunication Interface: 1 RJ45 10M / 100M Ethernet interface
On-board storage: Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button: Yes

Description

Hikvision DS-2CD2043G2-IU 4MP IP Bullet Camera

Hikvision DS-2CD2043G2-IU is a 4MP IP Bullet Camera. It has High-quality imaging with 4 MP resolution. The resolution support is 2688 × 1520 pixels. It has clear imaging against strong backlight due to 120 dB WDR technology. It also has efficient H.265+ compression technology alongside a Built-in microphone for real-time audio security. It is IP67 Water and dust resistant. It can focus on human and vehicle targets classification based on deep learning. The Image Sensor is 1/3″ Progressive Scan CMOS with a minimum Illumination of Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on. The Shutter Time is 1/3 s to 1/100,000 s. The Angle Adjustment readings are Pan: 0° to 360°, tilt: 0° to 90°, and rotate: 0° to 360°. With ICR Cut Day & Night; supported max. resolution is 2688 × 1520. It has a focal Length & FOV reading of this camera is: for 2.8 mm, The FOV is 103°; the vertical FOV is 55°, diagonal FOV is 122°. For 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°; for 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°. It supports an M12 Lens Mount. Finally, The Supported Internet Protocols are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PP PoE. Hikvision DS-2CD2043G2-IU 4MP IP Bullet Camera offers a 01-year warranty.
