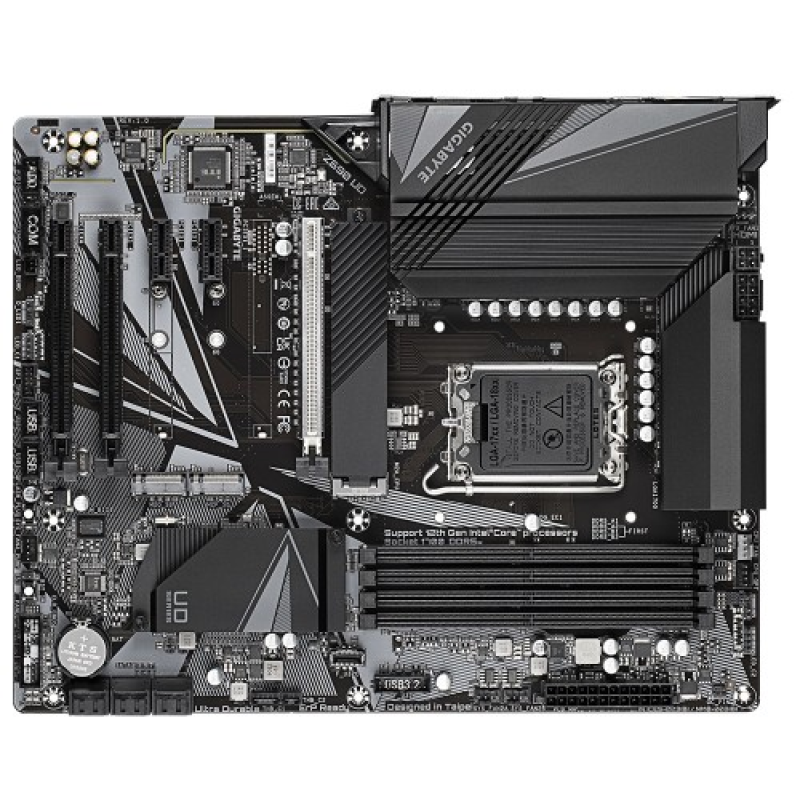

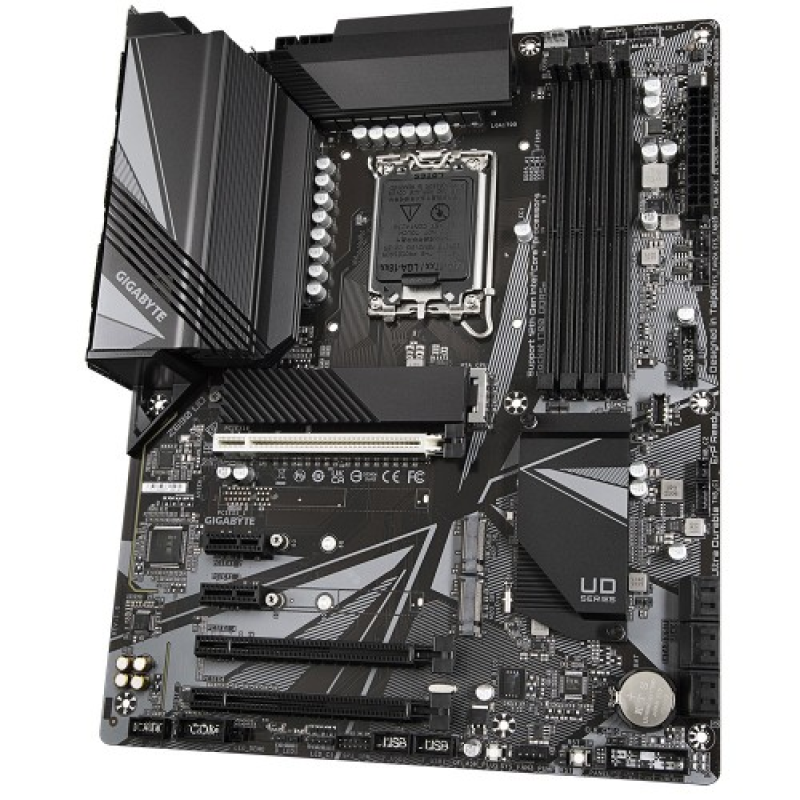

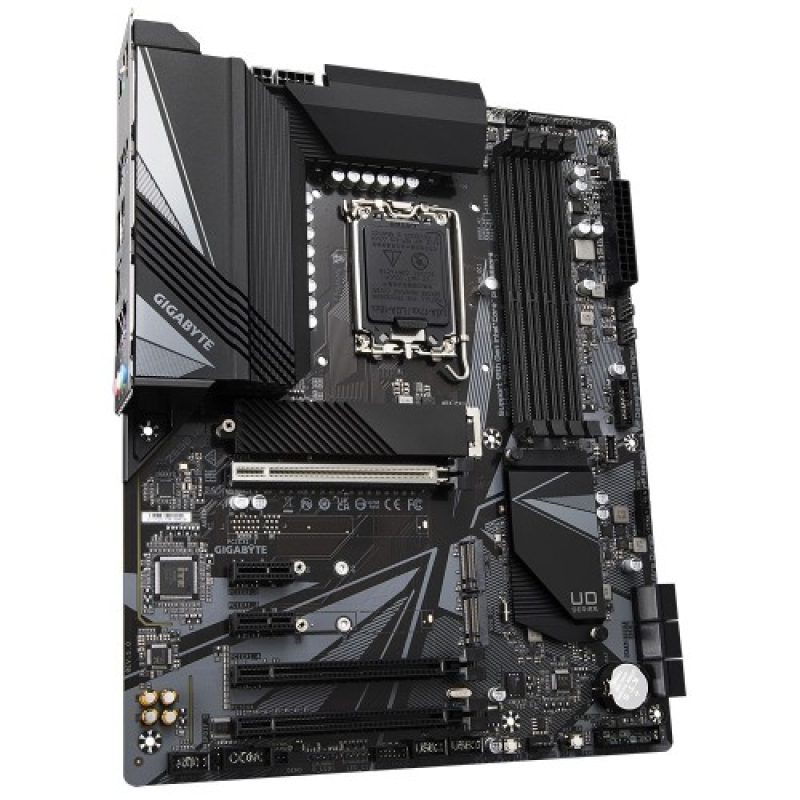

GIGABYTE Z690 UD ATX Motherboard

Regular Price 27,200৳
Status In Stock
Product Code 4730
Brand Gigabyte
Short Details
  • Model: Z690 UD
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • Direct 16+1+2 Digital VRM Design
  • Fast 2.5GbE LAN with Bandwidth Management
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Information
Supported CPU LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
L3 cache varies with the CPU
Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x16 slot, running at x1 (PCIEX1_4)
2 x PCI Express x1 slots
(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)
M.2 Socket 3 x Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Enlarged Thermal Guards
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
Audio 1 x front panel audio header
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x reset jumper
1 x Q-Flash Plus button
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 years

Description

Description

GIGABYTE Z690 UD ATX Motherboard

The GIGABYTE Z690 UD ATX Motherboard is featured with Direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, DDR5 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs. It has a DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It has a Fast 2.5GbE LAN with Bandwidth Management. It has 3 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The GIGABYTE Z690 UD comes with 3 years of warranty.

What is the price of GIGABYTE Z690 UD Motherboard in Bangladesh?

The latest price of GIGABYTE Z690 UD Motherboard in Bangladesh is 22,800৳. You can buy the GIGABYTE Z690 UD Motherboard at best price from our website or visit any of our showrooms.
