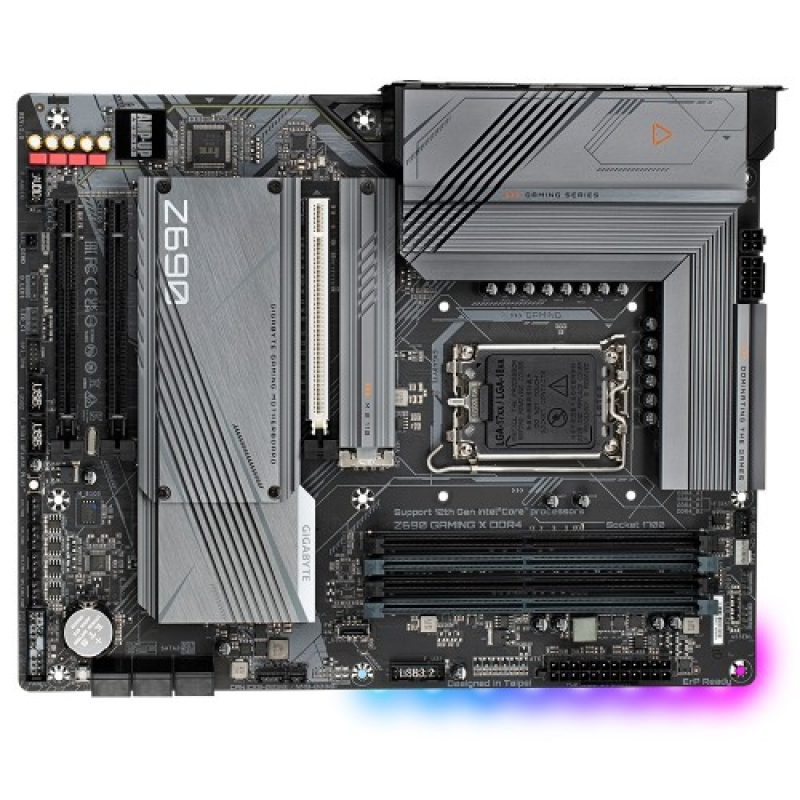

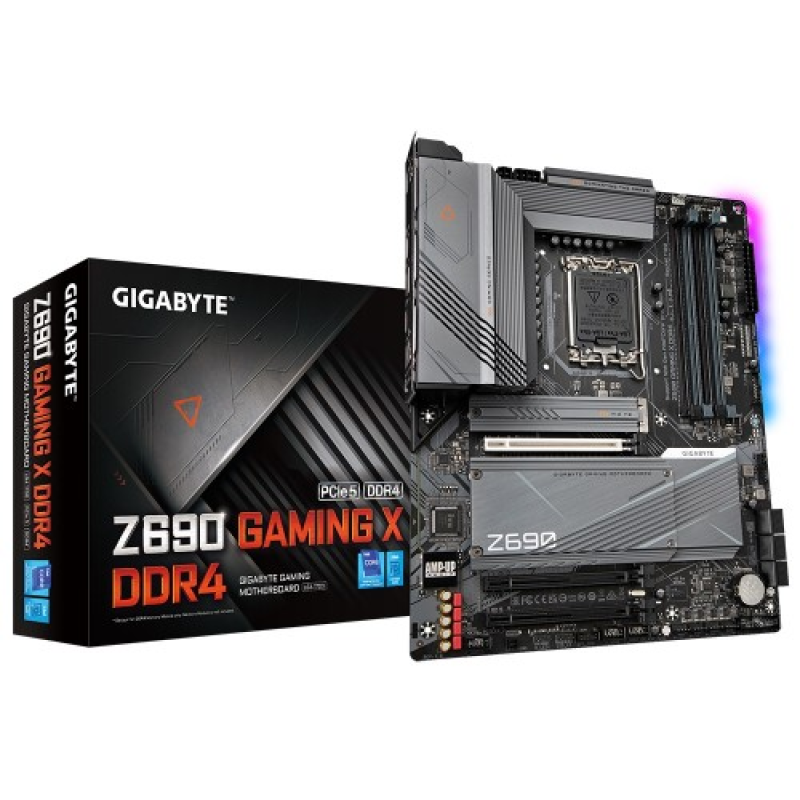

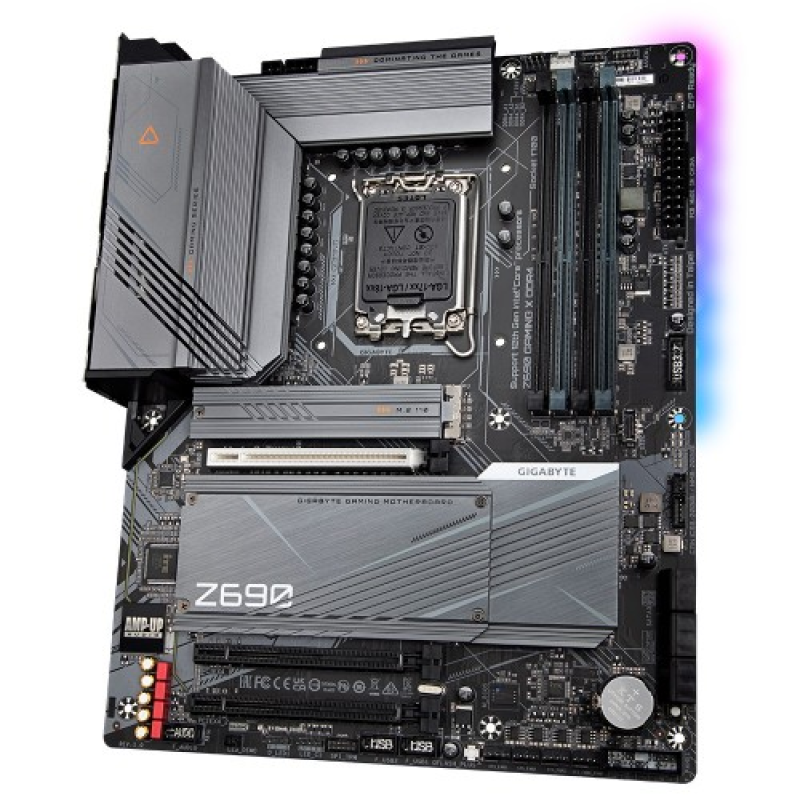

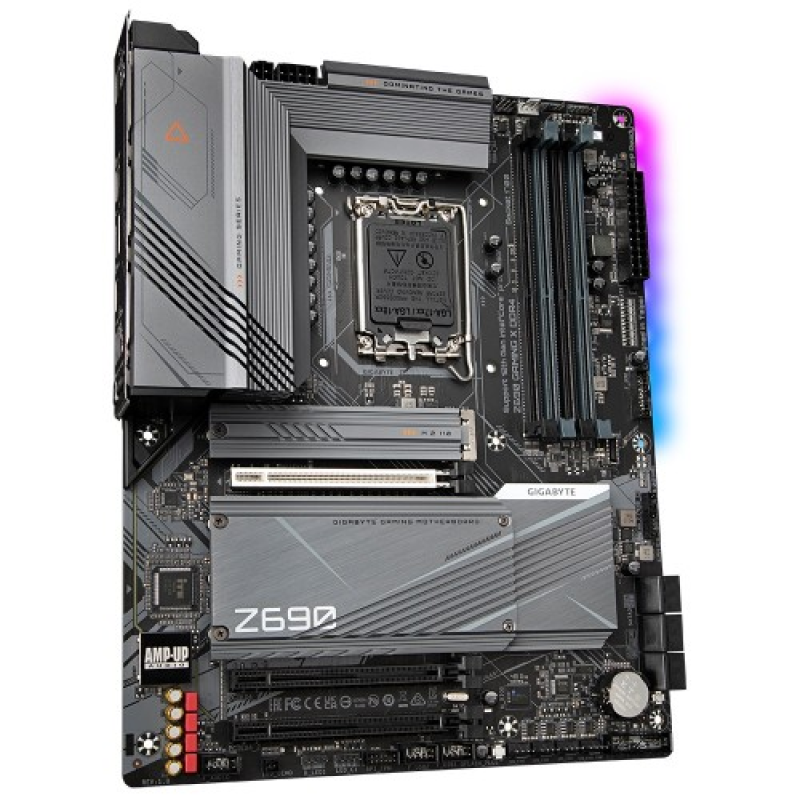

GIGABYTE Z690 GAMING X 12th Gen ATX Motherboard

Regular Price	25,300৳
Product Code	97
Brand	Gigabyte

Short Details

Model: Z690 GAMING X DDR4
LGA1700 socket support 12th Gen Intel Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMsâ€‹
Direct 16+1+2 Digital VRM Design with 60A Power Stage
Fast 2.5GbE LAN with Bandwidth Managementâ€‹

More Info

25300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors L3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.)
M.2 Socket	4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio	1 x front panel audio header
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x reset jumper 1 x Q-Flash Plus button 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE Z690 GAMING X DDR4 12th Gen ATX Motherboard

The GIGABYTE Z690 GAMING X DDR4 12th Gen ATX Motherboard is featured with direct 16+1+2 Digital VRM Design with 60A Power Stage and Tantalum Polymer Capacitor, DDR4 XTREME MEMORY Design, Fins-Array III Heatsink, Direct-Touch Heatpipe II, NanoCarbon Baseplate, M.2 Thermal Guard III, 125dB ESS Sabre Audio, Intel WIFI 6E 802.11ax, AQUANTIA 10GbE LAN. It is supported with LGA1700 socket: Support for 12th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors. It comes with Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Advanced Thermal Solution with NanoCarbon Fins-Array III Heatsink, Direct-Touch Heatpipe II, and NanoCarbon Baseplate. It has a Fast 2.5GbE LAN with Bandwidth Management. It is equipped with AMP-UP Audio with ALC1220 and WIMA Audio Capacitors. It has 4 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards. The SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. It features RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, and Noise Detection. The GIGABYTE Z690 GAMING X DDR4 comes with 3 years of warranty.

What is the price of GIGABYTE Z690 GAMING X DDR4 12th Gen Motherboard in Bangladesh?

The latest price of GIGABYTE Z690 GAMING X DDR4 12th Gen Motherboard in Bangladesh is 25,500৳. You can buy the GIGABYTE Z690 GAMING X DDR4 12th Gen Motherboard at best price from our website or visit any of our showrooms.
