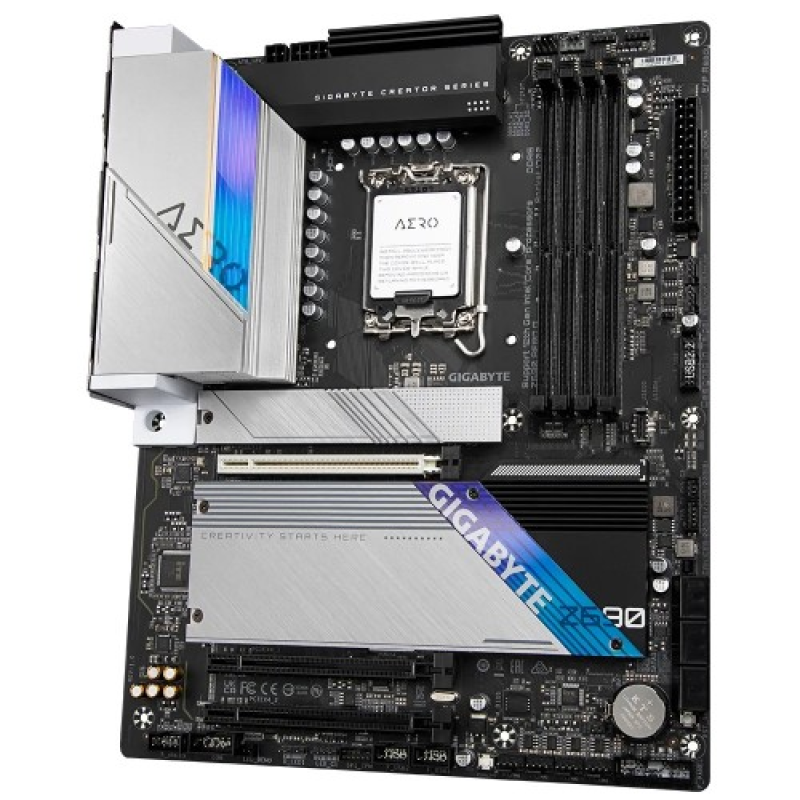

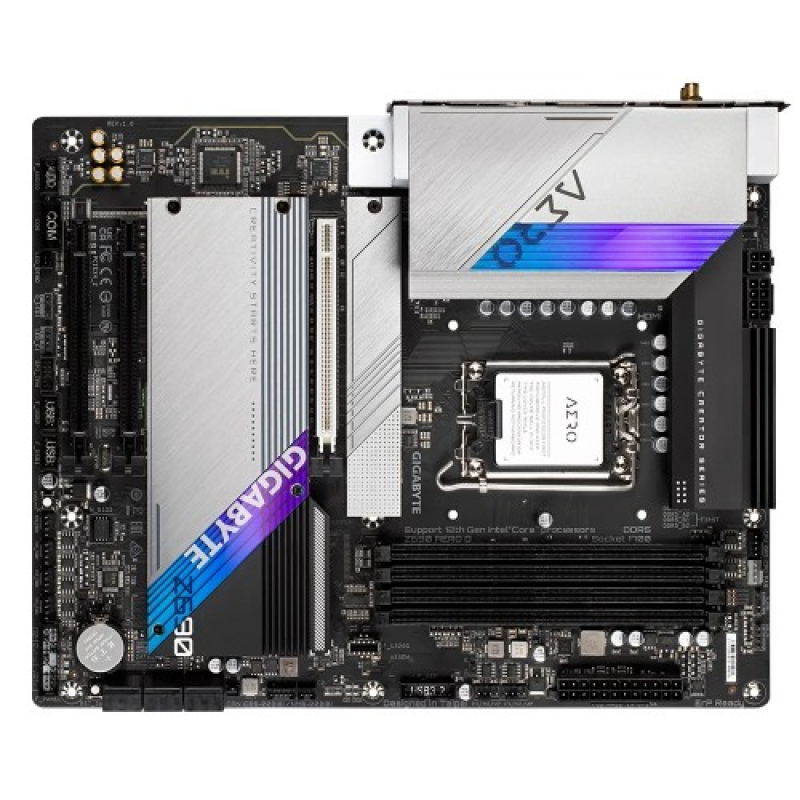

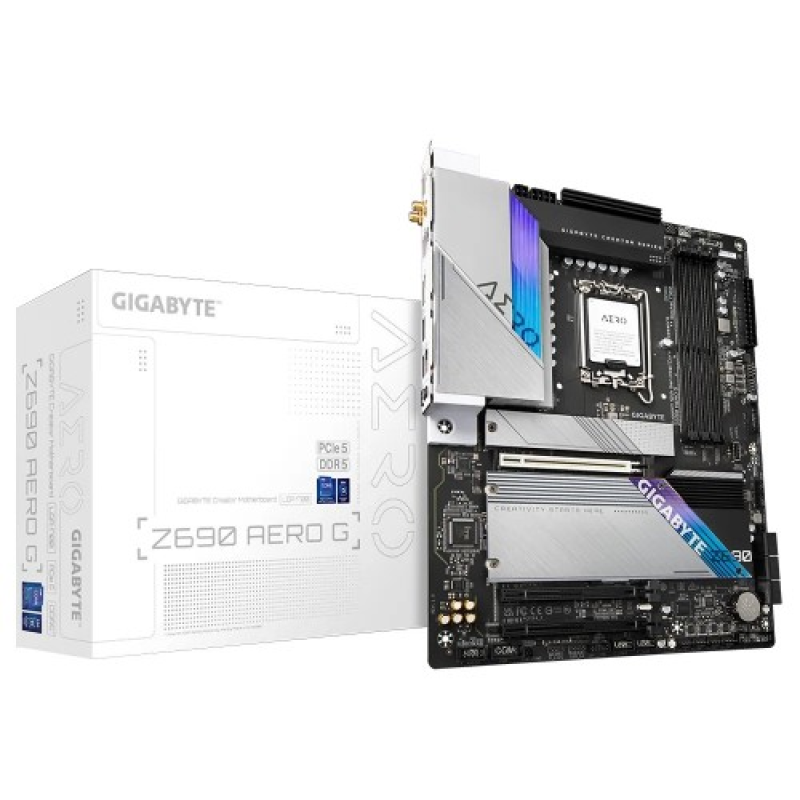

GIGABYTE Z690 Aero G DDR5 ATX Motherboard

Regular Price 33,400৳
Product Code 4388
Brand Gigabyte
Short Details
  • Model: Z690 Aero G DDR5
  • Supported Processors 14th, 13th & 12th Gen Intel Core Series
  • Supported Memory: Dual Channel DDR5, 4 DIMMs
  • PCle 5.0 x16 slot design
  • WIFI6 2x2 802.11ax 2T2R & BT5
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Information
Supported CPU LGA1700 socket: Support for 14th, 13th & 12th Generation Intel Core Pentium Gold and Celeron Processors
L3 cache varies with CPU
Chipset Intel Z690 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Audio Realtek ALC4080 CODEC
High Definition Audio
2-channel analog output
Support for S/PDIF Out
7.1-channel digital signals
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Memory
Type DDR5 (Dual channel memory architecture)
Slots 4 x DDR DIMM sockets
Supported Memory Support for DDR5 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x USB Type-C port, supporting USB Type-C and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz
* Support for drawing tablets and 20V@3A of power delivery.
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort In port
USB (s) Chipset:
2 x USB Type-C ports, with USB 3.2 Gen 2x2 support
(1 port on the back panel, 1 port available through the internal USB header)
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Actual data rate may vary depending on environment and equipment.
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Audio 1 x front panel audio header
Internal I/O Ports Internal I/O Connectors:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x USB Type-C header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
2 x Thunderbolt™ add-in card connectors
1 x serial port header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
2 x temperature sensor headers
1 x Clear CMOS jumper

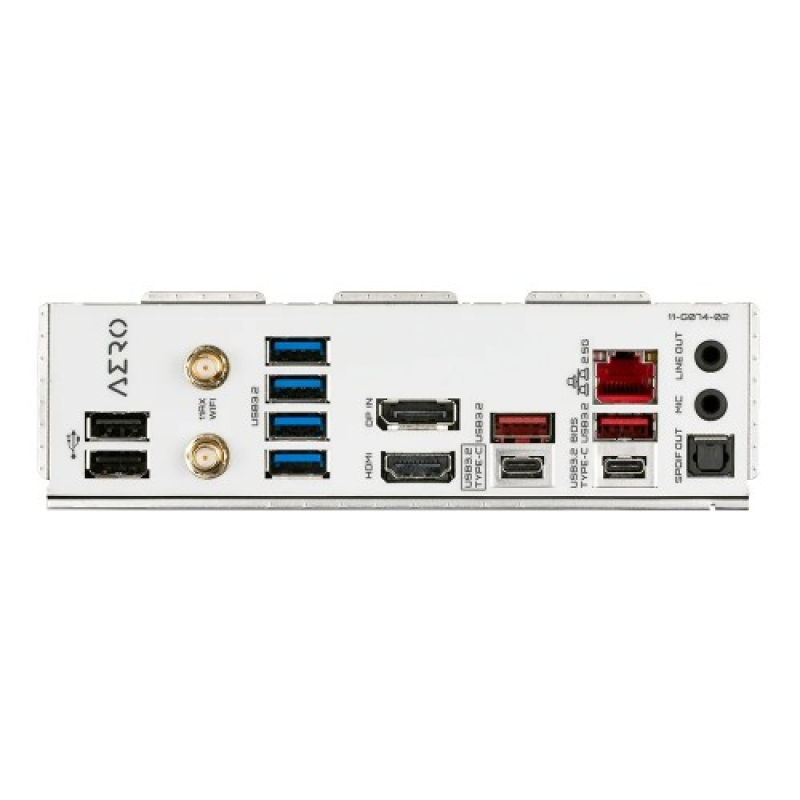

Back Panel Connectors:
2 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
4 x USB 3.2 Gen 1 ports
1 x DisplayPort In port
1 x HDMI port
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller:
iTE I/O Controller Chip
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
cFosSpeed
Warranty Information
Manufacturing Warranty 3 years

Description

GIGABYTE Z690 Aero G DDR5 ATX Motherboard

The GIGABYTE Z690 Aero G DDR5 motherboards is a fresh approach to creators that evolve with optimized features for content creation. This motherboard delivers reliable computing performance, impressive connectivity, expandable graphics, and ultra-fast storage for creators to deal with heavy design workloads like 3D rendering and feature-length video production. The GIGABYTE Z690 Aero G DDR5 motherboard Supports 14th, 13th & 12th Gen Intel Core Series Processors, Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs, PCle 5.0 x16 slot design can be ready for PCle 5.0 GPU or NVMe storage, Go further without more cables by VisionLINK I/O design, Brings a speed network experience with Intel 2.5GbE LAN and WIFI6 2x2 802.11ax 2T2R & BT5 with new antenna for better signal. The Intel 2.5 GbE network connectivity supports speeds up to 2.5 times faster than Gigabit Ethernet. It gives an immediate boost to overall network performance and data transfer speeds. The GIGABYTE VisionLINK is an extension of your idea and creation. You can transmit data, video output, and power charging all through one USB Type-C cable will simplify the user experience more than ever. With seamless multitasking between your PC and devices. It helps boost system performance and offers you a smooth experience. Whether you are editing hundreds of audio samples, handling 4K footage, or multitasking workloads, it helps to boost system performance and offers you a smooth experience. This new model comes with four PCIe 4.0 M.2 sockets and it is capable of delivering superior bandwidth. Upgrade your storage configuration now to accelerate your workflow. PCIe 4.0 M.2 SSD gives you 7X faster data transferring speeds compared to 2.5" SATA solid-state drives. A large heat sink design and Direct-Touch Heatpipe II ensure stability during creative sessions. The latest GIGABYTE Z690 Aero G DDR5 motherboard offers 03 years warranty.

What is the price of GIGABYTE Z690 Aero G DDR5 Motherboard in Bangladesh?

The latest price of GIGABYTE Z690 Aero G DDR5 Motherboard in Bangladesh is 33,600৳. You can buy the GIGABYTE Z690 Aero G DDR5 Motherboard at best price from our website or visit any of our showrooms.
