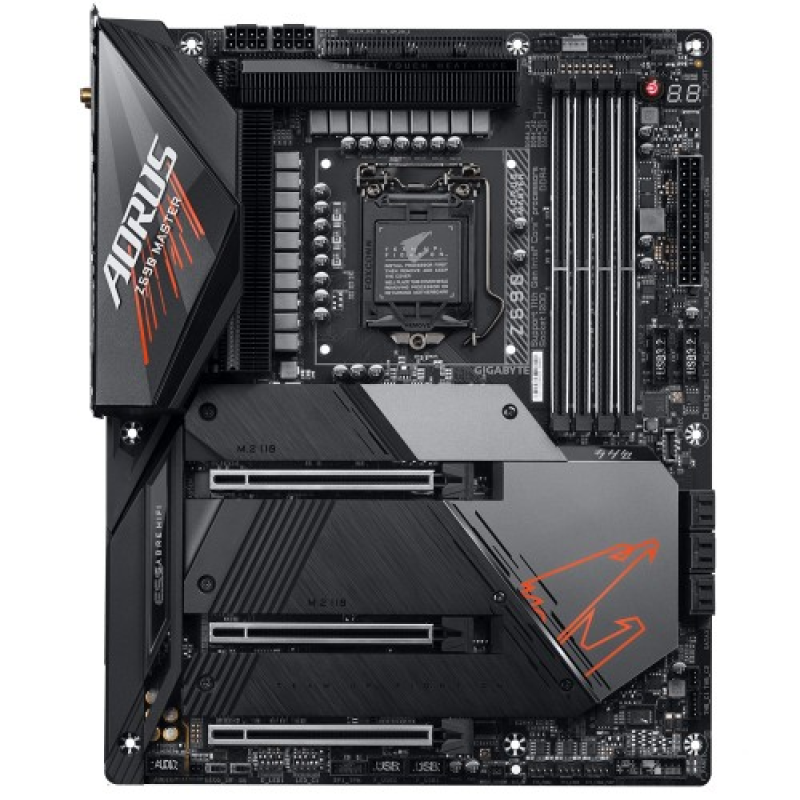

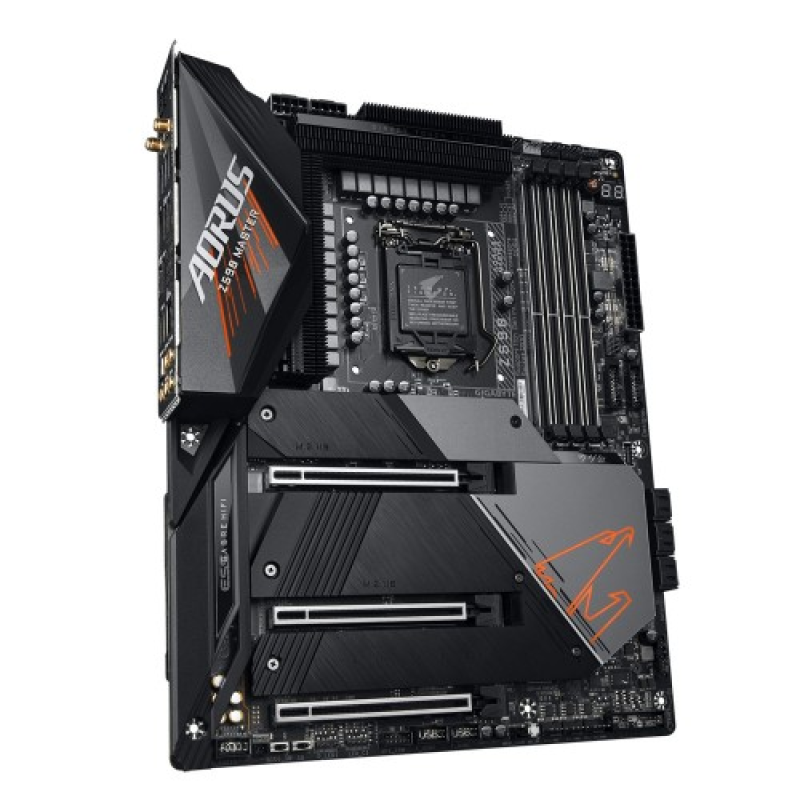

GIGABYTE Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard

Regular Price	30,300৳
Product Code	103
Brand	Gigabyte

Short Details

Model: Z590 Aorus Master
Supports 10th and 11th Gen Intel Core Series Processors
18+1 Phases Digital VRM Solution
Advanced Thermal Solution
Triple Ultra-Fast NVMe

More Info

30300৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	1th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset	Intel Z590 Express Chipset
BIOS	2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (PCIEX16) 1 x PCI Express x16 slot, running at x8 (PCIEX8) When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. (The PCIEX16 and PCIEX8 slots conform to PCI Express 4.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) (The PCIE X4 slot conforms to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB)
Memory
Type	DDR4
Slots	4 x DIMM sockets
Supported Memory	11th Generation Intel Core i9/ i7/ i5 processors: Support for DDR4 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i9/ i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules 10th Generation Intel Core i5/ i3/ Pentium/ Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128 GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Connector & Ports
Display Port (s)	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

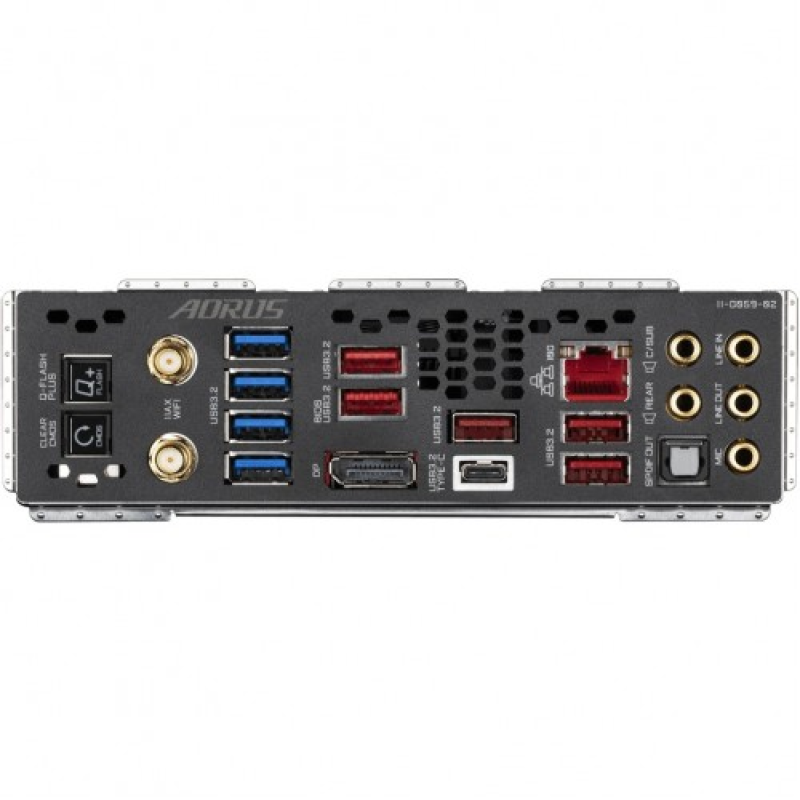

USB (s)	1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+2 USB 3.2 Gen 1 Hubs: 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) Chipset + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s)	Aquantia 10GbE LAN chip (10 Gbit/5 Gbit/2.5 Gbit/1 Gbit/100 Mbit) Intel Wi-Fi 6E AX210 WIFI a, b, g, n, ac, ax, supporting 2.4/ 5/ 6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 PCIe 4.0 x4/ x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2242/ 2260/ 2280/ 22110 SATA and PCIe 3.0 x4/ x2 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	Realtek ALC1220-VB codec ESS ES9118 DAC chip Support for DTS:X Ultra High Definition Audio 2/ 4/ 5.1/ 7.1-channel Support for S/ PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches Voltage Measurement Points
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 Years

Description

GIGABYTE Z590 Aorus Master Intel 10th and 11th Gen ATX Motherboard

To unleash the full potential of the latest Intel 11th Gen CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, Z590 AORUS MASTER is a true beast among motherboards. GIGABYTE understands that our customer won't stop chasing better computer performance, and strive to deliver that in our products. For the Z590 series, protective and optimized memory trace enhance the performance; faster read and write speed save time and improve efficiency; and generous M.2 Storage with thermal guards ensure unthrottled read and write performance. Future upgrades to the Z590 are made possible by the use of PCIe 4.0-ready components. With an extra large 8mm heatpipe and made from a new manufacturing process that narrows the gap between the heatpipe and heatsink, the new Direct-Touch Heatpipe II greatly help transfers heat on the MOSFET. 2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance. Fins-Array II use a new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks but also improves thermal efficiency with better airflow and heat exchange. By using 1.5mm thicker 7.5 W/mK thermal conductivity pads, it can transfer 4x more heat compared to traditional thermal pads in the same time. Enlarged double-sided M.2 heatsink prevents high-speed, large capacity PCIe 3.0 SSDs with double side flash from throttling due to overheating. Un-throttled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z590 AORUS MASTER stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers. A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z590 AORUS MASTER provides all next generation network, storage, and WIFI connectivity to keep you up to speed. To Elevate Your Sound Experience with ESS SABRE Audio DAC and DTS. Z590 AORUS MASTER features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish. GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the GIGABYTE motherboard and reinforce every slot to make each of them solid and durable. Good software goes hand in hand with perfect hardware. GIGABYTE motherboard bundled several useful and intuitive software to help users to control every aspect of motherboard.

What is the price of GIGABYTE Z590 Aorus Master Motherboard in Bangladesh?

The latest price of GIGABYTE Z590 Aorus Master Motherboard in Bangladesh is 30,500৳. You can buy the GIGABYTE Z590 Aorus Master Motherboard at best price from our website or visit any of our showrooms.
