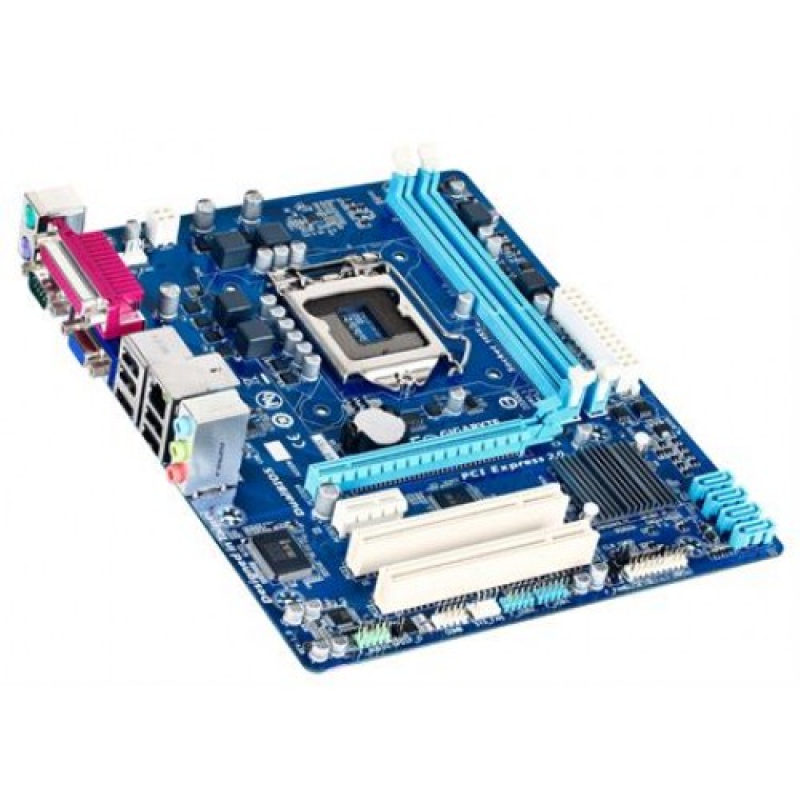

Gigabyte H61M S2PH Motherboard

Regular Price	7,800৳
Status	In Stock
Product Code	4458
Brand	Gigabyte

Short Details

Model: GA-H61M-S2PH
Intel H61 Express Chipset
Supports 3rd Gen. Intel 22nm and 2nd Gen CPUs
RAM Slot:2 x 1.5V DDR3 DIMM
PCI Slot: 4 x PCI Express

More Info

7800৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package L3 cache varies with CPU
Chipset	Intel® H61 Express Chipset
BIOS	2 x 32 Mbit flash Use of licensed AMI EFI BIOS Support for Dual BIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Form Factor	Micro ATX Form Factor; 24.4cm x 20cm
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 3.0 standard.) * Whether PCI Express 3.0 is supported depends on CPU and graphics card compatibility. 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 2.0 standard.) 2 x PCI slots
Memory
Type	Dual channel memory architecture
Slots	2 x 1.5V DDR3 DIMM sockets supporting
Supported Memory	Support for DDR3 1333/1066/800 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
Maximum Memory	16 GB
Graphics
Graphics	1 x D-Sub port 1 x HDMI port, supporting a maximum resolution of 1920x1200 * Support for HDMI 1.4 version.
Max Shared Memory	1GB

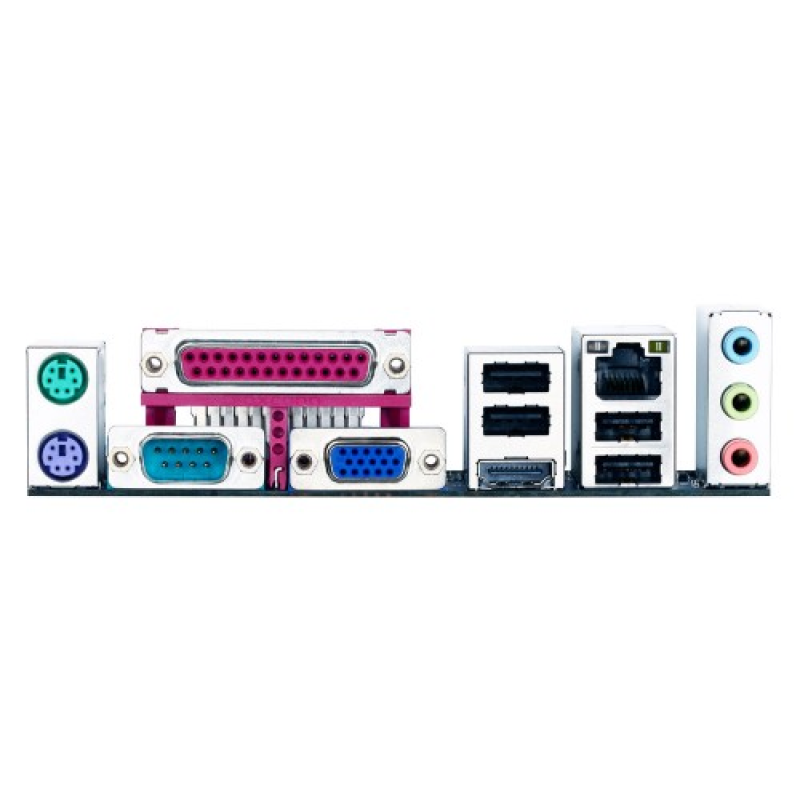

Connector & Ports
HDMI	1 x HDMI port
USB (s)	Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek® GbE LAN chip (10/100/1000 Mbit)
Supported Storage	4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices
Audio	Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x S/PDIF Out header 1 x Clear CMOS jumper
Warranty Information
Manufacturing Warranty	03 years

Description

Gigabyte H61M S2PH Micro ATX ultra durable classic design 3rd gen motherboard compatible with Intel 22nm CPUs and 2nd Gen. Intel core processors. It also supports dual channel DDR3 maximum 16GB memory with the capability of PCI Express Gen 3.0 support. Regarding the graphics, it will support integrated Intel HD Graphics and up to 1GB shared graphics memory with one D-Sub port and one HDMI port of 1920x1200 resolution. This latest motherboard has the facility of GIGABYTE Dual UEFI BIOS, HDMI/RGB Display and integrated Intel HD Graphics 2000/3000.

Gigabyte quality motherboard are available at lowest price in Chattagram, Rangpur, Dhaka & Sylhet. Now you can order online from Star Tech online shop and have the delivery at your hometown in Bangladesh.
