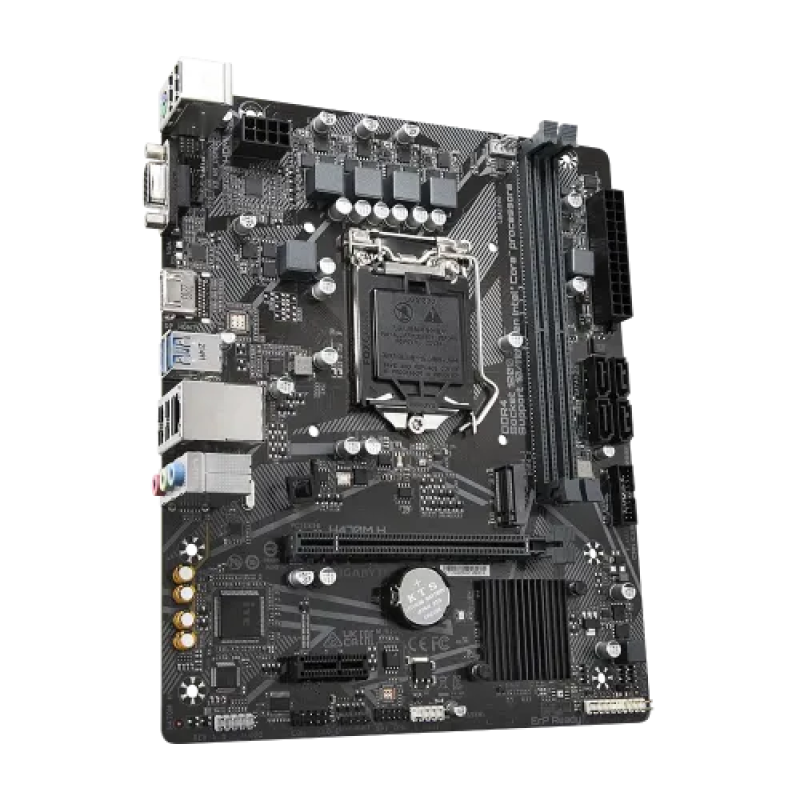

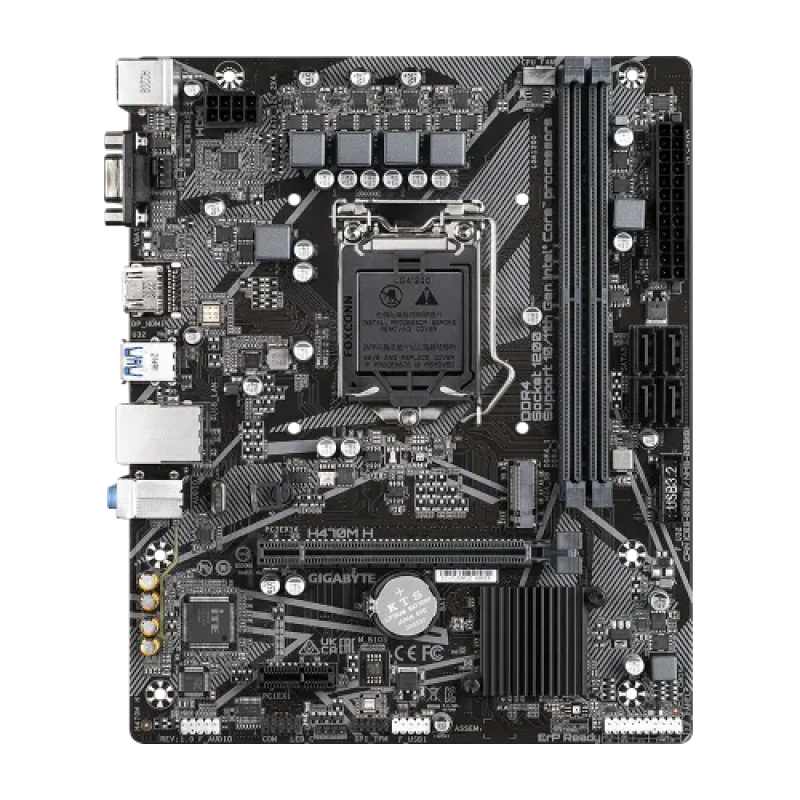

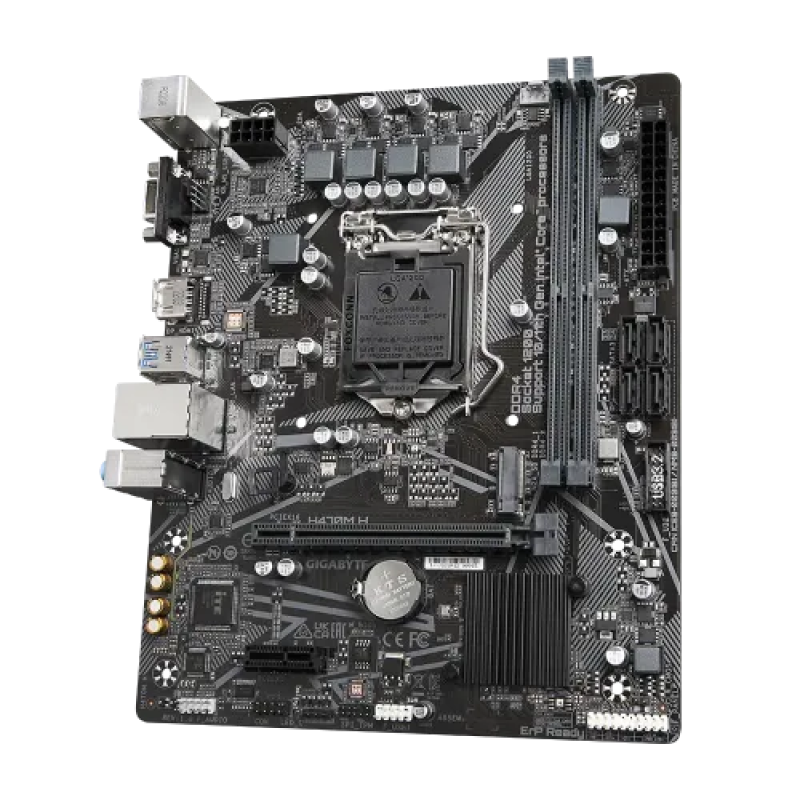

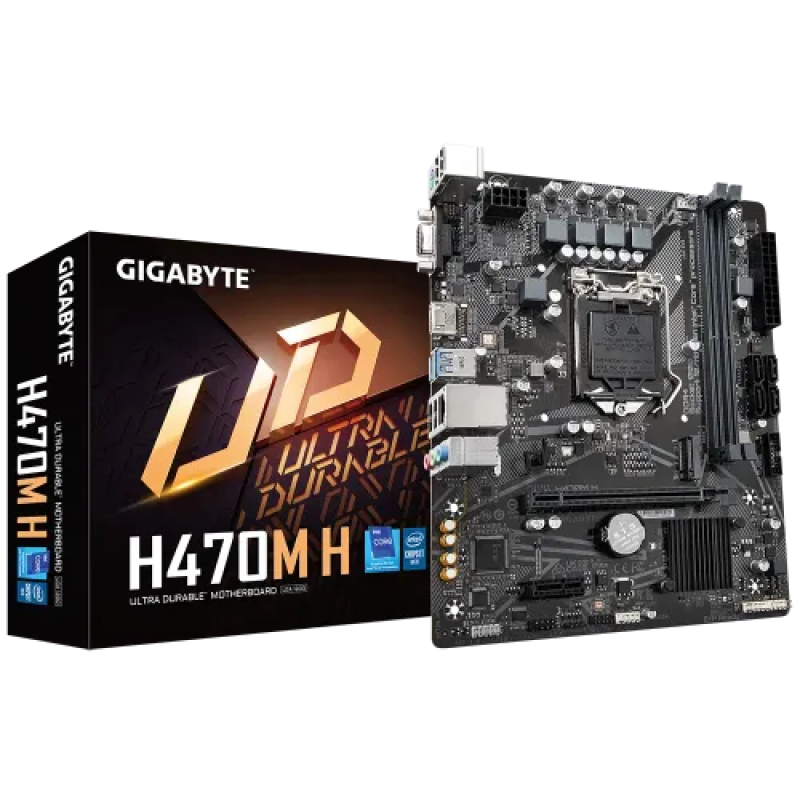

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

Regular Price 9,000৳
Product Code 4390
Brand Gigabyte
Short Details
  • Model: H470M H
  • Supported CPU: 11th/10th Gen Intel Core Processors (LGA1200)
  • Supported RAM: 2 x DIMM, Max. 64GB, DDR4
  • Graphics Output: 1 x D-Sub, 1 x HDMI
  • Features: GbE LAN with Bandwidth Management
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1200 package:
11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU
Chipset Intel H470 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2 x DIMM
Supported Memory 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 64 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* The D-Sub port is only available with the 10th Generation processors.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
4 x SATA 6Gb/s connectors
Intel Optane Memory Ready
RAID Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 03 Years

Description

Description

GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard

The GIGABYTE H470M H Micro ATX Motherboard has Intel Ultra Durable with GbE LAN, Anti-Sulfur Resistor, and Smart Fan 5. It supports 11th/10th Generation Intel Core Processors, Dual Channel Non-ECC Unbuffered DDR4, and 2 DIMMs. 8-Channel HD Audio with High-Quality Audio Capacitors This Motherboard has NVMe PCIe Gen3 x4 2280 M.2 Connector and GbE LAN with Bandwidth Management. Smart Fan 5 has Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP. GIGABYTE APP Center, Anti-Sulfur Resistor Design, Simple and Easy to Use GbE LAN includes a network bandwidth management program that helps to lower network latency and maintain low ping times to provide improved responsiveness in busy LAN scenarios.

you can get the original GIGABYTE H470M H 11th and 10th Gen Micro ATX Motherboard From Star Tech. We have a large collection of the latest Gigabyte Motherboard to purchase for your Desktop PC. Order Online Or Visit your  Shop to get yours at the lowest price. The GIGABYTE H470M H Motherboard comes with 3 Years of warranty.

What is the price of GIGABYTE H470M H Motherboard in Bangladesh?

The latest price of GIGABYTE H470M H Motherboard in Bangladesh is 9,200৳. You can buy the GIGABYTE H470M H Motherboard at best price from our website or visit any of our showrooms.
