GIGABYTE B760M H DDR4 mATX Motherboard

Regular Price 13,700৳
Status In Stock
Product Code 4394
Brand Gigabyte
Short Details
  • Model: B760M H DDR4
  • Supported CPU: 14th/12th/13th Gen Intel Processors (LGA1700)
  • Supported RAM: 2 x DDR4, Max 64GB 3200 Mhz
  • Graphics Output: 1x HDMI, 1 x D-Sub
  • Features: Realtek GbE LAN chip
Contact for bulk quantity: 01733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1700 socket: Support for the 14th, 14th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 23.0cm x 21.5cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
Expansion Slots
PCI CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Memory
Type DDR4
Slots 2
Supported Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 64GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

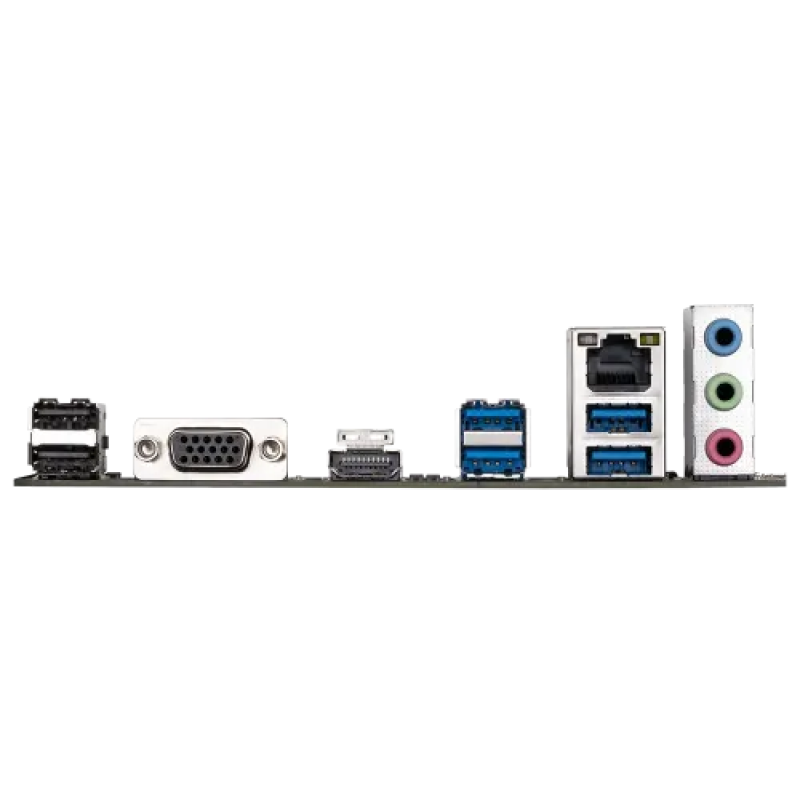

Connector & Ports
HDMI 1x HDMI
D-Sub (s) 1x D-Sub
USB (s) Chipset:
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage CPU:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
- 4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years

Description

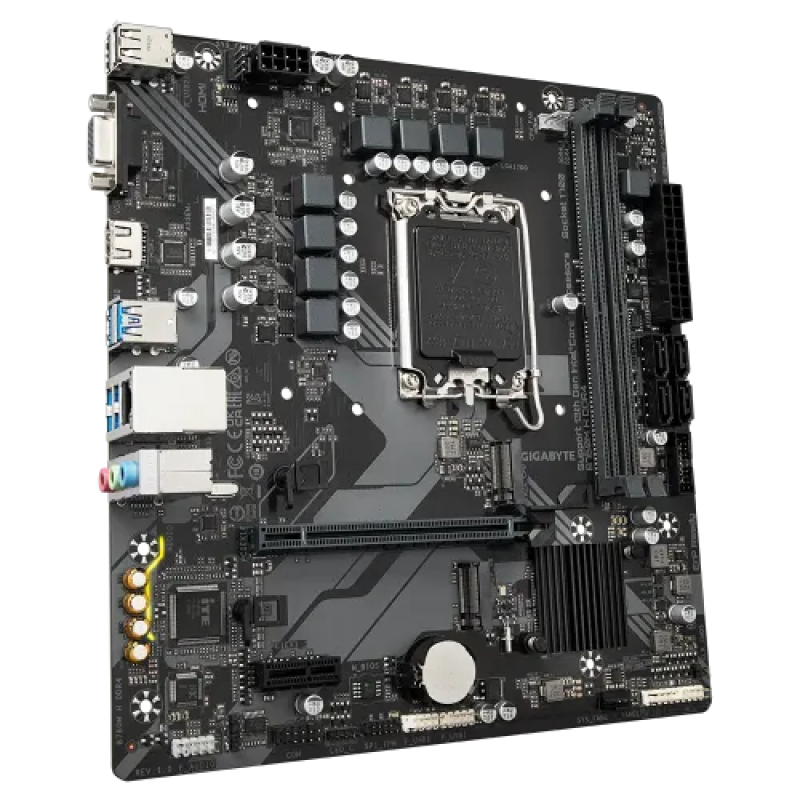

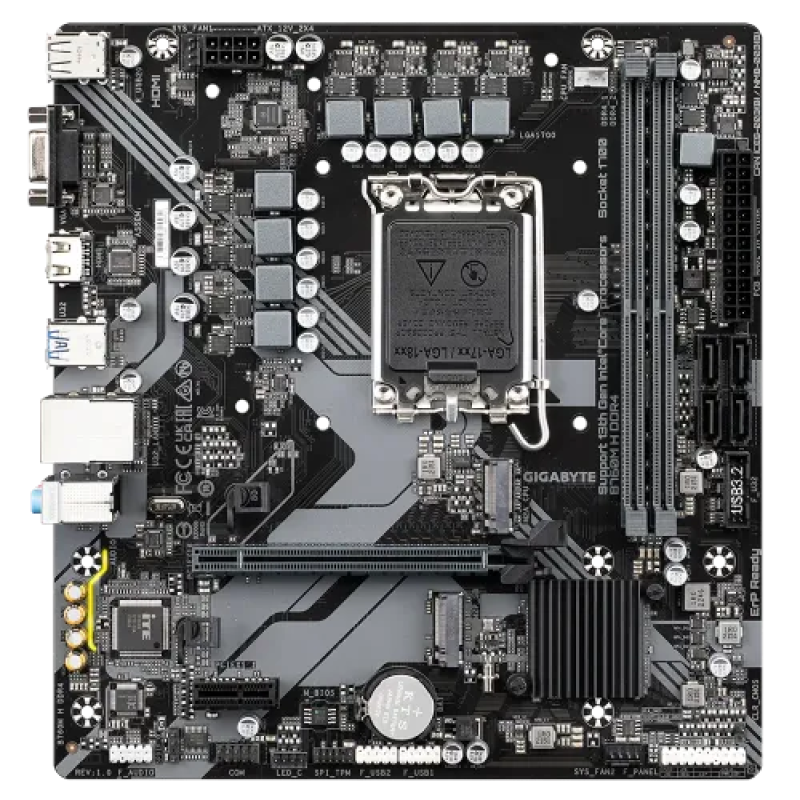

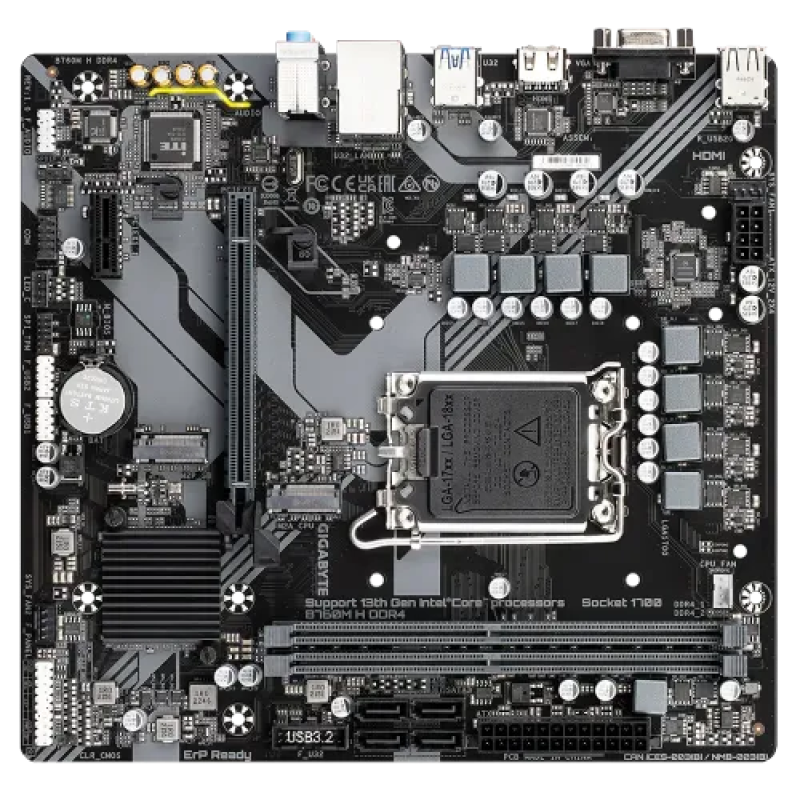

GIGABYTE B760M H DDR4 mATX Motherboard

The GIGABYTE B760M H DDR4 mATX Motherboard is designed for Intel Socket LGA 1700 and supports 14th, 13th, and 12th Generation Series Processors. The motherboard's Hybrid 6+1+1 Phases Digital VRM Solution provides unrivaled performance for dependable computing. The Dual Channel DDR4 with 2 DIMMs supports the XMP Memory Module for greater memory capacities. The motherboard has two PCIe 4.0 x4 M.2 connectors for storage, ensuring compatibility with next-generation storage devices. The 14th Gen Motherboard includes an EZ-Latch PCIe 4.0 x16 Slot with a Quick Release Design for easy hardware installation. It also offers dependable network connectivity with GbE LAN and expanded connectivity possibilities with HDMI and D-Sub connectors. The Smart Fan 6 technology improves cooling performance even further by using numerous temperature sensors and hybrid fan headers with FAN STOP functionality, making the GIGABYTE B760M H DDR4 mATX Motherboard a reliable and effective alternative for a variety of computing applications.The GIGABYTE B760M H DDR4 14th Gen Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M H DDR4 mATX Motherboard in Bangladesh is 14,500৳. You can buy the GIGABYTE B760M H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
