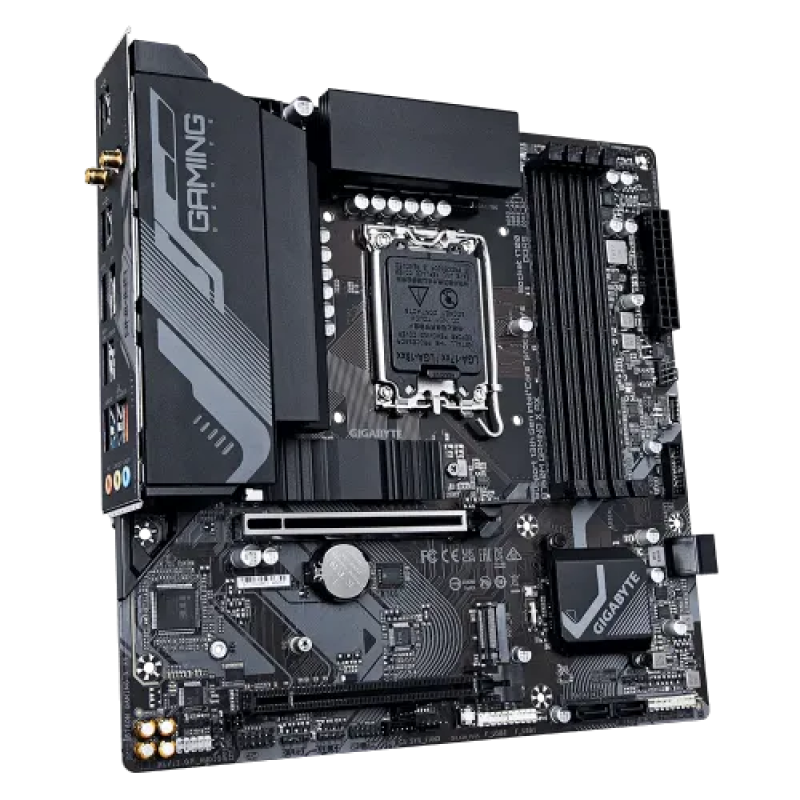

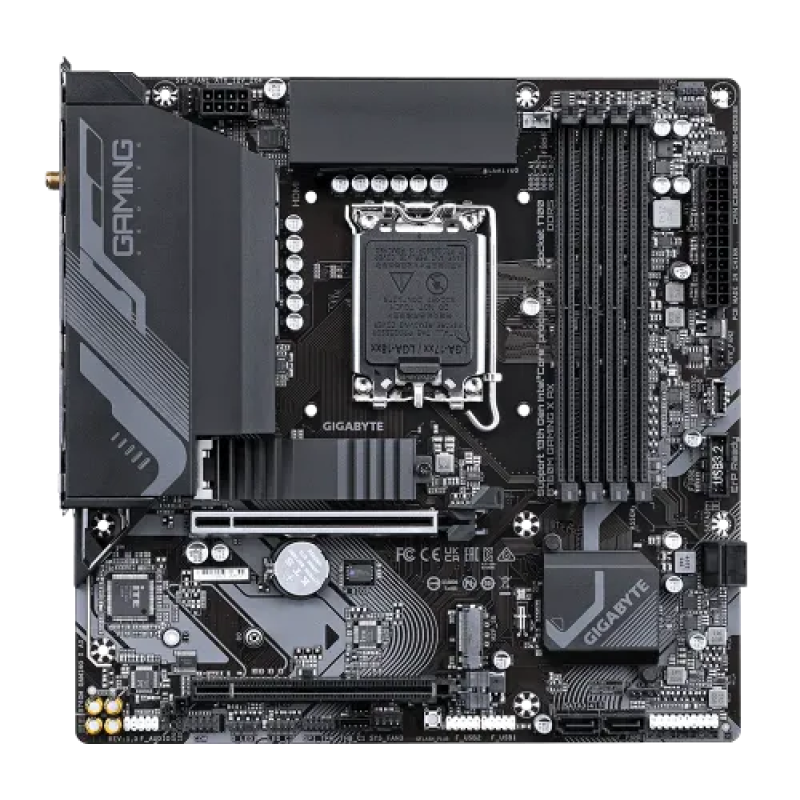

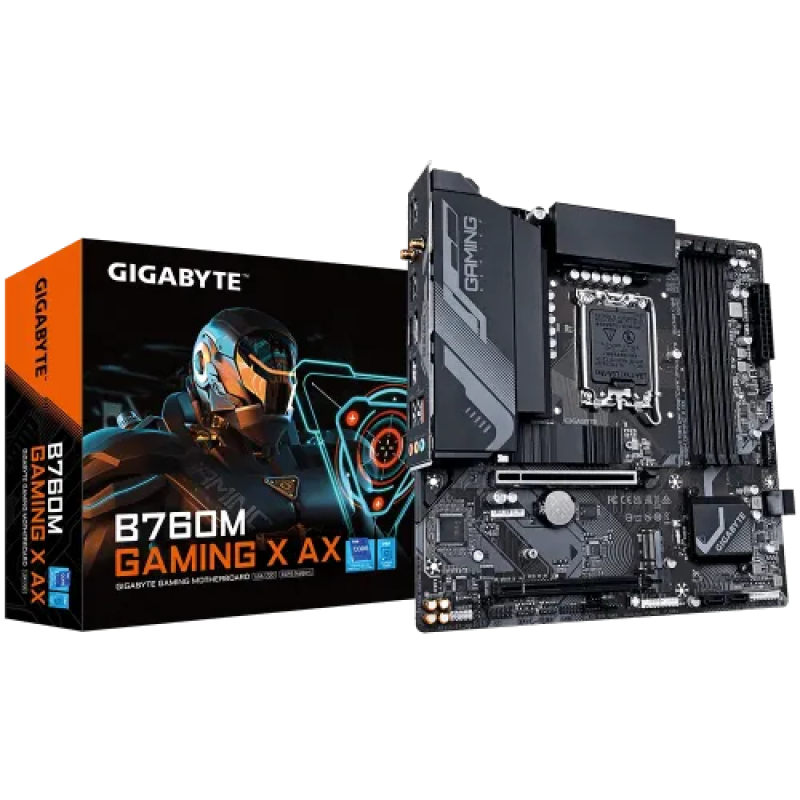

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

Regular Price	21,000৳
Product Code	4413
Brand	Gigabyte

Short Details

Model: B760M GAMING X AX DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210

More Info

21000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Products
Question
Review

Specification

Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	192GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module	Intel Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	1 x front panel audio header 3 x audio jacks

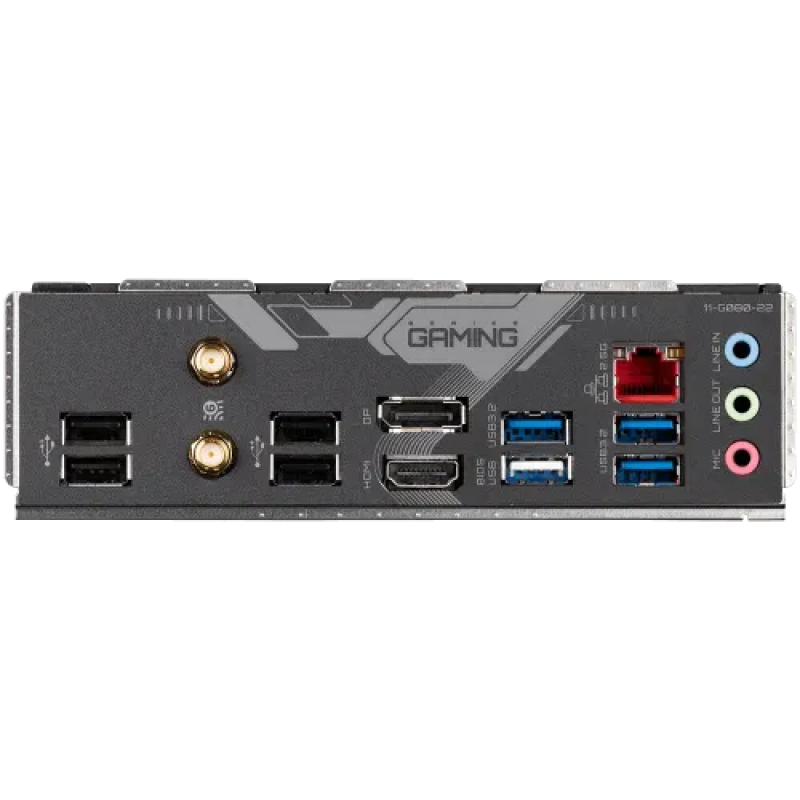

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

The GIGABYTE B760M GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th, 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This 14th Gen Motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760M GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X AX DDR5 motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.The GIGABYTE B760M GAMING X AX DDR5 14th Gen Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard in Bangladesh is 23,000৳. You can buy the GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard at best price from our website or visit any of our showrooms.
