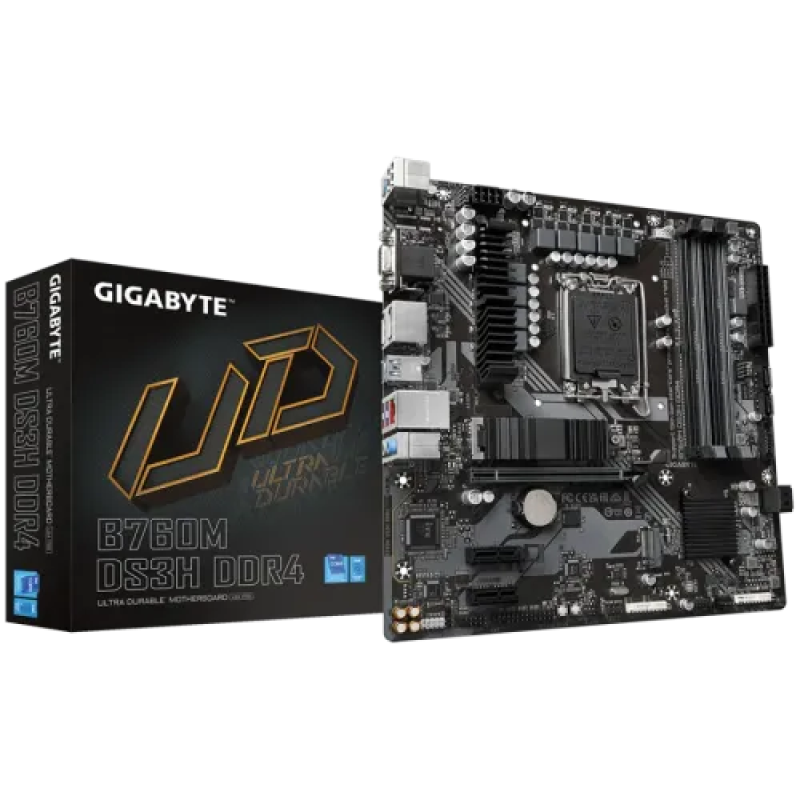

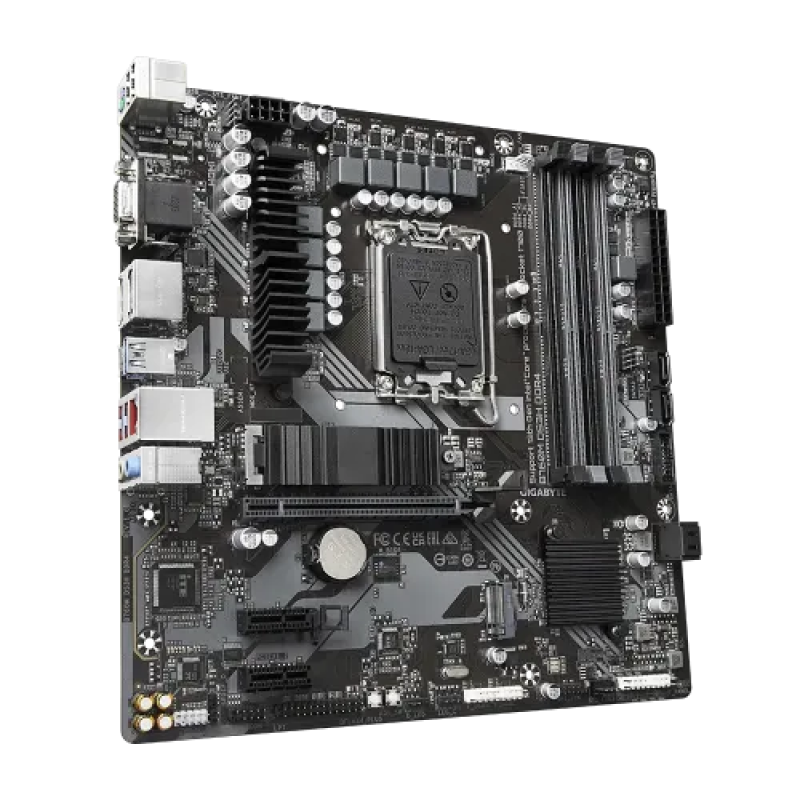

GIGABYTE B760M DS3H DDR4 mATX Motherboard

Regular Price 16,500৳
Status In Stock
Product Code 4397
Brand Gigabyte
Short Details
  • Model: B760M DS3H DDR4
  • Supported CPU: 14th/ 13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Memory
Type DDR4
Slots 4
Supported Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Supported Storage 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio 1 x front panel audio header
3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumpe
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features 2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty 3 years

Description

IGABYTE B760M DS3H DDR4 mATX Motherboard

The GIGABYTE B760M DS3H AX DDR4 is a mATX motherboard that supports Intel Socket LGA 1700 and 13th and 12th Gen Intel Series Processors. This 14th Gen Motherboard has an unrivaled Hybrid 6+2+1 Phases Digital VRM Solution. It also includes dual-channel DDR4 memory with four DIMM slots that support XMP memory modules. This motherboard provides next-generation storage solutions with two PCIe 4.0 x4 M.2 ports. M.2 Thermal Guard is provided to guarantee that M.2 SSD performance is optimal. In addition, the motherboard has an EZ-Latch PCIe 4.0x16 slot with a rapid-release design. It includes a 2.5GbE LAN and Wi-Fi 6E 802.11ax for fast networks. The motherboard's rear panel provides additional connectivity options, including USB-C 10Gb/s, DP, and HDMI. Smart Fan 6 has many temperature sensors as well as hybrid fan headers with FAN STOP. Finally, the Q-Flash Plus functionality enables BIOS upgrades without the need for the CPU, RAM, or graphics card to be installed. The GIGABYTE B760M DS3H DDR4 Motherboard Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B760M DS3H DDR4 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M DS3H DDR4 mATX Motherboard in Bangladesh is 17,500৳. You can buy the GIGABYTE B760M DS3H DDR4 mATX Motherboard at best price from our website or visit any of our showrooms.
