GIGABYTE B760M D2H mATX Motherboard

Regular Price 15,500৳
Status In Stock
Product Code 4398
Brand Gigabyte
Short Details
  • Model: B760M D2H
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR5, Max 96GB 8000(O.C.)
  • Graphics Output: 1x HDMI, 1x D-Sub
  • Features: 2.5GbE LAN
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Memory
Type DDR5
Slots 2
Supported Memory Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 96 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.

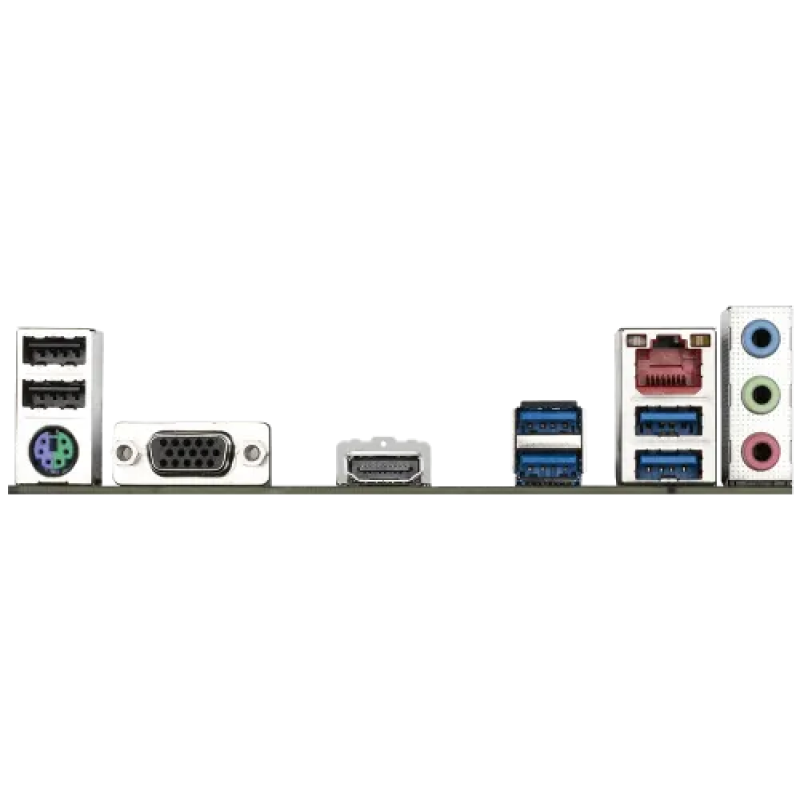

Connector & Ports
HDMI 1x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.2 Gen 1 header
3 x USB 2.0/1.1 headers
1 x serial port header
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years

Description

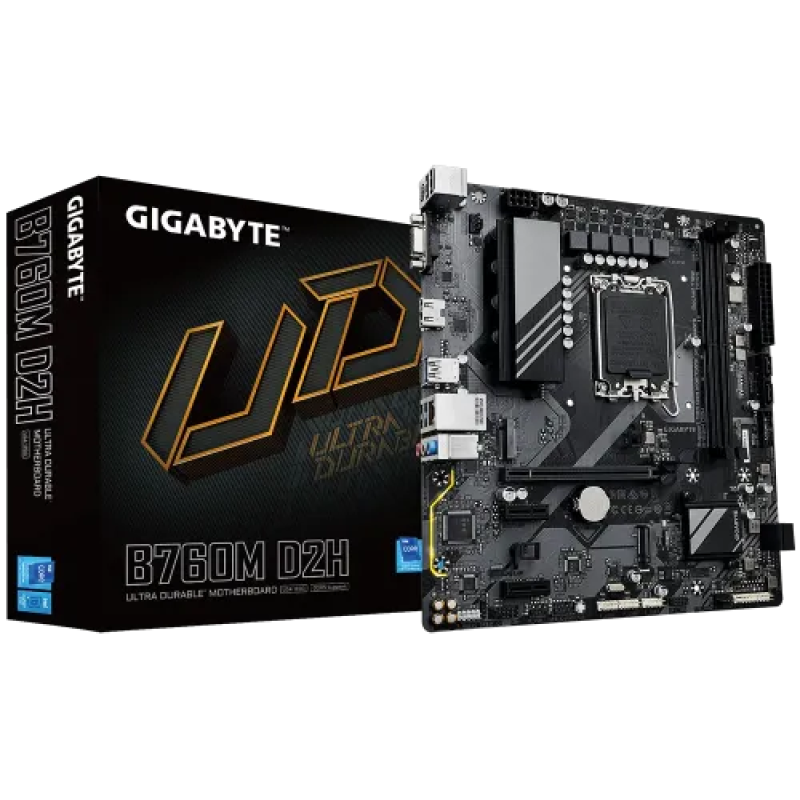

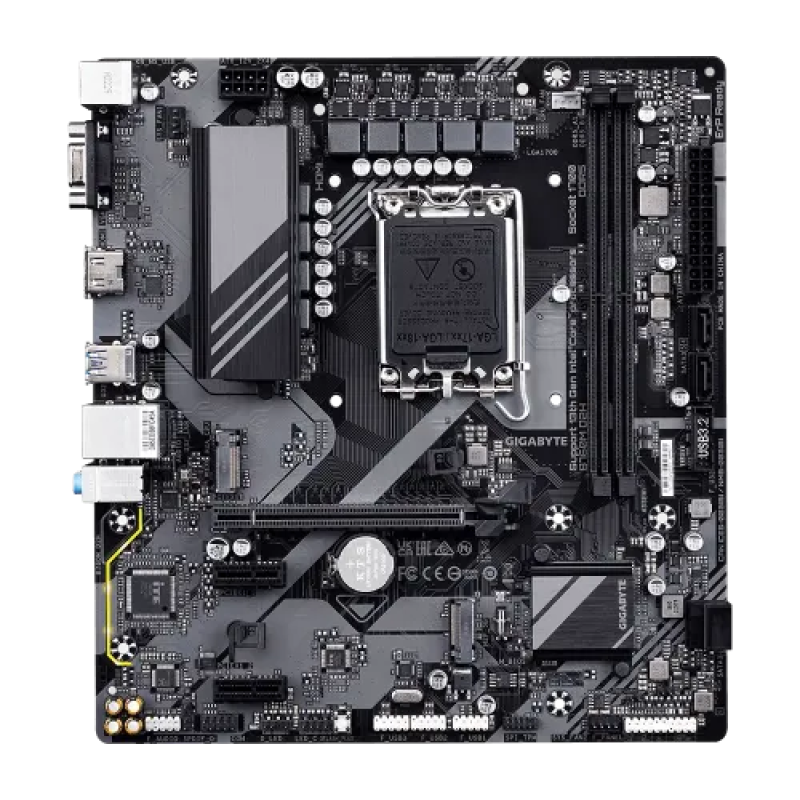

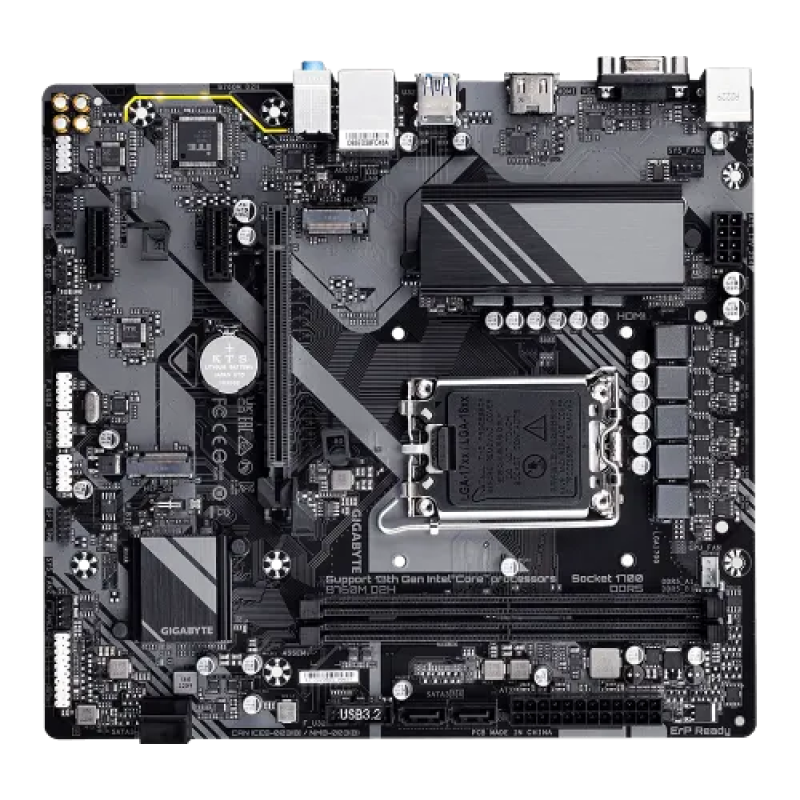

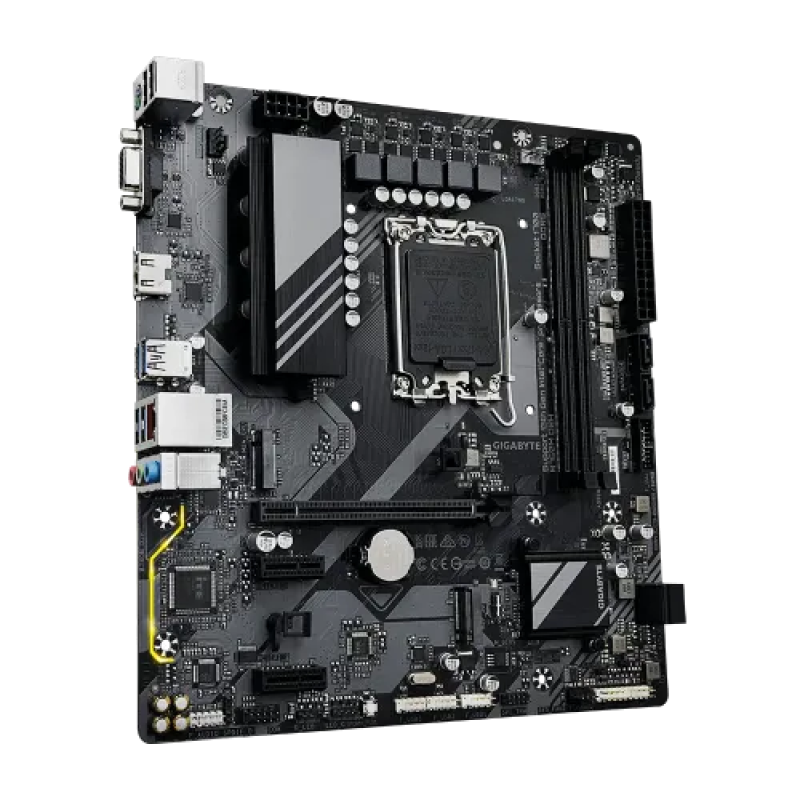

GIGABYTE B760M D2H mATX Motherboard

The GIGABYTE B760M D2H 14th 13th and 12th Gen mATX Motherboard is a cutting-edge platform that supports both 13th and 12th Gen Series Processors on Intel's LGA 1700 socket. It boasts unparalleled performance with its Hybrid 6+2+1 Phases Digital VRM Solution, ensuring efficient power delivery for optimal system stability and performance. With support for Dual Channel DDR5 and XMP Memory Modules, users can experience faster and more responsive multitasking capabilities. The 14th Gen Motherboard also features Next Generation Storage with 2 PCIe 4.0 x4 M.2 connectors, allowing for lightning-fast data transfer speeds and storage performance. Its PCIe 4.0x16 slot comes with an EZ-Latch quick-release design, making graphics card installation a breeze. The GIGABYTE B760M D2H Motherboard is equipped with a 2.5GbE LAN port, ensuring high-speed and reliable network connectivity. it provides extended connectivity options such as HDMI and D-Sub ports. To maintain an optimal temperature inside the system, Smart Fan 6 technology offers multiple temperature sensors and hybrid fan headers with FAN STOP functionality.The GIGABYTE B760M D2H 14th Gen Motherboard comes with 3 years warranty.
