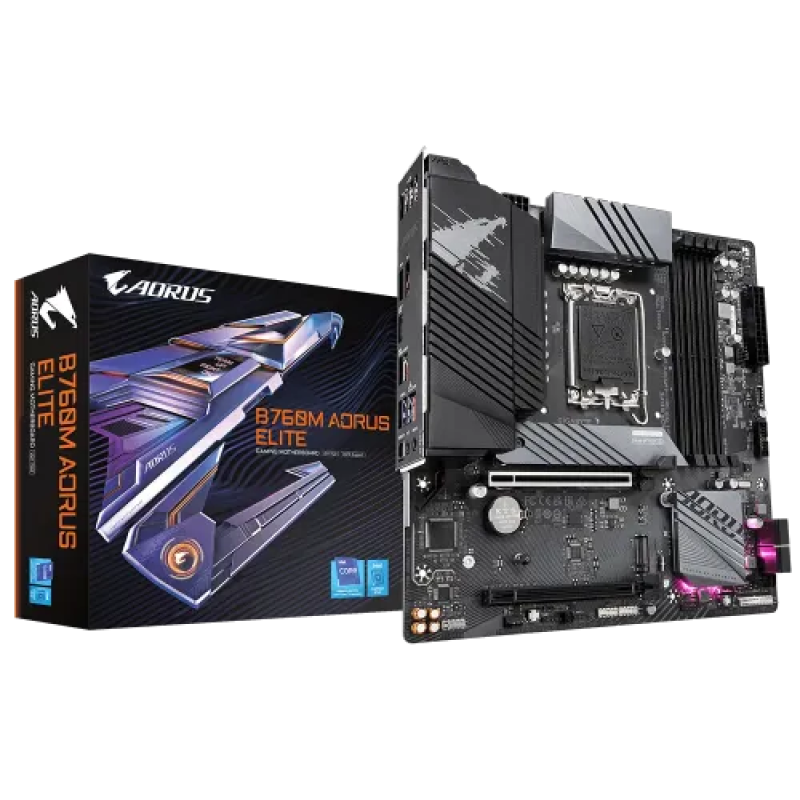

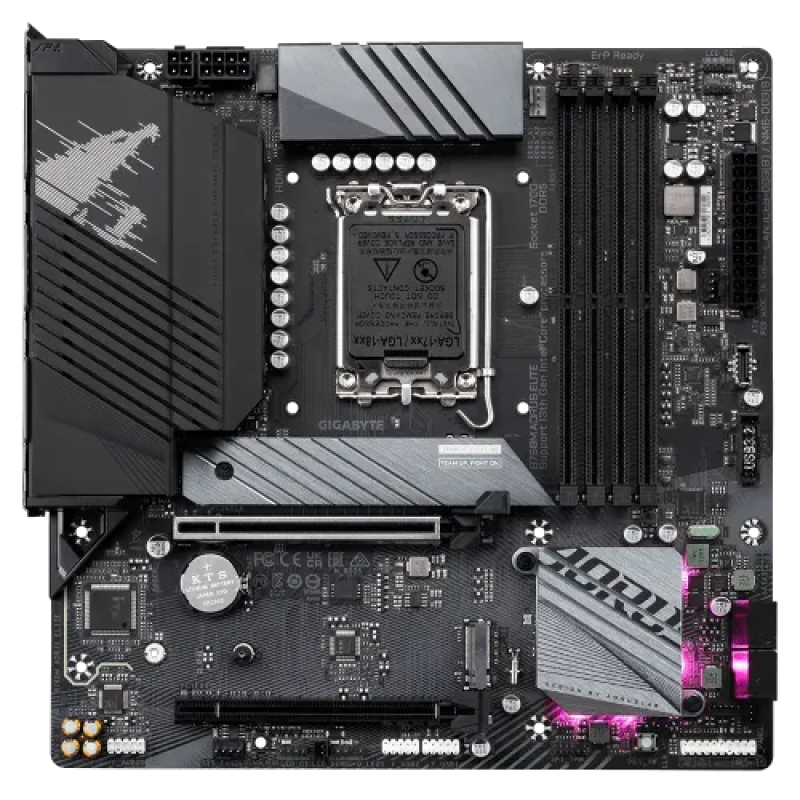

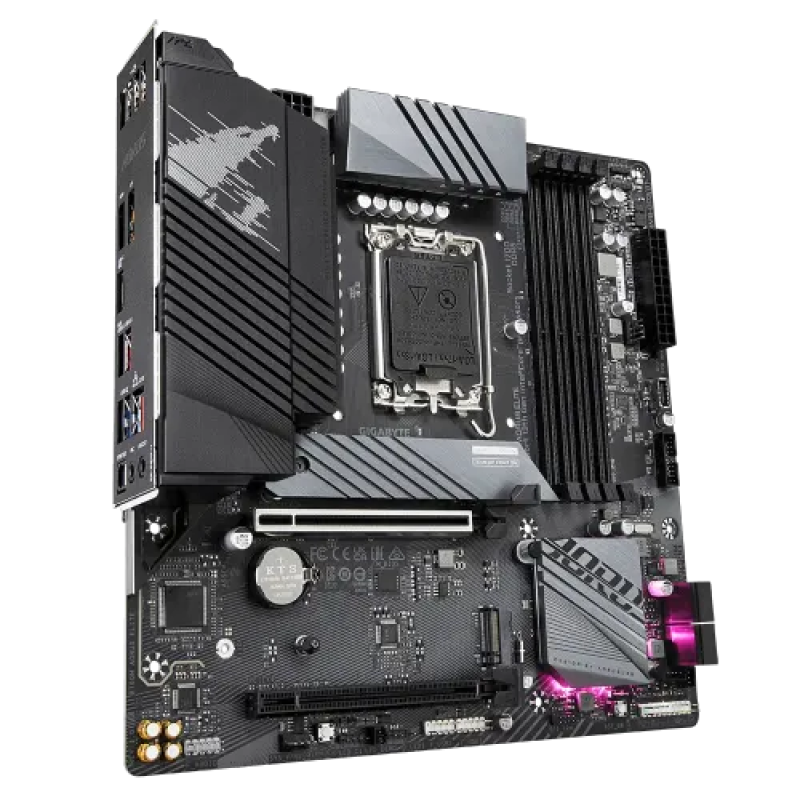

GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard

Regular Price 22,000৳
Status In Stock
Product Code 4414
Brand Gigabyte
Short Details
  • Model: B760M AORUS ELITE
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 7600(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
Chipset Intel B760 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
Expansion Slots
PCI CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX technology
Memory
Type DDR5
Slots 4
Supported Memory Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory up to 192 GB (48 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

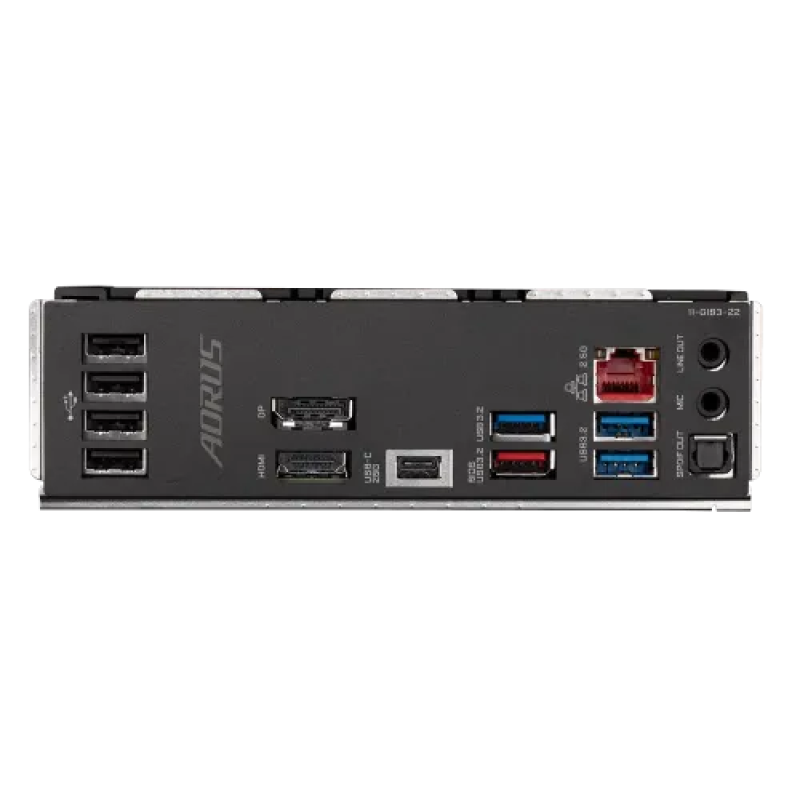

Connector & Ports
HDMI 1x HDMI
Display Port (s) 1x DisplayPort
USB (s) 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 3.2 Gen 1 port on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
LAN Port (s) Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio 1 x front panel audio header
2 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton Internet Security (OEM version)
LAN bandwidth management software
Warranty Information
Manufacturing Warranty 3 years

Description

GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard

The GIGABYTE B760M AORUS ELITE Motherboard is a performance and feature powerhouse intended for Intel Socket LGA 1700 processors, with support for 14th, 13th, and 12th generation Intel Core CPUs. The Twin 12*+1+1 Phases Digital VRM Solution on this motherboard is its highlight feature, providing steady and efficient power supply for better performance and overclocking capabilities. It also features 4*SMD DIMM slots with XMP 3.0 Memory Module compatibility for enhanced multitasking and gaming performance. The motherboard includes two PCIe 4.0 x4 M.2 ports, allowing for high-speed NVMe SSDs for fast data access and startup times. An M.2 Thermal Guard is included in the advanced thermal design to enable appropriate cooling for VRM components and M.2 SSDs, reducing thermal throttling. The EZ-Latch Plus M.2 Connectors have a quick-release and screwless design that allows for simple SSD installation and changing. It has a 2.5GbE LAN connector for lightning-fast network access, as well as a variety of connectivity choices such as front USB-C 10Gb/s and rear USB-C 20Gb/s ports, as well as DP and HDMI display capabilities. The Smart Fan 6 system has numerous temperature sensors and hybrid fan headers, as well as a FAN STOP feature, to optimize cooling and reduce noise. Finally, the Q-Flash Plus function enables BIOS upgrades without the need to install the CPU, RAM, or graphics card, greatly simplifying the update procedure. In conclusion, the GIGABYTE B760M AORUS ELITE Motherboard has an excellent set of features as well as top-tier performance, appealing to gamers, content makers, and power users alike. The GIGABYTE B760M AORUS ELITE Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B760M AORUS ELITE Motherboard in Bangladesh?

The latest price of GIGABYTE B760M AORUS ELITE Motherboard in Bangladesh is 21,500৳. You can buy the GIGABYTE B760M AORUS ELITE Motherboard at best price from our website or visit any of our showrooms.
