GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard

Regular Price	24,000৳
Status	In Stock
Product Code	4418
Brand	Gigabyte

Short Details

Model: B760M AORUS ELITE AX DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 128GB 7600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211

More Info

24000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

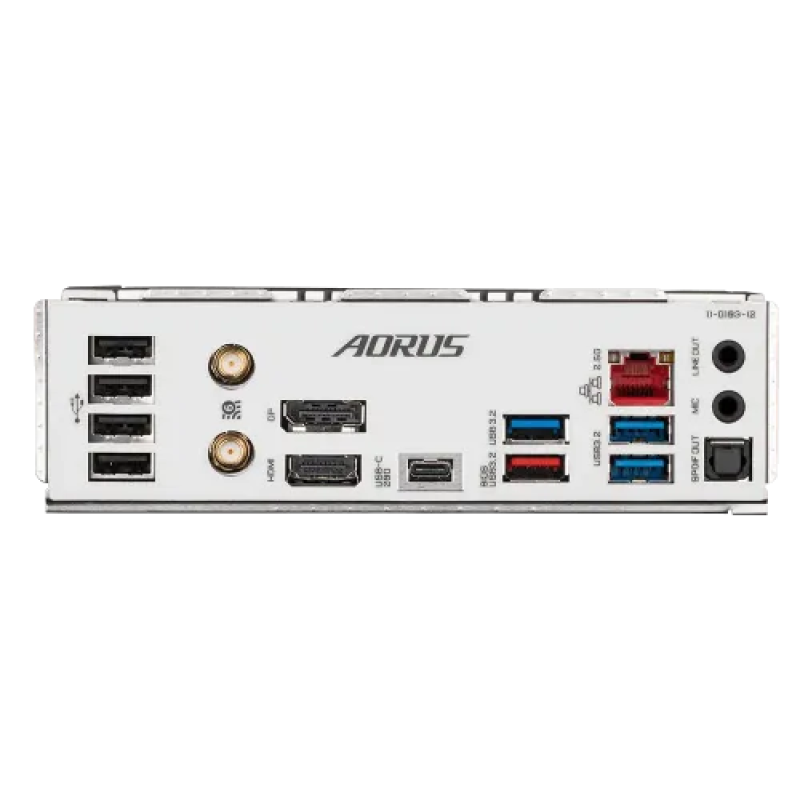

Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort
USB (s)	1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Wireless Communication module	Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Audio	1 x front panel audio header 2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

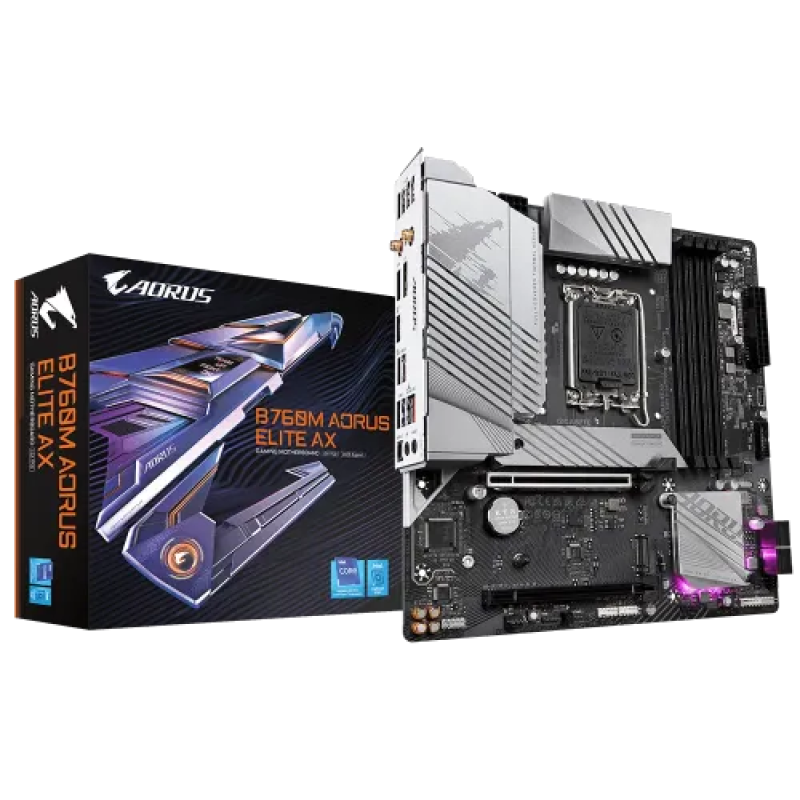

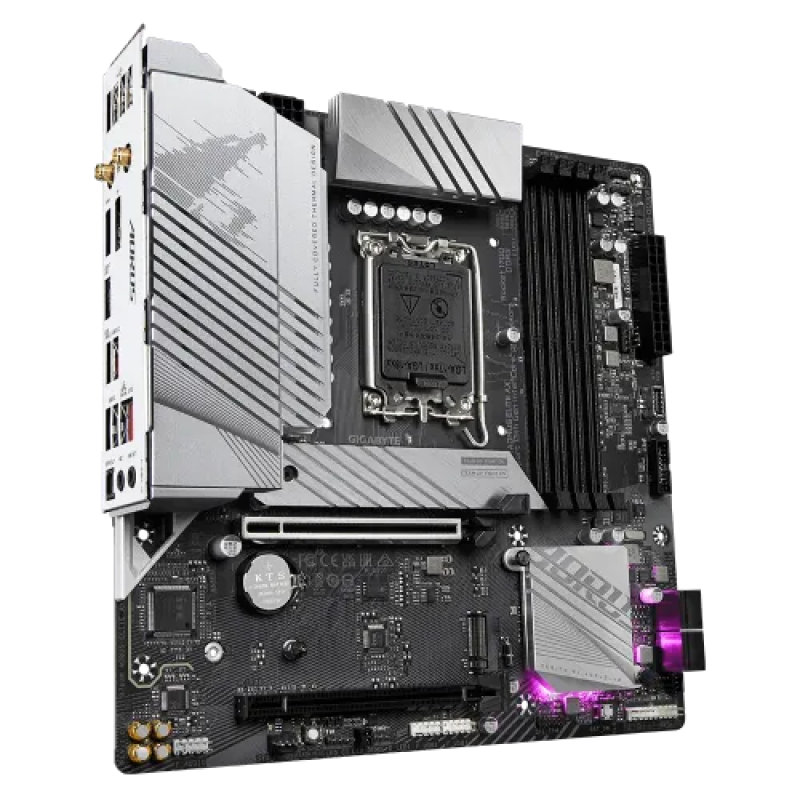

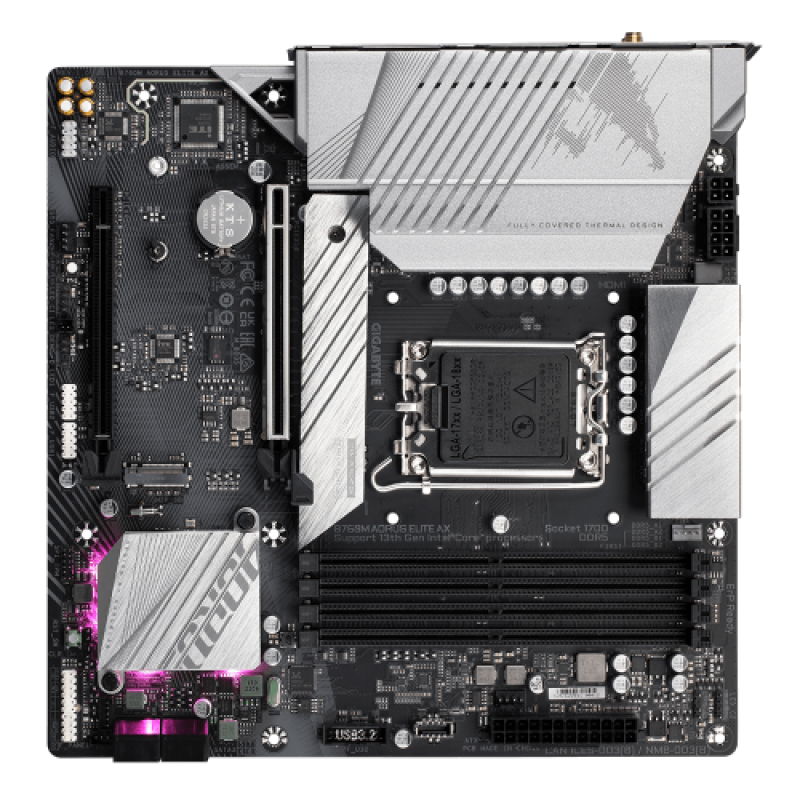

GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard

The GIGABYTE B760M AORUS ELITE AX DDR5 is a micro ATX motherboard designed for usage with Intel CPUs from the 14th, 13th and 12th generations. It boasts a Twin 12*+1+1 Phases Digital VRM Solution for unrivaled performance, dual channel DDR5 memory with 4 SMD DIMMs, and XMP 3.0 compatibility. In addition, the 14th Gen Motherboard includes two PCIe 4.0 x4 M.2 ports for next-generation storage, a superior thermal design, and M.2 Thermal Guard to assure VRM power stability and M.2 SSD performance. Furthermore, the EZ-Latch Plus function enables rapid release and screwless M.2 connection design. 2.5GbE LAN and Intel Wi-Fi 6E 802.11ax offer network connectivity, while the motherboard also has front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI for additional connectivity. The Smart Fan 6 feature contains numerous temperature sensors as well as hybrid fan headers with FAN STOP, and the Q-Flash Plus allows you to update the BIOS without having to install the CPU, RAM, or graphics card.The GIGABYTE B760M AORUS ELITE AX DDR5 Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard in Bangladesh?

The latest price of GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard in Bangladesh is 24,000৳. You can buy the GIGABYTE B760M AORUS ELITE AX DDR5 mATX Motherboard at best price from our website or visit any of our showrooms.
