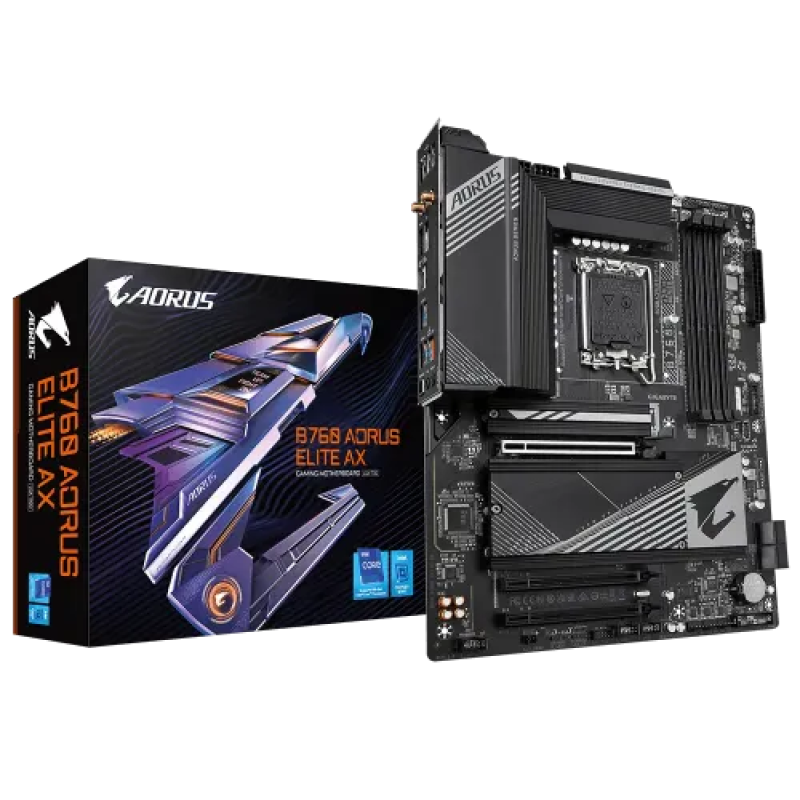

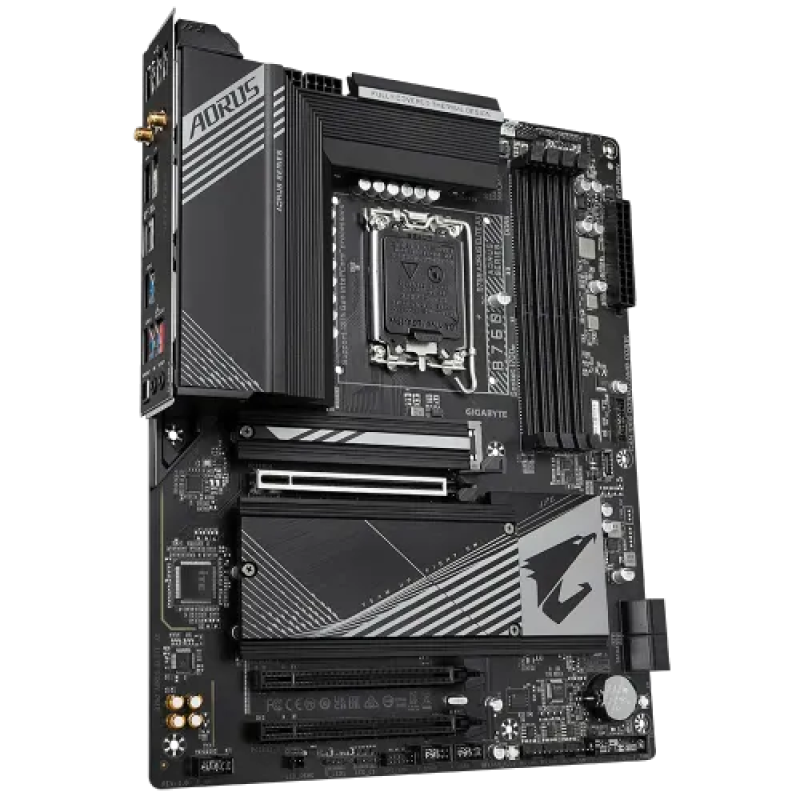

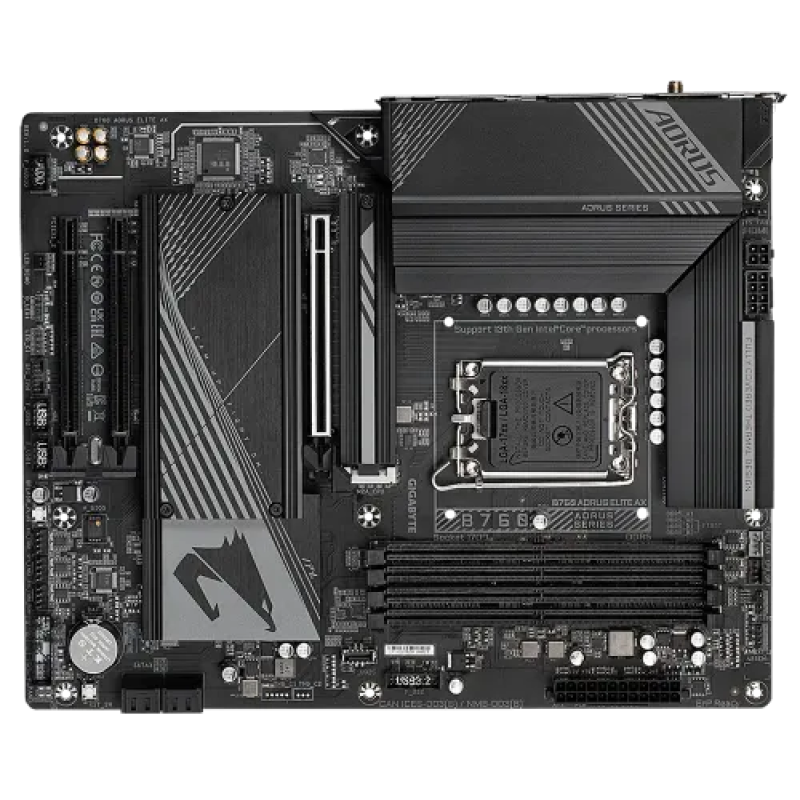

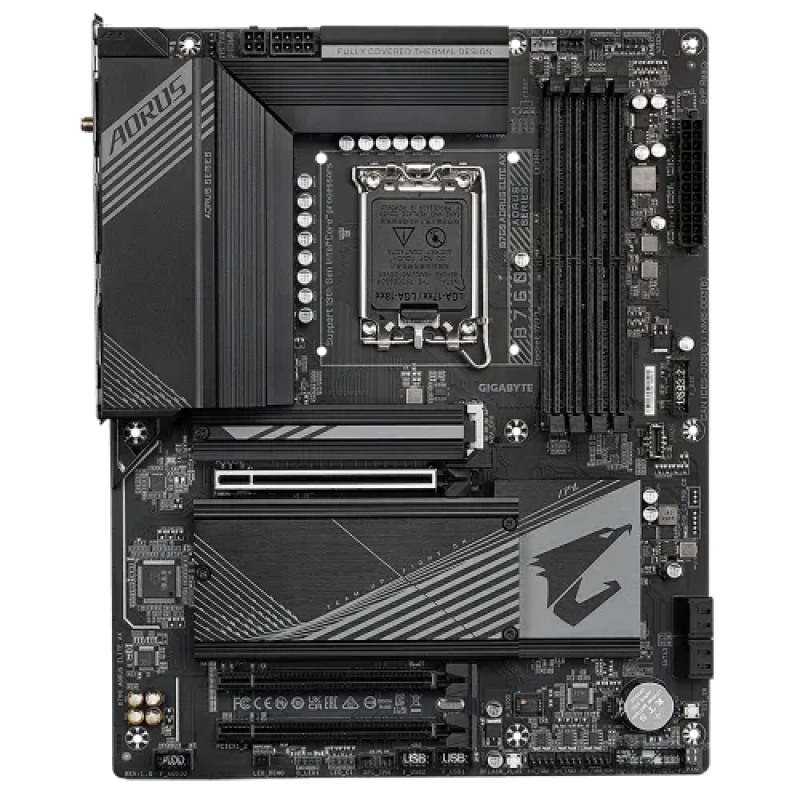

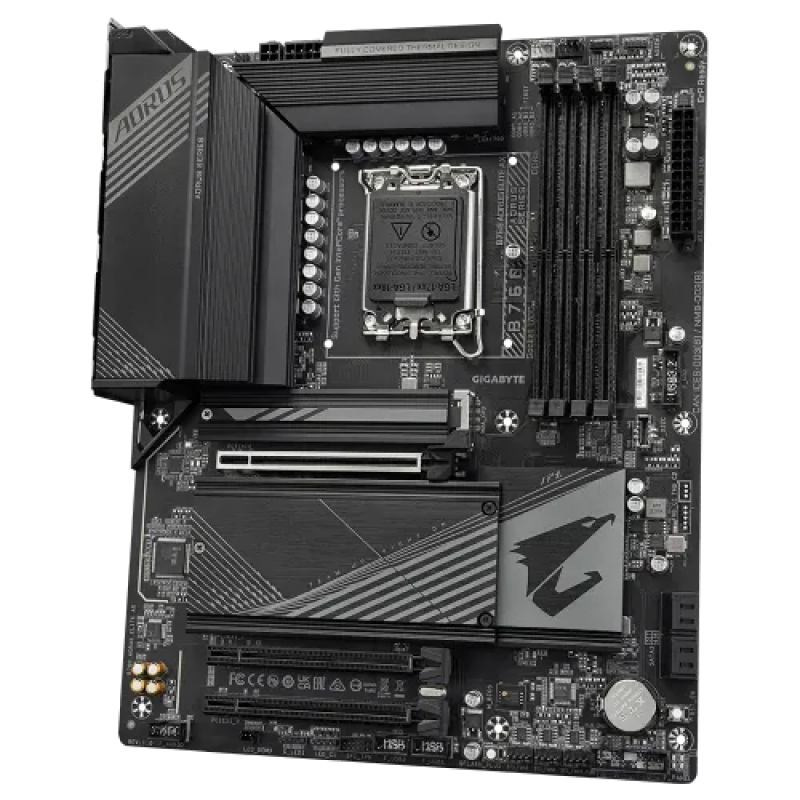

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

Regular Price	25,000৳
Status	In Stock
Product Code	4420
Brand	Gigabyte

Short Details

Model: B760 AORUS ELITE AX
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(O.C.)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

More Info

25000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	up to 192 GB (48 GB single DIMM capacity) of system memory
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3
Connector & Ports
HDMI	1x HDMI
Display Port (s)	1x DisplayPort

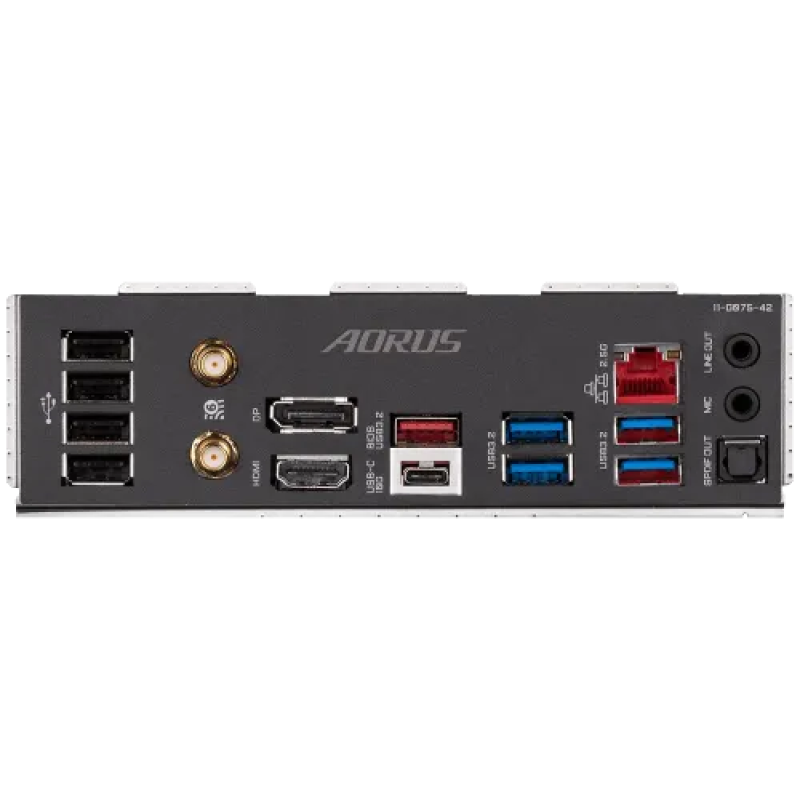

USB (s)	Chipset: 2 x USB Type-C ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Audio	2 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard

The GIGABYTE B760 AORUS ELITE AX Motherboard is designed for Intel Socket LGA 1700, providing support for 13th and 12th Gen Series Processors. With its Twin 12*+1+1 Phases Digital VRM Solution, the motherboard offers unparalleled performance and stability. The Dual Channel DDR5 with 4 SMD DIMMs and XMP 3.0 Memory Module support ensures efficient and reliable memory capabilities. The GIGABYTE B760 AORUS ELITE AX motherboard is equipped with 3 PCIe 4.0 x4 M.2 Connectors for next-generation storage compatibility, along with an Advanced Thermal Design and M.2 Thermal Guard to maintain VRM power stability and optimal M.2 SSD performance. Its EZ-Latch Plus features M.2 Connectors with Quick Release and Screwless Design for easy hardware installation. For networking, the motherboard offers both 2.5GbE LAN and Wi-Fi 6E 802.11ax, ensuring fast and reliable connectivity. With extended connectivity options such as Rear and Front USB-C® 10Gb/s, DP, and HDMI ports, the 14th Gen Motherboard caters to various connectivity needs. The Smart Fan 6 technology, featuring multiple temperature sensors and hybrid fan headers with FAN STOP, enhances cooling performance. Additionally, the Q-Flash Plus feature allows for BIOS updates without the need to install the CPU, memory, and graphics card, offering convenience and ease of use.The GIGABYTE B760 AORUS ELITE AX Motherboard comes with 3 years warranty.

What is the price of Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard in Bangladesh?

The latest price of Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard in Bangladesh is 25,500৳. You can buy the Gigabyte B760 AORUS ELITE AX Wi-Fi DDR5 ATX Motherboard at best price from our website or visit any of our showrooms.
