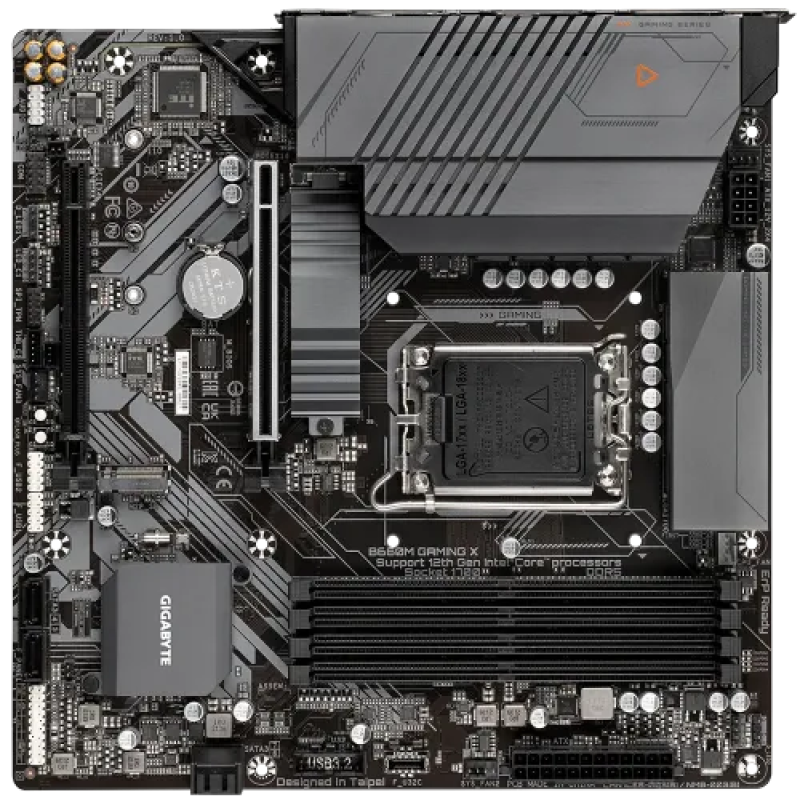

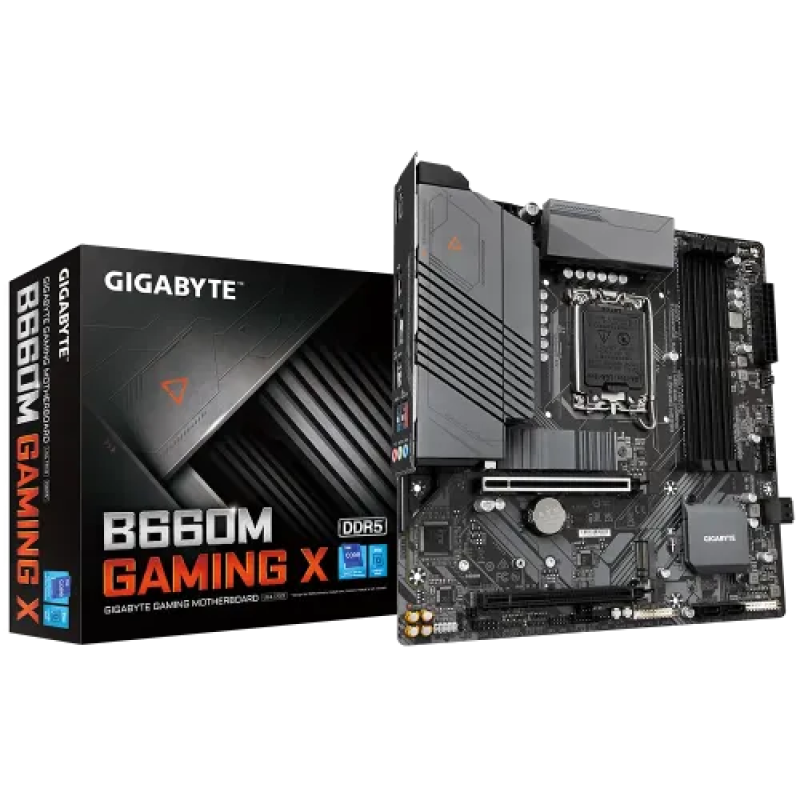

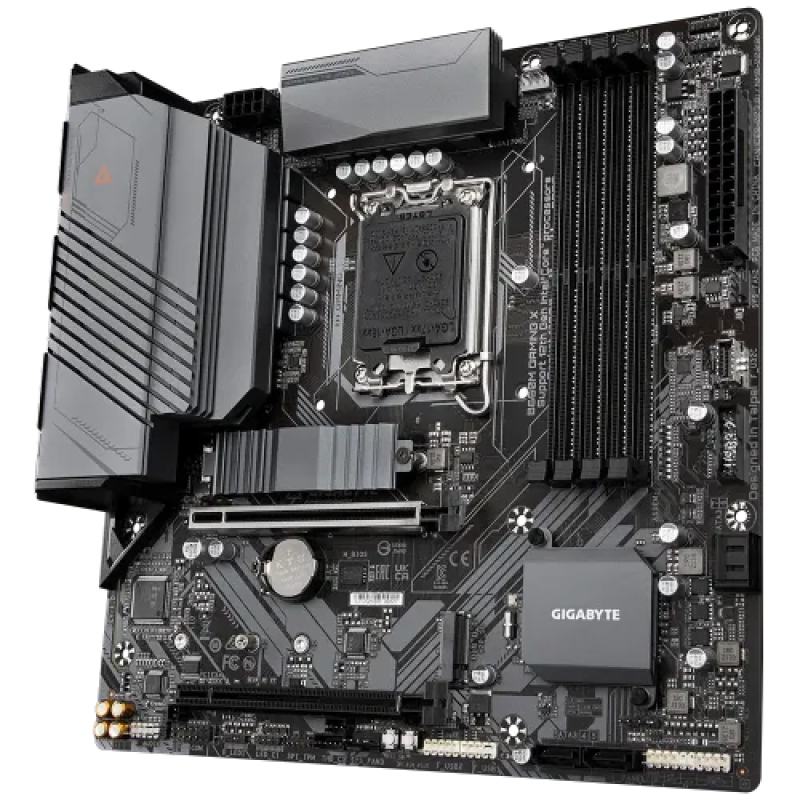

GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard

Regular Price	20,000৳
Status	In Stock
Product Code	4410
Brand	Gigabyte

Short Details

Model: B660M GAMING X DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 5600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

More Info

20000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU
Chipset	Intel B660 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 192 GB (48 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1 x HDMI 2.1 port
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
RAID	Support for RAID 0, RAID 1, RAID 5, and RAID 10
Audio	1 x front panel audio header

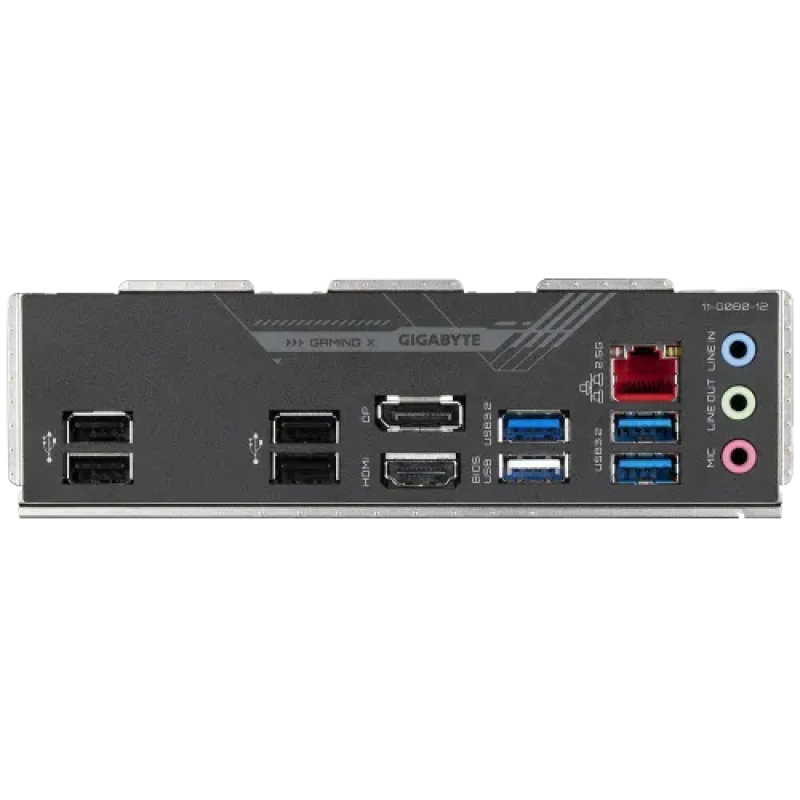

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 1 x HDMI 2.1 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center @BIOS EasyTune RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 Years Warranty

Description

GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard

The GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard is a high-performance motherboard designed for gaming enthusiasts. It features advanced technologies and components to deliver exceptional performance and reliability. The motherboard is its compatibility with 14th, 13th, and 12th-generation Intel Core processors, ensuring support for the latest and most powerful CPUs. It supports dual-channel non-ECC unbuffered DDR5 memory with 4 DIMM slots, allowing for fast and efficient multitasking. The motherboard utilizes an 8+1+1 hybrid digital VRM design with DrMOS, which provides precise and stable power delivery to the CPU. This design helps to optimize performance and overclocking capabilities. The DDR5 XTREME MEMORY Design with shielded memory routing ensures reliable and high-speed data transmission to the memory modules. To keep the motherboard cool under heavy loads, it features a fully covered thermal design with high-coverage VRM heatsinks. This helps to dissipate heat effectively and maintain optimal operating temperatures. The motherboard also includes dual PCIe 4.0 M.2 slots with thermal guards for ultra-fast NVMe storage options. Connectivity options are plentiful on this motherboard, including a 2.5GbE LAN port for fast and lag-free online gaming. It also offers USB 3.2 Gen 1 Type-C ports for versatile and high-speed connections with compatible devices. The pre-installed IO shield makes installation quick and easy, saving time during setup. The motherboard comes equipped with high-quality audio capacitors and audio noise-guard technology. This ensures clear and immersive sound for an enhanced gaming experience. For customization and aesthetics, the motherboard supports RGB Fusion 2.0, allowing you to synchronize and control addressable LED and RGB LED strips for stunning lighting effects. The Smart Fan 6 feature includes multiple temperature sensors and hybrid fan headers with fan stop functionality, enabling precise control over cooling and noise levels. Updating the BIOS is made easy with the Q-Flash Plus feature, which allows you to update the motherboard's firmware without the need for a CPU, memory, or graphics card. The GIGABYTE B660M GAMING X DDR5 12th Gen Micro-ATX Motherboard offers a powerful and feature-rich platform for gamers and PC enthusiasts, with its robust design, advanced connectivity options, and customizable features.The GIGABYTE B660M GAMING X DDR5 Micro-ATX Motherboard comes with 3 years warranty.

What is the price of GIGABYTE B660M GAMING X DDR5 Motherboard in Bangladesh?

The latest price of GIGABYTE B660M GAMING X DDR5 Motherboard in Bangladesh is 20,500৳. You can buy the GIGABYTE B660M GAMING X DDR5 Motherboard at best price from our website or visit any of our showrooms.
