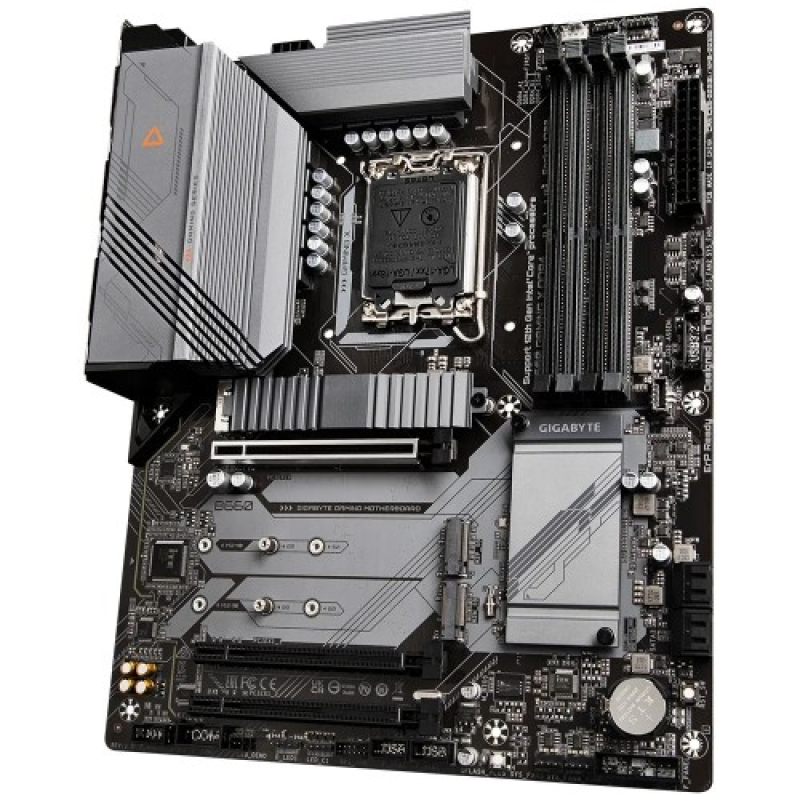

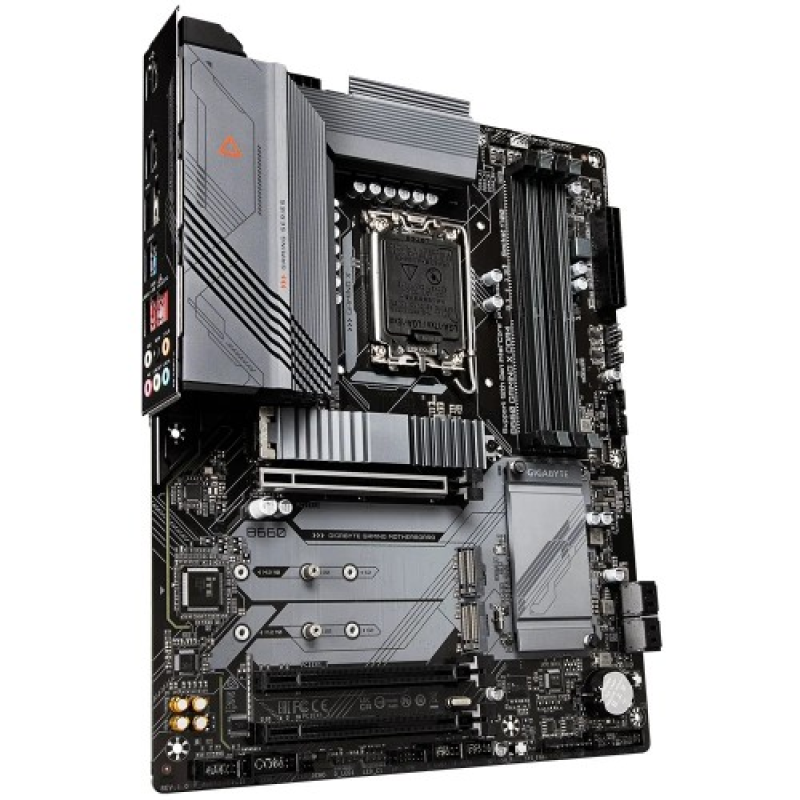

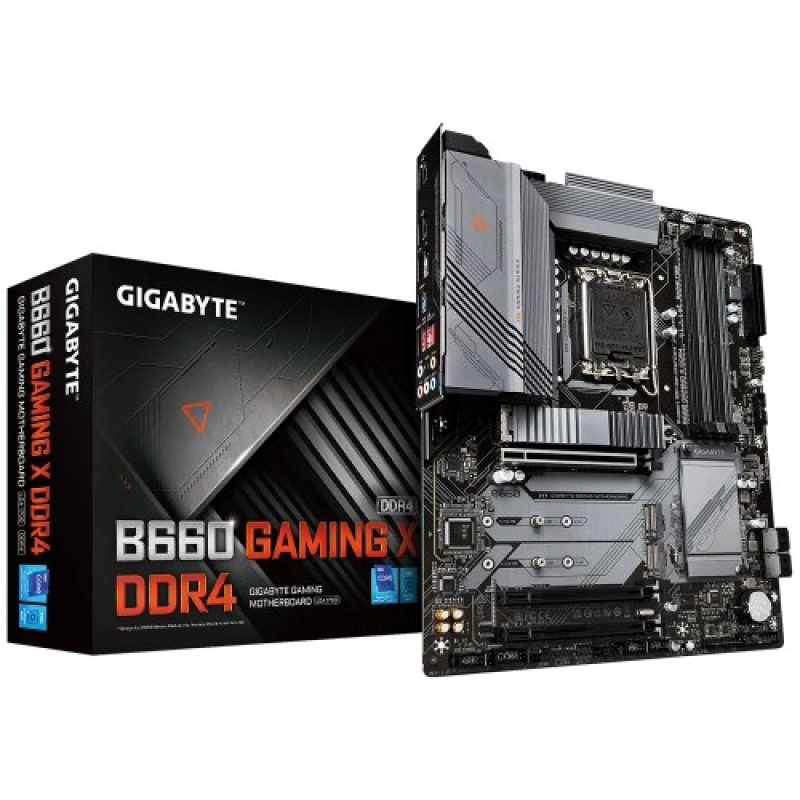

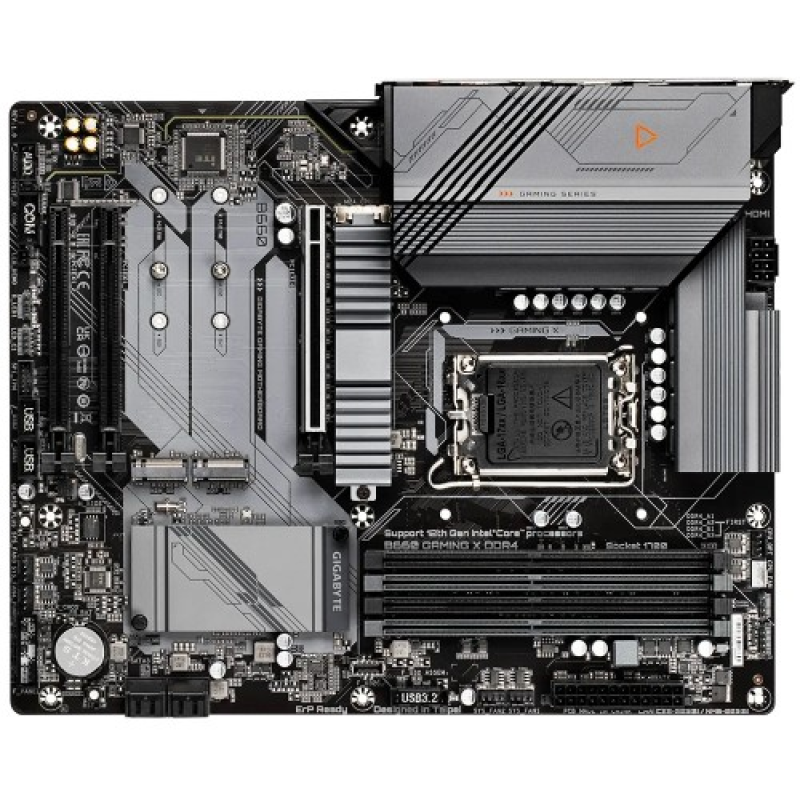

GIGABYTE B660 GAMING X DDR4 ATX Motherboard

Regular Price	18,500৳
Product Code	4453
Brand	Gigabyte

Short Details

Model: B660 GAMING X DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16+1+2 Digital VRM Design with 60A Power Stage
Fast 2.5GbE LAN with Bandwidth Management

More Info

18500৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU
Chipset	Intel Z690 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2-channel analog output Support for S/PDIF Out 7.1-channel digital signals
Expansion Slots
PCI	1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
M.2 Socket	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	Up to 128 GB (32 GB single DIMM capacity)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

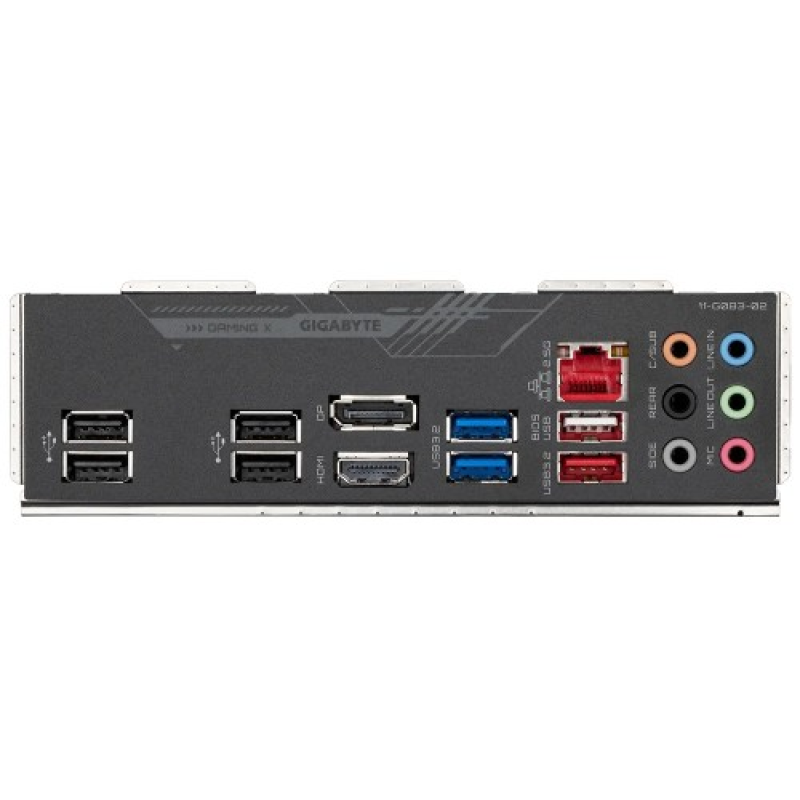

Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready
Audio	1 x front panel audio header
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x S/PDIF Out header 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features	Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install
Bundled Software	Norton Internet Security (OEM version) Realtek Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B660 GAMING X DDR4 ATX Motherboard

GIGABYTE B660 GAMING X DDR4 is a 14th, 13th, and 12th Gen ATX Motherboard from GIGABYTE. With technology moving so fast, GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE B660 Series motherboards come with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. it features a fully Covered Thermal Design which features a high coverage MOSFET and integrated molding heatsinks to improve thermal efficiency with better airflow and heat exchange. it has an M.2 Thermal Guard. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. The 2X Copper PCBs design effectively lowers the component temperature by its high thermal conductivity and low impedance. This GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next-generation network and storage connectivity. GIGABYTE motherboard is bundled with several useful and intuitive software to help users to control every aspect of the motherboard and provides customizable lighting effects with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable. It Supports 12th Gen Intel Core Series processors with Dual Channel Non-ECC Unbuffered DDR4 and 4 DIMMs, which feature 8+1+1 Hybrid Digital VRM Design with DrMOS. It has a Fully Covered Thermal Design with High Coverage VRM Heatsinks and a Fast 2.5 GbE GAMING LAN with Bandwidth Management. The Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard and USB 3.2 Gen1 Type-C for Fast and Versatile Connections alongside a pre-installed IO Shield for easy and quick installation. It also has high-Quality Audio Capacitors and Audio Noise Guard. This gaming motherboard has RGB FUSION 2.0 supports Addressable LED & RGB LED Strips. It also supports Smart Fan 6; which Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. GIGABYTE B660 GAMING X DDR4 12th Gen ATX Motherboard offers 03 years of Warranty.

What is the price of GIGABYTE B660 GAMING X DDR4 Motherboard in Bangladesh?

The latest price of GIGABYTE B660 GAMING X DDR4 Motherboard in Bangladesh is 18,500৳. You can buy the GIGABYTE B660 GAMING X DDR4 Motherboard at best price from our website or visit any of our showrooms.
