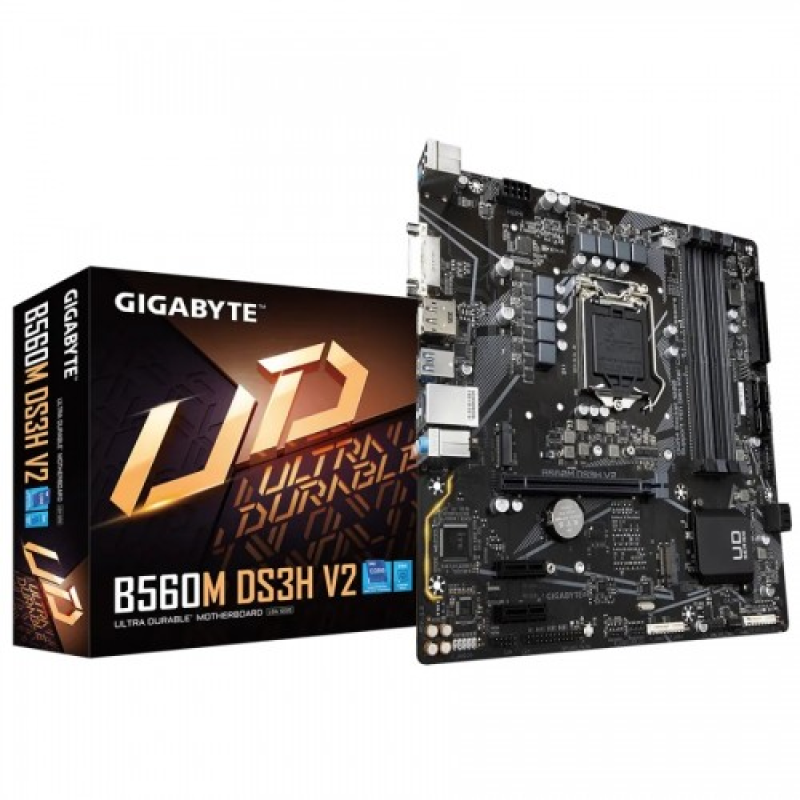

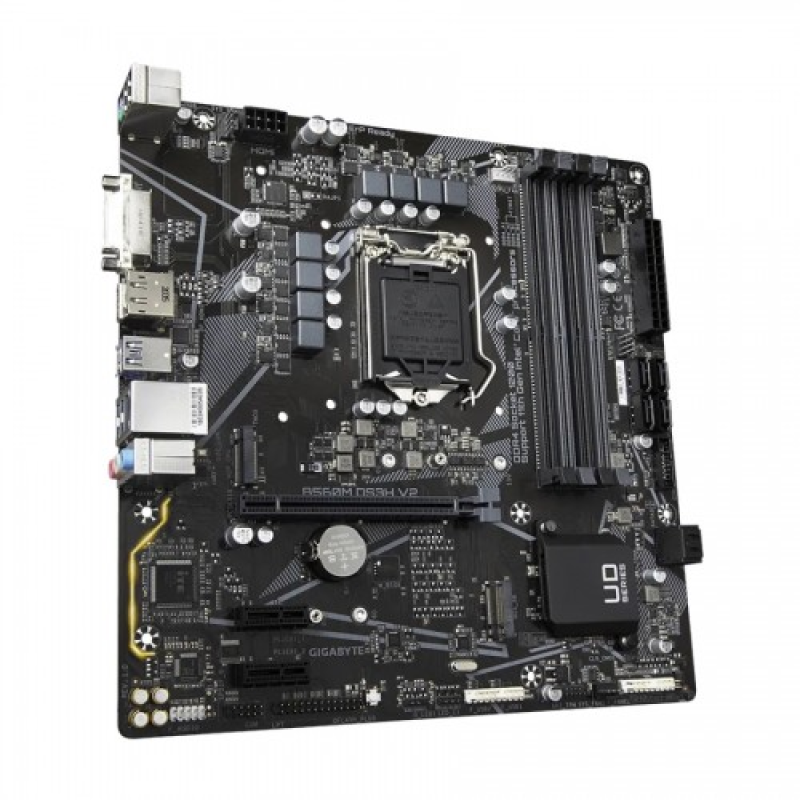

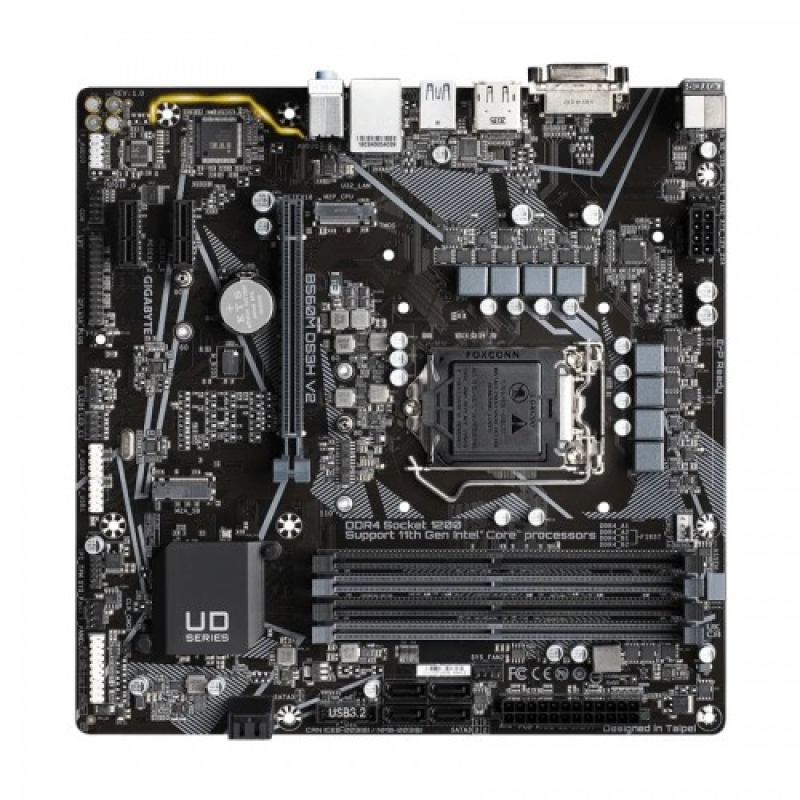

GIGABYTE B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard

Regular Price 12,500৳
Product Code 75
Brand Gigabyte
Short Details
  • Model: B560M DS3H V2
  • Supports 11th and 10th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • Direct 6+2 Phases Digital VRM Solution
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU LGA1200 package:
11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors*
* Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
L3 cache varies with CPU
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Memory
Type DDR4
Slots 4 x DDR4 DIMM
Supported Memory 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.) / DDR4 5133(O.C.) / DDR4 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Support for up to 3 displays at the same time
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
DVI-D (s) 1 x DVI-D port
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports available through the internal USB headers
LAN Port (s) Realtek GbE LAN chip (1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU)(Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel Optane Memory Ready
* System acceleration with Intel Optane Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel processor installed.
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 years

Description

Description

GIGABYTE B560M DS3H V2 10th and 11th Gen Micro ATX Motherboard

The GIGABYTE B560M DS3H V2 Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. GIGABYTE B560M DS3H V2 comes with Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. It features Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 and GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It has USB 3.2 Gen1 Type-C for Fast and Versatile Connections and High-Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting. GIGABYTE B560M DS3H V2 supports RGB FUSION 2.0 and Supports Addressable LED & RGB LED Strips. With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It features solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading. The GIGABYTE B560M DS3H V2 comes with 3 years warranty.

What is the price of GIGABYTE B560M DS3H V2 11th Gen Motherboard in Bangladesh?

The latest price of GIGABYTE B560M DS3H V2 11th Gen Motherboard in Bangladesh is 12,500৳. You can buy the GIGABYTE B560M DS3H V2 11th Gen Motherboard at best price from our website or visit any of our showrooms.
