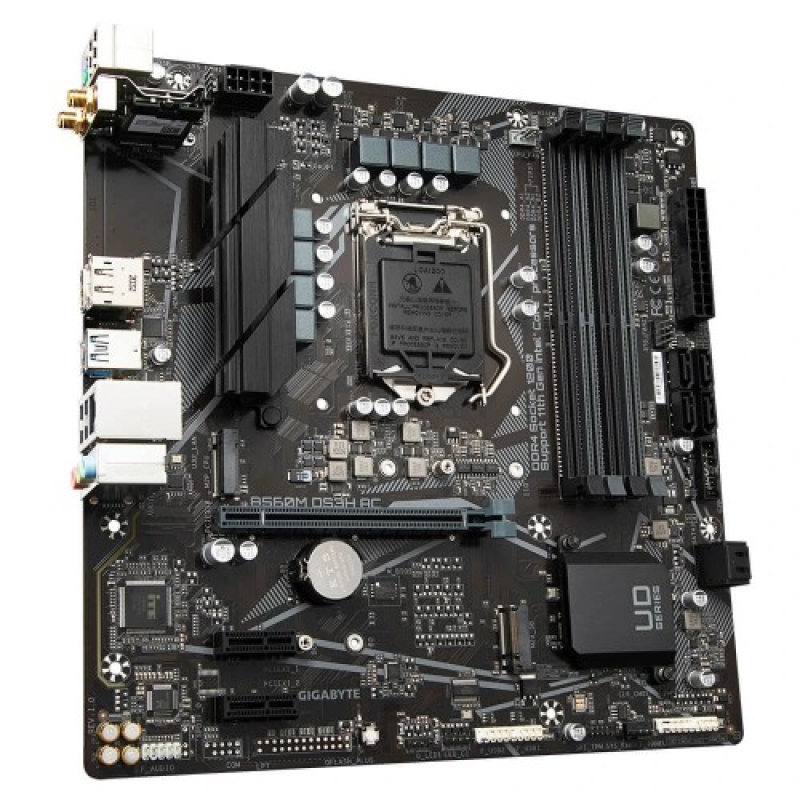

GIGABYTE B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

Regular Price 14,000৳
Product Code 76
Brand Gigabyte
Short Details
  • Model: B560M DS3H AC
  • Supports 11th and 10th Gen Intel Core Processors
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2
  • Dual-Channel DDR4, 4 DIMMs
  • Dual-Band 802.11ac Wireless & BT 4.2
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

 Information
Supported CPU 11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
Chipset Intel B560 Express Chipset
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)
2 x PCI Express x1 slots
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
M.2 Socket 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
Memory
Type Dual-channel memory architecture
Slots 4 x DDR4 DIMM
Supported Memory 11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2933 / 2800 / 2666 / 2400 / 2133 MHz
10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128 GB (32 GB single DIMM capacity)
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
* When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only.
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Display Port (s) 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
D-Sub (s) Yes
USB (s) Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+USB 2.0 Hub:
2 x USB 2.0/1.1 ports on the back panel
LAN Port (s) Realtek GbE LAN chip (1000/100 Mbit)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB)
6 x SATA 6Gb/s connectors
Intel Optane Memory Ready
Audio 3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
1 x Q-Flash Plus button
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features Support for APP Center
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software Norton Internet Security (OEM version)
Realtek 8118 Gaming LAN Bandwidth Control Utility
Warranty Information
Manufacturing Warranty 3 years

Description

Description

GIGABYTE B560M DS3H AC Intel 10th and 11th Gen Micro ATX Motherboard

The GIGABYTE B560M DS3H AC Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors and Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs with Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs. It features Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2. It supports GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management and Onboard Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna. it comes with USB 3.2 Gen1 Type-C for Fast and Versatile Connections. It has High-Quality Audio Capacitors an Audio Noise Guard and RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips. The Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 years warranty.

What is the price of GIGABYTE B560M DS3H AC Micro ATX Motherboard in Bangladesh?

The latest price of GIGABYTE B560M DS3H AC Micro ATX Motherboard in Bangladesh is 14,100৳. You can buy the GIGABYTE B560M DS3H AC Micro ATX Motherboard at best price from our website or visit any of our showrooms.
