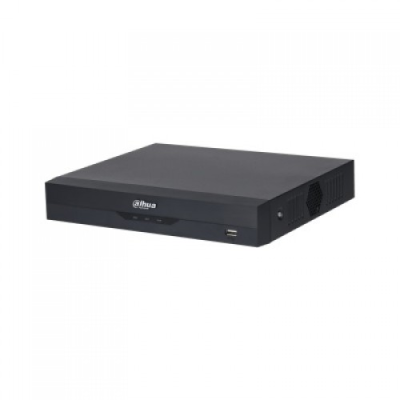

DAHUA XVR5108HS-I2 8-Channel Digital Video Recorder

Regular Price 8,500৳
Product Code 2860
Brand Dahua
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Description

Key Features

  • Model: XVR5108HS-I2
  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12 channels IP camera inputs, each channel up to 6MP
  • Max 64 Mbps incoming bandwidth









Specification

System
Main Processor
Embedded Processor
Operating SystemEmbedded LINUX
Audio and Video
IP Camera Input8+4 channels, each channel up to 6MP
Two-Way TalkReuse audio in/out, RCA
Display
Interface1 HDMI,1 VGA
Resolution1920 × 1080, 1280 × 1024, 1280 × 720
Multi-Screen DisplayWhen IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
CompressionAI Coding/H.265+/H.265/H.264+/H.264
Resolution
5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record RateMain stream: All channel 5M-N (1fps–10fps); 4M-N/1080P (1fps–15fps); 1080N/720P/960H/
D1/CIF (1fps–25/30fps)
Substream: D1/CIF (1fps–15fps)
Bit Rate32 Kbps–6144 Kbps Per Channel
Record ModeManual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 – 60 min (default: 60 min), Pre-record: 1 s–30 s, Post-record: 10 s–300 s
Video Detection And Alarm
Trigger EventRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer, and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis
Alarm InputN/A
Relay OutputN/A
Playback And Backup
Search ModeTime /Date, Alarm, MD, and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Third Party Support
Third Party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface1 RJ-45 Port (100 MB)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Smart Phone
iPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Storage
Internal HDD1 SATA Port, up to 10TB capacity
eSATAN/A

Auxiliary Interface
USB2 USB Ports (USB 2.0)
RS232
N/A
RS4851 Port, for PTZ Control
Power
Power SupplyDC 12V/2A
Power Consumption<7W

Component Environment
Storage ConditionsInternal HDD: 1 SATA Port, up to 10TB capacity

Construction
DimensionsCompact 1U, 260 mm × 238 mm × 48 mm
(10.24'' × 9.34'' × 1.87'')
Net Weight1.1 kg (2.5 lb)
Gross Weight1.5 kg (3.3 lb)
