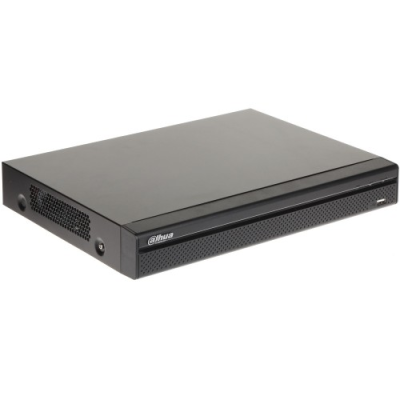

Dahua XVR1B04H-I 4 Channel Penta-brid 5M-N/1080p Cooper DVR

Regular Price 6,500৳
Product Code 2855
Brand Dahua
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Description

  • Model: XVR1B04H-I
  • H.265+/H.265 dual-stream video compression
  • Supports Full-channel AI-Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 6 channels IP camera inputs










Specification

System
Main ProcessorEmbedded Processor
Operating SystemEmbedded LINUX
Audio and Video
IP Camera Input4+2 each channel up to 6MP
Two-Way TalkReuse audio in/out, RCA
Display
Interface1 HDMI ,1 VGA
Resolution1920×1080, 1280×1024, 1280×720
Multi-Screen DisplayWhen IP extension mode not enabled: 4CH: 1/4
When IP extension mode enabled: 4CH: 1/4/6
OSDCamera title, Time, Video loss, Camera lock, Motion detection, Recording
Recording
CompressionH.265+/H.265/H.264+/H.264
Resolution5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Record RateMain Stream: 4CH: the 1st channel 5M-N(1~10fps)
Sub stream: CIF/QCIF (1~15fps)
Bit Rate32Kbps ~ 6144Kbps Per Channe
Record ModeManual, Schedule (General, Continuous), MD (Video detection:
Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Postrecord: 10 ~ 300 sec
Video Detection And Alarm
Trigger EventRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot,
Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18), Video Loss,
Tampering and Diagnosis
Playback And Backup
Sync Playback4CH: 1/4
Search ModeTime /Date, Alarm, MD and Exact Search (accurate to
second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File,
Previous File, Next Camera, Previous Camera, Full Screen,
Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Third Party Support
Third Party SupportDahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP
Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung,
Sanyo, Sony, Videotec, Vivotek, and more
Network
Interface1 RJ-45 Port (100M)
Network FunctionHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)
Maximum User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 16.12, CGI Conformant
Storage
Internal HDD1 SATA Port, up to 6TB capacity
Auxiliary Interface
USB2x USB 2.0
Power
Power SupplyDC12V/1.5A
Power Consumption<10W
Component Environment
Operational Conditions-10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH
Construction
DimensionsCooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“)
Net Weight0.54kg
