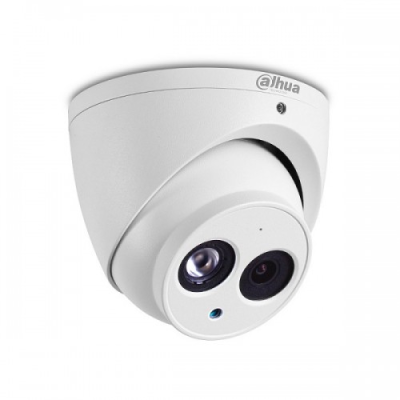

Dahua HAC-HDW1200EMP-A 2MP HDCVI IR Eyeball Camera with Audio

Name: Dahua HAC-HDW1200EMP-A 2MP HDCVI IR Eyeball Camera with Audio
Brand: Dahua
SKU: 2638
Price: 2550 BDT
Availability: InStock
Rating: 4.5 (149 reviews)

Regular Price	2,550৳
Status	In Stock
Product Code	2638
Brand	Dahua

2550৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Key Features

Model: Dahua HAC-HDW1200EMP-A
Built-in mic (Audio)
IP67, DC12V
Max 30fps@1080P
Max. IR length 50m, Smart IR

Specification

General
Casing	Aluminium
Dimensions	Φ106mm×93.7mm (Φ4.17"×3.69")
Weight	0.44 Kg
Pan/Tilt/Rotation	Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360°
Operating Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Storage Conditions	-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH
Power Supply	12V DC ±30%
Power Consumption	Max 4.2W (12V DC, IR on)
Camera
Image Sensor	1/2.7" CMOS
Effective Pixels	1920(H)×1080(V), 2MP
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25~1/100000s NTSC: 1/30~1/100000s
Minimum Illumination	0.02Lux/F1.85, 30IRE, 0Lux IR on
S/N Ratio	More than 65dB
IR Distance	Up to 50m (164feet)
IR On/Off Control	Auto / Manual
IR LEDs	1
Lens
Lens Type	Fixed lens / Fixed iris
Mount Type	Board-in
Focal Length	3.6mm
Max Aperture	F1.85
Angle of View	H: 87.5° (103°, 54.7°)
Close Focus Distance	500mm (900mm, 2000mm) 19.69'' (35.43", 78.74'')
Video
Resolution	1080P (1920×1080)
Frame Rate	25/30fps@1080P, 25/30/50/60fps@720P
Video Output	1-channel BNC high definition video output / CVBS video output (Can switch)
Day/Night	Auto (ICR) / Manual
BLC Mode	BLC / HLC / DWDR
Gain Control	AGC
Noise Reduction	2D
Interface
Audio Interface	Built-in Mic
Special Features
Features	Ingress Protection & Vandal Resistance: IP67 White Balance: Auto / Manual Smart IR: Auto / Manual
Warranty
Warranty	1 Year

Description

Dahua HAC-HDW1200EMP-A 2MP HDCVI IR Eyeball Camera with Audio

Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various motorized/fixed lens models with a multi-language OSD and HD/ SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions. HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio, data and power. Dual-way data transmission allows the HDCVI camera to interact with the XVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/ 1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable. HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network. The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahuaâ€™s unique Smart IR adjusts to the intensity of camera's infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera. The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with most end usersâ€™ existing HD/SD DVRs. The camera's outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments. With working temperature range of -40 Â°C to +60 Â°C (-40 Â°F to +140 Â°F), the camera is designed for extreme temperature environments. Supporting Â±30% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
