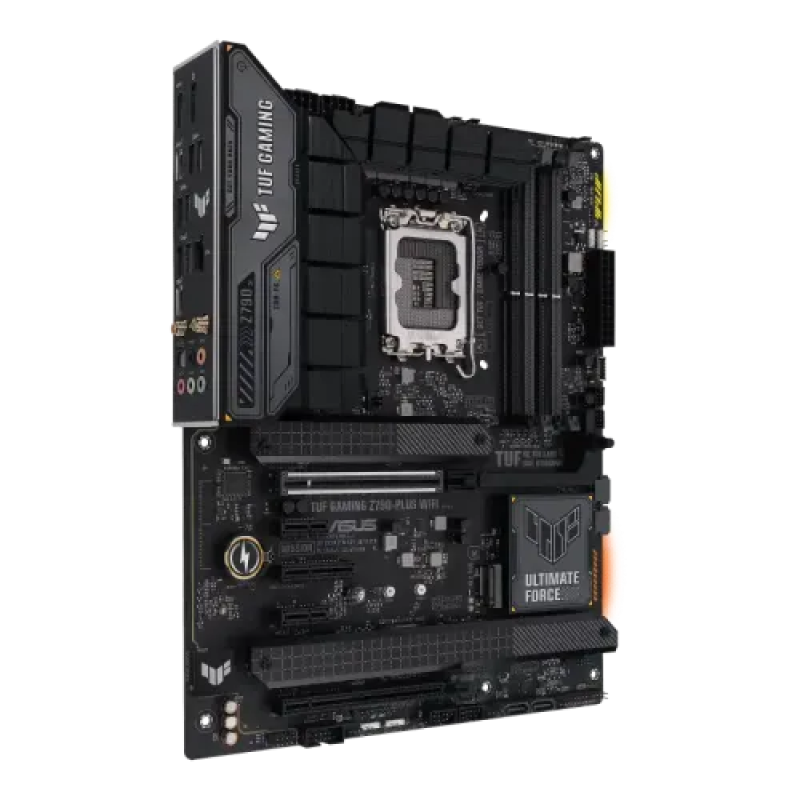

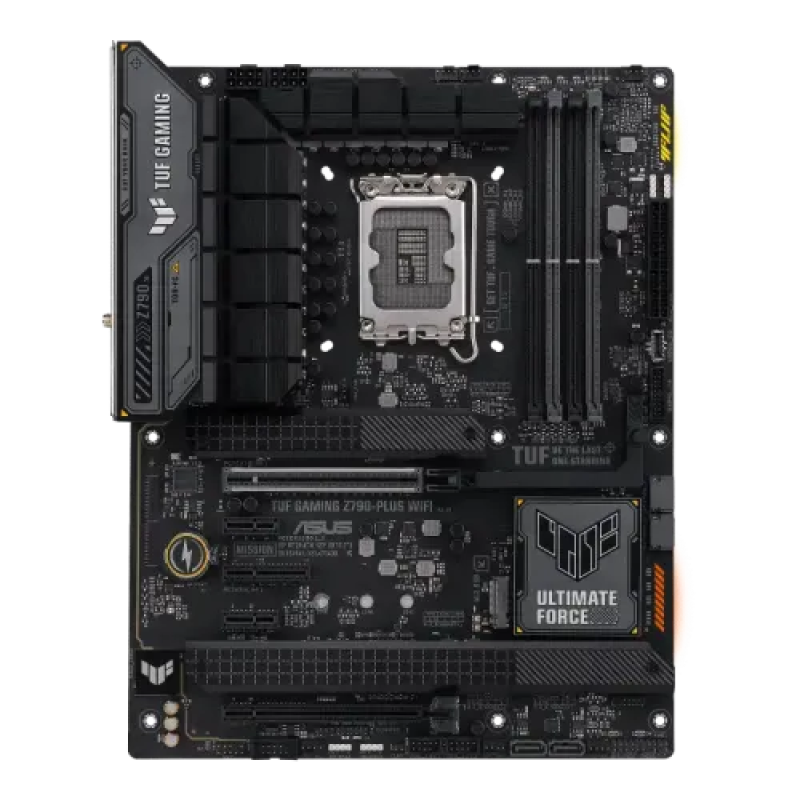

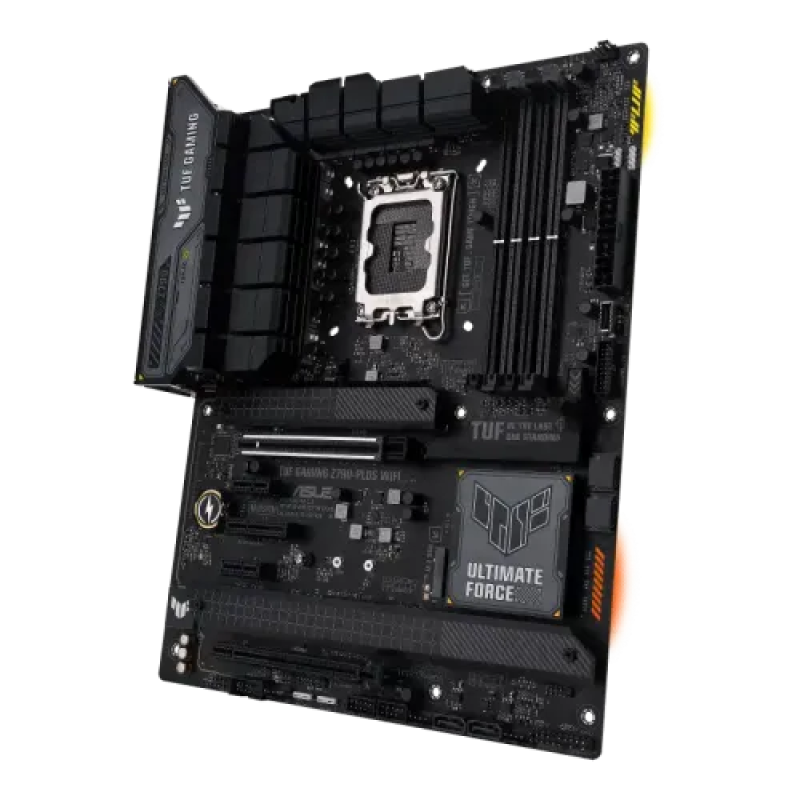

ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard

Regular Price	46,700৳
Status	In Stock
Product Code	4769
Brand	Asus

Short Details

Model: TUF GAMING Z790-PLUS WIFI
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DIMM, Max. 128GB, DDR5
Graphics Output: 1 x DisplayPort, 1 x HDMI
Features: 4 x M.2 slots, Wi-Fi 6, Bluetooth v5.2

More Info

46700৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Information
Supported CPU	Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z790 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover
Expansion Slots
PCI	Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel Z790 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x4 slot 2 x PCIe 3.0 x1 slots
Memory
Type	DDR5
Slots	4 x DIMM
Supported Memory	7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet TUF LANGuard
Wireless Communication module	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3
Supported Storage	Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 13th & 12th Gen processors support PCIe 4.0 x4 mode Intel Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports
RAID	Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10
Audio	5 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Others
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard

The ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard adds performance and connectivity to your project. This motherboard supports 14th Generation Intel CPUs by utilizing the Intel Z790 chipset and LGA 1700 socket. Up to 128GB of DDR5 RAM may be installed across four memory slots. There are four M.2 and four SATA III connections for storage, as well as PCIe 5.0 x16, 4.0 x16, 4.0 x4, and two 3.0 x1 slots for adaptor cards. Connect to wired peripherals through two USB-A 3.2 Gen 2 and four 3.2 Gen 1 ports, or two USB-C 3.2 Gen 2x2 and four 3.2 Gen 2 ports. DisplayPort 1.4 or HDMI 2.1 interfaces are used to output video. Its RJ45 connection enables 2.5 Gigabit Ethernet, and the bundled antenna supports Wi-Fi 6E. The rear I/O panel also includes five 1/8" audio connectors and a digital audio S/PDIF output. Fans, Clear CMOS, Thunderbolt 4, RGB lighting, and front-panel USB-C 3.2 Gen 2 and USB-A 3.2 Gen 1 and 2.0 ports are all supported through internal headers. The ASUS TUF GAMING Z-790 PLUS WIFI LGA 1700 ATX Motherboard is Windows 10 and 11 64-bit compatible.

Enhanced Power Solution

The ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard delivers consistent power throughout the entire motherboard, preserving electrical volume whether you are performing simple chores or operating at full power during resource-demanding procedures. It is equipped with a 16+1 Phase Power DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors that allow for stable power delivery.

Connectivity to the Core

Fast internals and accessories can be connected to via PCIe 5.0 and Thunderbolt 4 headers, as well as a front-panel USB-C 3.2 Gen 2x2 port. USB 3.2 Gen 2 doubles the speed of its predecessor, with a maximum throughput of 10 Gb/s when utilized with compatible devices, and is synonymous with USB 3.1 Gen 2.

Aura Sync RGB Effects

The ASUS TUF GAMING Z790-PLUS WIFI DDR5 14th Gen Motherboard offers an edge lighting design, addressable RGB headers, and RGB strip header support to let you set the mood for your favorite games.

What is the price of ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard in Bangladesh?

The latest price of ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard in Bangladesh is 49,500৳. You can buy the ASUS TUF GAMING Z790-PLUS WIFI DDR5 Motherboard at best price from our website or visit any of our showrooms.
