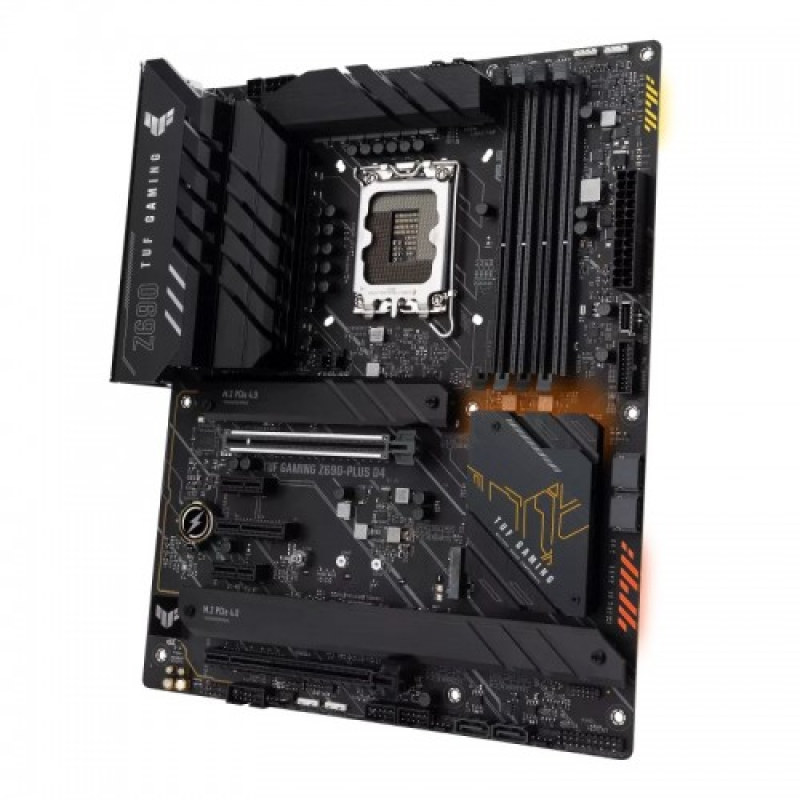

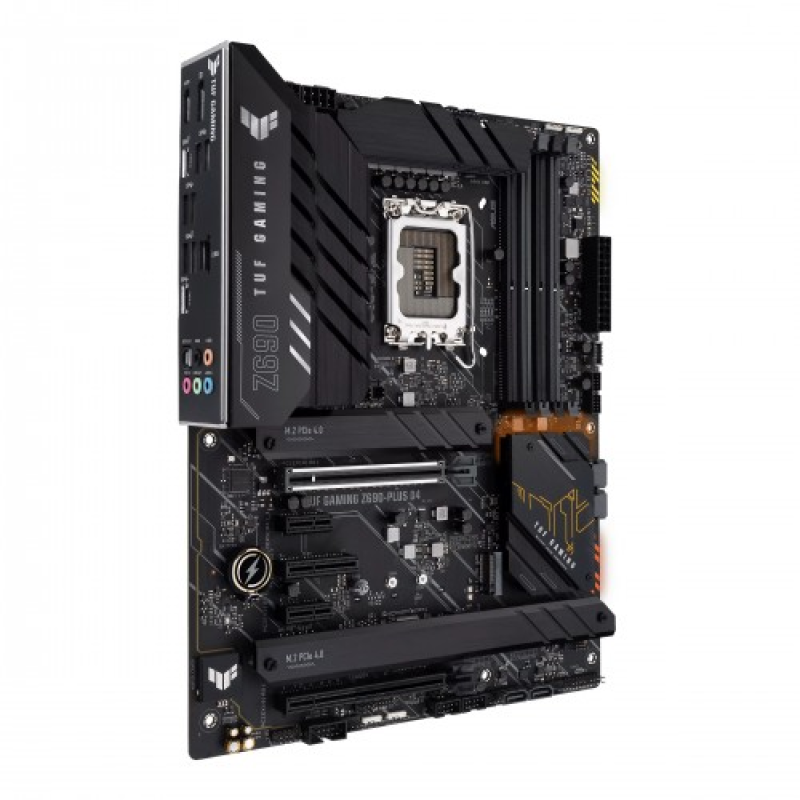

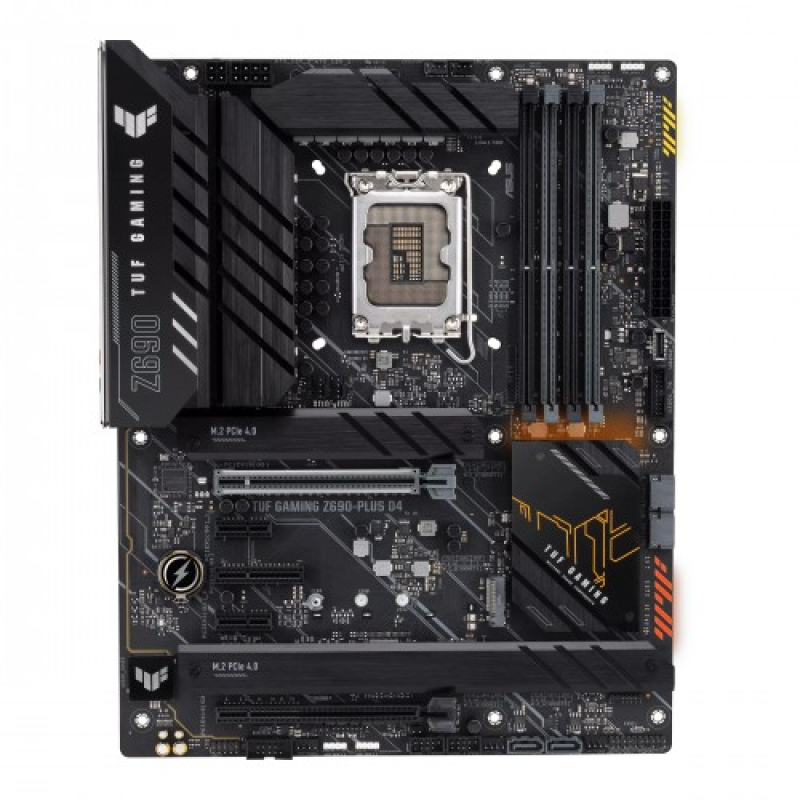

Asus TUF Gaming Z690-Plus D4 ATX Motherboard

Regular Price	26,400৳
Product Code	5009
Brand	Asus

Short Details

Model: TUF Gaming Z690-Plus D4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
14+1 DrMOS, six-layer PCB, ProCool sockets
PCIe 5.0, USB 3.2 Gen2x2 Type-C
Intel 2.5 Gb Ethernet and TUF LANGuard

More Info

26400৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Z690
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 24.4cm
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover
Expansion Slots
PCI	Intel 12th Gen Processors* 1 x PCIe 5.0 x16 slot Intel Z690 Chipset** 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x4 slot 2 x PCIe 3.0 x1 slots
M.2 Socket	Supports 4 x M.2 slots
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	128GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x DisplayPort
Display Port (s)	1 x HDMI port

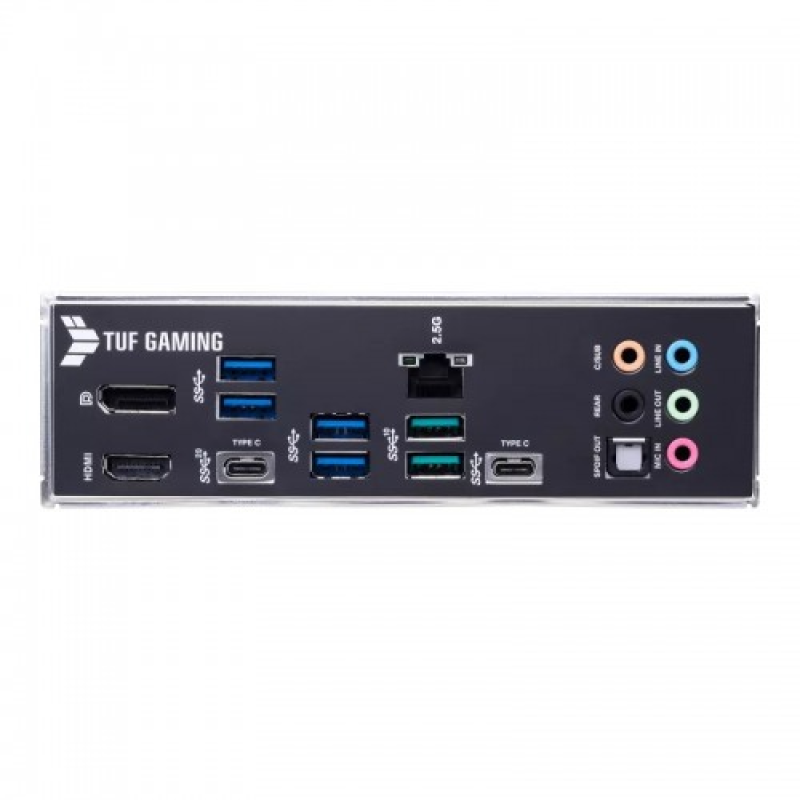

USB (s)	Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 5 x USB 3.2 Gen 1 ports (4 x Type-A + 1 x USB Type-C) Front USB:Total 7 ports 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	1 x Intel 2.5Gb Ethernet TUF LANGuard
Supported Storage	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header
Others
Special Features	ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

Asus TUF Gaming Z690-Plus D4 ATX Motherboard

The Asus TUF Gaming Z690-Plus D4 Motherboard features an Intel LGA 1700 socket Ready for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. Asus Prime series motherboards are expertly engineered to unleash the full potential of 12th-generation Intel processors. It comes with an enhanced power solution. 14+1 DrMOS, six-layer PCB, ProCool sockets, alloy chokes, and durable capacitors for stable power delivery. It features an enlarged VRM heatsink, PCH fanless heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4 utility in Armoury Crate. The Asus TUF Gaming Z690-Plus D4 is supported with PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, Thunderbolt 4 header support. Asus 5-Way Optimization makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it provides overclocking profiles that are tailored for your rig. Two M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. Asus TUF Gaming Z690-Plus D4 offers a total of four M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. The Asus TUF Gaming Z690-Plus D4 comes with 3 years of warranty.

What is the price of Asus TUF Gaming Z690-Plus D4 Motherboard in Bangladesh?

The latest price of Asus TUF Gaming Z690-Plus D4 Motherboard in Bangladesh is 26,500৳. You can buy the Asus TUF Gaming Z690-Plus D4 Motherboard at best price from our website or visit any of our showrooms.
