Asus TUF Gaming H670-Pro WIFI D4 ATX Motherboard

Regular Price	24,000৳
Product Code	4977
Brand	Asus

Short Details

Model: TUF Gaming H670-Pro WIFI D4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Intel WiFi 6, Intel 2.5Gb Ethernet, TUF LANGuard
Supported Socket: Intel LGA 1700
Two-way AI Noise-Cancelation

More Info

24000৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel H670 Chipset
BIOS	192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Form Factor	ATX 30.5cm x 24.4cm
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers - Audio Cover
Expansion Slots
PCI	1 x PCIe 5.0 x16 slot Intel H670 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots Please check PCIe bifurcation table in support site. Supports Intel Optane Memory H Series on PCH-attached PCIe slot
M.2 Socket	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel 12th Gen processors support PCIe 4.0 x4 mode Intel H670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Memory
Type	DDR4
Slots	4 x DIMM
Supported Memory	5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture: Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 128GB, DDR4
Graphics
Graphics	Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB:Total 7 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s)	TUF LANGuard
Wireless Communication module	1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port
Supported Storage	Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel 12th Gen processors support PCIe 4.0 x4 mode Intel H670 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports *Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.
Audio	5 x Audio jacks

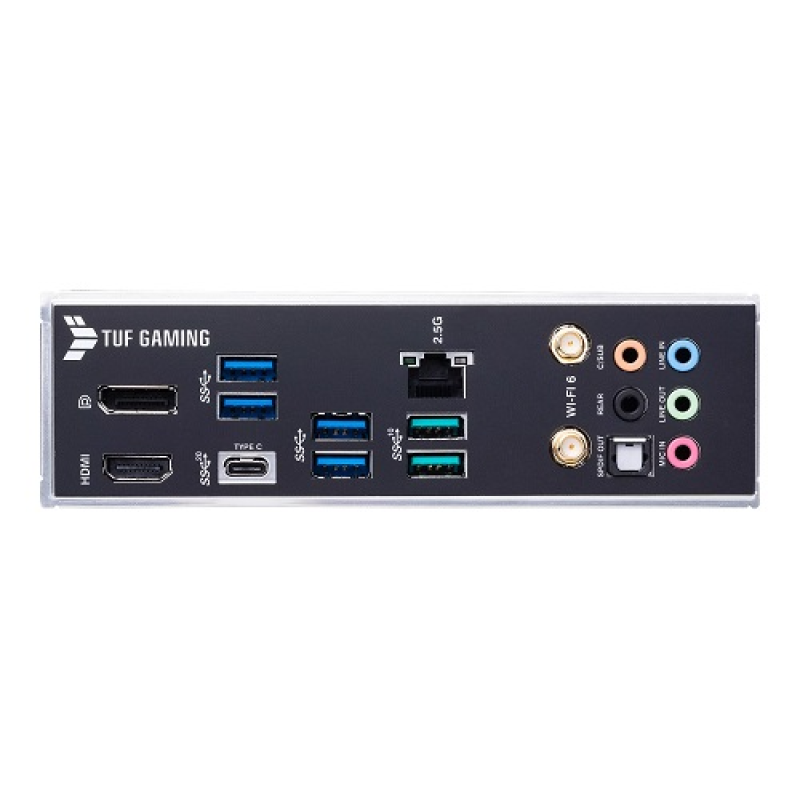

Internal I/O Ports	Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A ) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers
Others
Bundled Software	ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

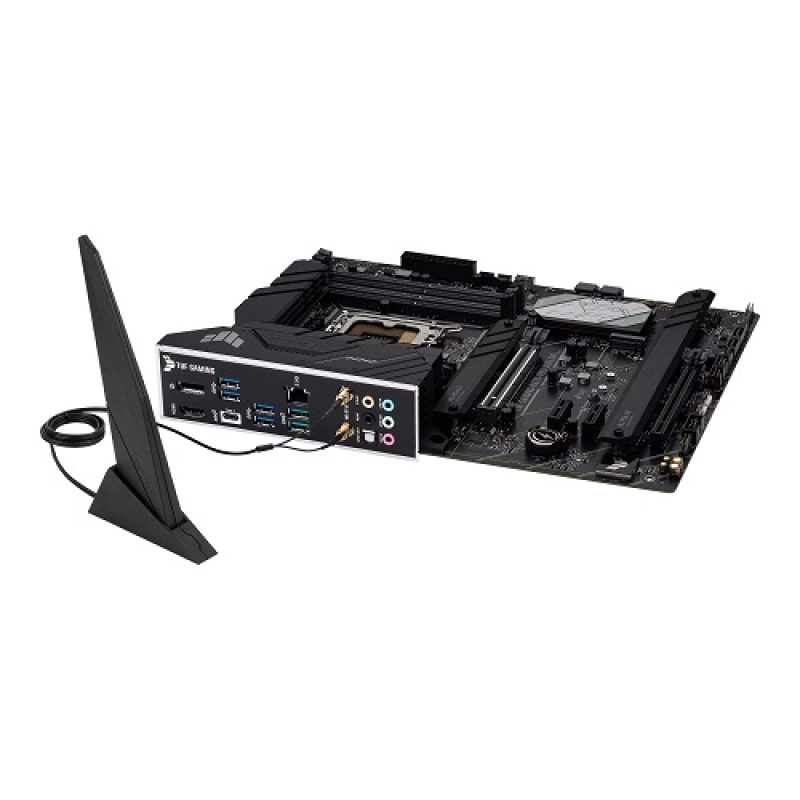

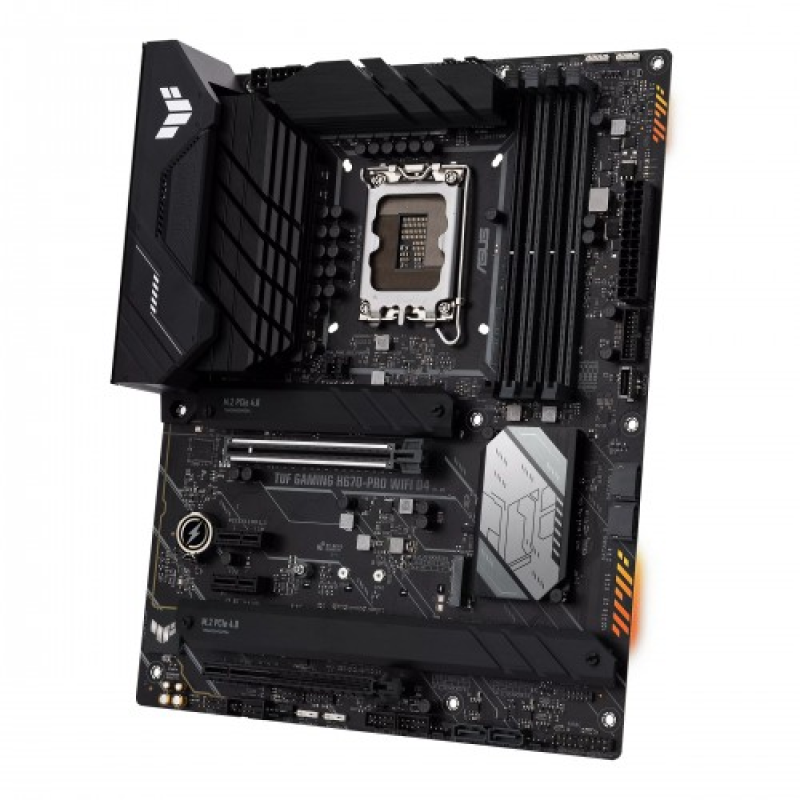

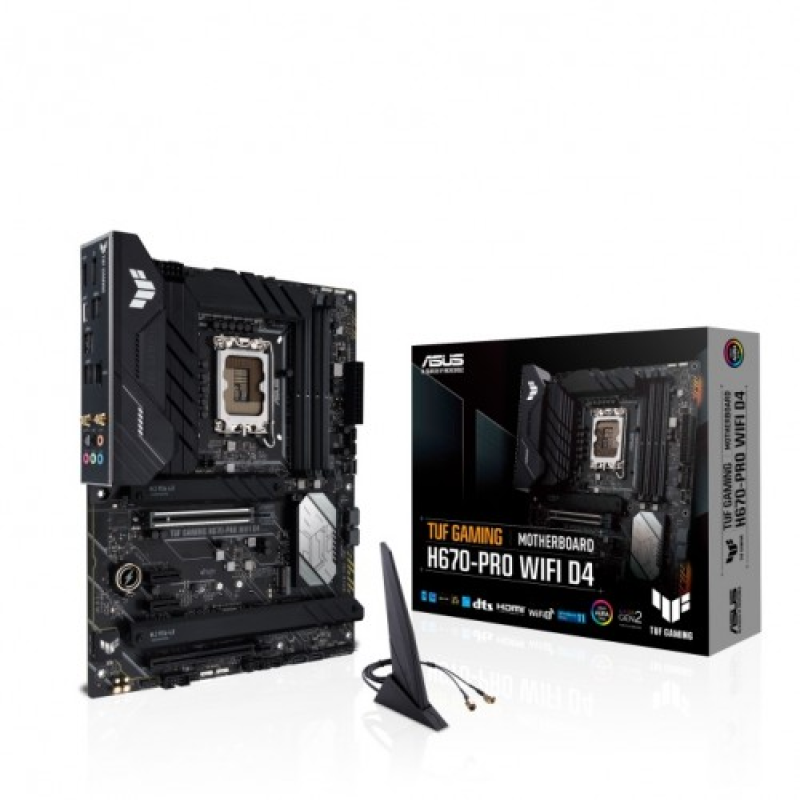

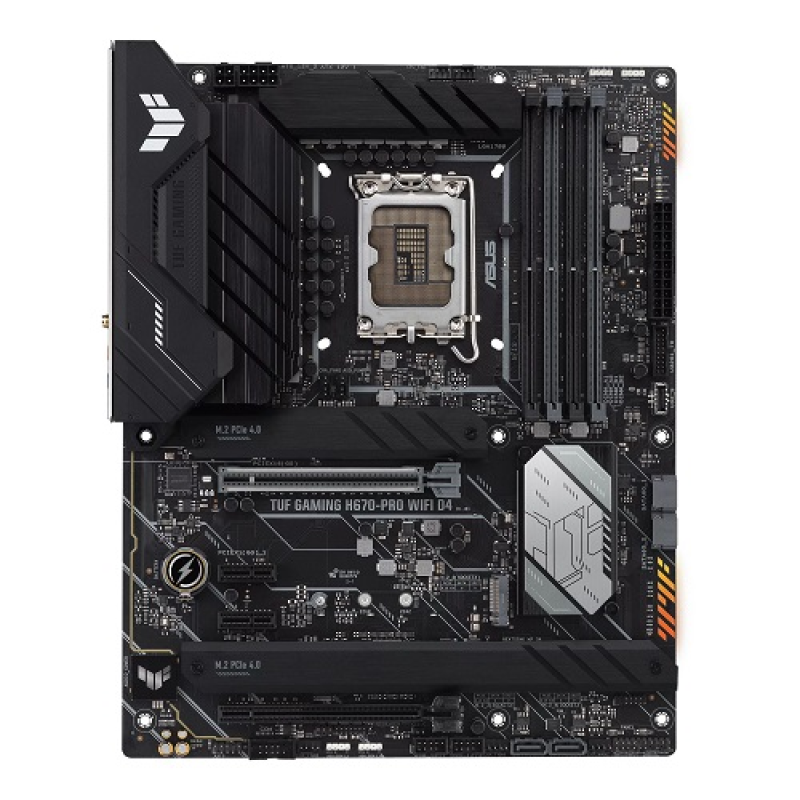

Asus TUF Gaming H670-Pro WIFI D4 ATX Motherboard

Asus TUF Gaming H670-Pro WIFI D4 Motherboard supports Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold and Celeron Processors and also supports with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard featured with Enhanced power solution: 14+1 DrMOS, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability, Comprehensive cooling: Enlarged VRM heatsink, Stack Cool 3+, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 utility. This Motherboard comes with the Latest connectivity, like - PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 1 Type-C and Thunderbolt 4 header, Intel WiFi 6, Intel 2.5Gb Ethernet, TUF LANGuard support. The Asus TUF Gaming H670-Pro has Two-way AI Noise-Cancelation, which Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Asus TUF Gaming H670-Pro WIFI D4 Motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage. The Asus TUF GAMING H670 motherboard is the perfect choice for your next high-core-count battle rig. In this Asus TUF Gaming H670-Pro WIFI D4, the innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. This Asus TUF GAMING motherboard provides a high-performance gaming package with a long list of features and also includes ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming. This motherboard has 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly. The latest Asus TUF Gaming H670-Pro WIFI D4 ATX Motherboard offers 03 years warranty.

What is the price of Asus TUF Gaming H670-Pro WIFI D4 Motherboard in Bangladesh?

The latest price of Asus TUF Gaming H670-Pro WIFI D4 Motherboard in Bangladesh is 24,100৳. You can buy the Asus TUF Gaming H670-Pro WIFI D4 Motherboard at best price from our website or visit any of our showrooms.
