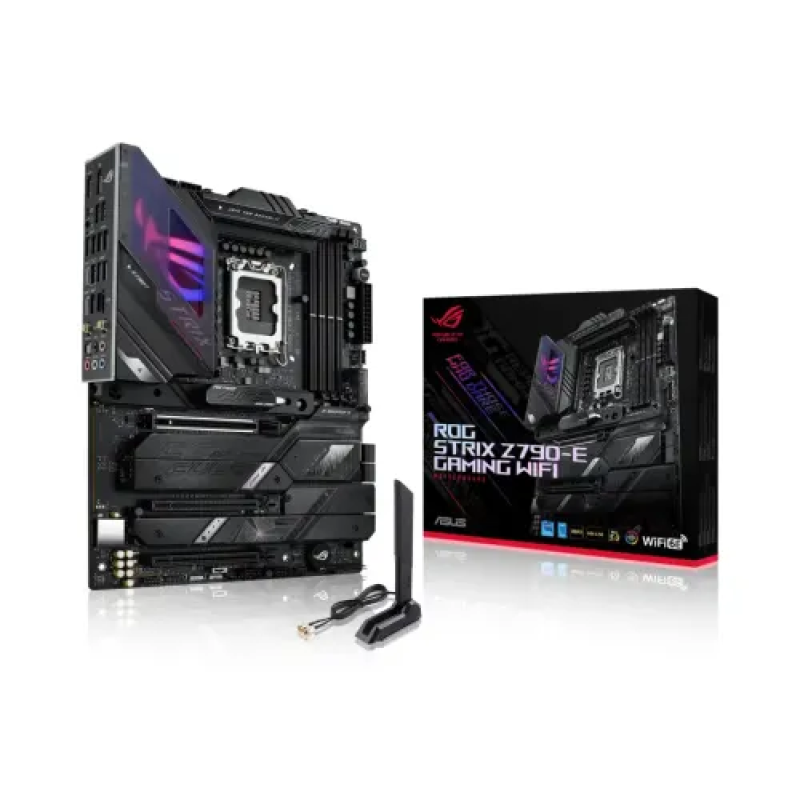

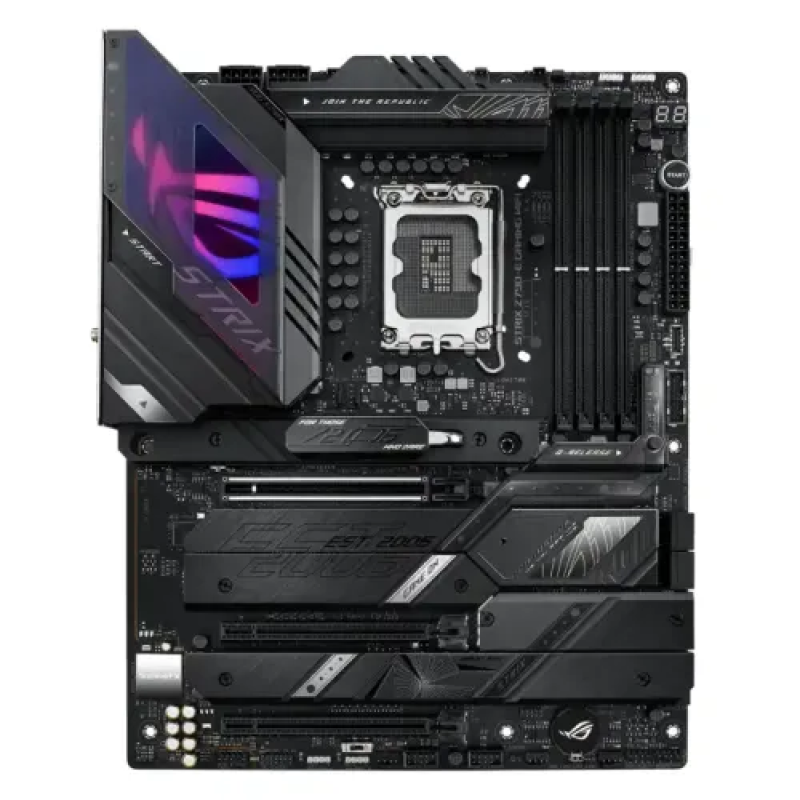

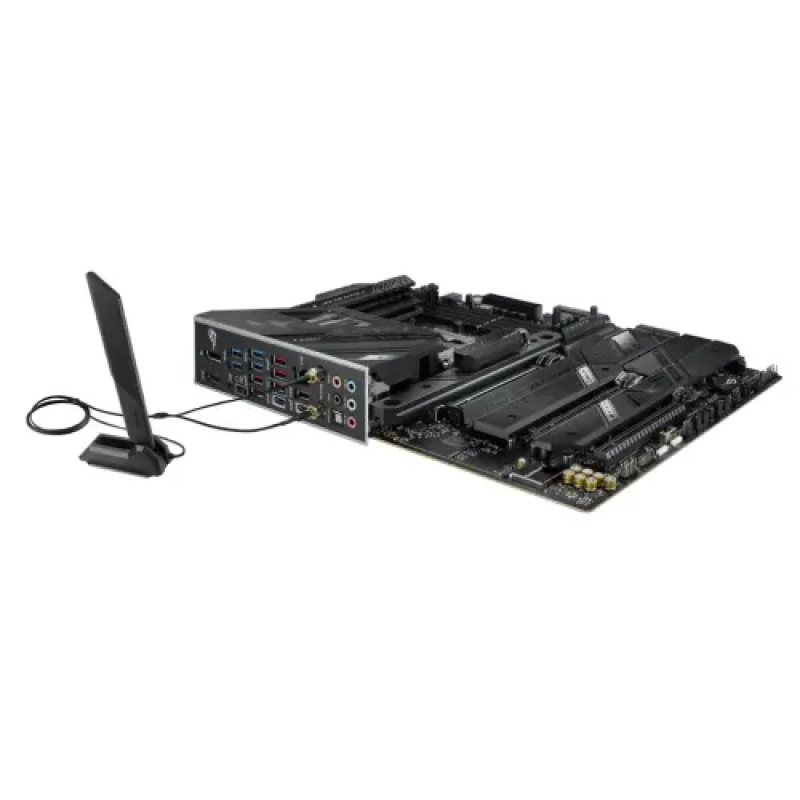

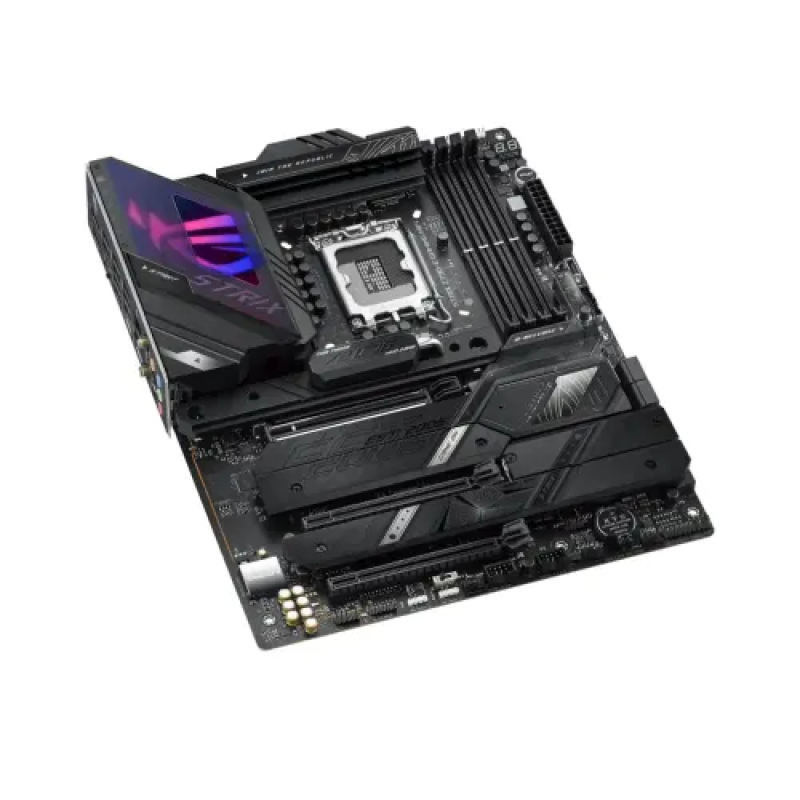

ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard

Regular Price 73,000৳
Status In Stock
Product Code 5036
Brand Asus
Short Details
  • Model: ROG STRIX Z790-E GAMING WIFI
  • Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DIMM, Max. 128GB, DDR5 7800+(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI port
  • Features: 5 x M.2 slots, Wi-Fi 6E, Bluetooth v5.3
Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Specification

Basic Information
Supported CPU Intel Socket LGA1700 for 14th Gen, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset Intel Z790 Chipset
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Audio ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Gold-plated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Expansion Slots
PCI Intel 14th, 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot

Intel Z790 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
Memory
Type DDR5
Slots 4 x DIMM
Supported Memory 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800
Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4.)
1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.)
Connector & Ports
HDMI 1 x HDMI port
Display Port (s) 1 x DisplayPort
USB (s) Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Front USB (Total 9 ports)
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
LAN Port (s) 1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless Communication module Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
Supported Storage Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel Z790 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
RAID Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio 5 x Gold-plated audio jacks
Internal I/O Ports Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers

Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connectors

Storage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports

USB
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Start button
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4) header
Others
Special Features Extreme Engine Digi+
- 5K Black Metallic Capacitors

ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot

ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design

ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- CPU Socket lever protector
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM

Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support
- Support: up to 30W charging
- Output: 5/9V max. 3A, 12V max. 2.5A
- Compatible with PD3.0
Bundled Software ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound

ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- Easy Optimization with AI Overclocking
- TPU
- DIGI+ VRM
- Turbo app
- PC Cleaner
MyAsus
Norton 360 for Gamers
WinRAR

UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
MemTest86
Warranty Information
Manufacturing Warranty 3 years

Description

ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard

ASUS ROG STRIX Z790-E GAMING WIFI 14th Gen  Motherboard features LGA 1700 socket and Z790 chipset which supports Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. This motherboard comes with 4 x DIMM that supports DDR5 Dual-Channel RAM up to 128GB of memory with speeds up to 7200 MHz when overclocked. This provides you with increased multitasking and rendering capabilities. It comes with 5x M.2 PCIe and four SATA III storage interfaces allow you to combine an array of storage drives to build a massive gaming library. It also has a single PCIe 5.0 x16 slot that supports resource-intensive graphics cards, while two PCIe 4.0 x16 (in x4 mode) and one PCIe 3.0 x1 slots support a variety of utility cards. Several USB 2.0, 3.2 Gen 1, Gen 2, and Gen 2x2 interfaces are accessible via the back panel and internal headers, providing ample support for peripherals such as mice, keyboards, and controllers as well as resource-demanding devices such as external drives. Bluetooth 5.2 technology can be used by wireless devices to provide a reliable cable-free experience. Use Wi-Fi 6E (802.11ax) to connect to your wireless network, or the integrated 2.5 Gigabit Ethernet port if you prefer a wired connection.

AI Overclocking

The ASUS ROG STRIX Z790-E GAMING WIFI can boost performance with automatic AI overclocking and cooling, enhancing your games and productivity without sacrificing thermal capabilities. AI noise cancellation is an audio-focused utility that reduces background noise, allowing others to hear you more clearly when playing team-based games or delivering presentations remotely. GameFirst VI is an artificial intelligence networking tool that prioritizes and optimizes your network connection for smoother online gameplay, which is essential for competitive online titles.

Enhanced Power Solution

ASUS ROG STRIX Z790-E GAMING WIFI delivers stable power throughout the entire motherboard, maintaining electrical volume whether performing simple tasks or operating at full power during resource-demanding processes, thanks to 16+1 70A power stages with ProCool II connectors, alloy chokes, and durable capacitors.

Comprehensive Cooling

The 14th Gen Motherboard incorporates a large VRM heatsink for capacitors and chokes, as well as integrated double-sided M.2 heatsinks and a unique PCH fanless heatsink, to ensure your system remains cool under heavy loads, delivering better thermal performance while preventing throttling. Fan Xpert 4 software and hybrid fan headers control fans and liquid pump elements for enhanced cooling that can be customized.

ROG SupremeFX 7.1 Surround Sound High Definition Audio

Immerse yourself in your favorite games with the help of high-fidelity audio powered by the Savitech SV3H712 amplifier and ROG SupremeFX 7.1-channel ALC4080 codec. Premium capacitors and audio jacks with gold plating enhance audio conductivity for a dependable signal and reduce static and other interference.

Leading Connectivity

The ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard provides reliable connectivity for your peripherals between the internal headers and the backplate. Webcams, microphones, and external storage drives can transfer data at speeds of up to 5 and 10 Gb/s through USB-A and USB-C 3.2 Gen 1 and Gen 2 ports, respectively. For devices that require a lot of resources, like storage arrays and audio interfaces, a USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s data transfer speed. In addition to facilitating data transfer, a front panel USB-C 3.2 Gen 2x2 port provides up to 30W Power Delivery to charge and support peripherals that require a lot of resources. With an internal Thunderbolt 4 header, you can increase your connectivity and take advantage of high-speed connectivity that supports quick transfer rates and Power Delivery technologies.

What is the price of ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard in Bangladesh?

The latest price of ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard in Bangladesh is 73,000৳. You can buy the ASUS ROG STRIX Z790-E GAMING WIFI ATX Motherboard at best price from our website or visit any of our showrooms.
