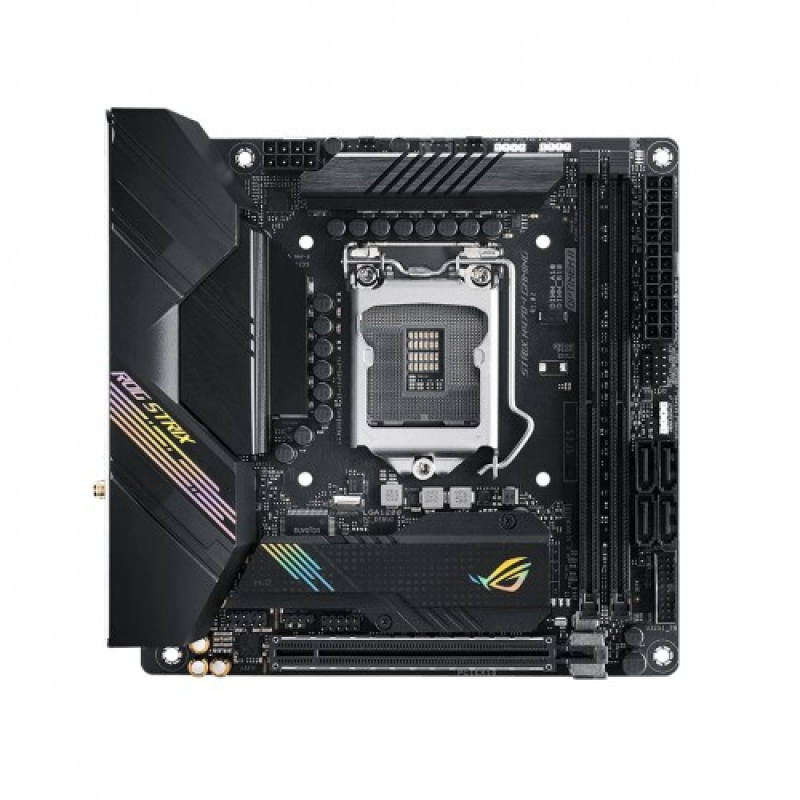

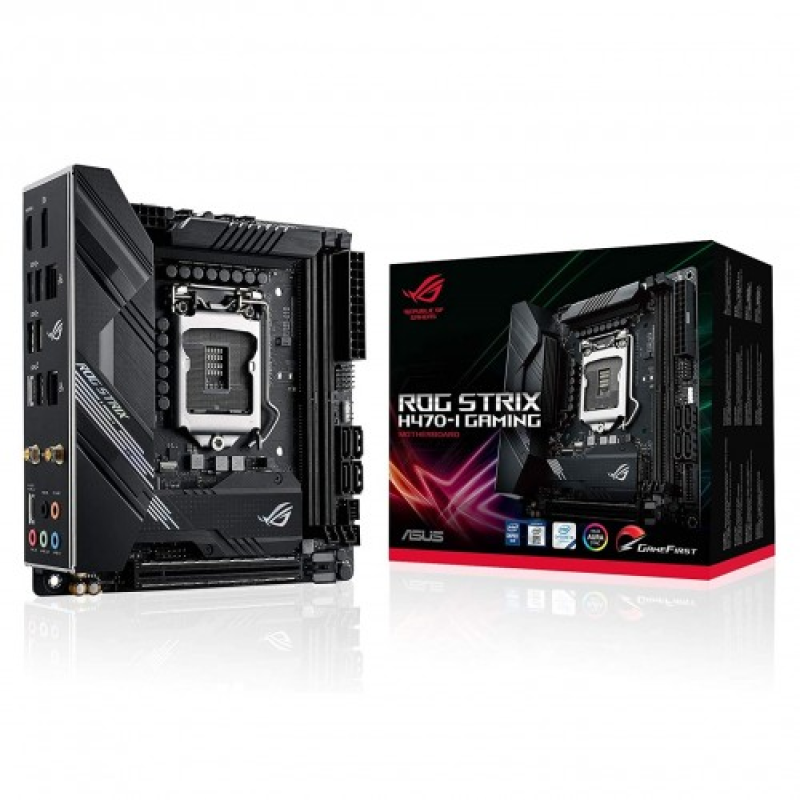

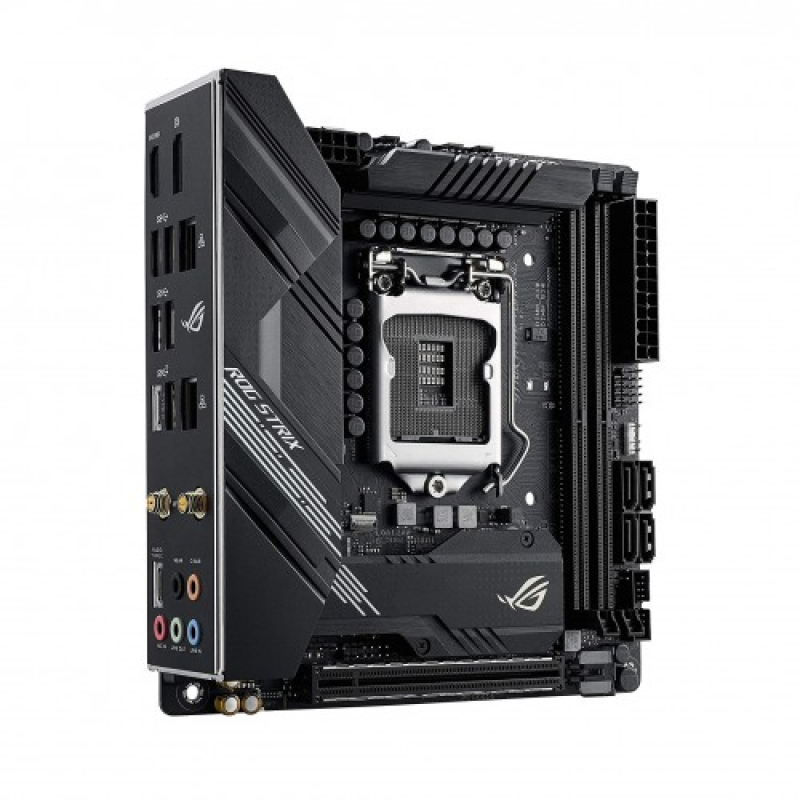

Asus ROG STRIX H470-I GAMING 10th Gen Mini ITX Motherboard

Regular Price	17,200৳
Product Code	4928
Brand	Asus

Short Details

Model: ROG STRIX H470-I GAMING
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports 2 x DIMM, Max. 64GB, DDR4 Memory
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel Wi-Fi 6 AX201, ASUS LANGuard

More Info

17200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket 1200for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Supports Intel 14nm CPU
Chipset	Intel H470
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini ITX Form Factor 6.7 inch x 6.7 inch (17 cm x 17 cm)
Audio	ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC - Rear audio USB Type-C port - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
Expansion Slots
PCI	Intel 10th Gen Processors 1 x PCIe 3.0 x16
Memory
Type	DDR4
Slots	2 x DIMM
Supported Memory	DDR4 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * OptiMem II * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Maximum Memory	Max. 64GB
Graphics
Graphics	1 x DisplayPort 1.4 Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. 1 x HDMI 1.4b *Graphics specifications may vary between CPU types. Integrated Graphics Processor

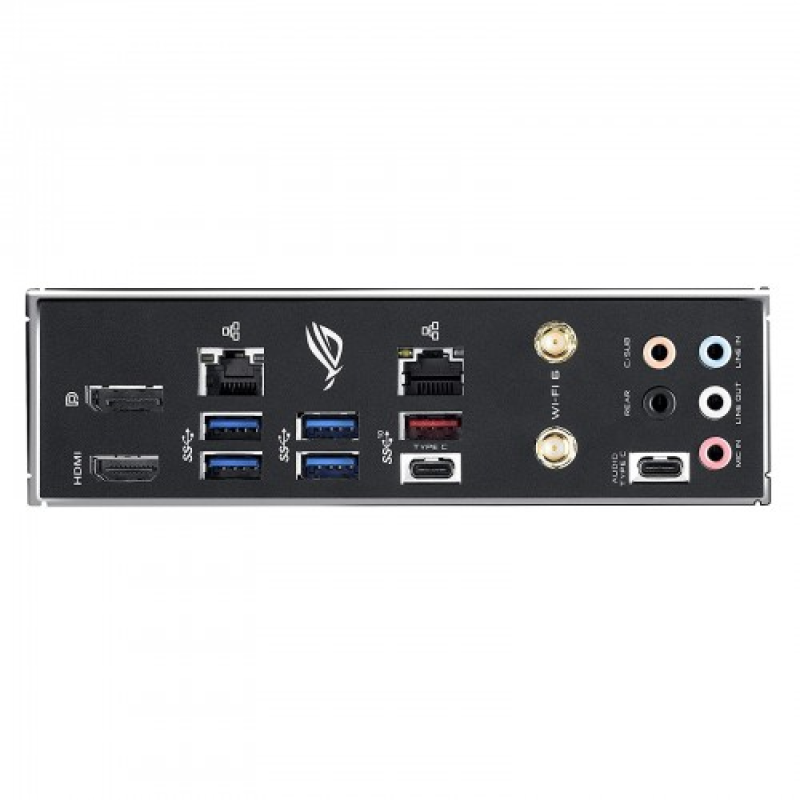

Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort
USB (s)	1 x USB 2.0 port(s)(1 x USB Type-C) Front USB Port ( Total 4 ) Rear USB Port ( Total 7 ) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 3.2 Gen 2 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s)
LAN Port (s)	Realtek RTL8111H 1Gb Ethernet Intel I219-V 1Gb Ethernet ASUS LANGuard
Wireless Communication module	Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Up to 2.4Gbps transfer speed
Supported Storage	1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support*2 Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 4 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Intel Optane Memory Ready
Audio	5 x Audio jack(s)
Internal I/O Ports	1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x Aura RGB Strip Headers 2 x M.2 Socket 3 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x M.2 with E key for Wi-Fi module 4 x SATA 6Gb/s connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Addressable RGB header
Others
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - Procool - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) Rear audio USB Type-C connector
Bundled Software	[ROG Exclusive Software] - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility: -TurboV EVO, EPU, Digi+ VRM, Fan Xpert 4 - EZ update ASUS CPU-Z DAEMON Tools WinRAR [UEFI BIOS] ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 Years

Description

Asus ROG STRIX H470-I GAMING 10th Gen Mini ITX Motherboard

The Asus ROG STRIX H470-I GAMING Motherboard features Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors. It has been designed with solid power delivery and effective cooling. With its arresting futuristic aesthetic and intuitive ROG software, ROG Strix H470-I Gaming gives you a head start on your dream gaming build. The robust power design and comprehensive cooling features of Strix H470-I Gaming ensure great all-around performance, and an intuitive dashboard gives you full networking control. 6+2 power stages combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest Intel processors demand. The Asus ROG STRIX H470-I GAMING provides you with the latest connectivity for supersmooth online experiences and blisteringly fast file transfers. It comes with Reversible USB 3.2 Gen 2 Type-C ports that provide ultrafast data transfers at speeds of up to 10 Gbps. It has a memory design that supports up to 32 GB per DIMM slot to give you a total memory capacity of 64 GB. Two M.2 slots are available, with one supporting both SATA and PCI Express 3.0 x4 modes, and the other supporting PCIe 3.0 x4 for NVMe. The Asus ROG STRIX H470-I GAMING Motherboard comes with 3 years of warranty.

What is the price of Asus ROG STRIX H470-I GAMING 10th Gen Motherboard in Bangladesh?

The latest price of Asus ROG STRIX H470-I GAMING 10th Gen Motherboard in Bangladesh is 17,400৳. You can buy the Asus ROG STRIX H470-I GAMING 10th Gen Motherboard at best price from our website or visit any of our showrooms.
