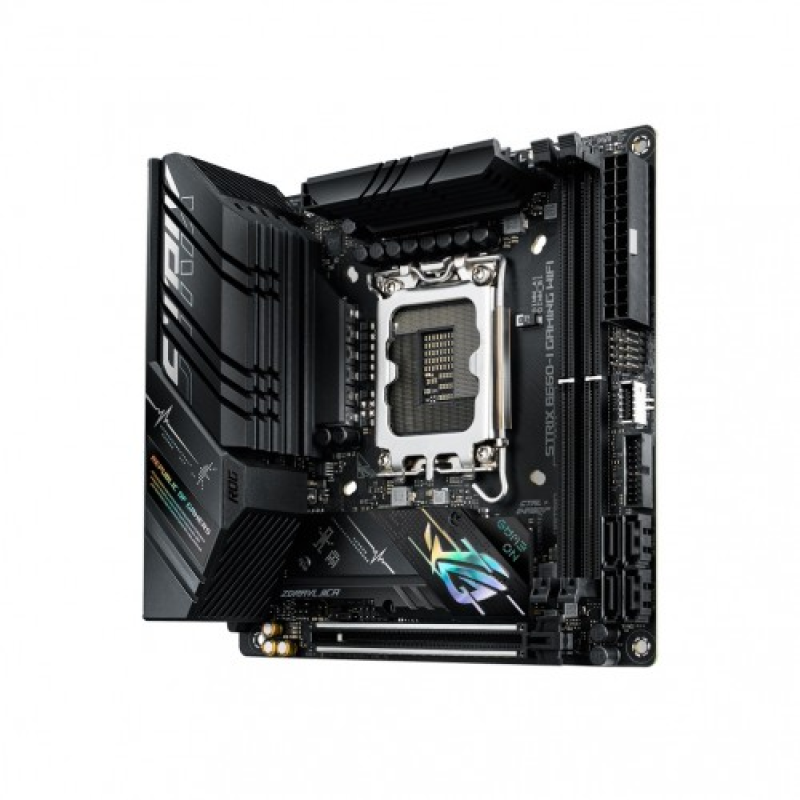

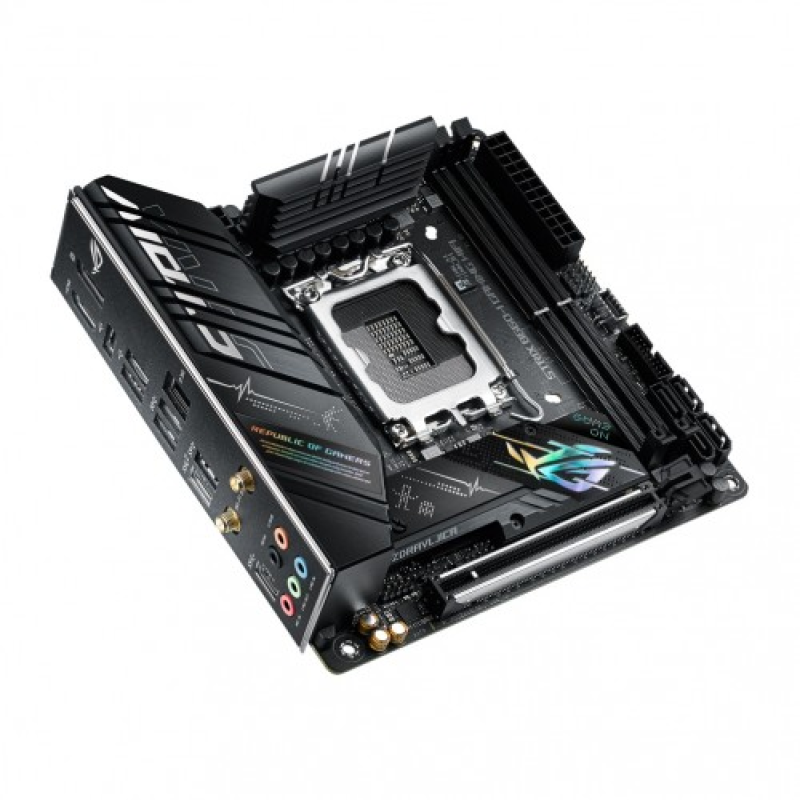

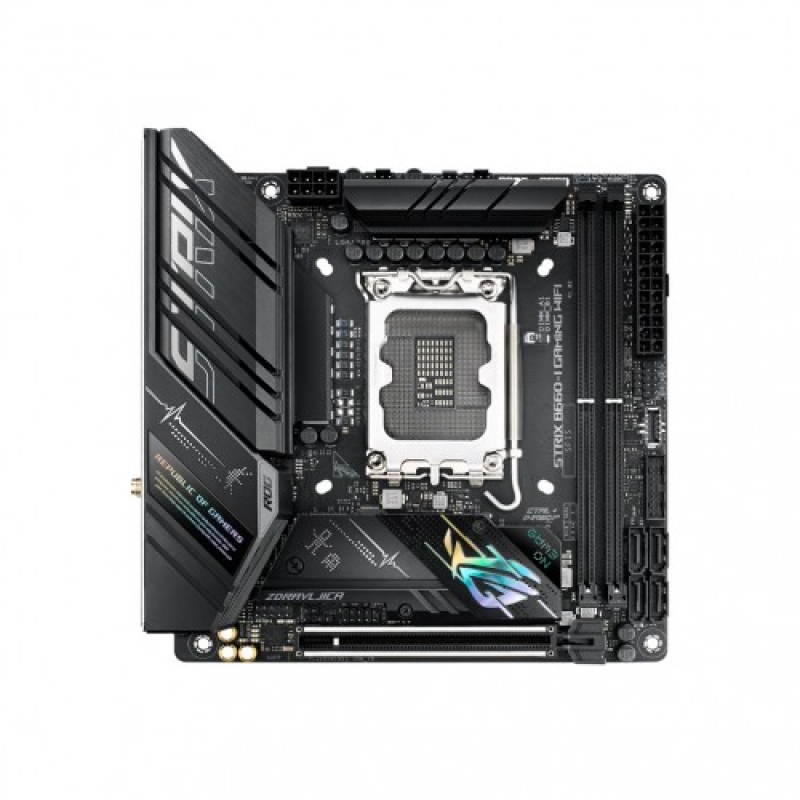

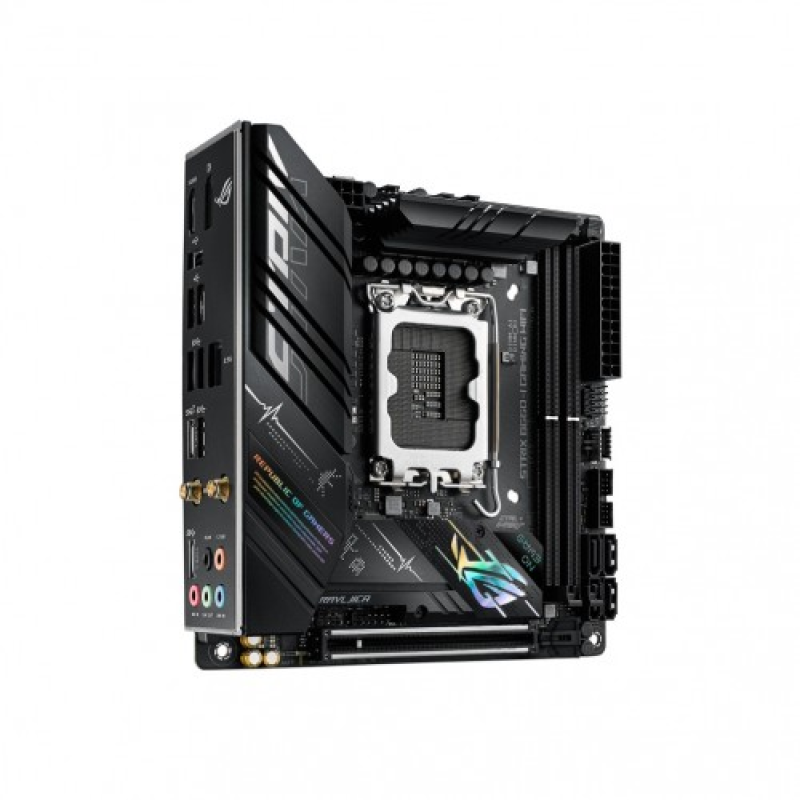

ASUS ROG STRIX B660-I GAMING WIFI ITX Motherboard

Regular Price	24,200৳
Product Code	4980
Brand	Asus

Short Details

Model: ROG STRIX B660-I GAMING WIFI
Intel LGA 1700 Socket for 14th, 13th & 12th Gen Core, Pentium Gold & Celeron
2 x DIMM, Max. 64GB, DDR5 6200(OC)
2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet

More Info

24200৳

Product Price

Contact for bulk quantity: 0 1733-080376 , 01733-080350 ,

Share:

Specification
Description
Question
Review

Specification

Basic Information
Supported CPU	Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel B660 Chipset
BIOS	128 Mb Flash ROM, UEFI AMI BIOS
Form Factor	Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
Audio	"ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Expansion Slots
PCI	Intel 12th Gen Processors 1 x PCIe 5.0 x16 slot
Memory
Type	DDR5
Slots	2 x DIMM
Supported Memory	6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II
Maximum Memory	Max. 64GB
Graphics
Graphics	1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI ports (Supports 4K@60Hz as specified in HDMI 2.1)
Connector & Ports
HDMI	1 x HDMI port
Display Port (s)	1 x DisplayPort
USB (s)	Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
LAN Port (s)	1 x Intel I225-V 2.5Gb Ethernet ASUS LANGuard
Wireless Communication module	Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.2
Audio	5 x Audio jacks
Internal I/O Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header
Others
Special Features	Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB header
Bundled Software	ROG Exclusive Software - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Turbo app MyAsus WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
Warranty Information
Manufacturing Warranty	3 years

Description

ASUS ROG STRIX B660-I GAMING WIFI ITX Motherboard

The ASUS ROG STRIX B660-I GAMING WIFI Supports 14th, 13th & 12th Gen Intel processors and Intel LGA 1700 socket and Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. This motherboard comes with an enhanced power solution, so that 10 power stages, a six-layer PCB, ProCool socket, military-grade TUF components, and Digi+ VRM for maximum durability. It has a comprehensive cooling system- an Enlarged VRM heatsink, Flexible M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+. Here, the PCIe 4.0 slot, PCIe 4.0 M.2 slots, and front USB 3.2 Gen 2 Type-C Latest connectivity are also available. This 12th Gen motherboard is specially made for online gaming: Realtek 2.5Gb Ethernet, TUF LANGuard. This motherboard also has Two-way AI Noise-Cancelation, which helps to reduce Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. The motherboard comes with upgraded power delivery and comprehensive cooling options to drive the 12th Gen Intel Core processors, plus support for faster memory and storage, ASUS ROG STRIX B660-I GAMING WIFI motherboard is the perfect foundation for your next high-core-count battle rig. The new ASUS ROG STRIX B660-I GAMING WIFI motherboards provide a high-performance gaming package with a long list of features including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. the latest ASUS ROG STRIX B660-I GAMING WIFI motherboard offers 03 years warranty.

What is the price of ASUS ROG STRIX B660-I GAMING WIFI Motherboard in Bangladesh?

The latest price of ASUS ROG STRIX B660-I GAMING WIFI Motherboard in Bangladesh is 24,400৳. You can buy the ASUS ROG STRIX B660-I GAMING WIFI Motherboard at best price from our website or visit any of our showrooms.
